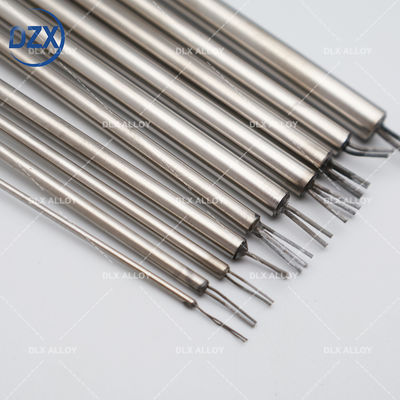

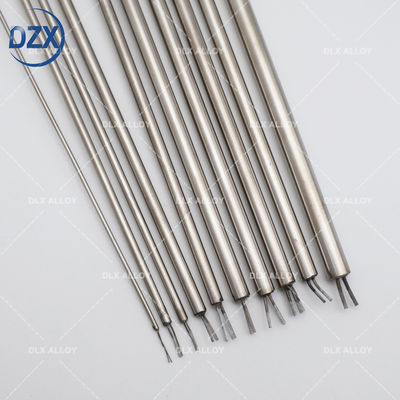

K Type Thermocouple Mineral Insulated Electrical Cables MI Cable
Our Product Introduction
for more products please visit us on victory-alloy.com
Basic Information
Place of Origin:
China
Brand Name:
Victory
Certification:
CE,ROHS,ISO 9001
Model Number:
K,N,E,J,T,B,R,S Types
Minimum Order Quantity:
5 Kg
Price:
50 - 499 meters $3.00
Packaging Details:
in coils, carton and wooden case.
Delivery Time:
5-21 days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
50 - 999 meters $2.88
K Type Thermocouple Mineral Insulated Electrical Cables MI Cable
Product Specification
Product Name:
MI Thermocouple Cable
Warranty:
1 Year
Conductor Material:
NiCr-NiSi,NiCrSi-NiSi, NiCr-Konstantan, Fe-Konstantan, Cu-Kon
Sheath Material:
SS304,SS321, SS316, SS310, INCL600,601, Nicrobell,SS446
Dia(mm):
0.25mm To 12.7mm
Insulator:
99.6% High Purity MgO
Temperature Range:
0~1100(℃)
Size:
Customized Size
Customized Support:
OEM, ODM, OBM, Software Reengineering
Application:
Temperature Measuring
Highlight:

Type K Mineral Insulated Thermocouple Cable

,

Oil Mineral Insulated Thermocouple Cable

,

Gas mineral insulated thermocouple

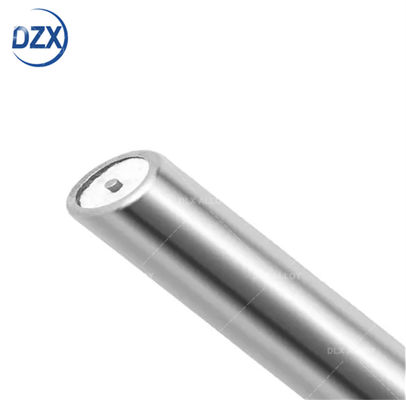

K Type Thermocouple Mineral Insulated Electrical Cables MI Cable
More Images

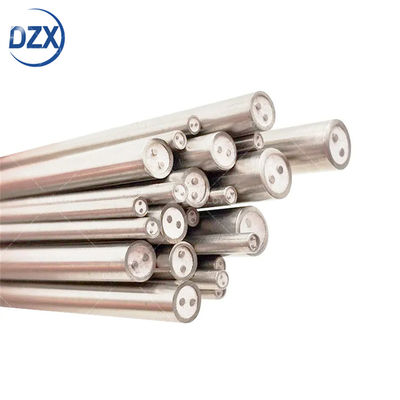

K Type Thermocouple Mineral Insulated Electrical Cables MI Cable

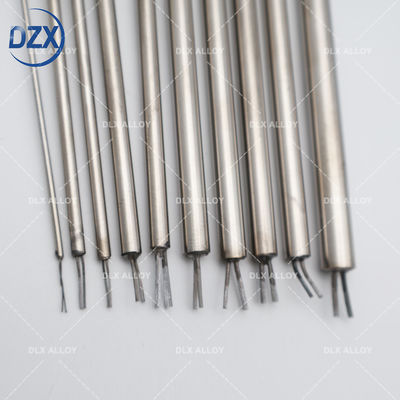

K Type Thermocouple Mineral Insulated Electrical Cables MI Cable
K Type Thermocouple Mineral Insulated Electrical Cables MI Cable
Our Product Introduction
for more products please visit us on victory-alloy.com
Product Description

Name: Mineral Insulated Cable
Type: K, N, E, J, T
Conductor material: NiCr-NiSi,NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
Insulator: 99.6% high purity MgO
Core number: 2, 4, 6
Sheath material: SS321(SS304), SS316, SS310, INCL600,601, Nicrobell,SS446,SS347,800,800H,825,INCONEL601,INCONEL625,GH4145 and GH3128
Dia(mm): from 0.25mm to 12.7mm
Application: connecting with thermocouple and instrument machine
MOQ: 100m
Certificate: ISO,SGS
Making sample time: all type in stock
Trade term: FOB, EXW, CIF, CFR
Payment term: T/T,Western Union, L/C
Advantage: Competitive price and best service





Code
Wire Component of the thermocouple
+Positive leg
- Negative Leg
N
Ni-Cr-Si(NP)
Ni-Si-magnesium (NN)
K
Ni-Cr(KP)
Ni-Al(Si) (KN)
E
Ni-Cr(EP)
Cu-Ni (EN)
J
Iron (JP)
Cu-Ni (JN)
T
Copper (TP)
Cu-Ni (TN)
B
Platinum Rhodium-30%
Platinum Rhodium -6%
R
Platinum Rhodium-13%
Platinum
S
Platinum Rhodium -10%
Platinum



Material
Type
Grade
Working temperature (deg)
Tolerance
Standard
Long Term
Short Term
NiCr-NiSi
K
1
-40~1100
-40~1300
±1.5 deg
GB/T 2614-1998
2
±2.5 deg
NiCr-CuNi
E
1
-40~800
-40~900
±1.5 deg
GB/T 4993-1998
2
±2.5 deg
Fe-Constantan
J
1
-40~600
-40~800
±1.5 deg
GB/T 4994-1998
2
±2.5 deg
Cu-CuNi
T
1
-200~300
-200~400
±0.5 deg
GB/T 2903-1998



Outer Sheath(mm)
core wire Dia.( mm)
Outer Sheath(mm)o core wire Dia.( mm)
Length(m)
Out Dia
Wall Thickness
K,N,E,J,T Types
S,R,B Types
K,N Types
E,J,T Types
S,R Types
B Types

0.5
0.05-0.10
0.08-0.12
...
SS304,
SS321,
SS316,
SS310,
INCL600
SS30,
SS32,
SS316
INCL60,
INCL800
INCL60,
INCL800
500
1.0
0.10-0.20
0.15-0.20
...
300
1.5
0.15-0.25
0.23-0.30
...
200
1.6
0.16-0.26
0.26-0.36
...
200
2.0
0.25-0.35
0.40-0.50
0.25-.030
180
3.0
0.38-0.48
0.50-0.60
0.30-0.40
80
3.2
0.48-0.58
0.58-0.68
0.30-0.40
75
4.0
0.52-0.62
0.60-0.70
0.35-0.40
70
4.8
0.73-0.83
0.75-0.85
0.40-0.45
40
5.0
0.78-0.88
0.80-0.90
0.40-0.45
40
6.0
0.98-1.08
0.90-1.10
0.45-0.50
30
6.4
1..05-1.15
1.02-1.12
0.45-0.50
30
8.0
1.30-1.44
1.30-1.40
0.45-0.50
20
12.7
1.75-1.90
1.95-2.05
...
10



MI thermocouple cables, also known as mineral-insulated thermocouple cables, find applications in various industries that require accurate temperature measurement. Some common areas of application for MI thermocouple cables include:
1. Industrial Processes: MI thermocouple cables are widely used in industrial processes such as oil and gas, chemical processing, power generation, and metal refining. They enable precise temperature monitoring and control in these environments.
2. Furnaces and Kilns: MI thermocouple cables are employed in high-temperature applications like furnaces, kilns, and incinerators. They can withstand extreme temperatures and provide reliable temperature measurements in harsh conditions.
3. Aerospace and Aviation: MI thermocouple cables are utilized in the aerospace and aviation industries for temperature monitoring in aircraft engines, gas turbines, and rocket propulsion systems. They play a crucial role in ensuring safe and efficient operation.
4. Research and Development: MI thermocouple cables are used in scientific research laboratories and development facilities for accurate temperature measurement in experiments, testing, and prototype development.
5. Automotive Industry: MI thermocouple cables are employed in the automotive sector for temperature monitoring in engines, exhaust systems, and other critical components. They help optimize performance, fuel efficiency, and emissions control.
6. Food Processing: MI thermocouple cables are utilized in food processing applications to monitor and control temperatures in ovens, boilers, and other cooking or cooling processes. They contribute to ensuring food safety and quality.
7. Pharmaceutical and Biotechnology: MI thermocouple cables find application in pharmaceutical and biotechnology industries for temperature monitoring in drug manufacturing, fermentation processes, and sterilization equipment.
These are just a few examples of the application areas for MI thermocouple cables. Their versatility, accuracy, and durability make them suitable for a wide range of industries where precise temperature monitoring is essential.
