B/R/S Type Platinum Rhodium Thermocouple Bare Wire 0.3mm / 0.4mm / 0.5mm
Our Product Introduction
for more products please visit us on victory-alloy.com
Basic Information
Place of Origin:
China
Brand Name:
Victory
Certification:
CE,ROHS,ISO 9001
Model Number:
K,N,E,J,T,B,R,S Types
Minimum Order Quantity:
5 Kg
Price:
5 - 499 kilograms $35.00
Packaging Details:

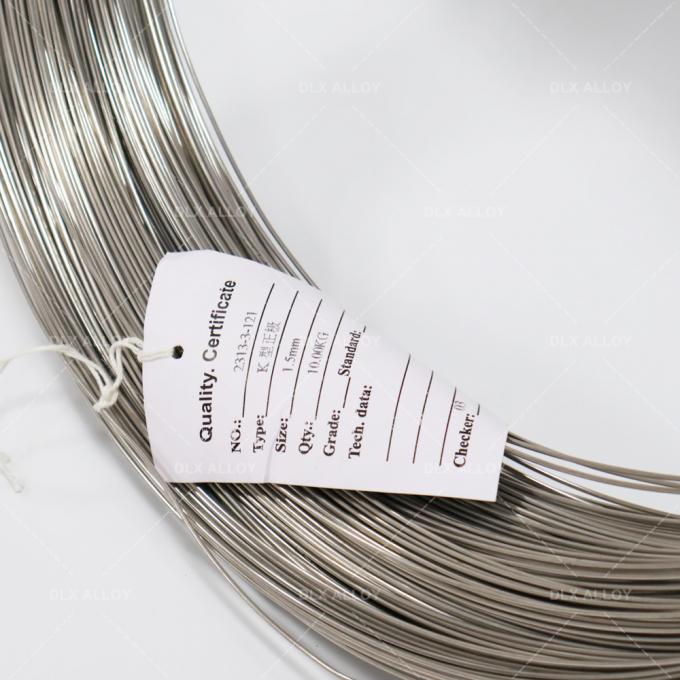

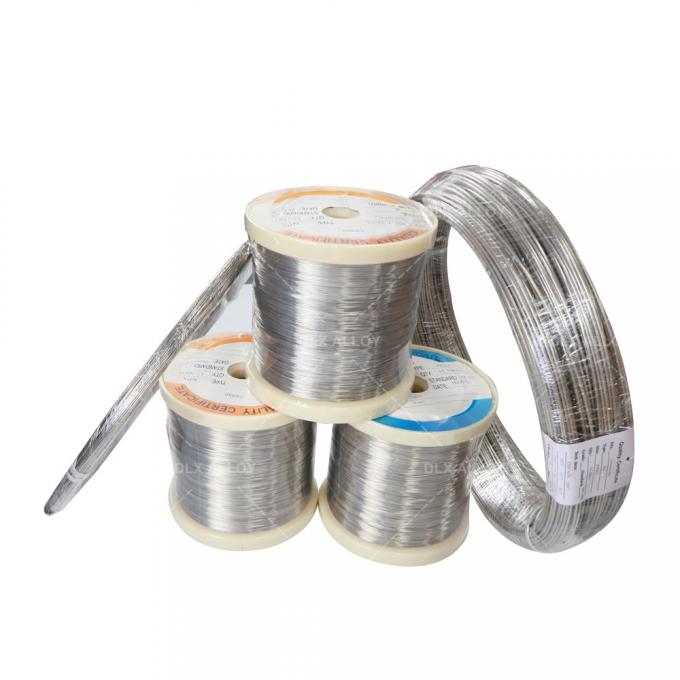

Thermocouple wire are rolled on ABS white spool and packed with plastic film,in cartoon boxes.
Special packaging requirements can also be accommodated.
OEM is also acceptable
Delivery Time:
5-21 days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
300 tons per month
B/R/S Type Platinum Rhodium Thermocouple Bare Wire 0.3mm / 0.4mm / 0.5mm
Product Specification
Product Name:
Thermocouple Bare Wire
Temperature Range:
-58 To 2700F (-50 To 1480C)
EMF Tolerance:
+/- 1.5C Or +/- .25%
Diameter:
0.12-8mm
Temperature:
Max 1300℃
Density:
7.4g/cm3
Resistivity:
1.35±0.06
Tensile Strength:
600-700 Mpa
Conductor Type:
Solid
Condition:
Soft Annealed
Size:
Customized Size
Application:
Cable & Wire
Highlight:

0.4mm Platinum Rhodium Thermocouple Bare Wire

,

0.3mm Platinum Rhodium Thermocouple Bare Wire

,

0.5mm Platinum Rhodium Thermocouple Bare Wire

B/R/S Type Platinum Rhodium Thermocouple Bare Wire 0.3mm / 0.4mm / 0.5mm
More Images

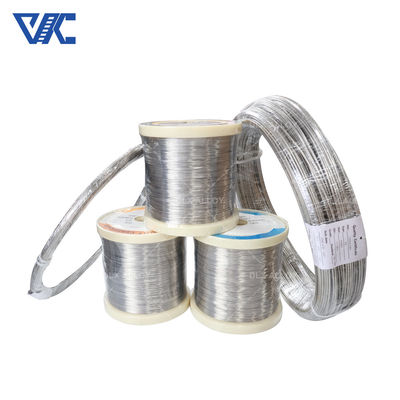

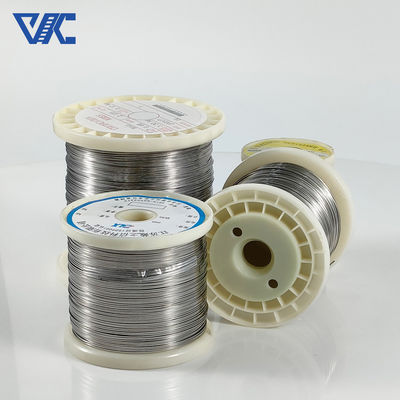

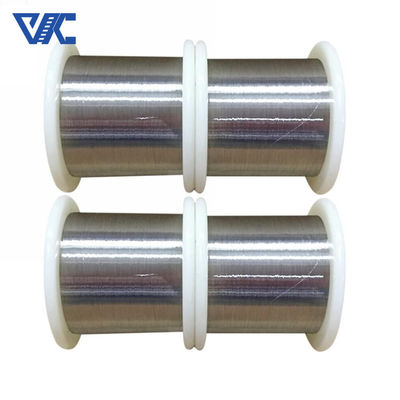

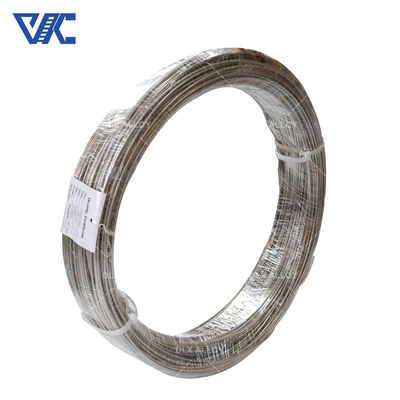

B/R/S Type Platinum Rhodium Thermocouple Bare Wire 0.3mm / 0.4mm / 0.5mm
B/R/S Type Platinum Rhodium Thermocouple Bare Wire 0.3mm / 0.4mm / 0.5mm
Our Product Introduction
for more products please visit us on victory-alloy.com
Product Description

The Thermocouple bare wire product series provides a variety of models and specifications, including K-type, J-type, T-type and E-type. Each model features a different combination of metals to accommodate different temperature ranges and environmental conditions.

These Thermocouple bare wires have high-precision temperature measurement capabilities and are typically able to achieve low temperature deviations. They have fast response speed and can accurately capture temperature changes, providing reliable data for real-time temperature monitoring and control.

Thermocouple bare wire is also flexible and customizable. They are usually in the form of exposed wires that can be easily bent, cut and installed where the temperature needs to be measured. In addition, depending on the specific needs, options such as different lengths, diameters and connectors are available to meet the requirements of specific applications.



Code
Wire Component of the thermocouple
+Positive leg
- Negative Leg
N
Ni-Cr-Si(NP)
Ni-Si-magnesium (NN)
K
Ni-Cr(KP)
Ni-Al(Si) (KN)
E
Ni-Cr(EP)
Cu-Ni (EN)
J
Iron (JP)
Cu-Ni (JN)
T
Copper (TP)
Cu-Ni (TN)
B
Platinum Rhodium-30%
Platinum Rhodium -6%
R
Platinum Rhodium-13%
Platinum
S
Platinum Rhodium -10%
Platinum
ASTM
(American Society for Testing and Materials) E 230
ANSI
(American National Standard Institute) MC 96.1
IEC
(European Standard by the International Electrotechnical Commission 584)-1/2/3
DIN
(Deutsche Industrie Normen) EN 60584-1/2
BS
(British Standards) 4937.1041, EN 60584-1/2
NF
(Norme Francaise) EN 60584-1/2-NFC 42323-NFC 42324
JIS
(Japanese Industrial Standards) C 1602-C 1610
GOST
(Unification of the Russian Specifications) 3044



Using Occastion of Different Thermocouple
Thermocouple Type
Working Atmosphere
Working Temperature
Type K
KP
Oxidizing
-200 to +1200℃
KN
Inert
Type K
NP
Oxidizing
-200 to +1200℃
NN
Oxidizing
Type K
EP
Oxidizing
-200 to +900℃
EN
Oxidizing
Type K
JP
Oxidizing(use in high temp)
-40 to +750℃
JN
Reducing, Inert, Vacuum
Type K
TP
Oxidizing,Vacuum
-200 to +350℃
TN
Reducing, Vacuum
