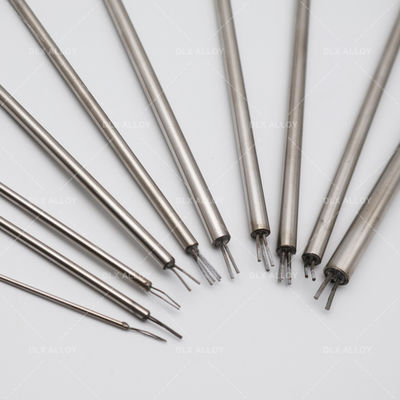

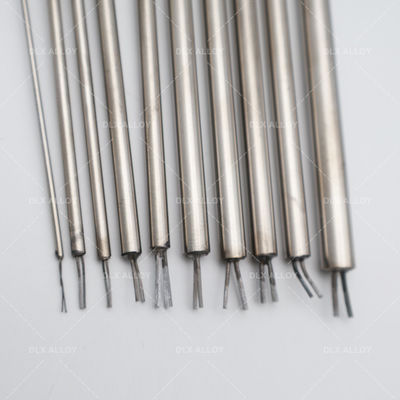

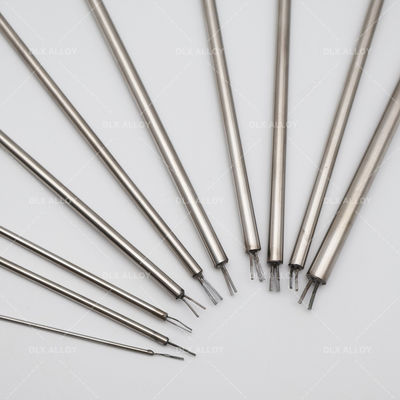

Mineral Insulated Cable MI Thermocouple Cable With Certifications
Our Product Introduction
for more products please visit us on victory-alloy.com
Basic Information
Place of Origin:
China
Brand Name:
Victory
Certification:
CE,ROHS,ISO 9001
Model Number:
K,N,E,J,T,B,R,S Types
Minimum Order Quantity:
5 Kg
Price:
50 - 499 meters $3.00
Packaging Details:
in coils, carton and wooden case.
Delivery Time:
5-21 days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
50 - 999 meters $2.88
Mineral Insulated Cable MI Thermocouple Cable With Certifications
Product Specification
Product Name:
MI Thermocouple Cable
Warranty:
1 Year
Conductor Material:
NiCr-NiSi,NiCrSi-NiSi, NiCr-Konstantan, Fe-Konstantan, Cu-Kon
Sheath Material:
SS304,SS321, SS316, SS310, INCL600,601, Nicrobell,SS446
Dia(mm):
0.25mm To 12.7mm
Insulator:
99.6% High Purity MgO
Temperature Range:
0~1100(℃)
Size:
Customized Size
Customized Support:
OEM, ODM, OBM, Software Reengineering
Application:
Temperature Measuring
Highlight:

SS304 Mineral Insulated Cable

,

MI Thermocouple Cable

Mineral Insulated Cable MI Thermocouple Cable With Certifications
More Images
Mineral Insulated Cable MI Thermocouple Cable With Certifications
Mineral Insulated Cable MI Thermocouple Cable With Certifications
Our Product Introduction
for more products please visit us on victory-alloy.com
Product Description

MI Thermocouple Cable is a high performance mineral insulated thermocouple cable that provides reliable temperature measurement and control solutions. This product series covers a variety of models, including K-type, N-type, E-type, J-type, T-type, B-type, R-type and S-type. Each model corresponds to a different thermocouple type, suitable for various temperature ranges and application scenarios.

Type K thermocouples are suitable for a wide range of industrial applications, with a wide temperature range and good linear characteristics. N-type thermocouples are suitable for high temperature measurements and have high stability and oxidation resistance. Type E thermocouples are suitable for higher temperature ranges and have good stability and low drift performance. Type J thermocouples are suitable for lower temperature ranges and have higher sensitivity and linearity. T-type thermocouples are suitable for low-temperature measurements and have good stability and corrosion resistance. Type B, R and S thermocouples are suitable for extremely high temperature measurements and have the characteristics of high stability and strong corrosion resistance.





Code
Wire Component of the thermocouple
+Positive leg
- Negative Leg
N
Ni-Cr-Si(NP)
Ni-Si-magnesium (NN)
K
Ni-Cr(KP)
Ni-Al(Si) (KN)
E
Ni-Cr(EP)
Cu-Ni (EN)
J
Iron (JP)
Cu-Ni (JN)
T
Copper (TP)
Cu-Ni (TN)
B
Platinum Rhodium-30%
Platinum Rhodium -6%
R
Platinum Rhodium-13%
Platinum
S
Platinum Rhodium -10%
Platinum



Material
Type
Grade
Working temperature (deg)
Tolerance
Standard
Long Term
Short Term
NiCr-NiSi
K
1
-40~1100
-40~1300
±1.5 deg
GB/T 2614-1998
2
±2.5 deg
NiCr-CuNi
E
1
-40~800
-40~900
±1.5 deg
GB/T 4993-1998
2
±2.5 deg
Fe-Constantan
J
1
-40~600
-40~800
±1.5 deg
GB/T 4994-1998
2
±2.5 deg
Cu-CuNi
T
1
-200~300
-200~400
±0.5 deg
GB/T 2903-1998



Outer Sheath(mm)
core wire Dia.( mm)
Outer Sheath(mm)o core wire Dia.( mm)
Length(m)
Out Dia
Wall Thickness
K,N,E,J,T Types
S,R,B Types
K,N Types
E,J,T Types
S,R Types
B Types

0.5
0.05-0.10
0.08-0.12
...
SS304,
SS321,
SS316,
SS310,
INCL600
SS30,
SS32,
SS316
INCL60,
INCL800
INCL60,
INCL800
500
1.0
0.10-0.20
0.15-0.20
...
300
1.5
0.15-0.25
0.23-0.30
...
200
1.6
0.16-0.26
0.26-0.36
...
200
2.0
0.25-0.35
0.40-0.50
0.25-.030
180
3.0
0.38-0.48
0.50-0.60
0.30-0.40
80
3.2
0.48-0.58
0.58-0.68
0.30-0.40
75
4.0
0.52-0.62
0.60-0.70
0.35-0.40
70
4.8
0.73-0.83
0.75-0.85
0.40-0.45
40
5.0
0.78-0.88
0.80-0.90
0.40-0.45
40
6.0
0.98-1.08
0.90-1.10
0.45-0.50
30
6.4
1..05-1.15
1.02-1.12
0.45-0.50
30
8.0
1.30-1.44
1.30-1.40
0.45-0.50
20
12.7
1.75-1.90
1.95-2.05
...
10
