What is Nitinol Wire?
Nitinol memory wire, an alloy composed of nickel and titanium, has become an essential material in the medical field due to its remarkable properties, including superelasticity and shape memory. This alloy is capable of returning to its original form after significant deformation, making it an ideal choice for precision components used in medical devices such as guidewires, stents, and catheters. At Victory Supplier, we provide affordable Nitinol memory wire with superior quality, ensuring reliability and performance for all your medical device needs.
Due to its unique characteristics, Nitinol wire has revolutionized medical technology, particularly in minimally invasive (MI) and interventional procedures. The wire’s ability to perform effectively in complex, high-stress environments, such as within the human body, makes it a go-to choice for high-precision applications.
Wire Shape | Titanium alloy round wire, flat wire, square wire, D-shaped wire, triangular wire, bidirectional drive wire |
Wire Surface Condition | Black oxide state, light oxide state (from golden yellow to brown), clean state, bright state, polished state |

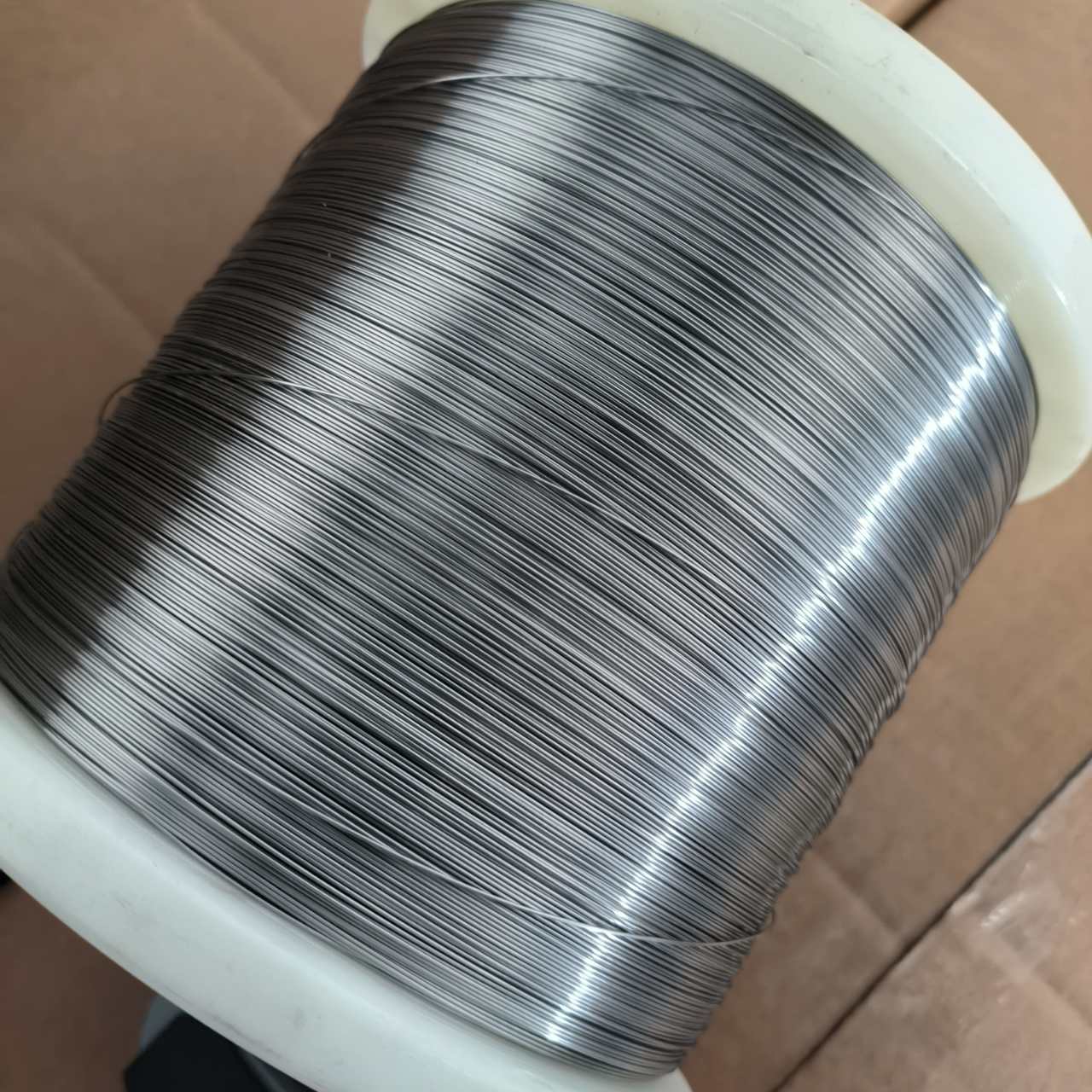

Wire Packaging | I-beam reels: To ensure that the nickel-titanium wire is evenly distributed on the packaging reel, without breakage or tangled threads Fixed length: Can be cut to fixed length according to customer requirements |
Features of Nitinol Alloy Wire
Superelasticity
Nitinol memory wire is highly superelastic, meaning it can endure large deformations and return to its original shape once stress is removed. This property ensures that medical devices perform effectively, especially in interventional applications.Shape Memory Effect
One of the most distinct features of Nitinol wire is its shape memory effect, which allows the material to "remember" its original form. This characteristic is critical for medical devices that need to conform to the body’s natural anatomy, such as stents and guidewires.Corrosion Resistance
Nitinol wire is highly resistant to corrosion, making it durable and suitable for long-term use in medical environments. This property ensures the longevity of medical devices even when exposed to bodily fluids.Biocompatibility
Nitinol is biocompatible, meaning it is safe to use in direct contact with human tissue. This reduces the risk of adverse reactions, making it an optimal choice for implants and devices used within the human body.High Strength-to-Weight Ratio
With an excellent strength-to-weight ratio, Nitinol wire is both strong and lightweight, providing durability without adding unnecessary bulk to medical devices
Wire Diameter and Tolerance
Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) |
4.000-2.000mm | ±0.025mm | 0.350-0.260mm | ±0.010mm | 0.080-0.050mm | ±0.005mm |
2.000-1.000mm | ±0.020mm | 0.260-0.150mm | ±0.007mm | 0.050-0.025mm | ±0.005mm |
1.000-0.350mm | ±0.010mm | 0.150-0.080mm | ±0.005mm | 0.025-0.018mm | ±0.003mm |
*Can be adjusted according to customer requirements
Advantages of Nitinol Alloy Wire
Precision and Performance
Nitinol memory wire is ideal for applications that demand precision, such as guidewires and stents. Its superelasticity and shape memory ensure that these devices work accurately within the human body, enhancing the effectiveness of interventional procedures.Versatility in Medical Devices
Nitinol wire is versatile and used in a wide range of medical devices. It is found in stents, catheters, orthodontic devices, and various surgical instruments, helping facilitate both minimally invasive and traditional surgical procedures.Improved Patient Outcomes
By allowing for minimally invasive techniques, Nitinol wire contributes to reduced recovery times, less pain, and quicker patient recovery. Its flexibility and resilience make procedures safer and more effective, leading to better outcomes.Affordable Solution
Victory Supplier offers Nitinol memory wire at affordable prices, ensuring that medical device manufacturers can access high-quality materials without exceeding budget constraints. This cost-effective solution does not compromise on performance or durability.Medical Standards Compliance
All our Nitinol products meet the rigorous international standards for medical applications, ensuring safety and reliability for all healthcare providers and manufacturers.
Mechanical Properties of Nitinol Alloy Wire
| Straightening Hyperelastic State | |||||
| Maximum Force (N) | Tensive Strength (MPa) | Elongation (%) | Upper Plateau Stress (MPa) | Residual Strain (WT%) | Actual Operating Temperature (af) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.555.96 | (10±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.556.1 | (-30±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.550.0 | (60±10) |

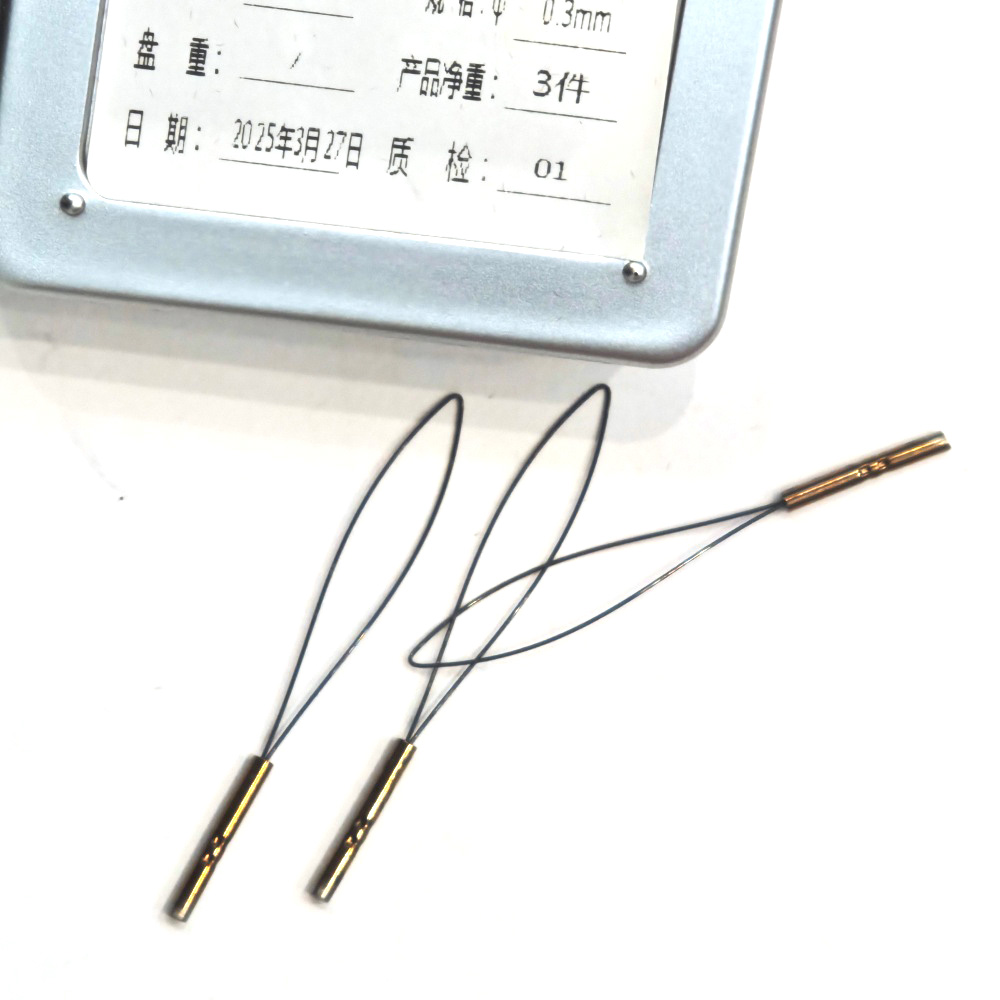

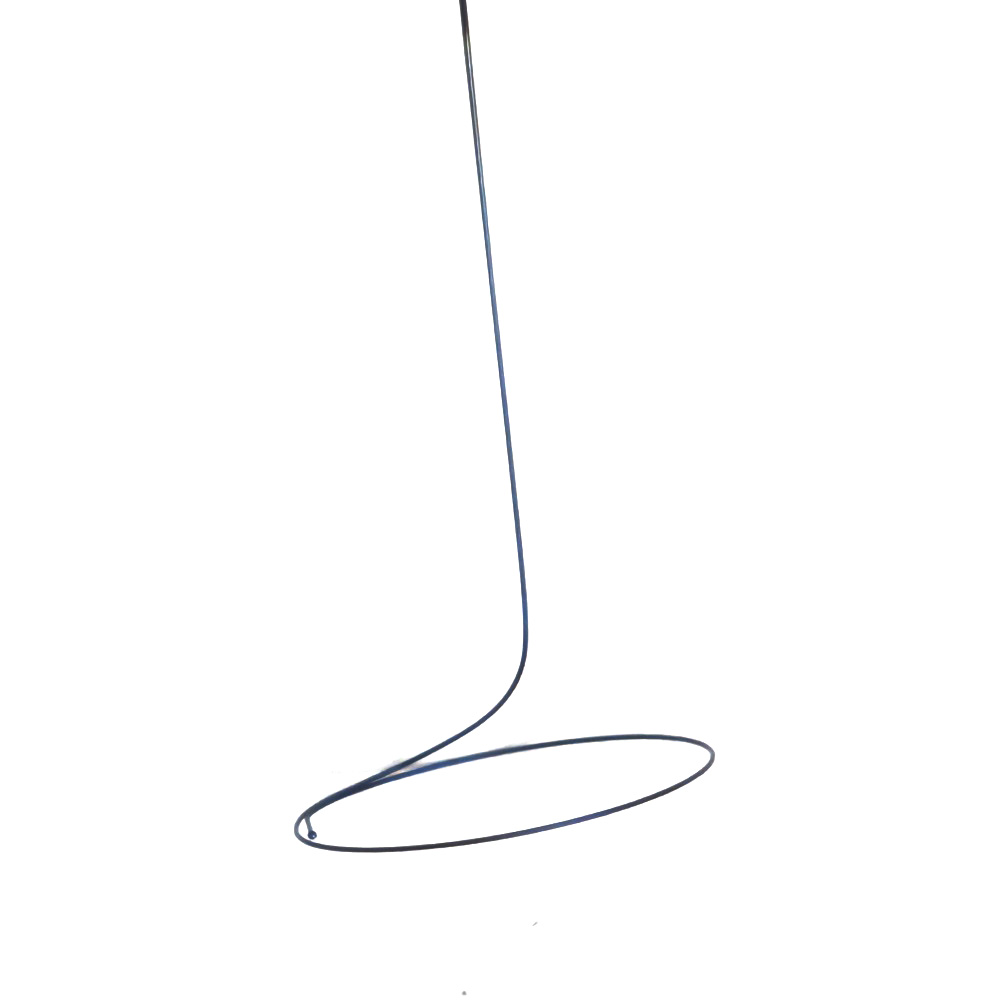

Typical medical applications include: guidewires, braided frameworks, stone retrieval baskets, snares, root canal files, intrauterine devices, sutures, and mandrels.
Applications of Nitinol Alloy Wire
Nitinol memory wire is widely used in numerous medical applications due to its outstanding properties. Here are some of the most common uses:
Interventional Devices
Nitinol is widely used in the production of guidewires, stents, and catheters. Its ability to maintain its form and flexibility makes it ideal for navigating complex anatomical structures in minimally invasive procedures like angioplasty and cardiovascular surgeries.Orthodontic Devices
In orthodontics, Nitinol wire is used in braces and aligners due to its ability to apply gentle, consistent pressure on teeth. This helps in gradual alignment, providing a more comfortable treatment experience for patients.Surgical Instruments
Many surgical instruments, such as clamps and forceps, are made with Nitinol wire due to its strength, flexibility, and resistance to fatigue. These instruments are durable and reliable, even in prolonged surgical procedures.Implants
Nitinol is increasingly used in medical implants such as vascular stents and orthopedic fixation devices. Its ability to adapt to body temperature and shape makes it suitable for long-term implantation, providing stability and improved outcomes for patients.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.
Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.

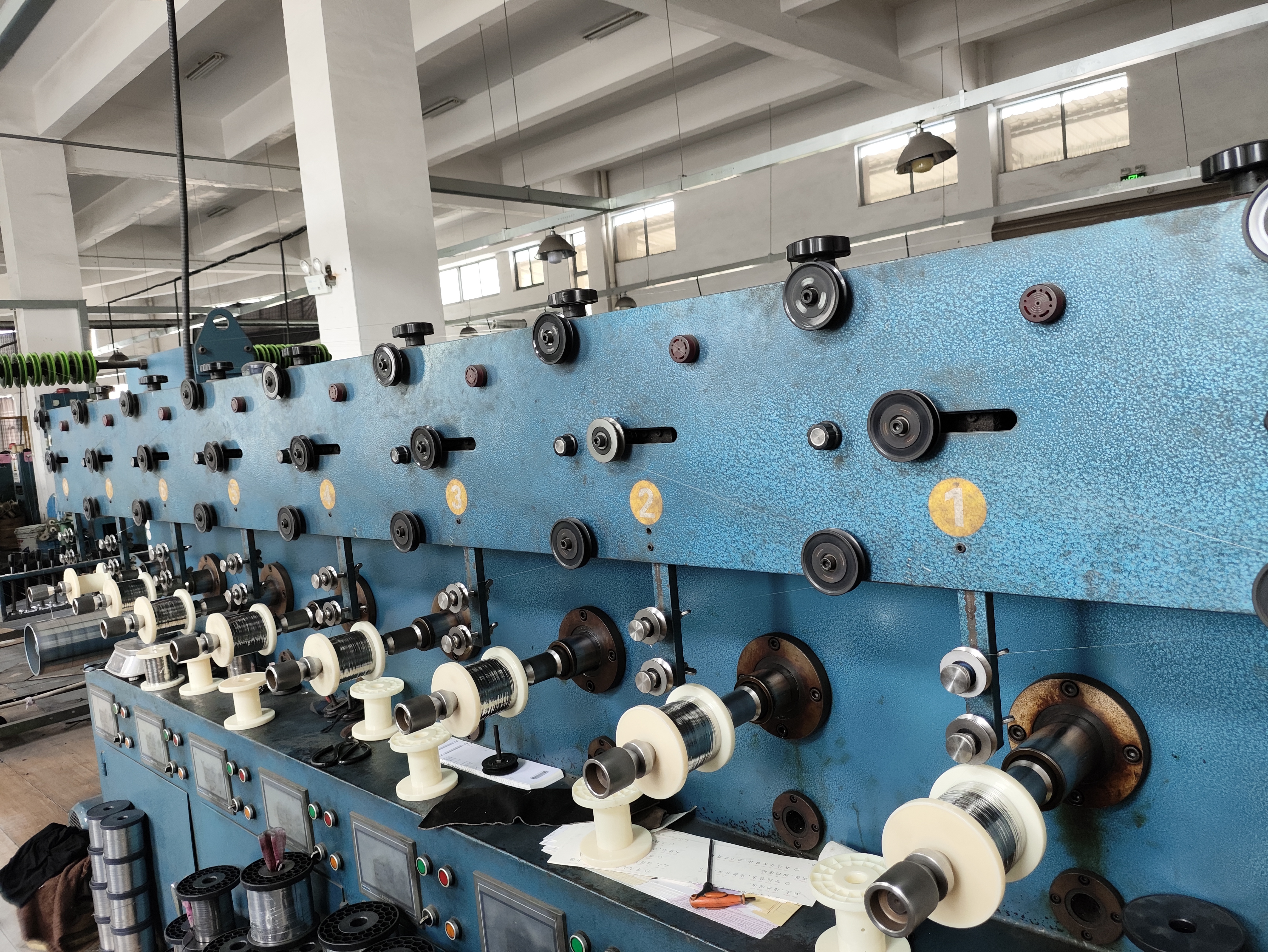

Our Factory
Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.
FAQ
Who is your company?
We are a leading supplier of high-quality Nitinol alloy wire, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.How can I contact your company?
Phone: +86 132 1868 0935
Whatsapp: +86 13218680935
Email: victory@dlx-alloy.com
Why is Nitinol used in medical devices?
Nitinol is favored for its unique properties, including superelasticity, corrosion resistance, and biocompatibility, which make it ideal for medical devices that interact with the human body.How can I contact Victory Supplier for more information?
You can contact us via the contact form on our website or email us at [email@example.com]. Our team is ready to assist with any questions or requests.Can I buy Nitinol wire in bulk?
Yes, we offer bulk purchasing options for Nitinol memory wire. Please get in touch with our sales department for specific pricing and availability details.Are your Nitinol wire products compliant with international medical standards?
Yes, all of our Nitinol wire products comply with global medical regulations, ensuring they meet the highest standards of quality and safety for medical applications.
