What is Nitinol Wire?
Nitinol, an alloy composed of nickel and titanium, has become a critical material in the medical electronics field due to its unique properties: superelasticity and shape memory effect. These characteristics make Nitinol springs and memory wire invaluable in medical devices and electronic systems where precision, flexibility, and durability are essential.
In this article, we explore the role of Nitinol springs and memory wire in the medical electronics industry, their key advantages, applications, and how to select top-quality Nitinol materials for your medical device needs.

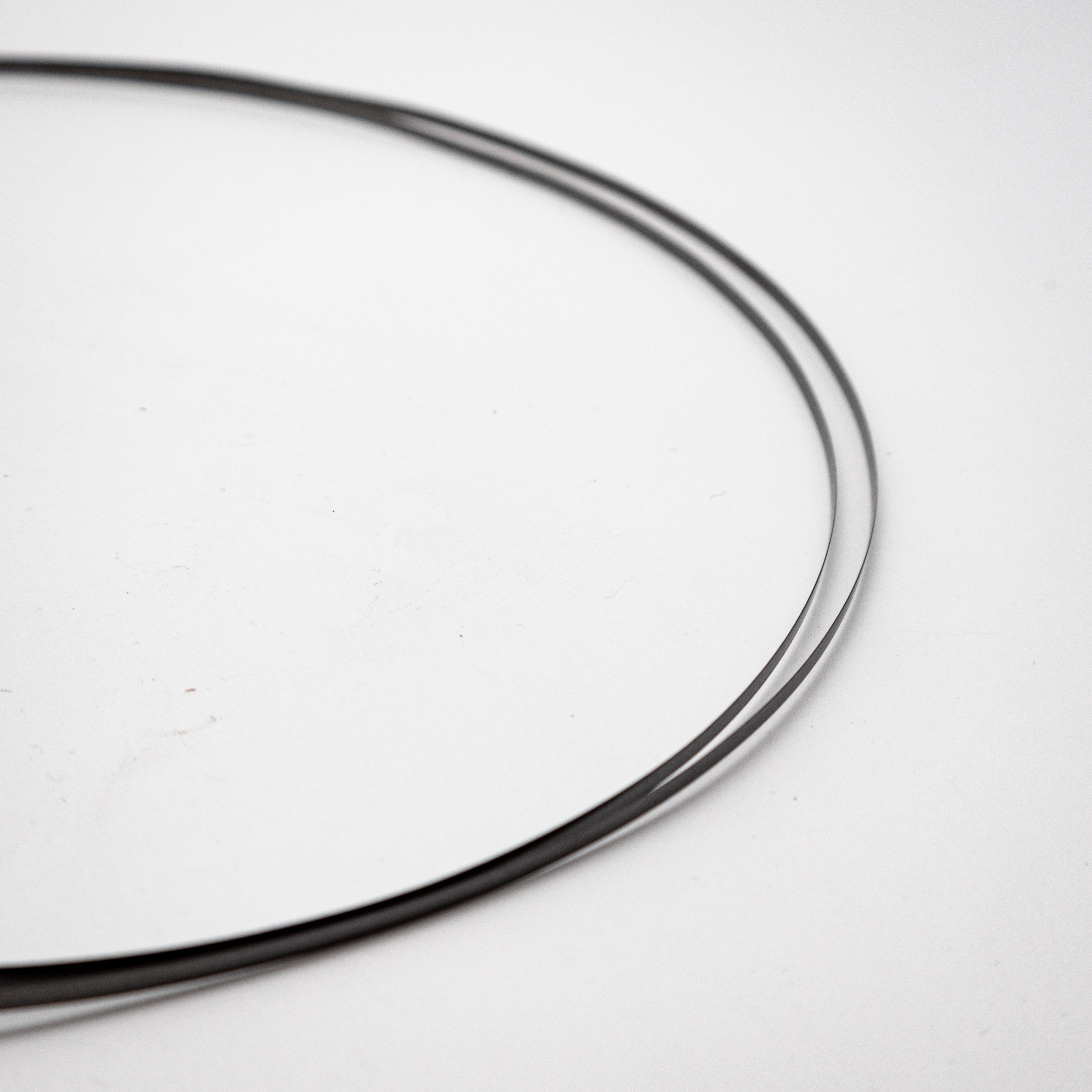

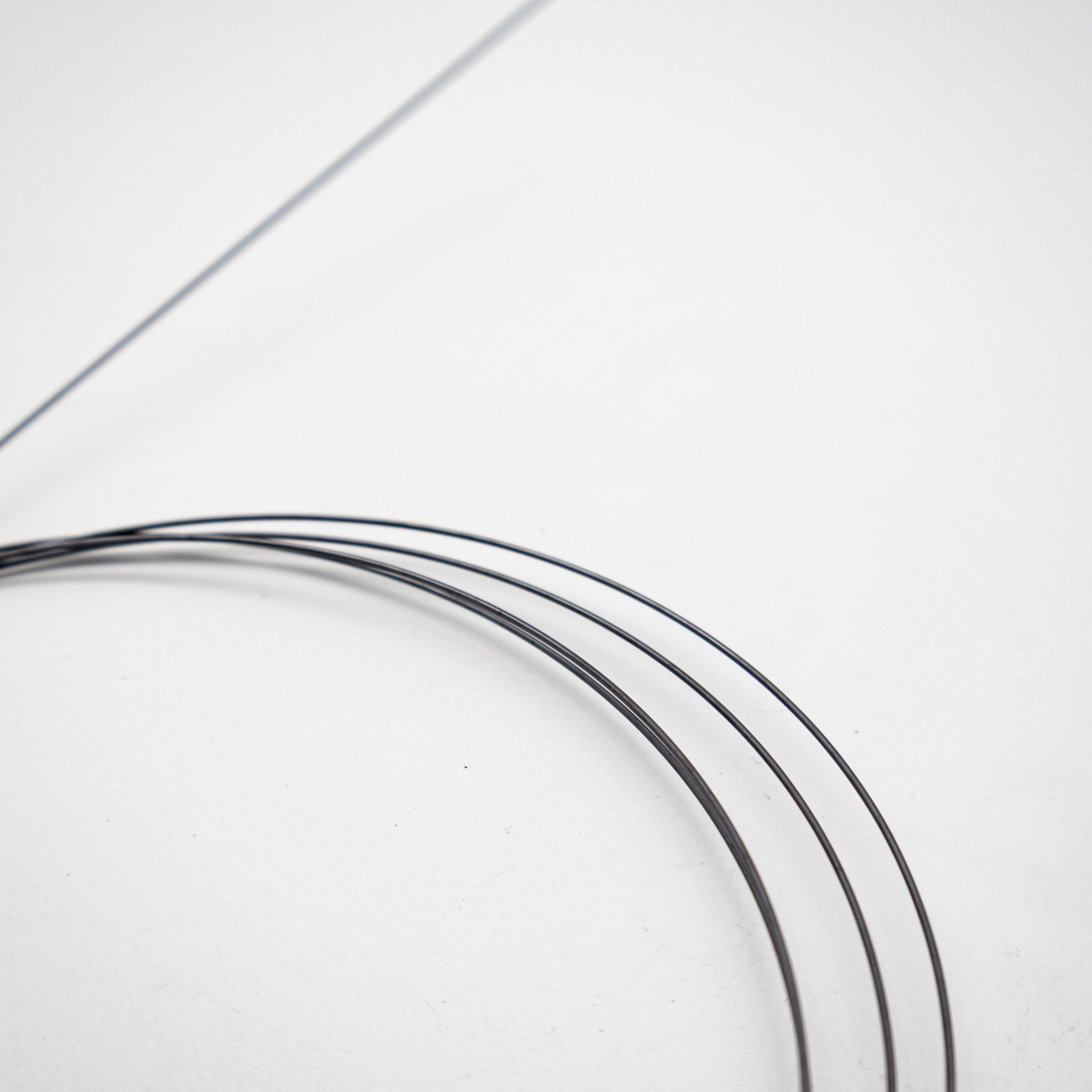

Wire Shape | Titanium alloy round wire, flat wire, square wire, D-shaped wire, triangular wire, bidirectional drive wire |
Wire Surface Condition | Black oxide state, light oxide state (from golden yellow to brown), clean state, bright state, polished state |
Wire Packaging | I-beam reels: To ensure that the nickel-titanium wire is evenly distributed on the packaging reel, without breakage or tangled threads Fixed length: Can be cut to fixed length according to customer requirements |
Features of Nitinol Alloy Wire

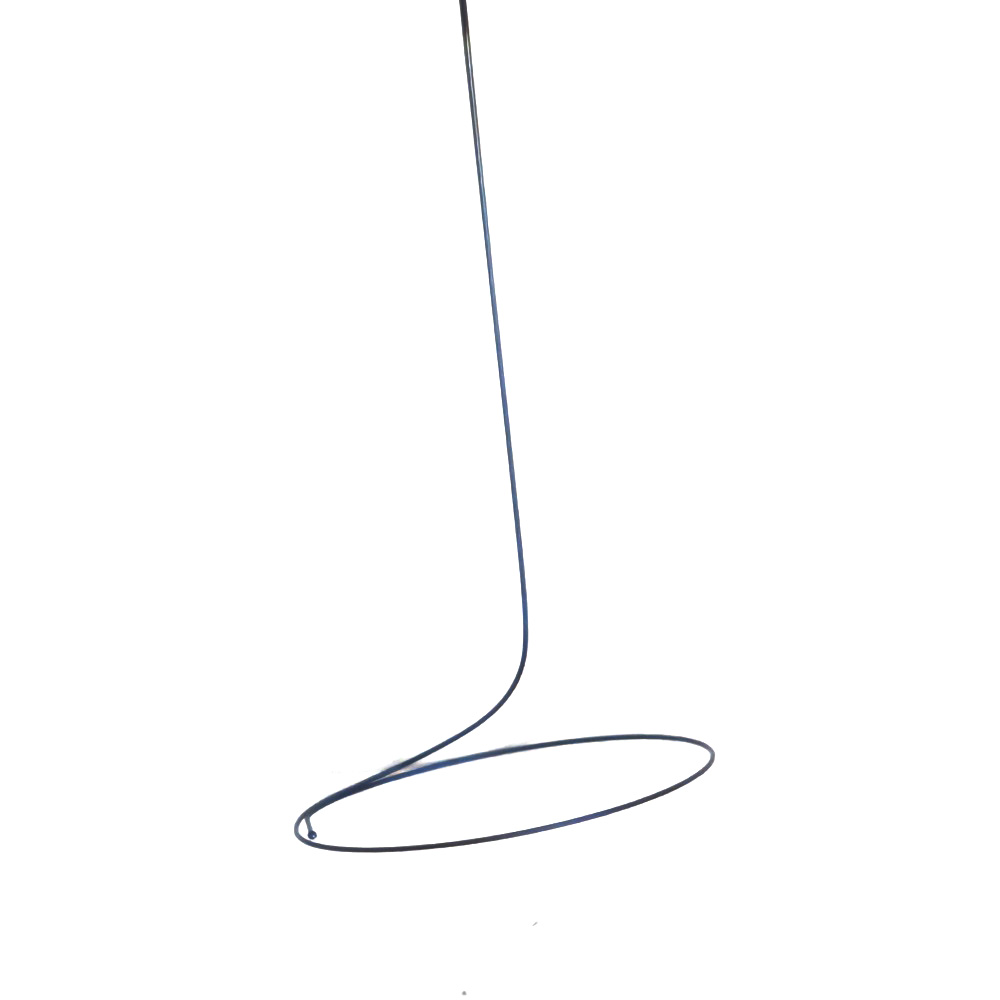

Shape Memory Effect
The shape memory effect is one of the most important properties of Nitinol wire. It allows the material to "remember" its original shape and return to it when heated above a certain temperature. This makes it an ideal choice for applications where the device must return to a specific configuration after activation, such as stents, medical actuators, and orthodontic appliances.Superelasticity
Nitinol exhibits superelasticity, which means it can undergo large strains and still return to its original shape once the stress is removed. This property is crucial in medical devices that require flexibility, like guidewires and surgical tools. It allows devices to maintain functionality even under extreme deformation.Corrosion Resistance
Nitinol is highly resistant to corrosion, which is essential in medical applications that involve exposure to bodily fluids or harsh environmental conditions. This ensures that Nitinol-based devices remain effective and durable over extended periods, without degradation.Biocompatibility
Nitinol is biocompatible, making it safe for use in long-term medical implants. It can be used in devices that stay inside the human body for extended periods, such as stents, pacemakers, and hearing aids, without causing adverse reactions.Temperature Sensitivity
The ability of Nitinol to change shape at specific temperatures (often around human body temperature) makes it a highly effective material for medical devices that need to activate, expand, or change shape in response to body heat.
Wire Diameter and Tolerance
Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) |
4.000-2.000mm | ±0.025mm | 0.350-0.260mm | ±0.010mm | 0.080-0.050mm | ±0.005mm |
2.000-1.000mm | ±0.020mm | 0.260-0.150mm | ±0.007mm | 0.050-0.025mm | ±0.005mm |
1.000-0.350mm | ±0.010mm | 0.150-0.080mm | ±0.005mm | 0.025-0.018mm | ±0.003mm |
*Can be adjusted according to customer requirements
Advantages of Nitinol Alloy Wire
Precision and Reliability
Nitinol’s ability to maintain precise shapes and mechanical properties under various conditions makes it highly reliable in medical electronics. Whether in stents, guidewires, or other implants, Nitinol springs and memory wire ensure that devices function as intended without failure, improving overall performance and patient outcomes.Compact and Lightweight
Nitinol is both lightweight and compact, which is crucial in medical electronics where space and weight are often limited. The ability to create small yet strong and functional components allows for the design of more efficient and minimally invasive devices.Enhanced Device Flexibility
The superelasticity and shape memory of Nitinol enhance the flexibility and maneuverability of medical devices. For instance, Nitinol guidewires can navigate through narrow or complex paths in the body, reducing trauma during medical procedures and improving recovery times for patients.Long-Term Durability
Nitinol’s resistance to wear, fatigue, and corrosion contributes to its long-term durability, even in the challenging environments of the human body. Devices made from Nitinol can withstand repeated movements or cycles, making them suitable for implants and other devices that must function reliably over many years.Minimal Maintenance and Risk
Due to its durability and biocompatibility, Nitinol-based medical devices often require minimal maintenance and have a reduced risk of failure. This results in a better experience for patients, as well as lower costs for healthcare providers over time.
Mechanical Properties of Nitinol Alloy Wire
| Straightening Hyperelastic State | |||||
| Maximum Force (N) | Tensive Strength (MPa) | Elongation (%) | Upper Plateau Stress (MPa) | Residual Strain (WT%) | Actual Operating Temperature (af) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.555.96 | (10±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.556.1 | (-30±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.550.0 | (60±10) |

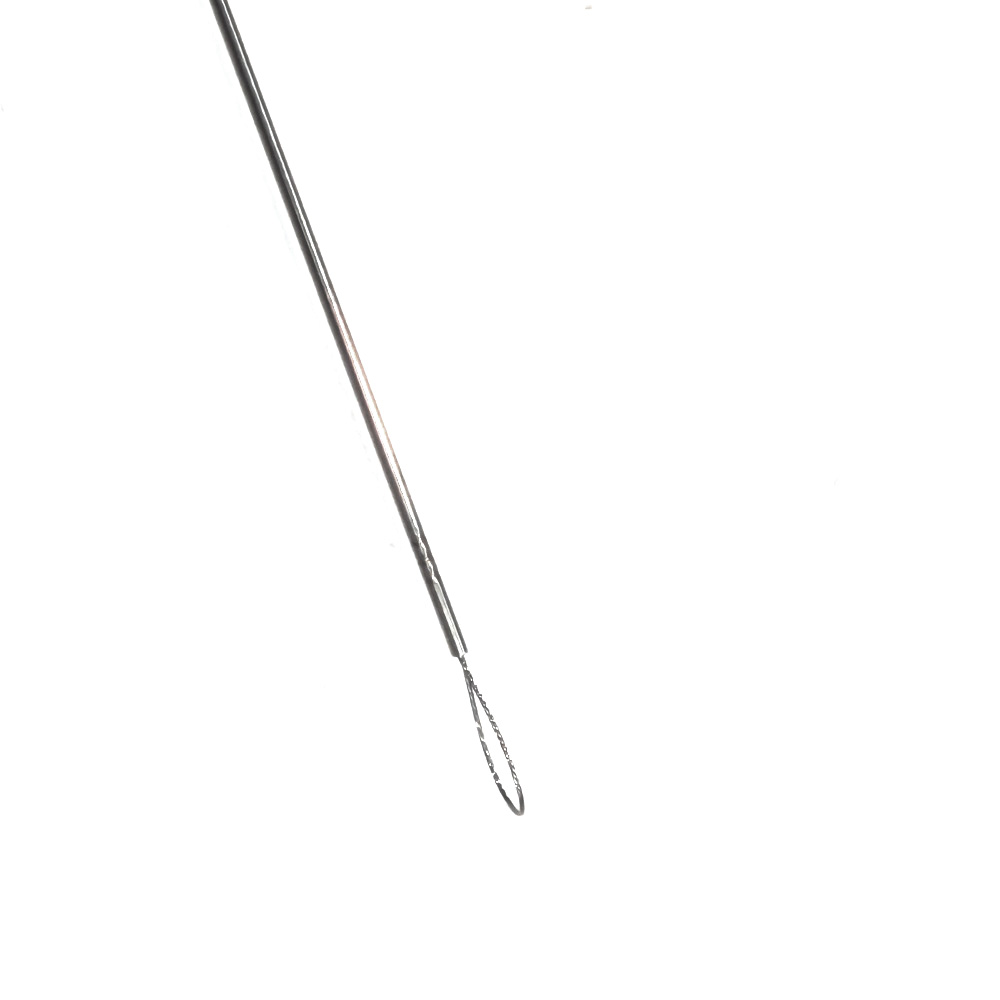

Typical medical applications include: guidewires, braided frameworks, stone retrieval baskets, snares, root canal files, intrauterine devices, sutures, and mandrels.
Applications of Nitinol Alloy Wire
Nitinol springs and memory wire have broad applications in medical electronics due to their unique properties. Some of the most common uses include:
Stents and Vascular Implants
Nitinol is widely used in self-expanding stents. When inserted into a blood vessel, the Nitinol stent can expand to its predetermined shape at body temperature, maintaining an open passage in blocked arteries. This property makes Nitinol an essential material in treating cardiovascular conditions.
Guidewires for Minimally Invasive Surgery
Nitinol wire is commonly used in guidewires for procedures like angioplasty or catheter insertion. The wire’s flexibility and superelasticity allow it to navigate complex anatomical pathways with ease, making minimally invasive surgeries safer and more effective.
Orthodontic and Dental Devices
Nitinol memory wire is often used in braces and other orthodontic devices. Its shape memory effect applies consistent, gentle pressure on the teeth, helping them move into the desired position over time. Nitinol wire in orthodontics provides a more comfortable treatment option with reduced adjustment intervals.
Implants for Bone Fixation
Nitinol springs and wire are used in orthopedic implants, such as bone screws, plates, and fracture fixation devices. Nitinol’s superelasticity allows the implant to adapt to changes in the body’s movements, supporting the healing process and improving the implant’s longevity.
Pacemakers and Other Medical Electronics
Nitinol is used in the construction of pacemakers and other electronic medical devices. Its ability to maintain its shape and strength at body temperature ensures that these devices continue to function over long periods, even when exposed to the body’s fluctuating conditions.
Surgical Tools and Robotics
Nitinol’s flexibility and strength make it ideal for surgical instruments and robotic surgery tools. The wire and springs can be used in mechanisms that require both flexibility and precision, such as robotic arms used in minimally invasive surgeries.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.
Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.

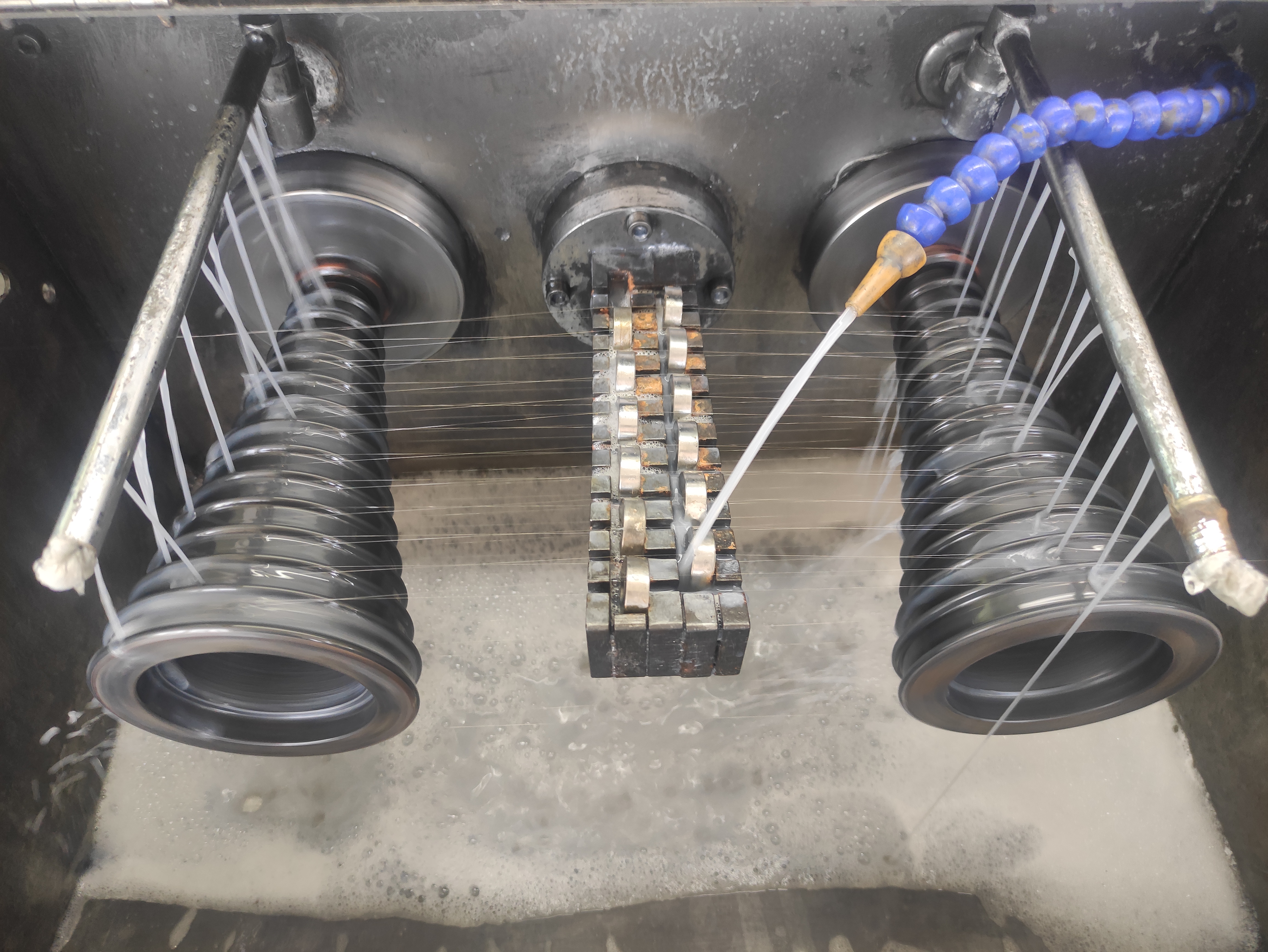

Our Factory

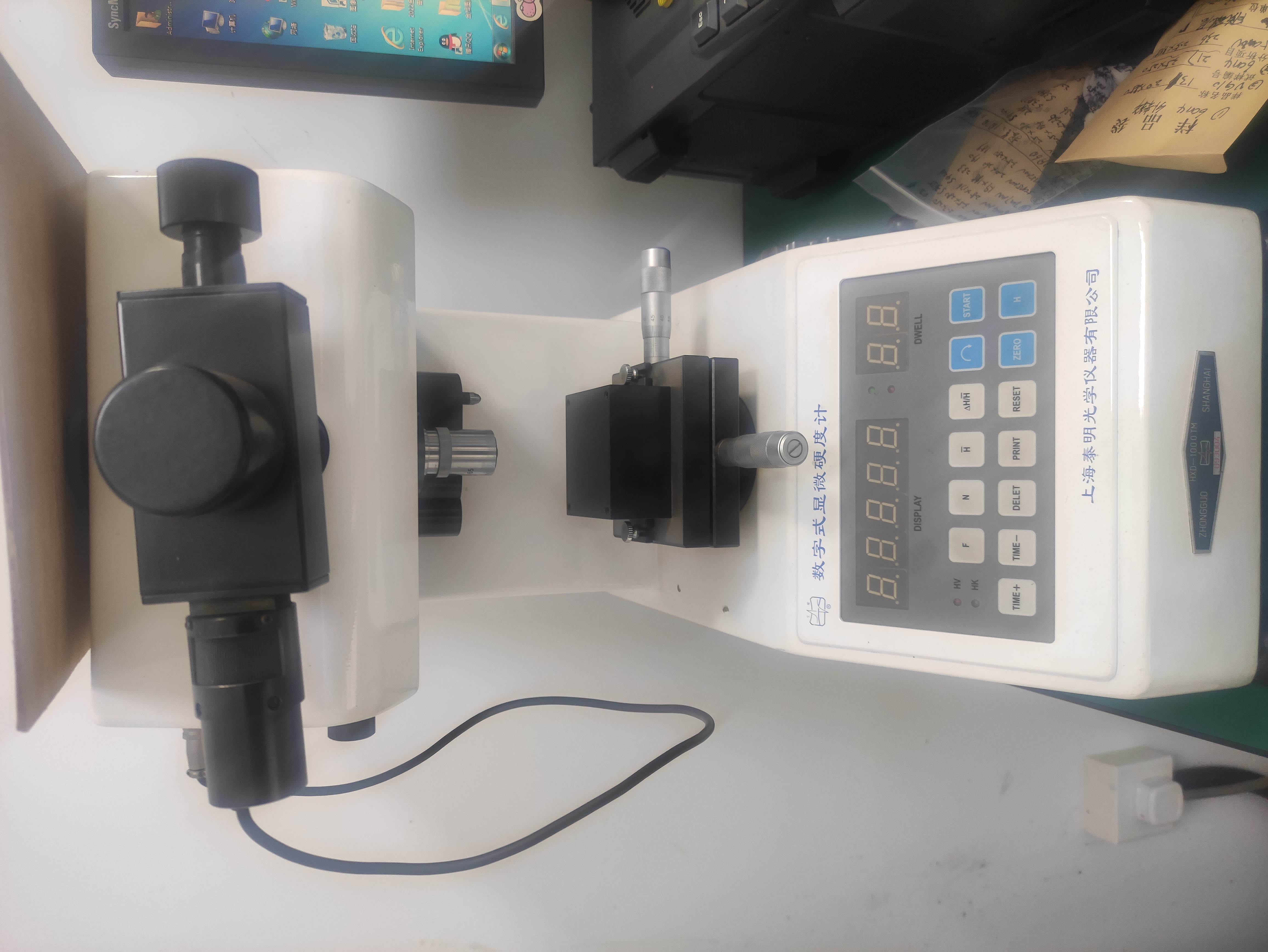

Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.
FAQ
Who is your company?
We are a leading supplier of high-quality Nitinol alloy wire, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.How can I contact your company?
Phone: +86 132 1868 0935
Whatsapp: +86 13218680935
Email: victory@dlx-alloy.com
Why is Nitinol used in medical electronics?
Nitinol’s shape memory effect, superelasticity, biocompatibility, and corrosion resistance make it ideal for use in medical devices. These properties ensure precision, flexibility, and long-term reliability in critical healthcare applications.Can Nitinol wire be customized for specific medical applications?
Yes, Nitinol wire can be customized in terms of diameter, temperature transition, and mechanical properties to meet the specific needs of different medical devices and applications.How does Nitinol enhance the performance of guidewires and stents?
Nitinol’s superelasticity and shape memory allow guidewires and stents to navigate through complex pathways or expand to a precise size in the body, improving the effectiveness of minimally invasive procedures.Is Nitinol safe for use in long-term implants?
Yes, Nitinol is biocompatible, meaning it is safe for implantation in the human body for extended periods. It is widely used in devices like stents, pacemakers, and orthopedic implants.How do I choose the right Nitinol wire for my device?
When selecting Nitinol wire, consider factors such as grade (medical-grade is crucial), customization options, and the supplier’s experience. Always prioritize quality and performance to ensure patient safety and device effectiveness.
