What is Nitinol Wire?
Nitinol wire is a cutting-edge material widely used in implantable devices for medical applications, providing unmatched advantages over traditional metals. Composed of a unique combination of nickel and titanium, Nitinol wire exhibits exceptional properties, including shape memory, superelasticity, and outstanding biocompatibility. These features make it the ideal choice for a variety of medical implants that require flexibility, precision, and durability for optimal patient outcomes.
Nitinol's shape memory effect allows the wire to return to its pre-set shape when exposed to heat, while its superelasticity enables it to withstand large amounts of deformation without permanent damage. These characteristics are critical for the functionality and success of medical implants, such as stents, orthopedic devices, and dental implants. Furthermore, the biocompatibility of Nitinol ensures that it can be safely used in the human body, minimizing the risk of complications like inflammation or rejection.
Wire Shape | Titanium alloy round wire, flat wire, square wire, D-shaped wire, triangular wire, bidirectional drive wire |
Wire Surface Condition | Black oxide state, light oxide state (from golden yellow to brown), clean state, bright state, polished state |
Wire Packaging | I-beam reels: To ensure that the nickel-titanium wire is evenly distributed on the packaging reel, without breakage or tangled threads Fixed length: Can be cut to fixed length according to customer requirements |
Features of Nitinol Alloy Wire

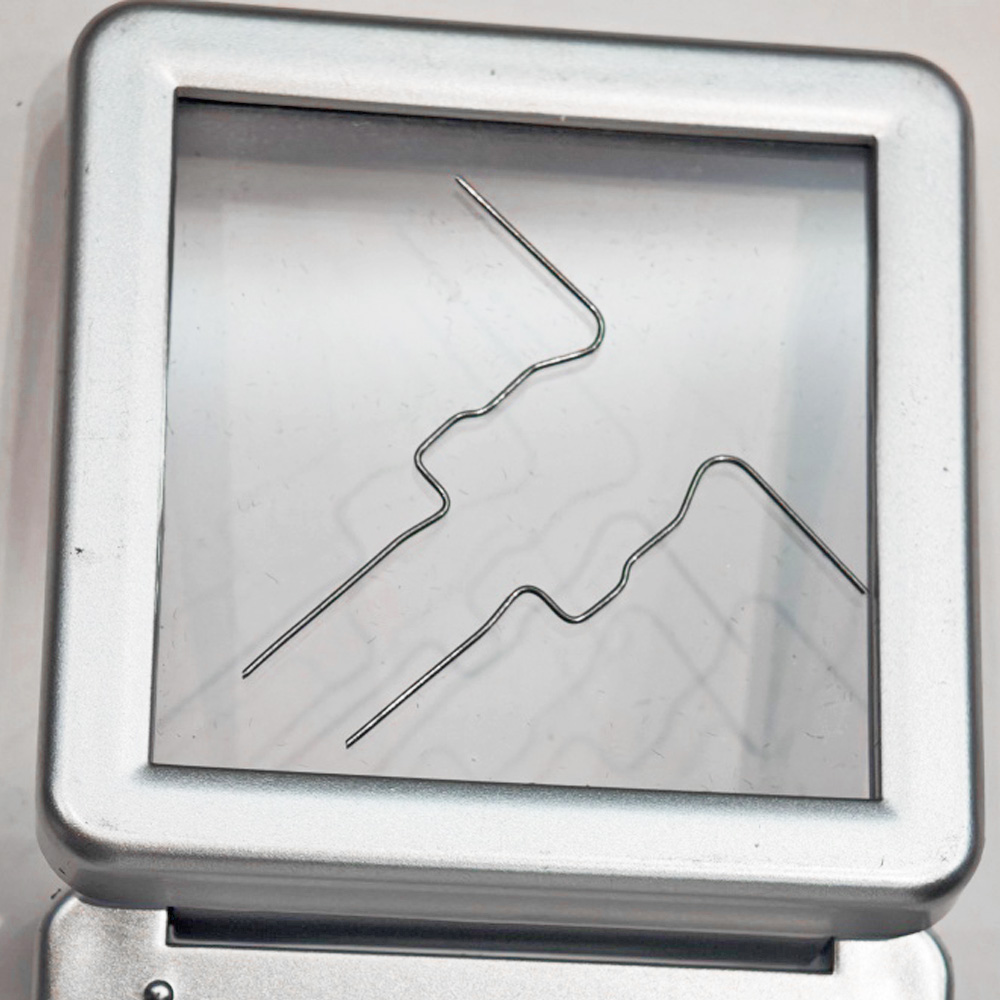

Shape Memory Effect
The shape memory effect is one of the most unique and beneficial properties of Nitinol wire. It allows the wire to remember its original shape and return to that shape when exposed to heat. This ability is ideal for implants that need to conform to specific anatomical structures, providing a secure and stable fit inside the body.Superelasticity
Nitinol wire also exhibits superelasticity, allowing it to undergo significant deformation without permanent damage. This flexibility is crucial for medical implants that need to endure mechanical stress and movement over time, such as stents, orthopedic devices, and guidewires.Biocompatibility
Nitinol wire is highly biocompatible, meaning it is unlikely to cause adverse reactions when implanted in the body. This property makes it suitable for long-term implantation, ensuring that patients experience fewer complications during recovery and beyond.Corrosion Resistance
One of the key benefits of Nitinol wire is its corrosion resistance. Unlike other metals that can degrade over time when exposed to bodily fluids, Nitinol remains stable and maintains its mechanical properties, ensuring long-term performance and durability.Fatigue Resistance
Nitinol wire is highly resistant to fatigue, meaning it can withstand continuous stress and repetitive movement without failing. This is critical for implants that are subject to regular mechanical forces, such as in orthopedic or dental applications.Strength and Flexibility
The balance between strength and flexibility in Nitinol wire allows it to perform effectively in medical implants. While providing the necessary strength to withstand mechanical stresses, Nitinol wire remains flexible enough to adapt to changes in the body’s natural movements.
Wire Diameter and Tolerance
Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) |
4.000-2.000mm | ±0.025mm | 0.350-0.260mm | ±0.010mm | 0.080-0.050mm | ±0.005mm |
2.000-1.000mm | ±0.020mm | 0.260-0.150mm | ±0.007mm | 0.050-0.025mm | ±0.005mm |
1.000-0.350mm | ±0.010mm | 0.150-0.080mm | ±0.005mm | 0.025-0.018mm | ±0.003mm |
*Can be adjusted according to customer requirements
Advantages of Nitinol Alloy Wire
Enhanced Patient Comfort
Nitinol wire's ability to adapt to the body’s natural movements enhances patient comfort. Whether used in orthopedic implants, dental devices, or vascular stents, Nitinol’s flexibility ensures a snug fit, reducing discomfort and minimizing the risk of injury.Long-Term Durability
Nitinol’s corrosion resistance and fatigue resistance make it a highly durable material for long-term medical applications. Implants made from Nitinol wire can endure the harsh conditions of the human body without breaking down, reducing the need for replacements or revisions.Minimally Invasive Surgery
Nitinol wire enables minimally invasive surgery due to its flexibility. The wire can be inserted through smaller incisions, reducing patient recovery time and minimizing trauma to surrounding tissues.Reduced Risk of Complications
The biocompatibility of Nitinol significantly reduces the risk of complications such as tissue rejection, inflammation, or infection. This makes it a safe choice for implantable devices that remain in the body for long periods.Improved Healing Process
Nitinol wire provides secure and stable fixation for implants, which supports the healing process. Its ability to conform to the natural anatomy of the body enhances implant stability and improves recovery outcomes for patients.
Mechanical Properties of Nitinol Alloy Wire
| Straightening Hyperelastic State | |||||
| Maximum Force (N) | Tensive Strength (MPa) | Elongation (%) | Upper Plateau Stress (MPa) | Residual Strain (WT%) | Actual Operating Temperature (af) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.555.96 | (10±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.556.1 | (-30±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.550.0 | (60±10) |

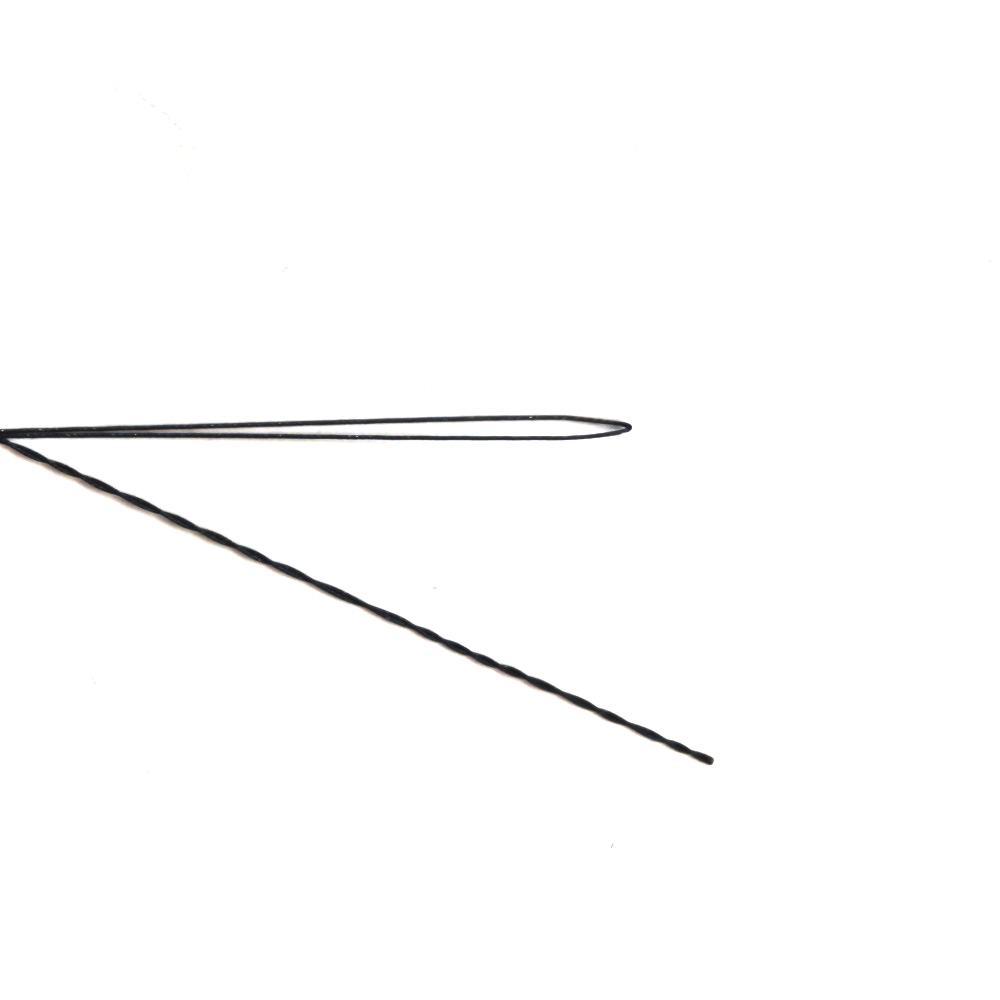

Typical medical applications include: guidewires, braided frameworks, stone retrieval baskets, snares, root canal files, intrauterine devices, sutures, and mandrels.
Applications of Nitinol Alloy Wire
The unique properties of Nitinol wire make it highly versatile, with applications across a wide range of medical implants:
Vascular Stents
Nitinol wire is commonly used in the manufacturing of vascular stents due to its shape memory properties. The wire allows stents to expand to the correct diameter once deployed inside a blood vessel, helping to maintain vessel patency and reduce the risk of blockages.Orthopedic Implants
In orthopedics, Nitinol wire is used for bone fixation devices, such as pins, plates, and screws. Its superelasticity and strength allow it to withstand the mechanical stresses placed on bones and joints while promoting natural movement during the healing process.Spinal Implants
Nitinol wire is used in spinal implants to provide stability and assist with spinal fusion. Its flexibility allows the implant to conform to the spine’s natural curvature, ensuring proper alignment and support during recovery.Dental Implants
Nitinol wire is used in orthodontic treatments such as braces, archwires, and retainers. Its ability to apply consistent pressure over time helps align teeth effectively and comfortably, reducing treatment time and improving outcomes.Guidewires and Catheters
In minimally invasive procedures, Nitinol wire is often used in guidewires and catheters. Its superelasticity makes it ideal for navigating through narrow, curved passageways in the body, providing physicians with greater control and flexibility during procedures.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.
Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.

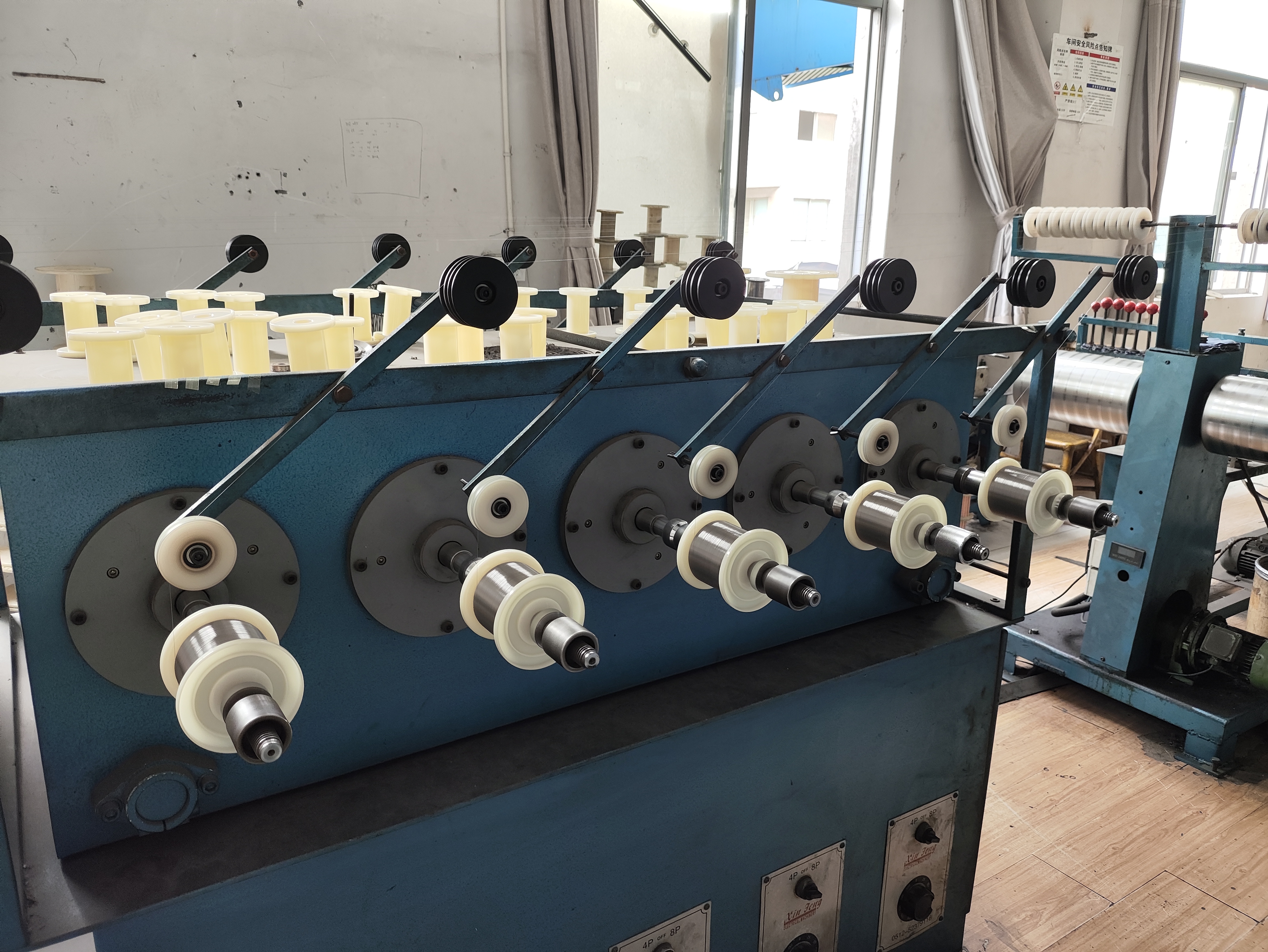

Our Factory
Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.
FAQ
Who is your company?
We are a leading supplier of high-quality Nitinol alloy wire, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.How can I contact your company?
Phone: +86 132 1868 0935
Whatsapp: +86 13218680935
Email: victory@dlx-alloy.com
What makes Nitinol wire ideal for implantable medical devices?
Nitinol wire is ideal for implantable medical devices due to its shape memory, superelasticity, and biocompatibility, making it flexible, durable, and safe for long-term use in the body.How does Nitinol wire improve patient comfort?
Nitinol's flexibility and ability to adapt to the body’s movements reduce discomfort associated with rigid implants. This is particularly beneficial for orthopedic implants and dental devices.Is Nitinol wire resistant to corrosion?
Yes, Nitinol wire is highly resistant to corrosion, ensuring that implants made from this material retain their integrity over time, even when exposed to bodily fluids.Can Nitinol wire be used in minimally invasive procedures?
Absolutely. Nitinol wire is often used in minimally invasive surgeries because it can be inserted through small incisions, reducing recovery time and minimizing trauma to surrounding tissue.
