What is Nitinol Wire?
Nitinol wire, an advanced nickel-titanium alloy, is specifically engineered to deliver exceptional performance in medical devices. It is recognized for its unique combination of flexibility, durability, and shape memory properties, which make it a preferred material in applications such as bone plates and screws. The wire's ability to change shape and return to its original form after activation is a key factor in its success in surgical and medical fields. This high-performance material ensures stability and reliability for patients undergoing surgical procedures.
Wire Shape | Titanium alloy round wire, flat wire, square wire, D-shaped wire, triangular wire, bidirectional drive wire |
Wire Surface Condition | Black oxide state, light oxide state (from golden yellow to brown), clean state, bright state, polished state |

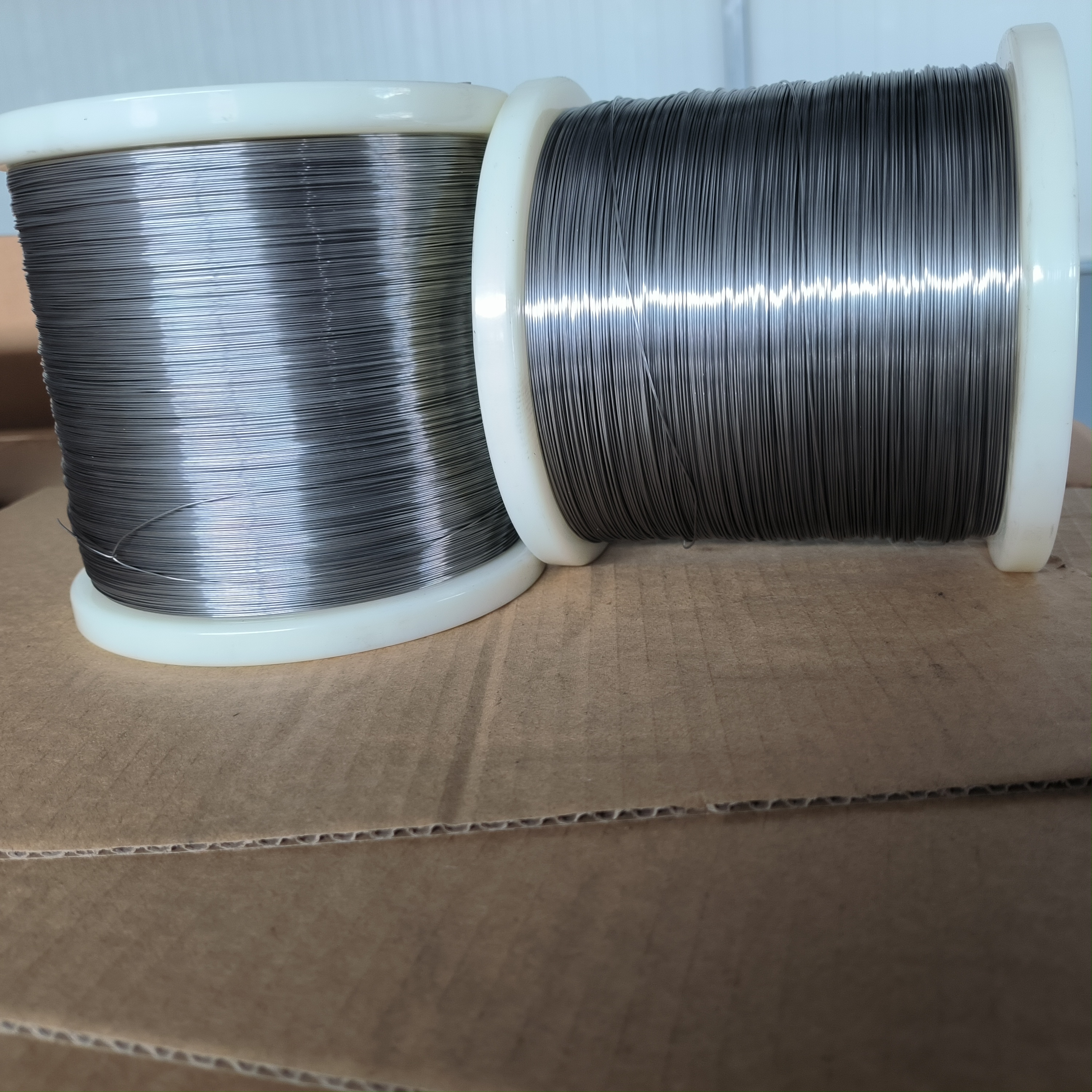

Wire Packaging | I-beam reels: To ensure that the nickel-titanium wire is evenly distributed on the packaging reel, without breakage or tangled threads Fixed length: Can be cut to fixed length according to customer requirements |
Features of Nitinol Alloy Wire
Shape Memory Effect: The Nitinol alloy wire can revert to a pre-determined shape when subjected to heat. This effect is crucial in medical implants like bone plates and screws, where it can conform precisely to the body’s anatomy, enhancing stability during recovery.
Superelasticity: Nitinol wire exhibits superelasticity, which allows it to withstand substantial deformation without permanent damage. This unique characteristic makes it highly suitable for high-stress applications, such as orthopedics and other implantable devices.
Corrosion Resistance: Nitinol wire offers excellent resistance to corrosion, even in the body’s harsh environment. This feature ensures that the wire remains durable and performs reliably over time, even after long-term implantation.
Biocompatibility: As a medical-grade alloy, Nitinol is highly biocompatible, meaning it integrates well with the human body and minimizes the risk of adverse reactions. This property makes it a safe choice for use in surgical devices and implants.
Durability: The inherent durability of Nitinol wire ensures long-lasting performance in medical devices. Whether used in bone plates or screws, Nitinol wire helps reduce the need for revisions or replacements, offering peace of mind to both medical professionals and patients.
Wire Diameter and Tolerance
Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) |
4.000-2.000mm | ±0.025mm | 0.350-0.260mm | ±0.010mm | 0.080-0.050mm | ±0.005mm |
2.000-1.000mm | ±0.020mm | 0.260-0.150mm | ±0.007mm | 0.050-0.025mm | ±0.005mm |
1.000-0.350mm | ±0.010mm | 0.150-0.080mm | ±0.005mm | 0.025-0.018mm | ±0.003mm |
*Can be adjusted according to customer requirements
Advantages of Nitinol Alloy Wire
Patient Safety and Comfort: Thanks to its biocompatibility, Nitinol wire minimizes the chances of inflammatory reactions, making it an excellent choice for patients who require implants. This enhances the overall safety of the surgical procedure and recovery process.
Long-Term Reliability: The superelastic and corrosion-resistant nature of Nitinol ensures that the material can maintain its integrity over extended periods. Whether used in orthopedic devices or other implants, it provides long-term reliability, reducing the likelihood of complications.
Customizable and Adaptable: Nitinol wire can be precisely engineered to meet specific requirements for different medical applications. This adaptability is particularly beneficial in creating customized solutions for individual patient needs.
Reduced Risk of Device Failure: Nitinol wire is less likely to fatigue or fail compared to other materials, which is critical in medical devices. Its ability to absorb stress without permanent deformation ensures that devices perform consistently throughout their lifecycle.
Reduced Surgical Risks: The superior mechanical properties of Nitinol wire help minimize the risk of surgical complications related to implant failure. The wire’s flexibility and memory shape effect also support quicker and more efficient healing.
Mechanical Properties of Nitinol Alloy Wire
| Straightening Hyperelastic State | |||||
| Maximum Force (N) | Tensive Strength (MPa) | Elongation (%) | Upper Plateau Stress (MPa) | Residual Strain (WT%) | Actual Operating Temperature (af) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.555.96 | (10±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.556.1 | (-30±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.550.0 | (60±10) |

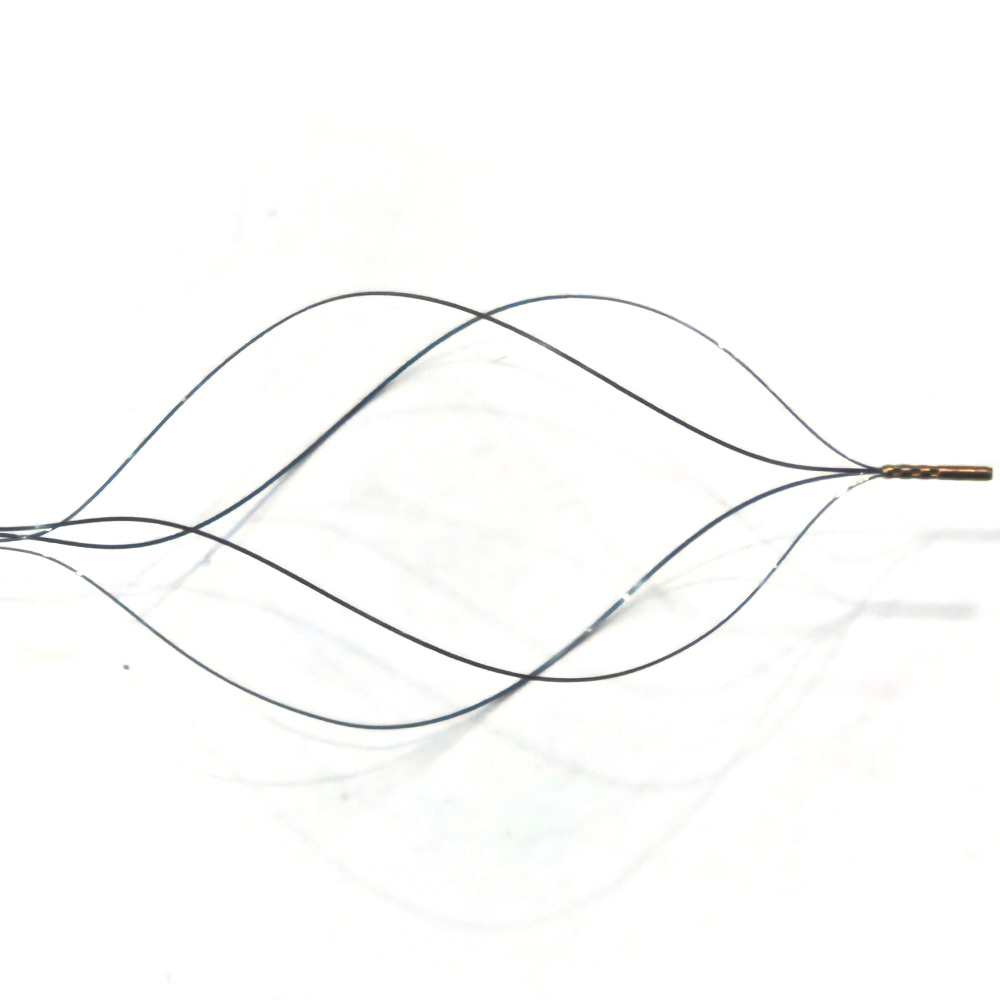

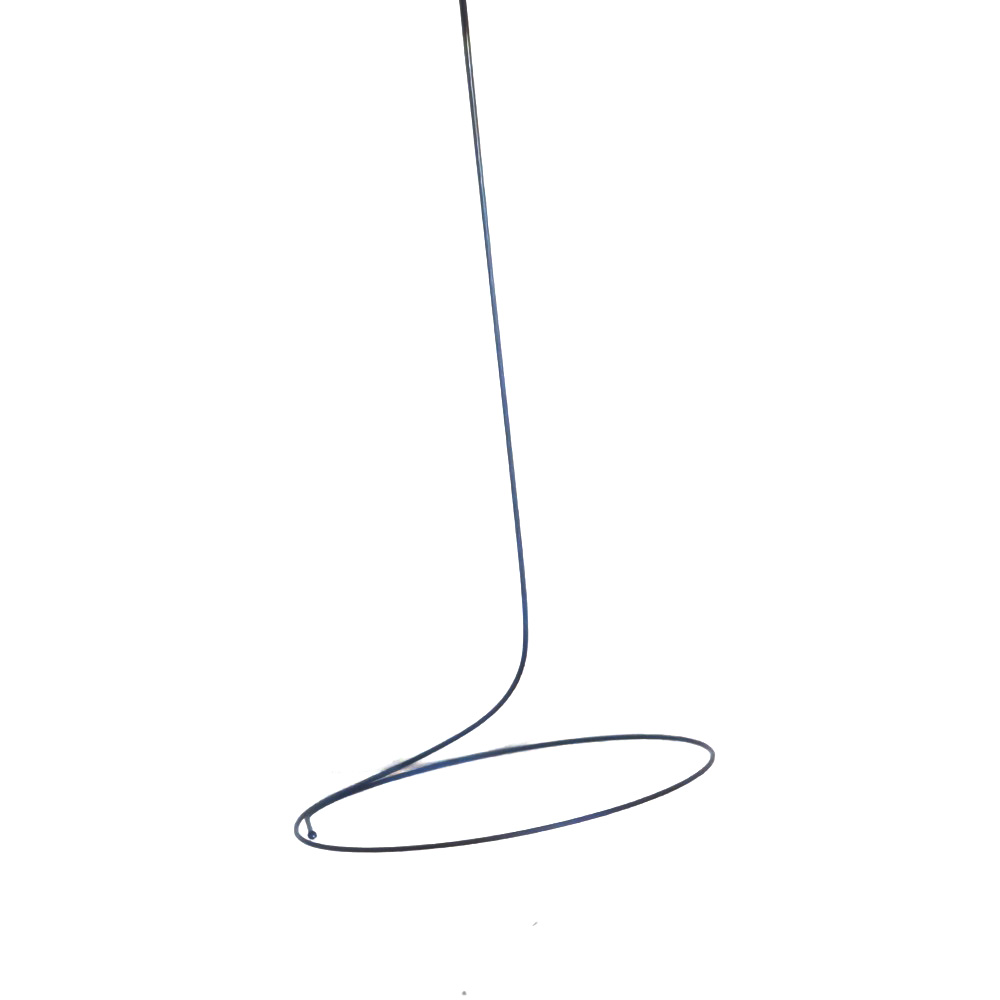

Typical medical applications include: guidewires, braided frameworks, stone retrieval baskets, snares, root canal files, intrauterine devices, sutures, and mandrels.
Applications of Nitinol Alloy Wire
Nitinol wire has proven to be invaluable in various medical applications, particularly in orthopedic and cardiovascular procedures. Below are some of the most common uses:
Bone Plates and Screws: Nitinol wire is used extensively in bone plates and screws for fracture stabilization. Its shape memory allows the implants to adapt to the specific contours of the bone, ensuring optimal support and reducing the likelihood of complications.
Spinal Implants: Nitinol’s flexibility and strength make it an ideal material for spinal implants, where it provides the necessary support for vertebral alignment and reduces the risk of further injury.
Cardiovascular Stents: Nitinol is a common choice for stents due to its ability to expand and contract under specific conditions. This feature ensures that stents can effectively open blocked arteries and maintain long-term patency.

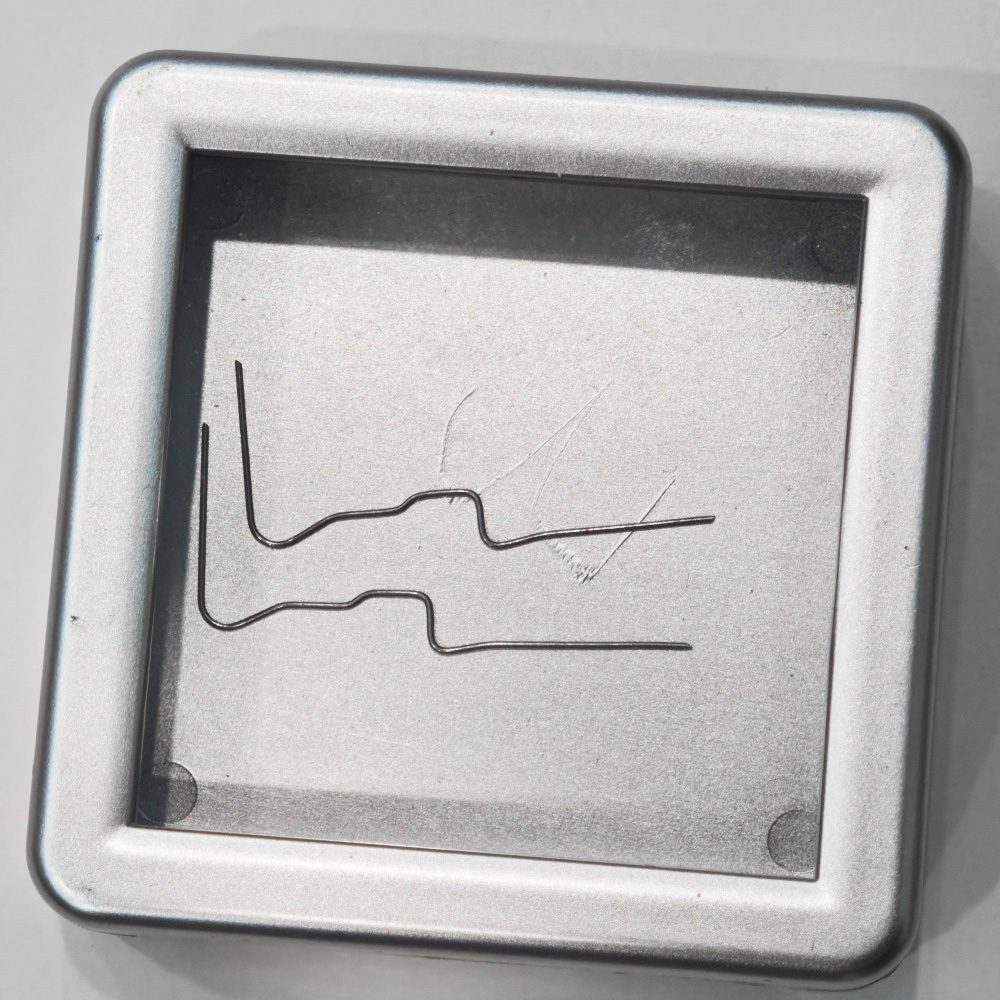

Orthodontic Applications: The wire is also widely used in dental applications such as braces, providing a reliable and adaptable solution for patients undergoing orthodontic treatment.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.
Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.

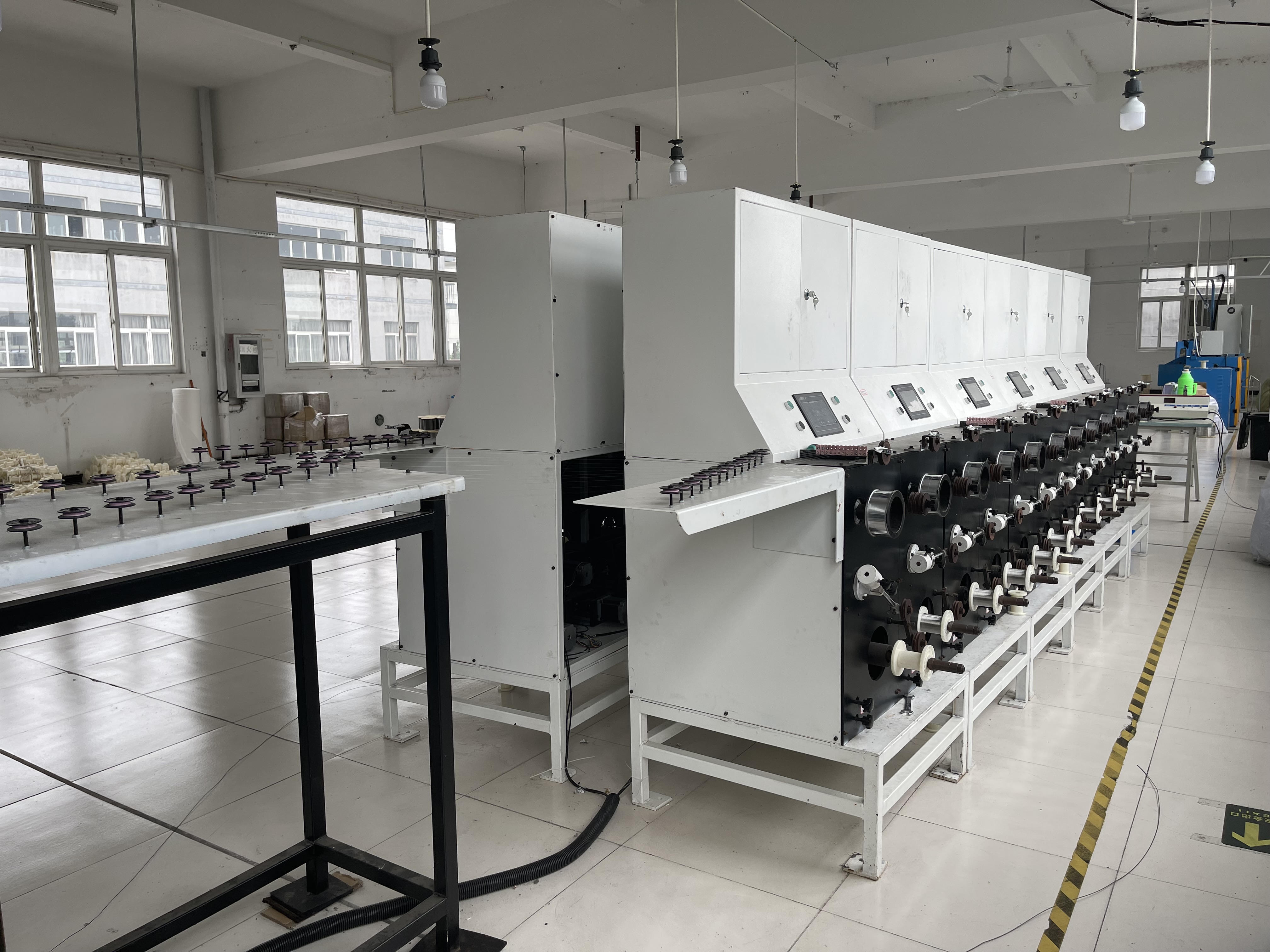

Our Factory
Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.
FAQ
What is Nitinol wire and why is it used in bone plates and screws?
Nitinol (Nickel-Titanium) wire is a shape memory alloy known for its superelasticity and biocompatibility. It is used in bone plates and screws to provide superior flexibility, fatigue resistance, and better load distribution compared to traditional stainless steel or titanium.
What are the main advantages of using high-performance Nitinol wire in orthopedic bone plates and screws?
Key benefits include exceptional elasticity, high fatigue strength, corrosion resistance, reduced stress shielding, and improved healing outcomes due to its ability to return to its original shape after deformation.
How does Nitinol wire improve the performance of bone plates and screws compared to conventional materials?
Nitinol’s superelastic properties allow the implant to flex with natural bone movement, minimizing the risk of implant failure, screw loosening, and bone resorption that often occurs with rigid stainless steel or titanium implants.
Is Nitinol wire safe for long-term implantation in the human body?
Yes. Medical-grade Nitinol is highly biocompatible, has excellent corrosion resistance, and has been successfully used in FDA-approved orthopedic and cardiovascular devices for decades.
