What is Nitinol Wire?
Nitinol alloy wire is an innovative material that has revolutionized the design and performance of medical devices, particularly in neural stimulation electrodes. Known for its unique combination of shape memory and superelasticity, Nitinol allows for exceptional adaptability in medical applications, offering both performance and safety in high-precision environments.
The alloy is composed primarily of nickel and titanium, providing the perfect balance between strength, flexibility, and long-term durability. These properties are particularly valuable in medical implants and electrodes, where both mechanical reliability and biological compatibility are critical. Nitinol's ability to return to a set shape when exposed to heat, coupled with its ability to stretch and recover without permanent deformation, makes it an ideal material for various medical applications.
Wire Shape | Titanium alloy round wire, flat wire, square wire, D-shaped wire, triangular wire, bidirectional drive wire |
Wire Surface Condition | Black oxide state, light oxide state (from golden yellow to brown), clean state, bright state, polished state |
Wire Packaging | I-beam reels: To ensure that the nickel-titanium wire is evenly distributed on the packaging reel, without breakage or tangled threads Fixed length: Can be cut to fixed length according to customer requirements |
Features of Nitinol Alloy Wire
Shape Memory Effect
Nitinol's most prominent feature is its shape memory, meaning it can return to its original form after being deformed, once heated to a specific temperature. This allows for precise control in neural stimulation electrodes that must fit into complex anatomical structures.Superelasticity
Nitinol exhibits superelastic behavior, allowing it to stretch or bend significantly without breaking. This property ensures the wire can withstand significant stress, making it perfect for devices that require flexibility but need to retain strength over time.Biocompatibility
One of the major advantages of Nitinol is its biocompatibility. It doesn’t induce adverse reactions when implanted in the human body, making it a safer choice for medical devices such as neural electrodes.Corrosion Resistance
Nitinol has remarkable resistance to corrosion and oxidation, even in harsh body environments. This quality is particularly beneficial for long-term implants where degradation could be a significant concern.Fatigue Resistance
Due to its superelasticity, Nitinol can undergo numerous cycles of stress without experiencing material fatigue, making it a long-lasting option for medical devices that are subject to continuous movement or force.Electrical Conductivity
The wire’s conductive properties make it suitable for neural stimulation electrodes, where transmitting electrical impulses accurately and reliably is essential for effective treatment.
Wire Diameter and Tolerance
Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) |
4.000-2.000mm | ±0.025mm | 0.350-0.260mm | ±0.010mm | 0.080-0.050mm | ±0.005mm |
2.000-1.000mm | ±0.020mm | 0.260-0.150mm | ±0.007mm | 0.050-0.025mm | ±0.005mm |
1.000-0.350mm | ±0.010mm | 0.150-0.080mm | ±0.005mm | 0.025-0.018mm | ±0.003mm |
*Can be adjusted according to customer requirements
Advantages of Nitinol Alloy Wire
Long-Term Durability
The combination of shape memory and superelasticity ensures that Nitinol wire maintains its integrity and function over extended periods, even in challenging biological environments. This leads to a reduction in the need for replacements or repairs, offering better value for patients and healthcare providers.Enhanced Flexibility in Design
Nitinol's flexibility allows for the creation of smaller, more precise medical devices. Its shape memory feature enables it to adapt to the shape of the body, ensuring a comfortable and secure fit for implants and electrodes.Reduced Patient Discomfort
Nitinol’s adaptability ensures that implants or electrodes can move with the body’s natural motion, minimizing discomfort during daily activities. The material’s flexibility reduces the risk of tissue damage and improves overall patient experience.Higher Reliability in Critical Applications
Due to its superior mechanical properties, Nitinol wire provides high performance in demanding medical applications like neural stimulation, where both mechanical precision and patient safety are of paramount importance.Optimal for Minimally Invasive Procedures
Because Nitinol wire can be made incredibly thin without sacrificing strength, it’s ideal for minimally invasive procedures that require small incisions and precise placement of medical devices.
Mechanical Properties of Nitinol Alloy Wire
| Straightening Hyperelastic State | |||||
| Maximum Force (N) | Tensive Strength (MPa) | Elongation (%) | Upper Plateau Stress (MPa) | Residual Strain (WT%) | Actual Operating Temperature (af) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.555.96 | (10±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.556.1 | (-30±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.550.0 | (60±10) |
Typical medical applications include: guidewires, braided frameworks, stone retrieval baskets, snares, root canal files, intrauterine devices, sutures, and mandrels.
Applications of Nitinol Alloy Wire
The versatility of Nitinol alloy wire makes it suitable for a wide range of medical and industrial applications. Below are some of its primary uses:
Neural Stimulation Electrodes
Nitinol wire is increasingly used in the production of neural stimulation electrodes due to its flexibility and precise electrical conductivity, making it ideal for applications like deep brain stimulation (DBS) or spinal cord stimulation (SCS).Cardiovascular Devices
In the cardiovascular field, Nitinol wire is used in stents, guidewires, and heart valve components. Its resistance to corrosion and ability to return to its original shape ensures reliable performance even in the high-pressure environment of the circulatory system.Orthopedic Devices
Nitinol is also commonly employed in orthopedic devices such as bone fixation systems and staples, where its elasticity allows the device to adjust to the shape of the body and improve healing outcomes.Dental Implants
Dental applications utilize Nitinol wire for orthodontic devices due to its unique combination of flexibility and strength, providing a secure fit while ensuring comfort for the patient.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.
Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.

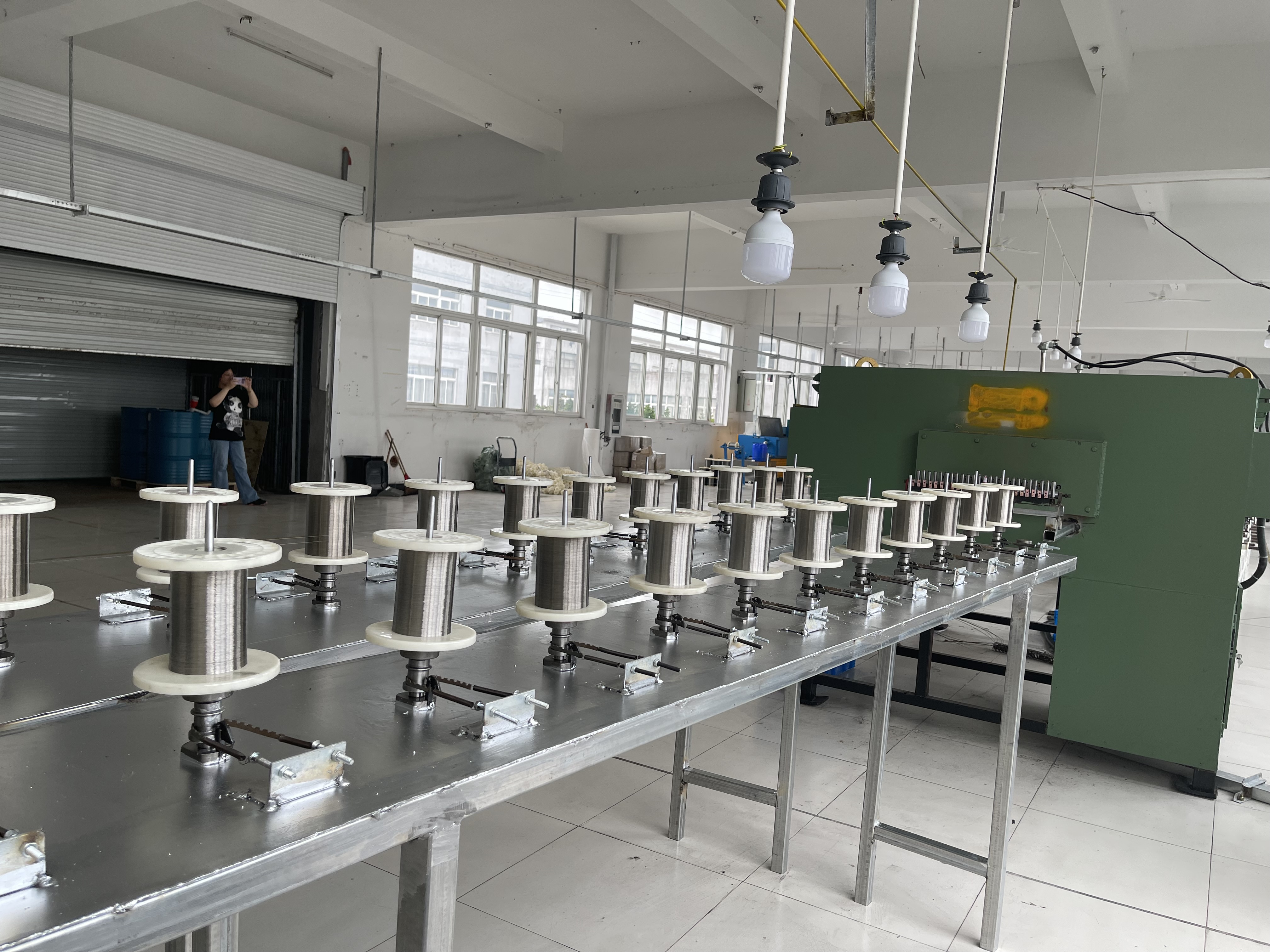

Our Factory
Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.
FAQ
Who is your company?
We are a leading supplier of high-quality Nitinol alloy wire, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.How can I contact your company?
Phone: +86 132 1868 0935
Whatsapp: +86 13218680935
Email: victory@dlx-alloy.com
What makes Nitinol alloy wire ideal for neural stimulation?
Nitinol’s shape memory and superelasticity make it ideal for neural stimulation electrodes, where precision and flexibility are critical for both the comfort of the patient and the effective transmission of electrical impulses.
How does Nitinol compare to other metals in medical implants?
Nitinol offers superior performance in terms of flexibility, strength, and biocompatibility compared to other metals, reducing the risk of adverse reactions and providing a more durable solution for long-term implants.
What types of testing do Nitinol products undergo?
Our Nitinol products undergo rigorous testing for mechanical properties, biocompatibility, corrosion resistance, and fatigue resistance to ensure they meet the highest standards for medical use.
How can I ensure the right size and specifications for my needs?
Our experienced team will work with you to identify the correct specifications for your medical application. Please reach out with your requirements, and we can assist you in selecting the ideal product.
