What is Nitinol Wire?
Nitinol wire, a nickel-titanium alloy, has become a game-changer in the field of cardiovascular medicine, particularly in the design and manufacturing of stents. Stents are small mesh tubes used to keep arteries open in patients with coronary artery disease. The flexibility and biocompatibility of Nitinol wire offer significant advantages in improving the performance of cardiovascular stents. Nitinol’s superelasticity and shape memory properties allow it to expand and contract effectively, adapting to the dynamic environment of the human body.
Incorporating Nitinol wire into stents has revolutionized vascular surgery by offering a blend of strength, flexibility, and durability. These stents are able to perform in various physiological conditions while maintaining their structural integrity and minimizing complications.
Wire Shape | Titanium alloy round wire, flat wire, square wire, D-shaped wire, triangular wire, bidirectional drive wire |
Wire Surface Condition | Black oxide state, light oxide state (from golden yellow to brown), clean state, bright state, polished state |

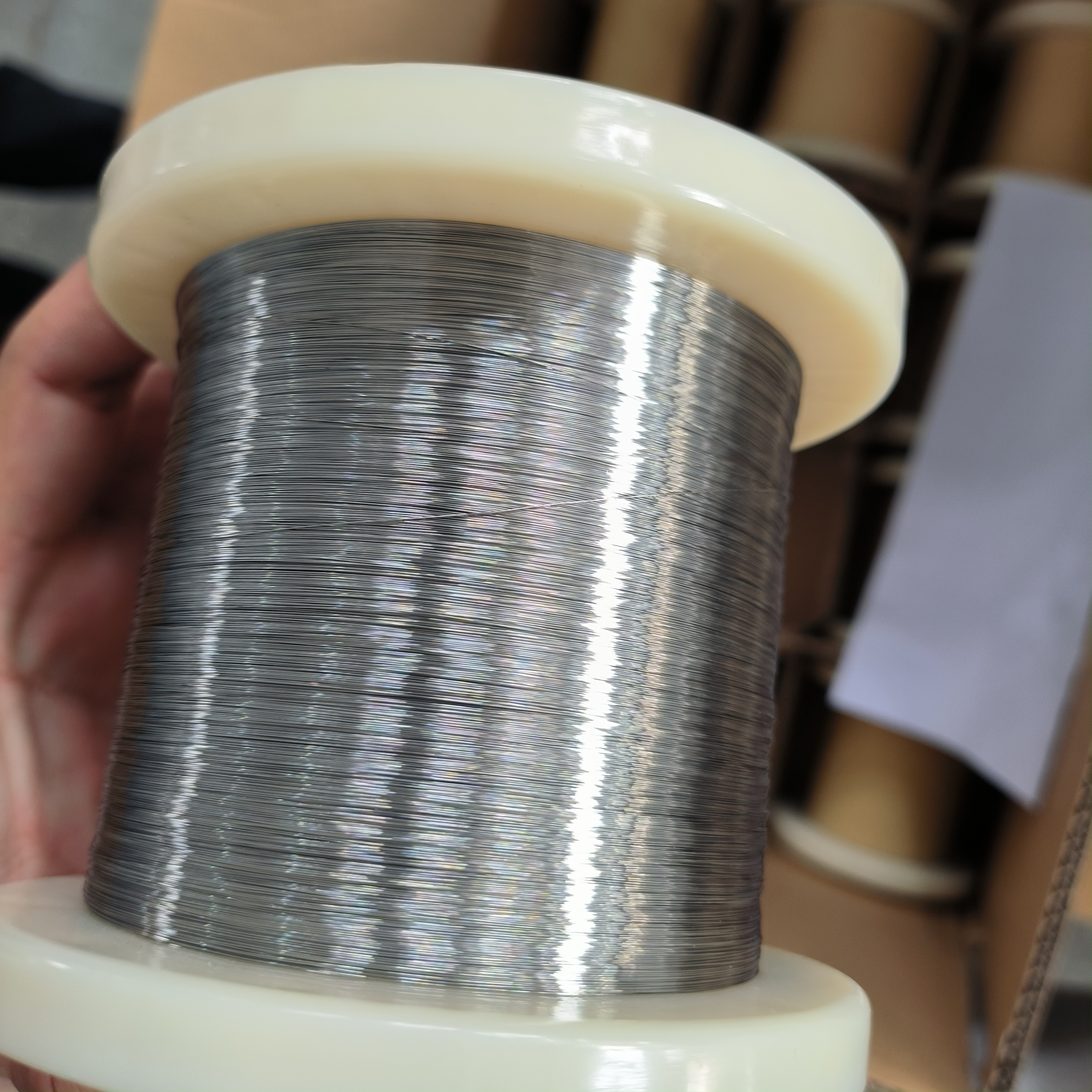

Wire Packaging | I-beam reels: To ensure that the nickel-titanium wire is evenly distributed on the packaging reel, without breakage or tangled threads Fixed length: Can be cut to fixed length according to customer requirements |
Features of Nitinol Alloy Wire
Superelasticity: One of Nitinol’s most remarkable features is its superelasticity. It can withstand significant deformation without permanent damage. In the context of cardiovascular stents, this means the wire can expand and adapt to the vessel's size, ensuring a secure fit without losing shape under pressure.
Shape Memory Effect: Nitinol also exhibits a shape memory effect. When heated to a specific temperature, the wire will revert to its pre-set shape. This property makes Nitinol stents highly effective in conforming to the blood vessel’s dimensions and ensuring the stent remains stable after deployment.
Corrosion Resistance: The harsh environment of the human body, particularly in blood vessels, requires materials that can withstand corrosion. Nitinol wire is highly resistant to oxidation and degradation, ensuring that cardiovascular stents remain durable over time.
Biocompatibility: As a biocompatible material, Nitinol minimizes the risk of inflammation or rejection. This is critical in cardiovascular applications where implants must remain in the body for extended periods without causing adverse reactions.
Flexibility and Strength: Nitinol's inherent flexibility and strength provide excellent radial support to the vessel walls while allowing the stent to navigate through arteries and veins without losing its form or function. This ensures that the stent expands fully and securely, reducing the risk of restenosis (re-narrowing of the artery).
Wire Diameter and Tolerance
Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) |
4.000-2.000mm | ±0.025mm | 0.350-0.260mm | ±0.010mm | 0.080-0.050mm | ±0.005mm |
2.000-1.000mm | ±0.020mm | 0.260-0.150mm | ±0.007mm | 0.050-0.025mm | ±0.005mm |
1.000-0.350mm | ±0.010mm | 0.150-0.080mm | ±0.005mm | 0.025-0.018mm | ±0.003mm |
*Can be adjusted according to customer requirements
Advantages of Nitinol Alloy Wire
Enhanced Flexibility for Complex Procedures: Nitinol’s flexibility makes it an ideal material for stents used in complex cardiovascular procedures. Whether navigating through tortuous or narrow vessels, Nitinol stents can conform to the natural shape and size of the blood vessels without compromising strength or structural integrity.
Reduced Risk of Complications: The biocompatible nature of Nitinol ensures a reduced risk of complications such as blood clots or immune system rejection. The material’s ability to adapt to the body’s environment also minimizes the chances of stent migration or deformation.
Improved Patient Comfort: Nitinol stents, due to their shape memory and superelastic properties, provide a more comfortable experience for patients. The stent's ability to gently expand to fit the blood vessel without causing trauma or irritation helps patients recover more quickly and experience less discomfort.
Long-Term Durability: Nitinol’s resistance to corrosion and fatigue means that cardiovascular stents made from this material can maintain their function for long periods, ensuring long-term durability and reducing the need for replacements or revisions.
Optimal Deployment: Because of Nitinol’s unique characteristics, stents made from this material deploy smoothly and reliably. The wire’s superelasticity allows it to conform accurately to the size and shape of the vessel, reducing the chances of malpositioning and ensuring that the stent stays in place once deployed.
Mechanical Properties of Nitinol Alloy Wire
| Straightening Hyperelastic State | |||||
| Maximum Force (N) | Tensive Strength (MPa) | Elongation (%) | Upper Plateau Stress (MPa) | Residual Strain (WT%) | Actual Operating Temperature (af) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.555.96 | (10±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.556.1 | (-30±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.550.0 | (60±10) |

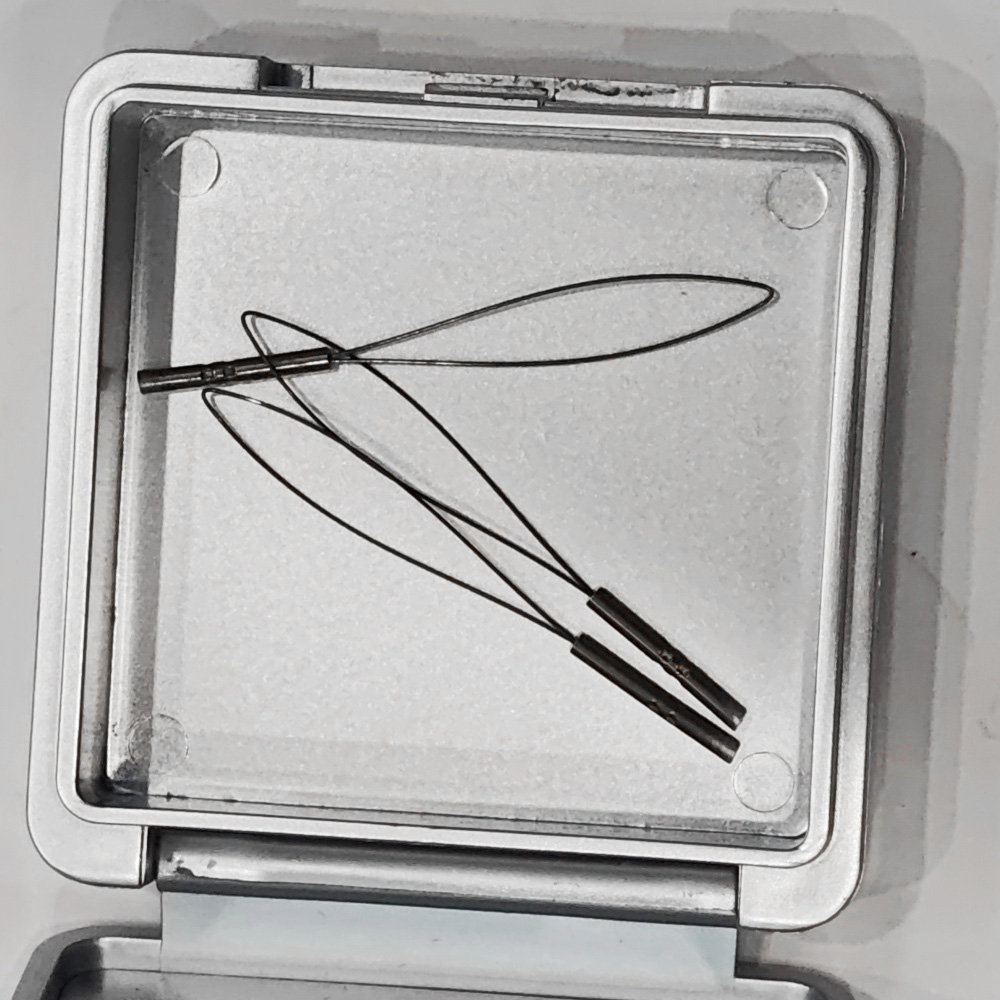

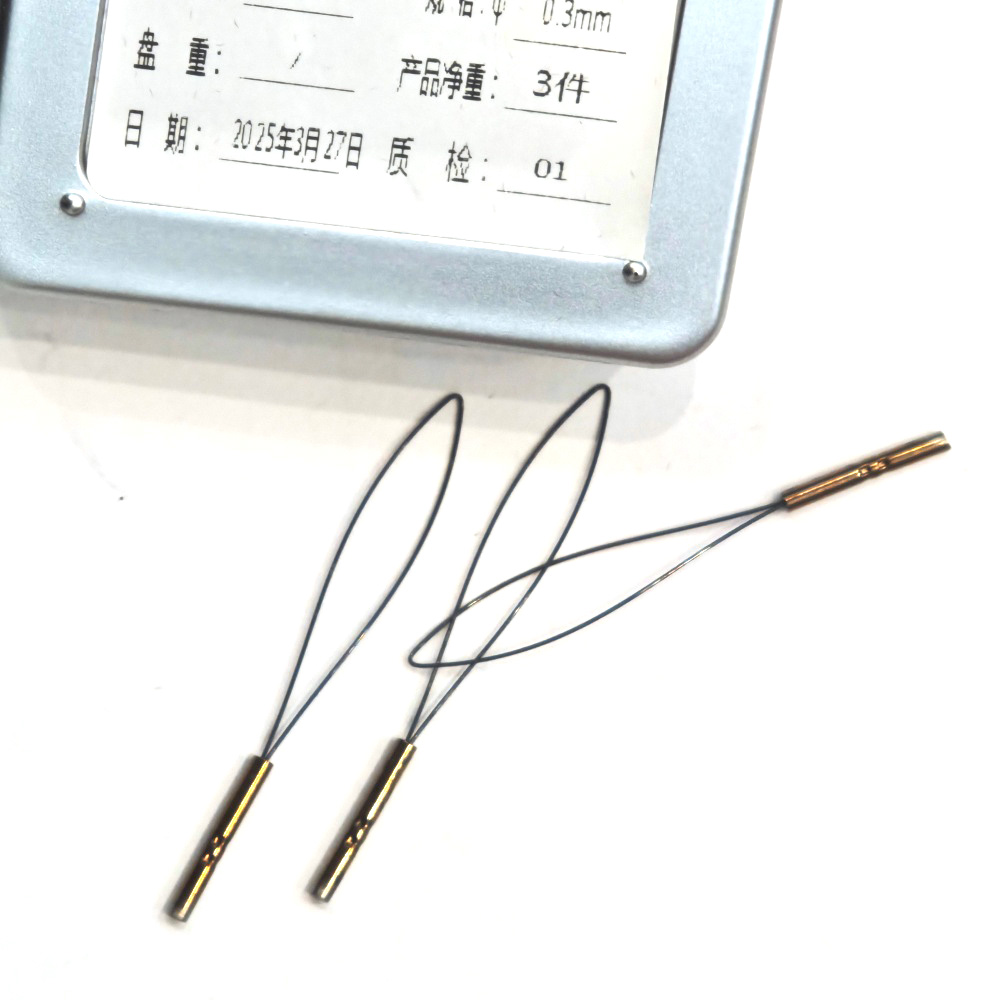

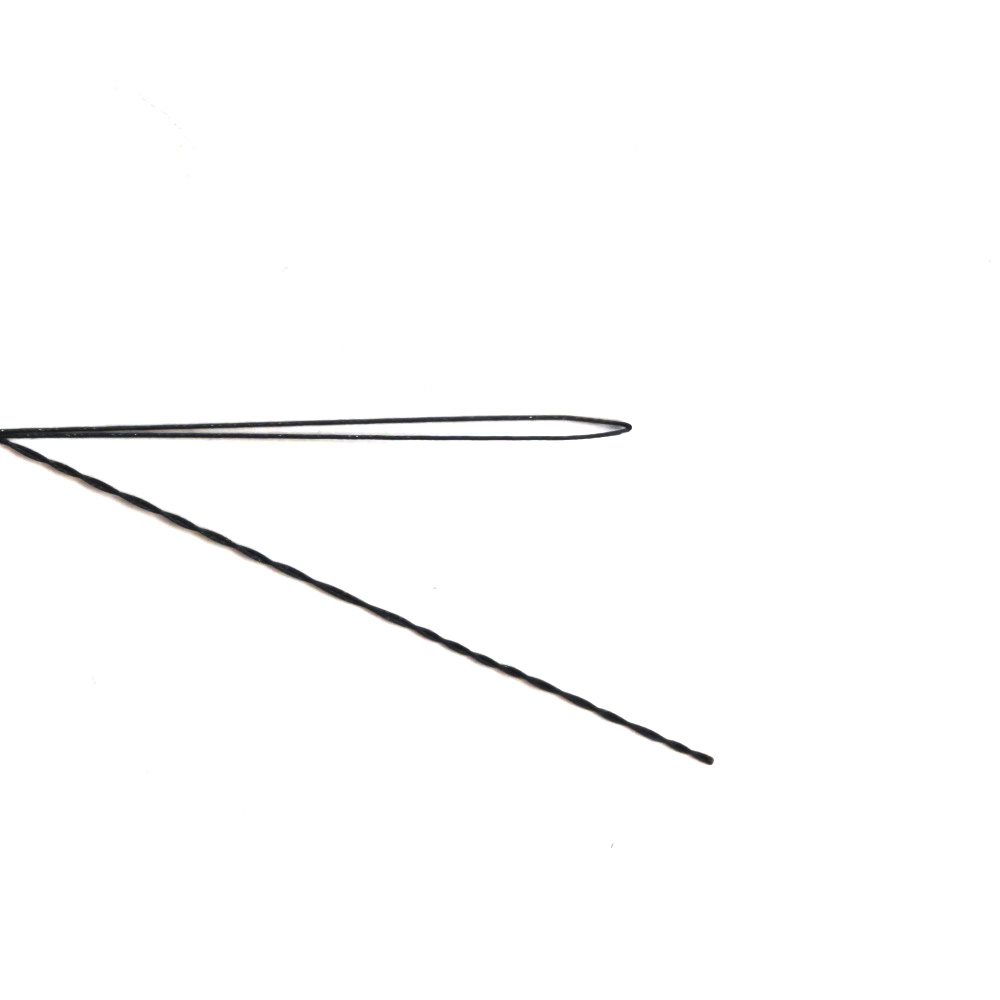

Typical medical applications include: guidewires, braided frameworks, stone retrieval baskets, snares, root canal files, intrauterine devices, sutures, and mandrels.
Applications of Nitinol Alloy Wire
The unique properties of Nitinol make it particularly well-suited for various cardiovascular applications. Below are some of the key areas where Nitinol wire is commonly used:
Coronary Stents: Nitinol coronary stents are commonly used in patients suffering from coronary artery disease. The superelastic and biocompatible properties of Nitinol make these stents highly effective in keeping arteries open and preventing blockages from recurring.
Peripheral Artery Stents: Nitinol wire is also used in stents designed for peripheral arteries, such as those in the legs. Its flexibility and shape memory allow it to expand properly and support the arteries, improving blood flow and reducing the risk of clots.
Carotid Artery Stents: In procedures involving the carotid arteries, Nitinol stents are used to prevent stroke by ensuring blood flow is unobstructed. The strength and flexibility of Nitinol make it ideal for stents placed in this critical area.
Biliary and Urological Stents: Nitinol’s flexibility is also beneficial in non-cardiovascular applications like biliary and urological stents. In these procedures, Nitinol’s ability to expand smoothly and hold its shape ensures the stent functions effectively in various body systems.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.
Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.

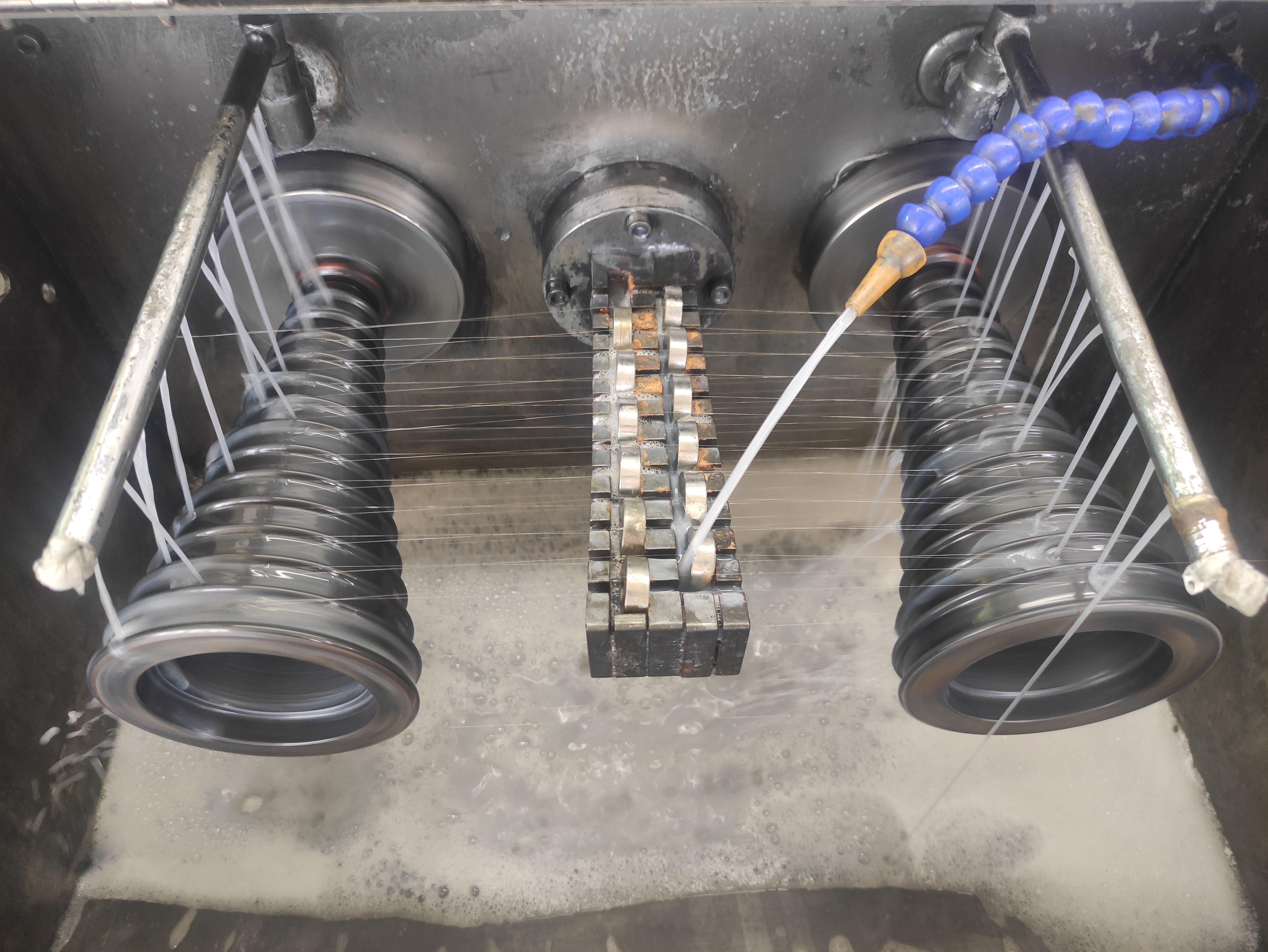

Our Factory
Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.
FAQ
Who is your company?
We are a leading supplier of high-quality Nitinol alloy wire, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.How can I contact your company?
Phone: +86 132 1868 0935
Whatsapp: +86 13218680935
Email: victory@dlx-alloy.com
What makes Nitinol wire ideal for cardiovascular stents?
Nitinol wire’s superelasticity and shape memory effect allow it to adapt to the size and shape of the blood vessels, ensuring a secure fit. Its flexibility and biocompatibility make it ideal for use in cardiovascular stents, where it helps improve patient outcomes.How does Nitinol wire perform in complex vascular procedures?
Nitinol’s flexibility allows stents to navigate complex, narrow, or tortuous blood vessels without losing structural integrity. This makes Nitinol ideal for use in challenging cardiovascular procedures where precise stent placement is crucial.Are Nitinol cardiovascular stents safe?
Yes, Nitinol is highly biocompatible, which reduces the risk of adverse reactions or complications such as inflammation, clotting, or infection. Its corrosion resistance and durability also ensure long-term safety and effectiveness.How long do Nitinol stents last?
Nitinol stents are designed for long-term use and can remain in the body for years without degrading. The material’s resistance to corrosion and fatigue ensures that the stent continues to perform effectively over time.How do I order Nitinol wire for stents or other medical devices?
To place an order for Nitinol wire or inquire about customization options for stents, please visit our website or contact our customer service team. We provide high-quality, medical-grade Nitinol wire for a variety of cardiovascular and other medical applications.
