What is Nitinol Wire?
Nitinol wire is transforming the field of orthopedic bone implants, offering enhanced flexibility, strength, and adaptability for bone fixation procedures. As a shape memory alloy, Nitinol is composed of nickel and titanium, providing superior mechanical properties compared to traditional materials. This material can return to its original shape when heated, making it an ideal solution for orthopedic applications where precision, flexibility, and durability are required.
Orthopedic implants, particularly those used in bone fixation and healing, benefit significantly from the characteristics of Nitinol. Whether used for fractures, deformities, or joint reconstruction, Nitinol wire provides exceptional performance that supports both the healing process and long-term patient outcomes.
Wire Shape | Titanium alloy round wire, flat wire, square wire, D-shaped wire, triangular wire, bidirectional drive wire |
Wire Surface Condition | Black oxide state, light oxide state (from golden yellow to brown), clean state, bright state, polished state |

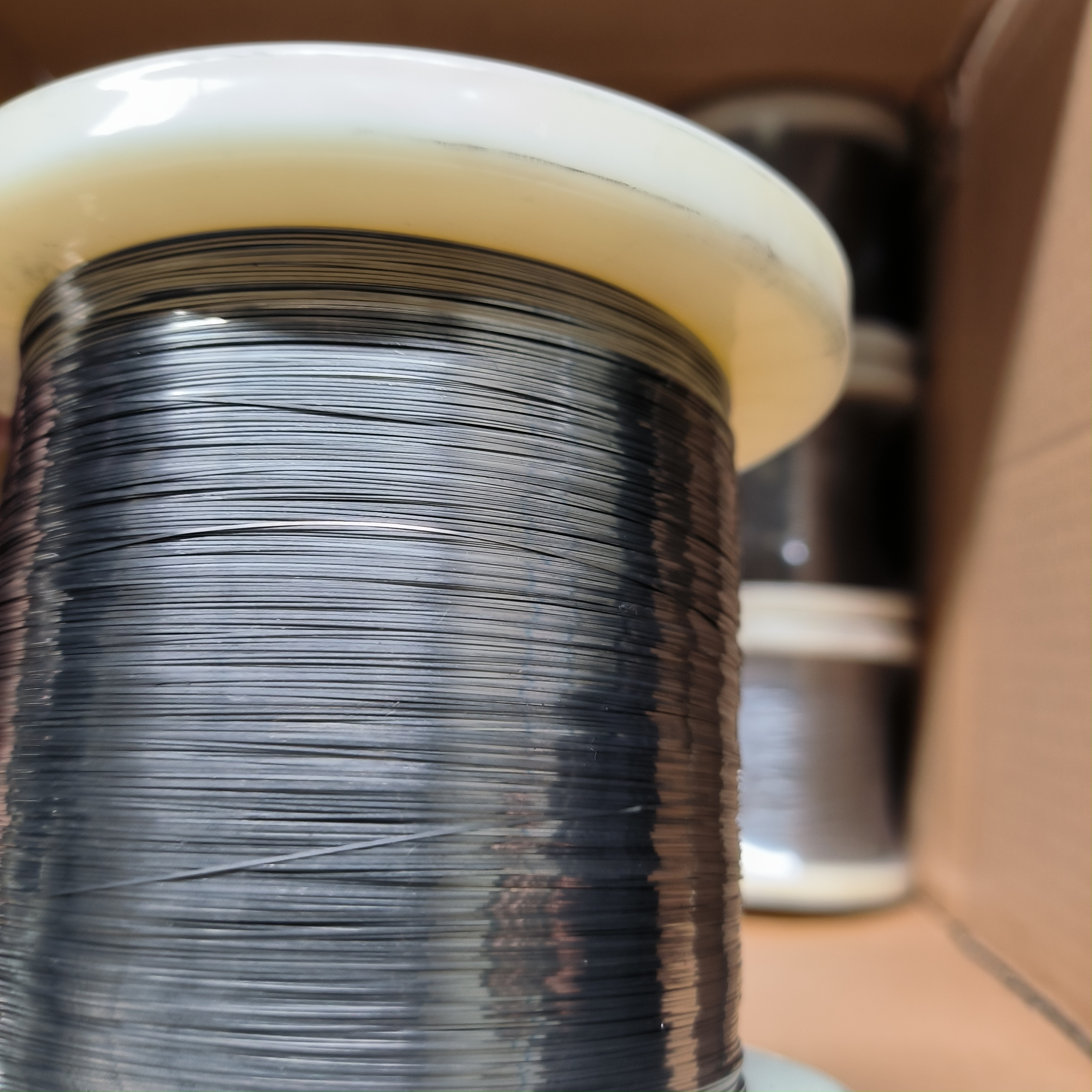

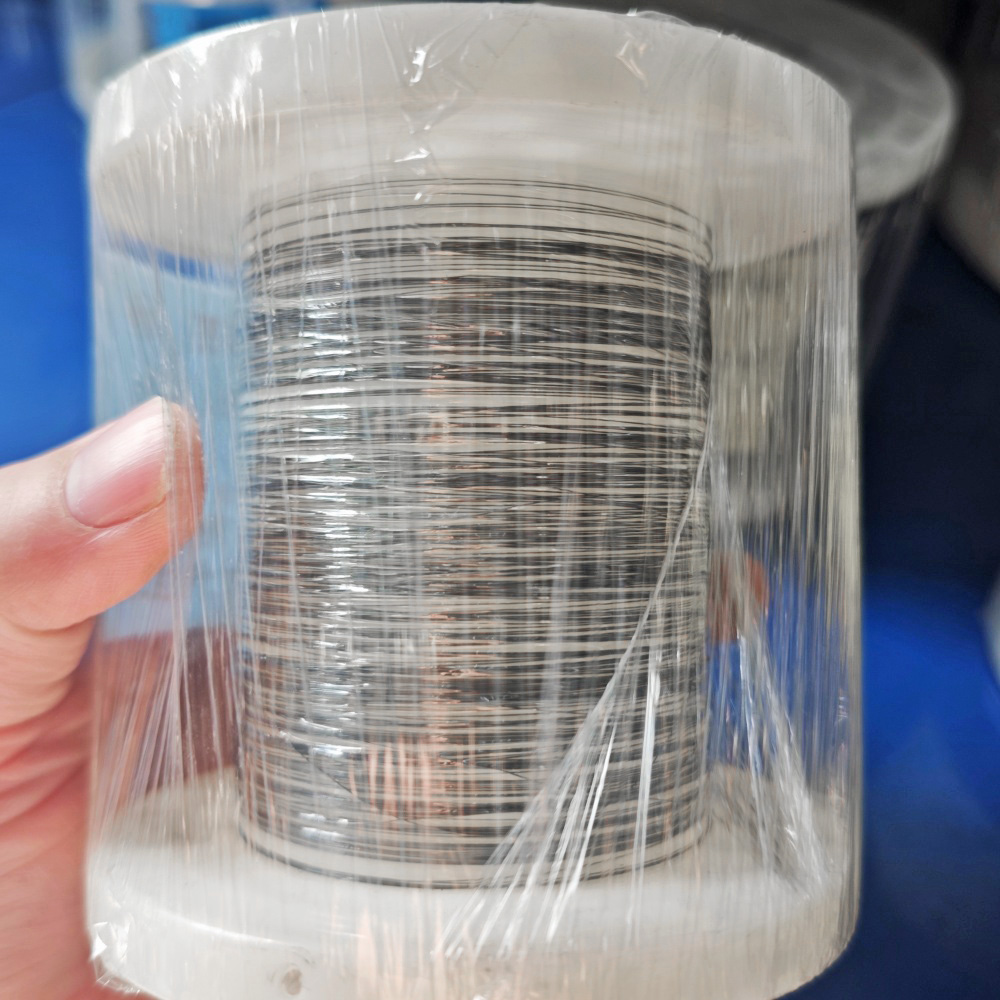

Wire Packaging | I-beam reels: To ensure that the nickel-titanium wire is evenly distributed on the packaging reel, without breakage or tangled threads Fixed length: Can be cut to fixed length according to customer requirements |
Features of Nitinol Alloy Wire
Shape Memory Effect
The unique shape memory property of Nitinol allows it to adapt to the natural contours of the bone during the healing process. When exposed to body temperature, the wire can return to its pre-set shape, creating a secure and stable fixation.Superelasticity
Nitinol wire exhibits superelasticity, meaning it can be stretched or bent without permanent deformation. This quality allows orthopedic devices made from Nitinol to withstand forces and stresses over time, ensuring consistent performance and reducing the likelihood of device failure.High Biocompatibility
Nitinol is highly biocompatible, making it ideal for use in medical devices that are implanted in the human body. Its low risk of causing adverse reactions ensures that patients experience fewer complications and faster recovery times.Corrosion Resistance
Nitinol’s ability to resist corrosion and oxidation ensures long-term stability inside the body, even in harsh environments like the human bone and joint regions. This longevity makes it a reliable option for permanent or long-term implants.Fatigue Resistance
The wire's fatigue resistance is critical in applications where the implant will experience continuous motion or strain. Nitinol wire is able to perform under repetitive stress without breaking down, offering long-lasting results.Enhanced Flexibility
Unlike rigid materials, Nitinol offers enhanced flexibility, which is particularly beneficial in bone fixation devices that need to conform to the natural shape and movement of the bone and surrounding tissues. This flexibility reduces the risk of implant failure and discomfort for the patient.
Wire Diameter and Tolerance
Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) |
4.000-2.000mm | ±0.025mm | 0.350-0.260mm | ±0.010mm | 0.080-0.050mm | ±0.005mm |
2.000-1.000mm | ±0.020mm | 0.260-0.150mm | ±0.007mm | 0.050-0.025mm | ±0.005mm |
1.000-0.350mm | ±0.010mm | 0.150-0.080mm | ±0.005mm | 0.025-0.018mm | ±0.003mm |
*Can be adjusted according to customer requirements
Advantages of Nitinol Alloy Wire
Long-Term Reliability
Nitinol’s combination of shape memory and superelasticity makes it incredibly reliable in orthopedic applications. Implants made from Nitinol can endure long-term use and movement without losing their structural integrity, leading to fewer revisions and reduced healthcare costs.Reduced Surgical Invasiveness
Nitinol wire's flexibility allows for minimally invasive surgeries, as it can be inserted into smaller incisions and then expand or adapt to fit the bone structure. This minimizes trauma to the patient and shortens recovery time.Improved Patient Comfort
Because of its flexibility and ability to adapt to body movements, Nitinol wire reduces discomfort caused by rigid implants. This also enhances patient mobility, allowing for a more comfortable post-operative experience.Enhanced Bone Healing
The shape memory function of Nitinol wire supports the bone healing process by providing a secure fixation while still allowing for natural movement. This dynamic environment can promote more effective healing and bone regeneration compared to traditional materials.Reduced Risk of Complications
The biocompatibility and corrosion resistance of Nitinol ensure that the body can safely interact with the implant, significantly reducing the chances of infection or other complications that can arise with non-biocompatible materials.
Mechanical Properties of Nitinol Alloy Wire
| Straightening Hyperelastic State | |||||
| Maximum Force (N) | Tensive Strength (MPa) | Elongation (%) | Upper Plateau Stress (MPa) | Residual Strain (WT%) | Actual Operating Temperature (af) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.555.96 | (10±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.556.1 | (-30±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.550.0 | (60±10) |

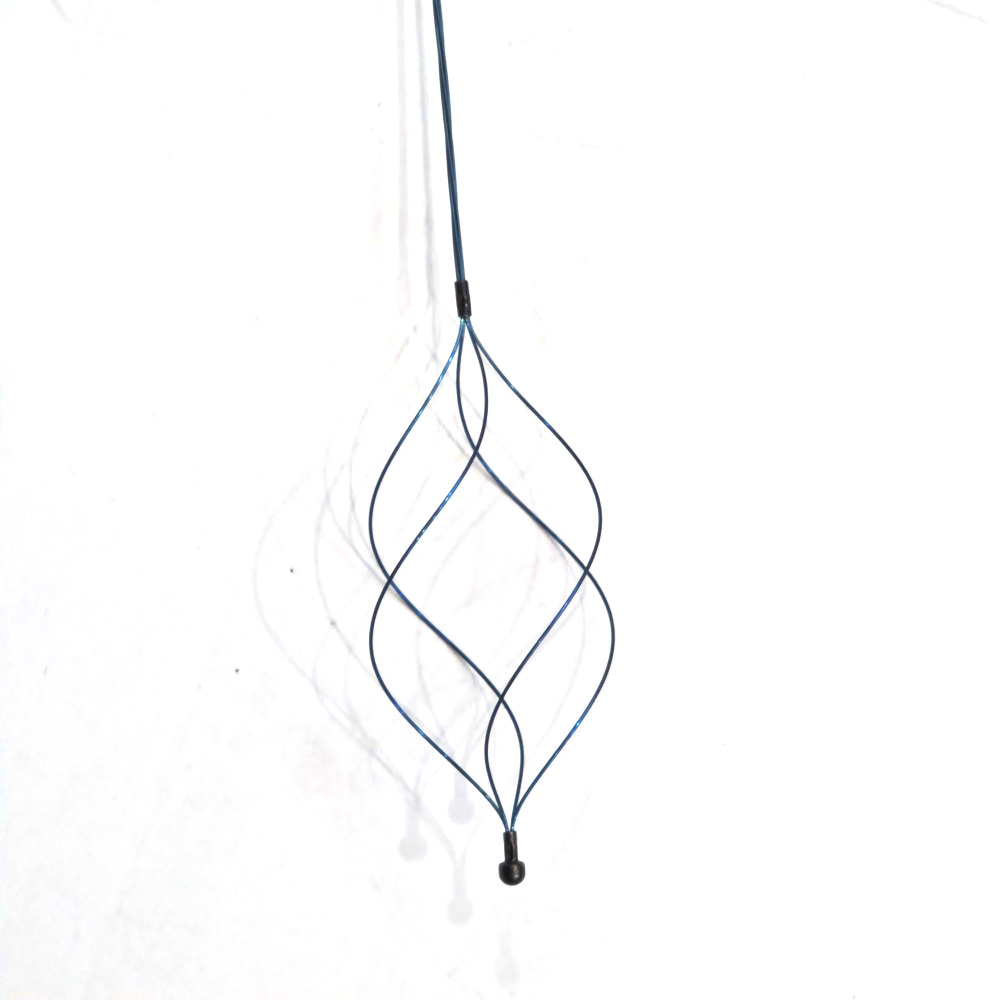

Typical medical applications include: guidewires, braided frameworks, stone retrieval baskets, snares, root canal files, intrauterine devices, sutures, and mandrels.
Applications of Nitinol Alloy Wire
Fracture Fixation
Nitinol wire is commonly used in the fixation of fractures, particularly in areas where traditional rigid materials may be prone to failure. The wire’s ability to bend and adjust to the bone ensures a stable and secure environment for healing.Spinal Implants
In spinal surgeries, Nitinol wire is used to stabilize vertebrae or support spinal fusion. Its flexibility and shape memory properties help maintain the natural curvature of the spine, promoting proper alignment and recovery.Joint Reconstruction
Nitinol wire is used in joint reconstruction to stabilize bones and joints that have been damaged or deteriorated. Its biocompatibility ensures that it can remain in the body for long periods without causing rejection or inflammation.Orthopedic Staples and Pins
Nitinol wire is used in orthopedic staples and pins due to its flexibility, strength, and biocompatibility, offering an effective solution for securing bones during the healing process.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.
Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.

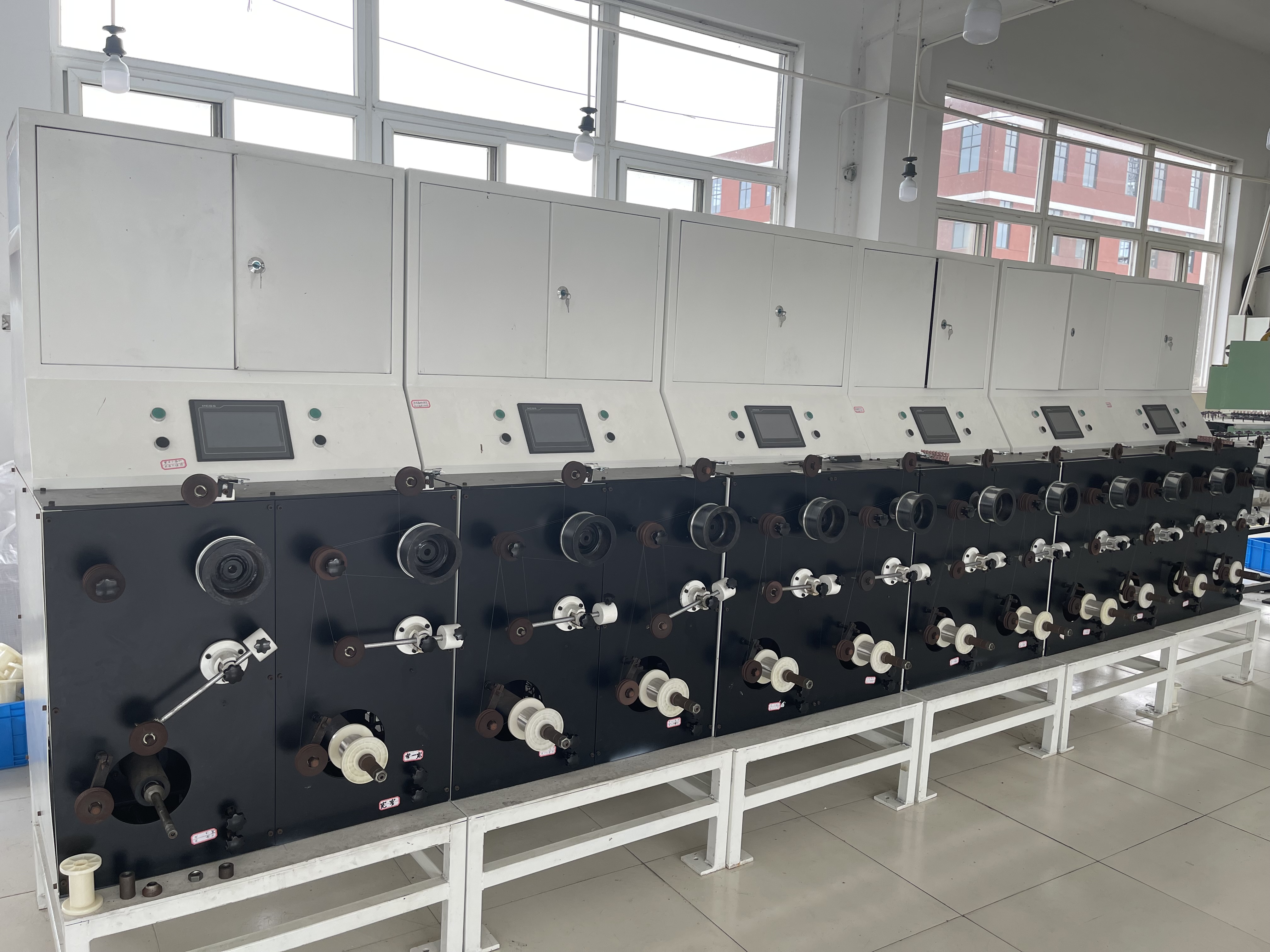

Our Factory
Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.
FAQ
Who is your company?
We are a leading supplier of high-quality Nitinol alloy wire, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.How can I contact your company?
Phone: +86 132 1868 0935
Whatsapp: +86 13218680935
Email: victory@dlx-alloy.com
What makes Nitinol wire ideal for orthopedic implants?
Nitinol wire is perfect for orthopedic applications due to its superelasticity, shape memory, and biocompatibility. These properties make it highly flexible, strong, and safe for use in bone fixation and healing.
How does Nitinol wire improve patient recovery?
Nitinol wire’s flexibility and adaptability reduce the risk of complications such as implant failure or discomfort, promoting faster recovery and reducing the need for follow-up surgeries.
Is Nitinol wire safe for long-term use in the human body?
Yes, Nitinol is highly biocompatible and corrosion-resistant, making it safe for long-term use in the body without adverse reactions or degradation over time.
Can Nitinol wire be used in minimally invasive surgeries?
Absolutely. Nitinol’s flexibility allows it to be used in minimally invasive procedures, which reduces trauma, shortens recovery time, and minimizes the risks associated with larger incisions.
