What is Nitinol Wire?
Nitinol wire, a shape memory alloy composed of nickel and titanium, has become a critical material in the medical device industry, particularly for implants. Known for its unique properties—such as shape memory, superelasticity, and excellent biocompatibility—Nitinol offers enhanced performance and reliability for a wide range of medical applications. These remarkable features make it an ideal choice for implants, providing optimal results and safety for patients.
Nitinol wire's shape memory ability allows it to "remember" its original form when exposed to heat. This property, coupled with its superelasticity, makes it highly adaptable in medical devices that require flexibility, precision, and durability. Its biocompatibility ensures that it can be safely used in the human body for long-term applications, making it ideal for medical device implants that must withstand harsh biological environments.
Wire Shape | Titanium alloy round wire, flat wire, square wire, D-shaped wire, triangular wire, bidirectional drive wire |
Wire Surface Condition | Black oxide state, light oxide state (from golden yellow to brown), clean state, bright state, polished state |

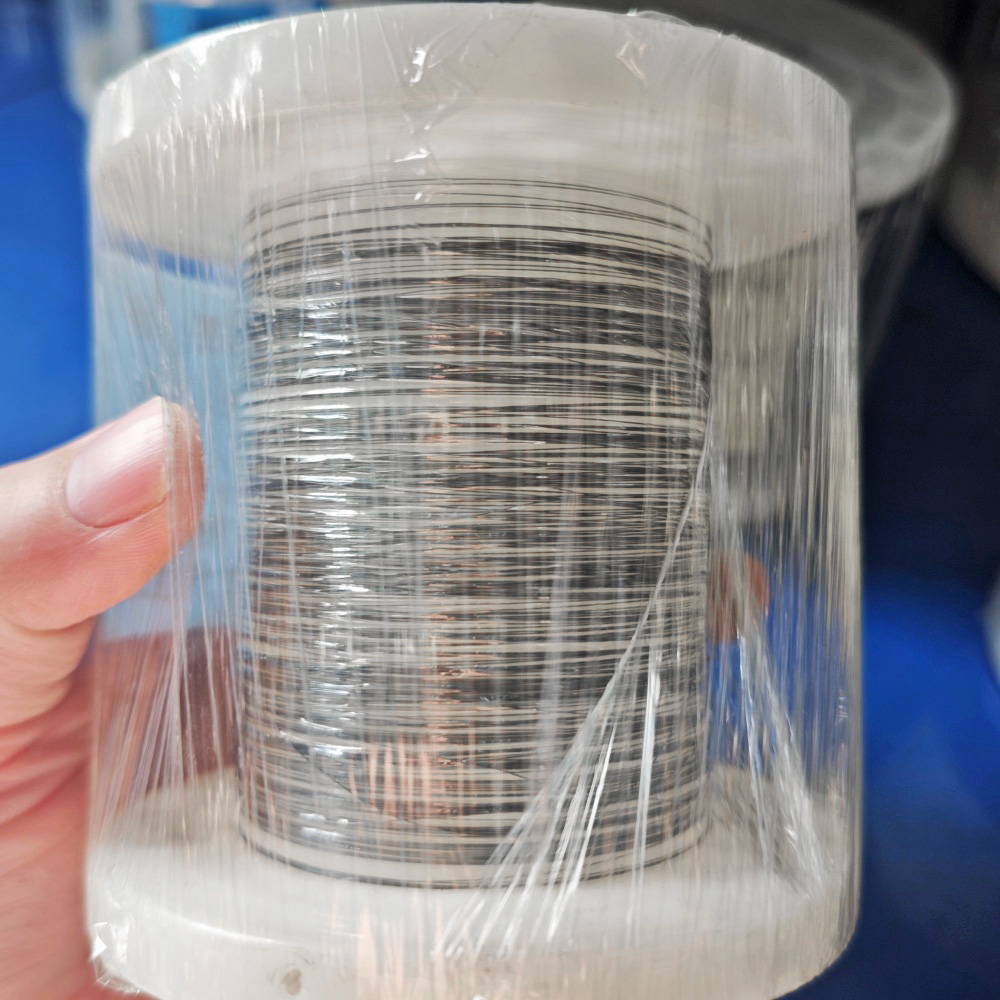

Wire Packaging | I-beam reels: To ensure that the nickel-titanium wire is evenly distributed on the packaging reel, without breakage or tangled threads Fixed length: Can be cut to fixed length according to customer requirements |
Features of Nitinol Alloy Wire

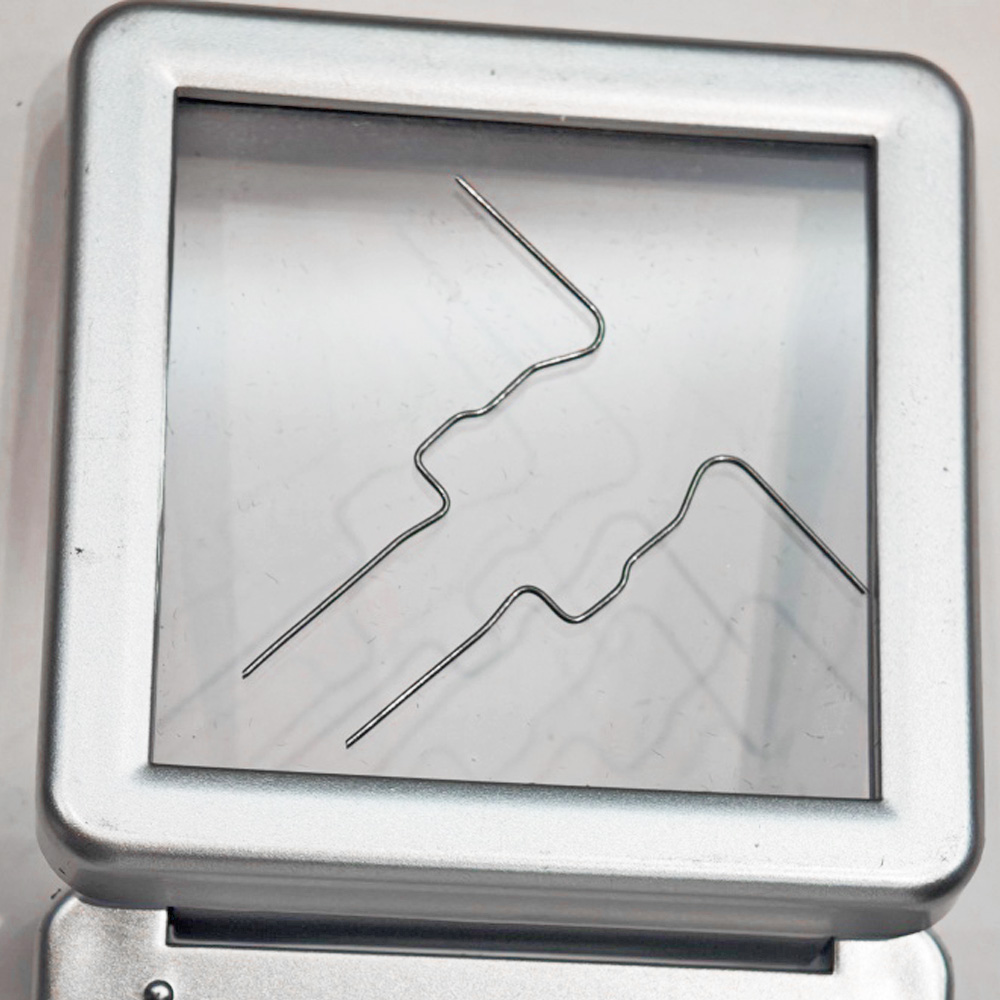

Shape Memory Effect
The shape memory effect of Nitinol allows it to revert to its pre-set shape when exposed to heat. This feature is essential in medical device implants, where it can provide precise alignment and a secure fit inside the body, whether for stents, catheters, or other implants.Superelasticity
Nitinol wire is also known for its superelasticity, meaning it can withstand significant strain and deformation without permanent damage. This property is crucial for medical implants that need to endure repetitive stress and mechanical forces within the body, such as stents or orthopedic devices.Biocompatibility
One of the primary advantages of Nitinol wire is its excellent biocompatibility. It does not cause adverse reactions when implanted in the body, reducing the risk of inflammation, rejection, or other complications that can arise from using non-biocompatible materials.Corrosion Resistance
Nitinol's corrosion resistance is another key feature that makes it ideal for long-term use in the body. It is highly resistant to oxidation and corrosion, which means it maintains its integrity and performance over time, even when exposed to the body's harsh internal environment.Fatigue Resistance
Nitinol wire's ability to resist fatigue ensures that it can maintain its performance and structure after prolonged use. This makes it an ideal material for implants such as stents, orthopedic plates, or spinal devices that must endure continuous mechanical forces over long periods.Flexibility and Strength
Nitinol wire offers an optimal balance of flexibility and strength. Its flexibility allows for easier insertion and placement of medical implants, while its strength ensures that the implant can bear the necessary loads and forces without failure.
Wire Diameter and Tolerance
Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) | Wire Diameter (mm) | Tolerance (mm) |
4.000-2.000mm | ±0.025mm | 0.350-0.260mm | ±0.010mm | 0.080-0.050mm | ±0.005mm |
2.000-1.000mm | ±0.020mm | 0.260-0.150mm | ±0.007mm | 0.050-0.025mm | ±0.005mm |
1.000-0.350mm | ±0.010mm | 0.150-0.080mm | ±0.005mm | 0.025-0.018mm | ±0.003mm |
*Can be adjusted according to customer requirements
Advantages of Nitinol Alloy Wire
Improved Patient Comfort
Due to its superelasticity, Nitinol wire offers implants that adapt to the body’s natural movements. This flexibility reduces patient discomfort and minimizes the risk of pressure sores or injury caused by rigid implants.Long-Term Durability
With Nitinol's fatigue and corrosion resistance, implants made from this material are highly durable and can remain functional for long periods, minimizing the need for replacements or adjustments.Reduced Risk of Complications
Because Nitinol is biocompatible, the risk of complications such as inflammation, infection, or allergic reactions is significantly reduced. This increases the likelihood of a successful implant procedure and promotes faster recovery.Minimally Invasive Procedures
Nitinol wire's flexibility and shape memory allow for minimally invasive surgical procedures, reducing trauma to surrounding tissues and promoting faster recovery times. This can be particularly beneficial in procedures like catheter placements or stent insertions.Adaptability to Complex Anatomies
Nitinol wire can conform to complex and changing anatomies. For medical device implants like stents or orthopedic devices, this adaptability ensures that the device fits precisely and securely, leading to better outcomes.
Mechanical Properties of Nitinol Alloy Wire
| Straightening Hyperelastic State | |||||
| Maximum Force (N) | Tensive Strength (MPa) | Elongation (%) | Upper Plateau Stress (MPa) | Residual Strain (WT%) | Actual Operating Temperature (af) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.555.96 | (10±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.556.1 | (-30±10) |
| Diameter Depends | ≥1000(1350) | ≥10(15) | ≥400(460) | <0.550.0 | (60±10) |

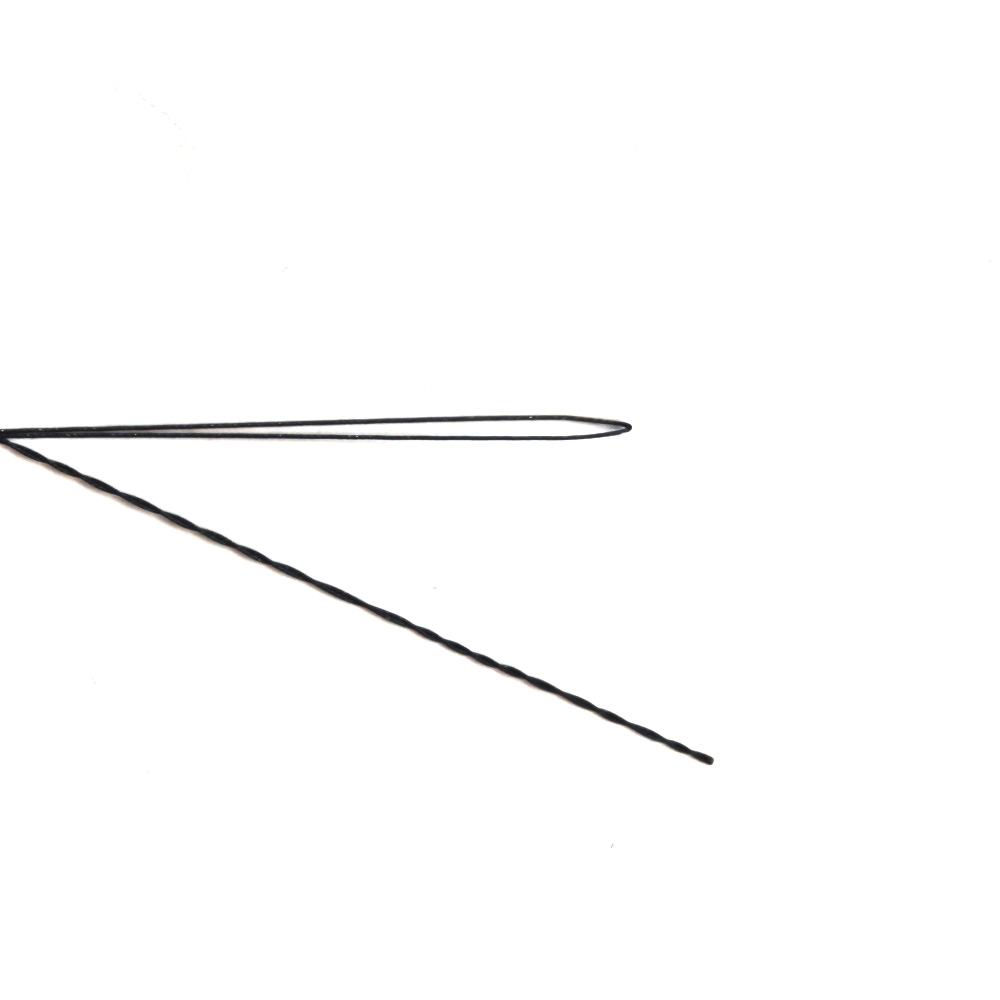

Typical medical applications include: guidewires, braided frameworks, stone retrieval baskets, snares, root canal files, intrauterine devices, sutures, and mandrels.
Applications of Nitinol Alloy Wire
Nitinol wire is used in a wide variety of medical device implants, including the following key applications:
Stents and Vascular Implants
Nitinol wire is frequently used in the production of vascular stents due to its ability to return to its original shape when heated. This property is crucial in ensuring that stents expand and stay in place once deployed inside blood vessels, helping maintain vessel patency.Orthopedic Implants
In orthopedic procedures, Nitinol wire is commonly used in bone fixation systems, including screws, pins, and plates. Its flexibility allows it to better conform to bone structure, providing a secure fit while promoting natural healing.Spinal Implants
Nitinol wire is used in spinal implants for stabilizing vertebrae or assisting with spinal fusion. Its shape memory effect ensures that it can provide long-lasting support, helping maintain proper spinal alignment during the healing process.Catheters and Guidewires

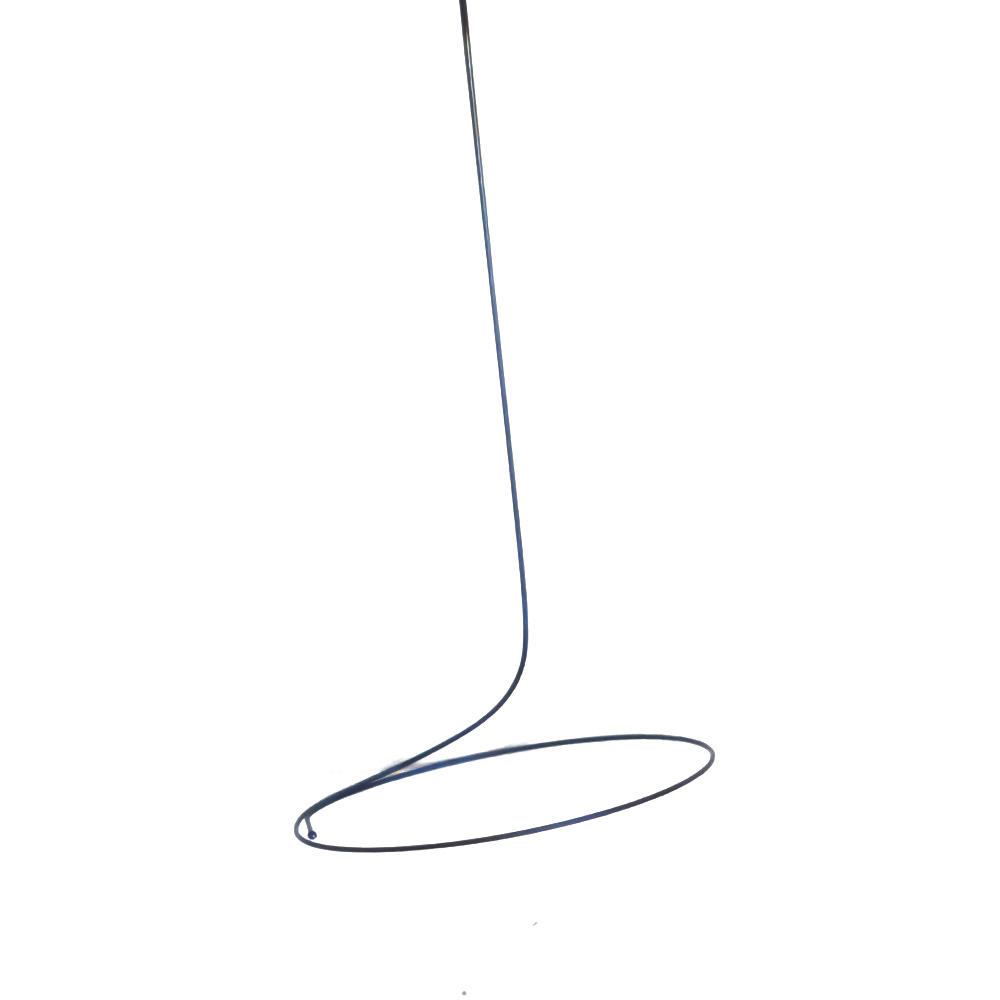

Nitinol's flexibility and superelasticity make it ideal for catheters and guidewires used in minimally invasive procedures. These devices need to navigate through narrow or curved passageways in the body, and Nitinol’s ability to bend and return to shape makes it highly effective.Dental Implants
In dental applications, Nitinol wire is used in orthodontic appliances, such as braces, to apply the necessary pressure to align teeth. Its shape memory allows it to exert consistent, gentle force over time, providing better control and faster results.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.
Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.

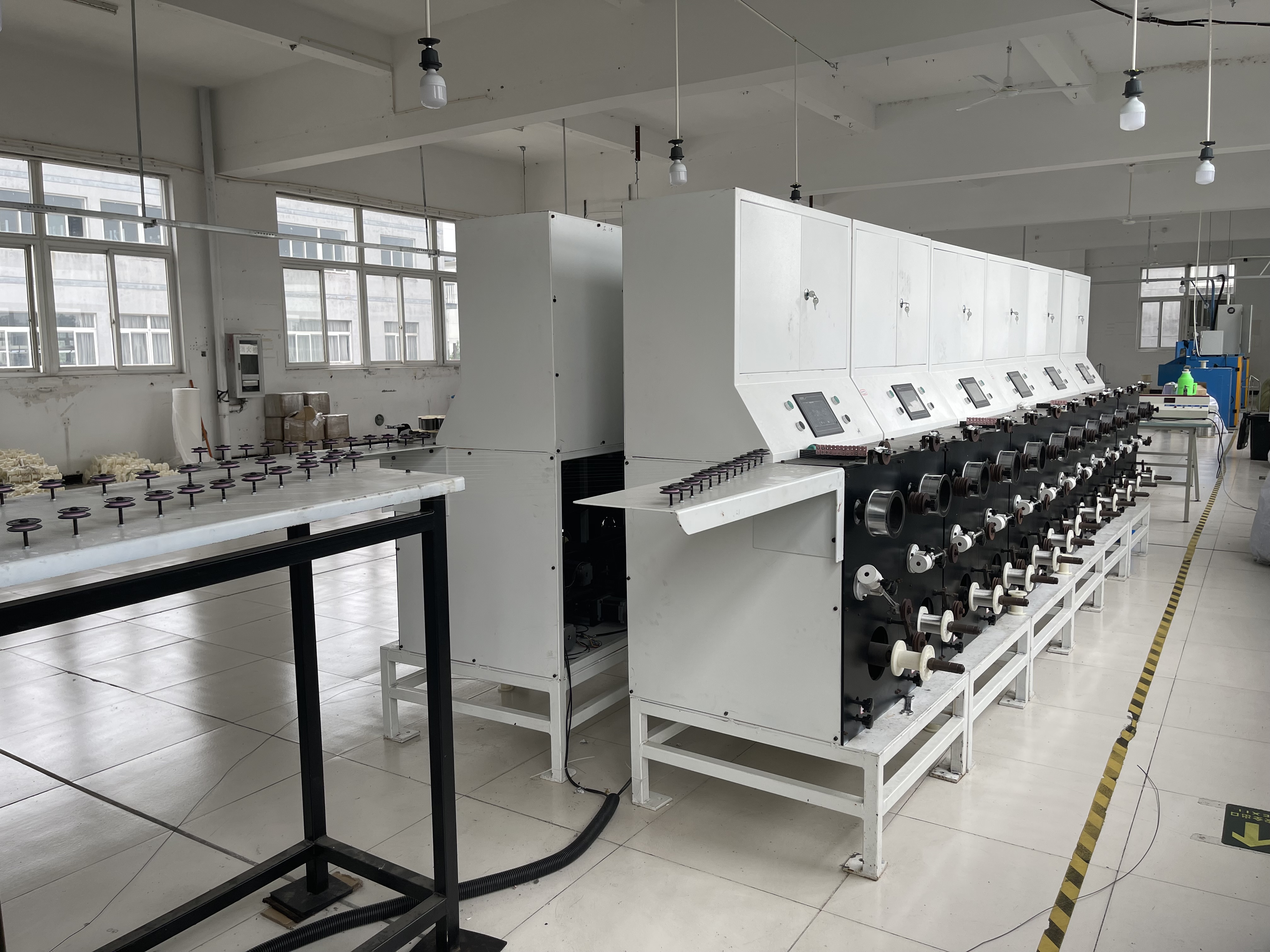

Our Factory
Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.
FAQ
Who is your company?
We are a leading supplier of high-quality Nitinol alloy wire, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.How can I contact your company?
Phone: +86 132 1868 0935
Whatsapp: +86 13218680935
Email: victory@dlx-alloy.com
What makes Nitinol wire ideal for medical device implants?
Nitinol wire's shape memory and superelasticity allow it to adapt to the body's movements and return to its original shape, ensuring precise alignment and long-term durability for implants.How does Nitinol wire improve patient comfort?
The flexibility of Nitinol wire ensures that implants conform to the body's natural movements, reducing discomfort and the risk of injury associated with rigid implants.How does Nitinol wire ensure the longevity of implants?
Nitinol’s corrosion resistance, fatigue resistance, and biocompatibility ensure that implants made from this material maintain their integrity over time, reducing the need for replacement and improving patient outcomes.Can Nitinol wire be used in minimally invasive procedures?
Yes, Nitinol's flexibility allows it to be used in minimally invasive surgeries, requiring smaller incisions, which leads to quicker recovery times and reduced risk of infection.
