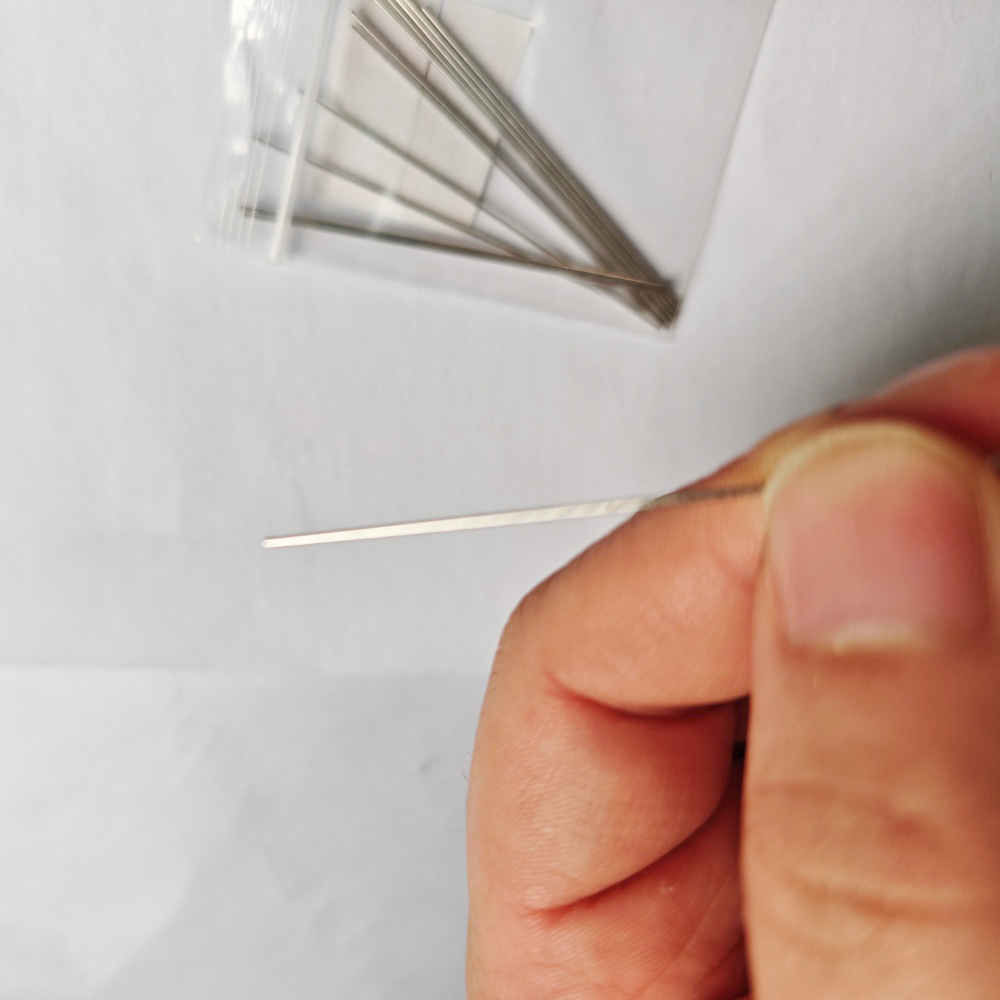

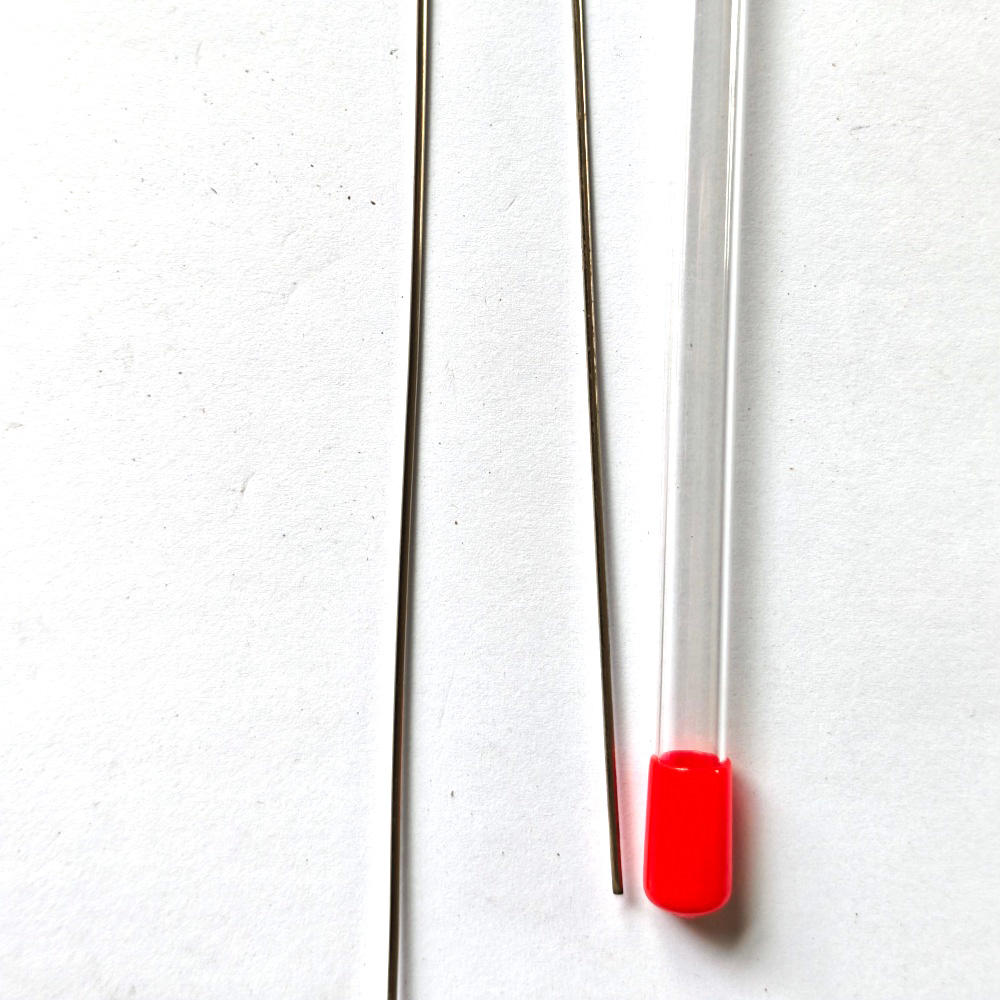

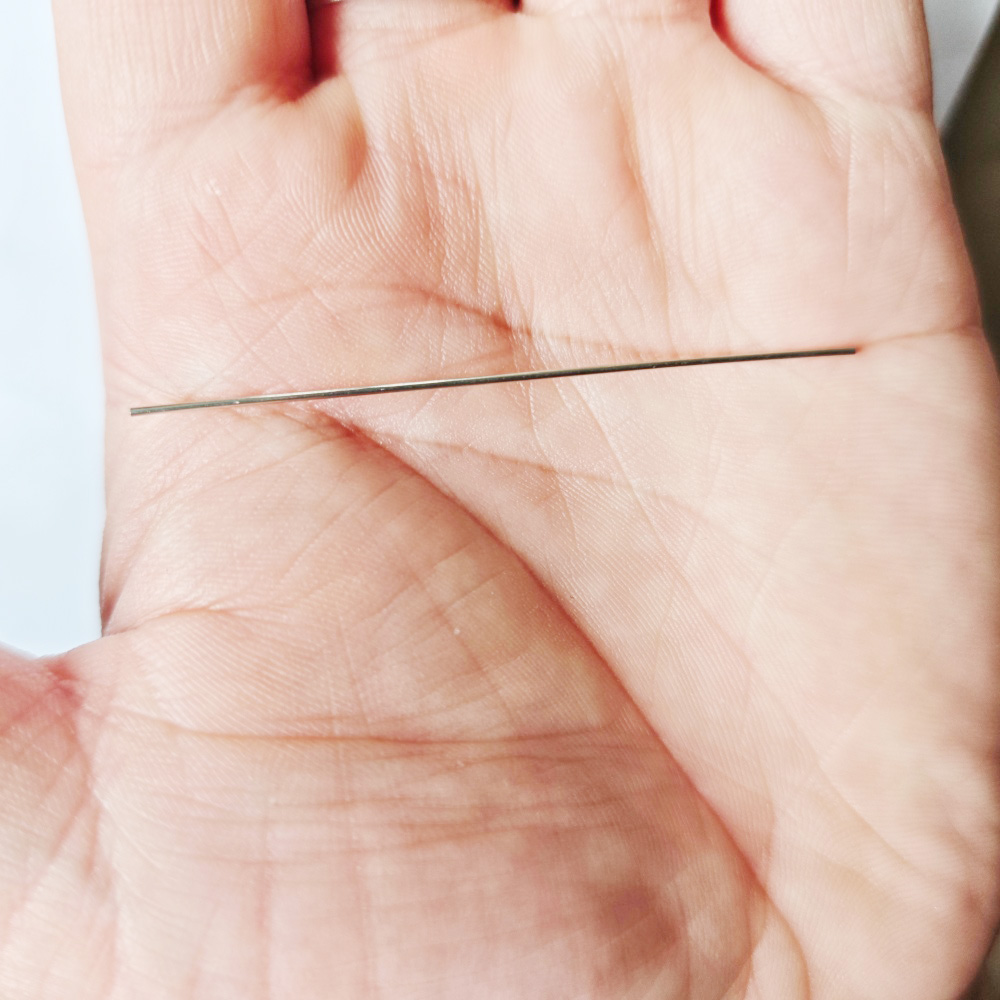

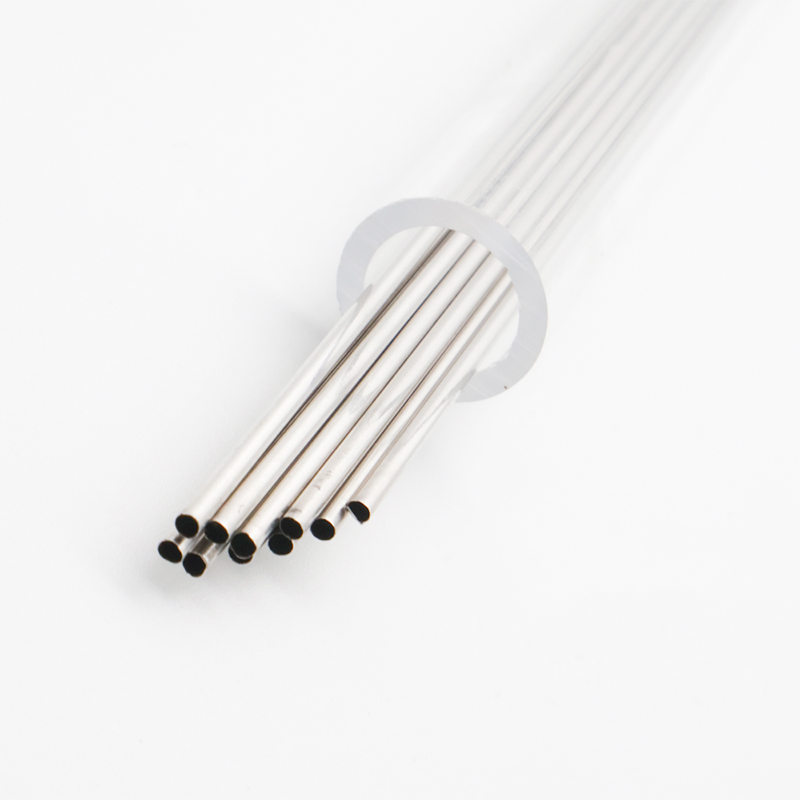

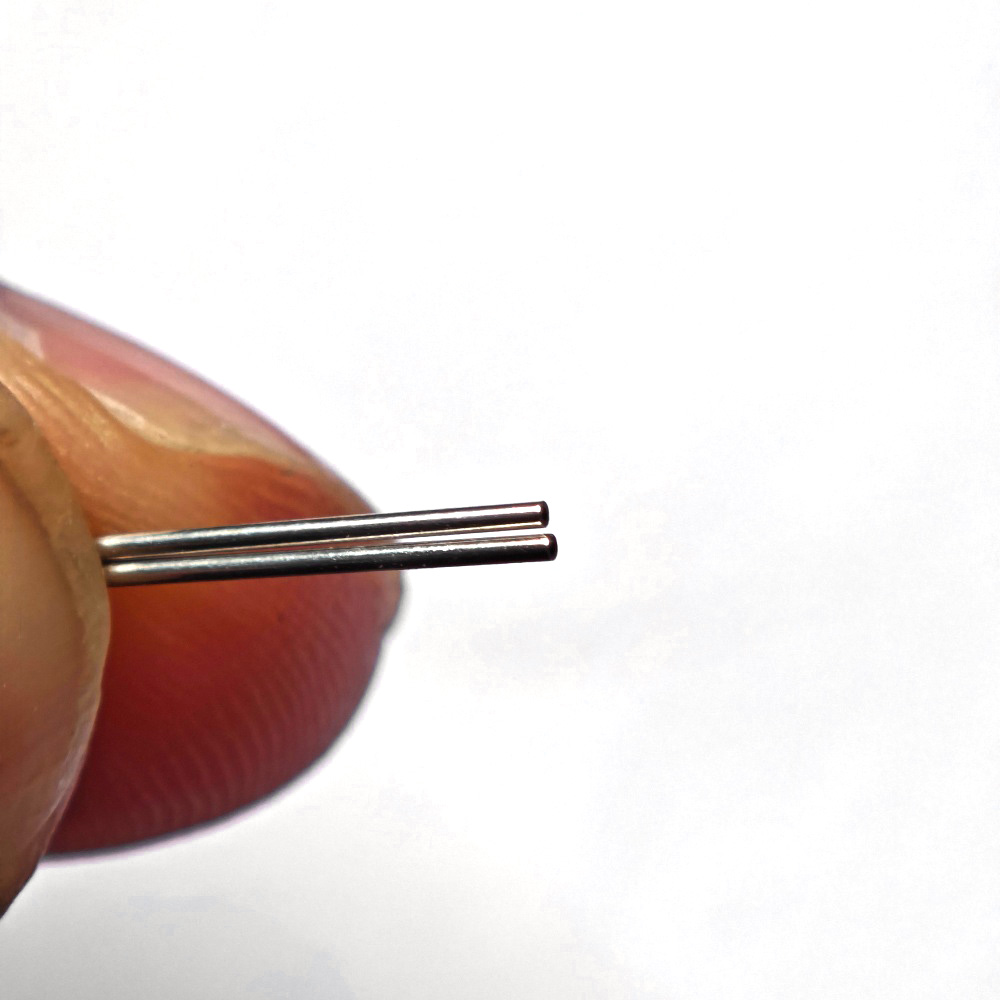

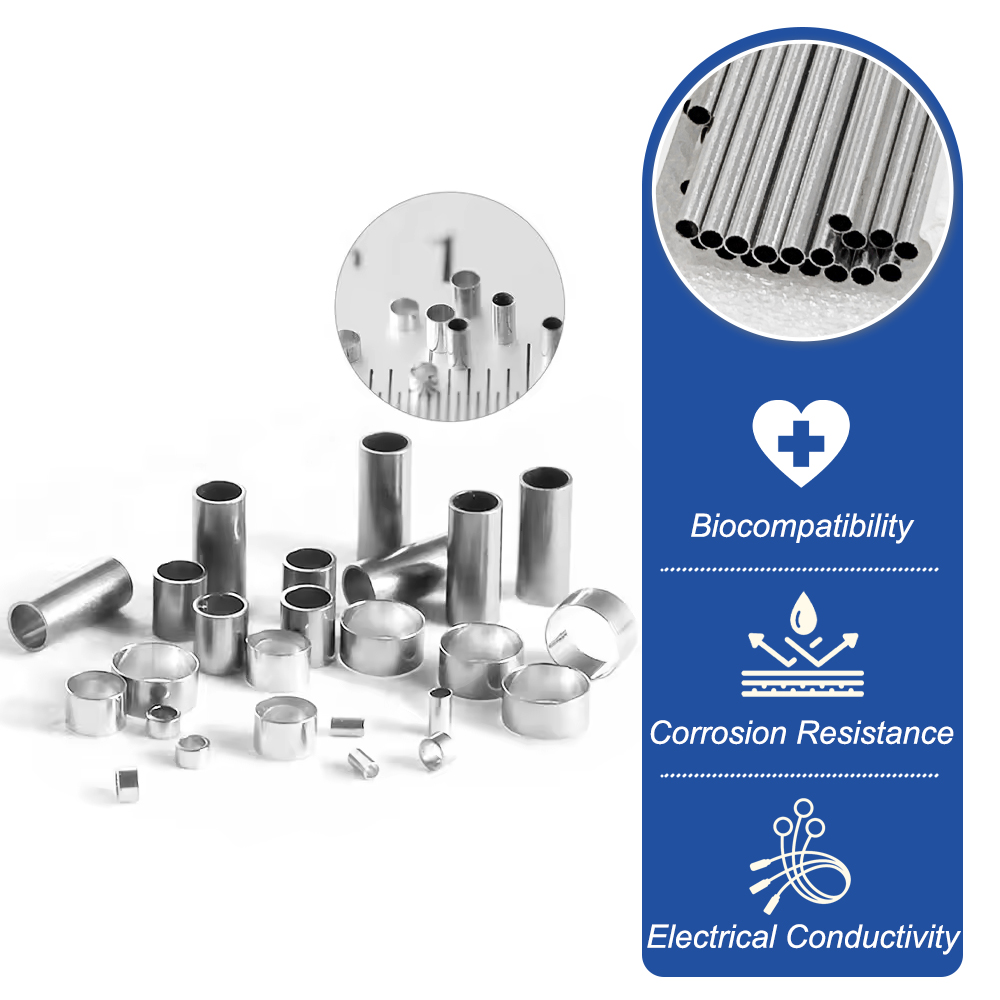

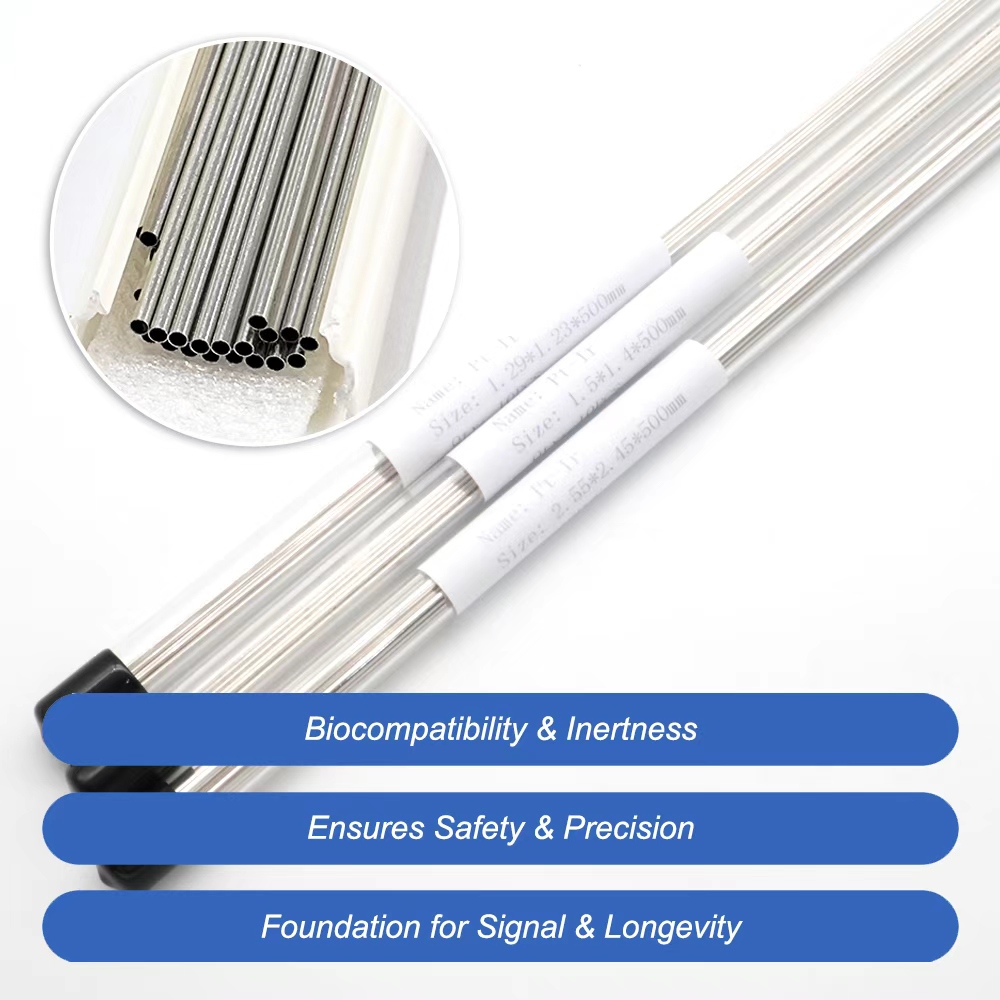

Overview of Precision Platinum Iridium Pt-Ir Capillary Tubing
In the demanding field of Medical Electronics & Precision Components, our Premium Platinum Iridium Pt-Ir Capillary Tubing delivers the ultimate combination of high density, corrosion resistance, and fluoroscopic visibility. Manufactured from medical-grade Pt90/Ir10 alloy (ASTM B684 compliant, purity ≥99.95%), these seamless, thin-walled capillary tubes serve as the raw material for cutting ultra-precise radiopaque marker bands used in catheters, vascular stents, and minimally invasive interventional devices.
Engineered for tight tolerances (OD/ID/WT ±0.01 mm typical), the tubing ensures burr-free cutting and flawless integration into next-generation catheter assemblies, stent delivery systems, and biomedical sensors. Its superior radiopacity under X-ray and fluoroscopy enables real-time visualization during angioplasty, electrophysiology procedures, and neurovascular interventions — critical for precision placement in high-stakes medical electronics applications.
Features of High-Purity Pt-Ir Alloy Capillary Tubing
Exceptional Radiopacity & Fluoroscopic Visibility — High-density Pt90/Ir10 alloy (21.53 g/cm³) provides unmatched X-ray contrast for clear marker band imaging in real-time procedures.
Medical-Grade Biocompatibility & Corrosion Resistance — Fully inert in body fluids; ideal for long-term implants and chronic-use catheter systems.
Ultra-Precise Seamless Construction — Tight tolerances (±0.01 mm on OD/ID/wall thickness) and burr-free finish for reliable cutting into marker bands and retention sleeves.
Superior Mechanical Strength & Ductility — Enhanced hardness from iridium addition while maintaining excellent formability for hypotube-style precision components.
ASTM B684 Compliant & Traceable — High-purity material with full certification for regulated Medical Electronics & Precision Components markets.
Applications of Premium Pt-Ir Capillary Tubing
Radiopaque Marker Bands for Diagnostic & Therapeutic Catheters — Gold-standard material for positioning bands in coronary, peripheral, and neurovascular catheters during angioplasty and minimally invasive procedures.
Edge Markers & Alignment Components for Coronary, Peripheral & Biliary Stents — Precision tubing cut into bands that ensure accurate stent deployment and post-procedure visualization.
Ring Electrodes & Contact Rings in Cardiac Rhythm Management Devices — Used in pacemakers, defibrillators, and electrophysiology catheters for stable electrical performance.
Precision Components in Biomedical Sensors & Implants — Ideal for retention sleeves, guidewire markers, and micro-sensor housings in advanced medical electronics.
Minimally Invasive Interventional Tools — Supports neurovascular, urology, and oncology catheter systems requiring high radiopacity and biocompatibility.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.
Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.
Our Factory
Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.
FAQs on Medical Grade Platinum-Iridium Tubes
Q1: What is the standard alloy composition for your Pt-Ir capillary tubing?
A: Pt90/Ir10 (90% platinum, 10% iridium) – the industry gold standard for radiopaque marker bands due to optimal balance of radiopacity, biocompatibility, and mechanical properties.
Q2: Are these capillary tubes suitable for cutting radiopaque marker bands?

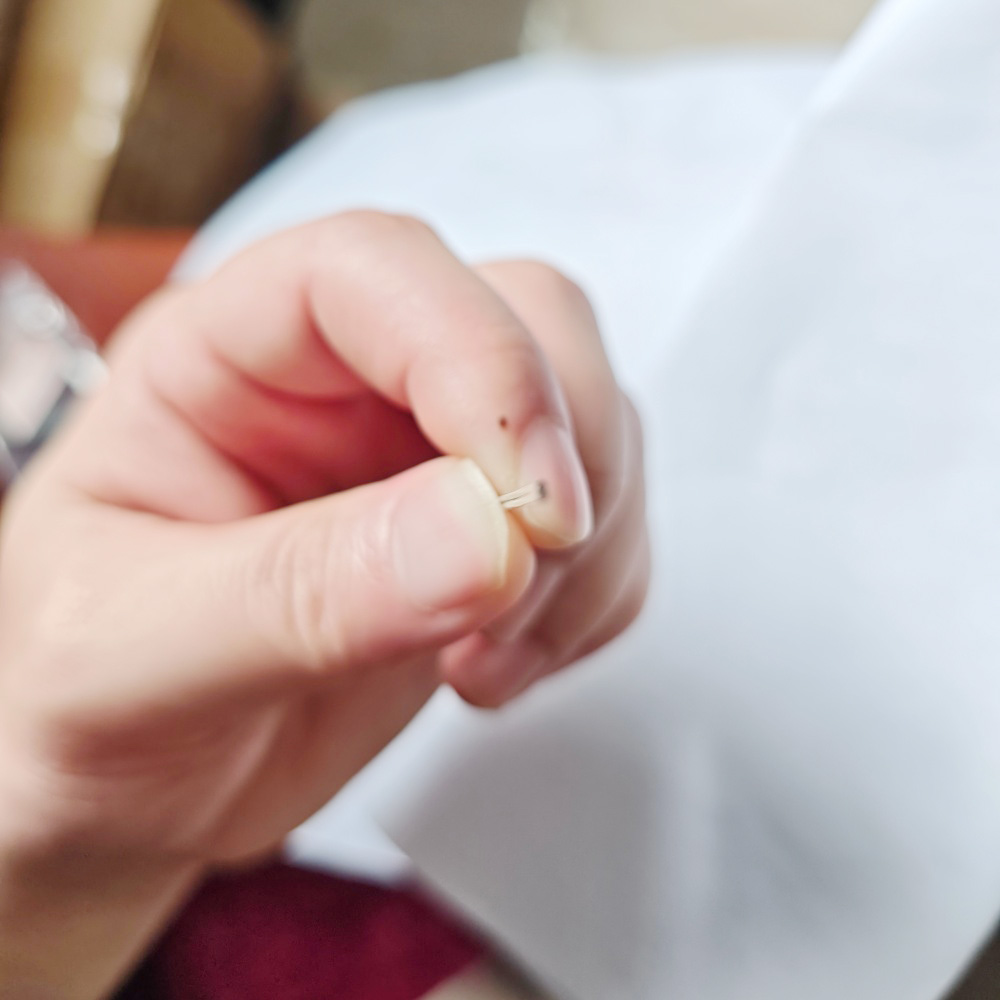

A: Yes. Designed specifically for high-precision cutting into marker bands (lengths down to 0.2 mm) with burr-free results for catheter and stent applications.
Q3: What tolerances can you achieve on OD, ID, and wall thickness?
A: Typical tolerance ±0.01 mm (0.0004") on critical dimensions; tighter tolerances available upon request for ultra-precision medical electronics components.
Q4: Is the tubing biocompatible and compliant with medical standards?
A: Fully biocompatible, meets ASTM B684, and supplied with material certification suitable for FDA-regulated and CE-marked medical device manufacturing.
Q5: Why choose Platinum Iridium over tantalum or gold for marker bands?
A: Pt-Ir provides superior radiopacity, better long-term corrosion resistance, and excellent electrical conductivity for combined marker + electrode applications in interventional cardiology.
