Introduction of Titanium Alloy Wire
Titanium wire is a trusted material in the world of orthodontics and dental implants, renowned for its high performance and exceptional properties. Whether you're looking for durable wires for braces or reliable materials for dental implants, titanium wires provide the strength, flexibility, and biocompatibility required for long-term success. At Victory Supplier, we offer high-performance titanium wires designed to meet the demanding needs of orthodontic and implant treatments, ensuring optimal outcomes for both patients and professionals.
| China | Classification | UK | Russia | Japan |
| TA1 | Commercial Pure Titanium | GR1 | BT1-00 | TP270 |
| TA2 | Commercial Pure Titanium | GR2 | BT1-0 | TP340 |
| TA3 | Commercial Pure Titanium | GR3 | TP450 | |
| TA4 | Commercial Pure Titanium | GR4 | TP550 | |
TC4 | Ti-6AI-4V | GR5 | BT6 | TAP6400 |
| TA7 | GR6 | |||
| TA9 | Ti-0.2Pd | GR7 | TP340Pb | |
TA18 | Ti-3Al-2.5V | GR9 | 0T4-1B | TAP3250 |
| TA9-1 | GR11 | |||
| TA10 | Ti-0.3Mo-0.8Ni | GR12 | ||
| TB5 | Ti-15V-3Al-3Gr-3Sn | Ti-15333 | ||
| TC4ELI | Ti-6AI-4VELI | GR23 |
Features of Titanium Alloy Wire
Unmatched Strength and Durability
Titanium wire is known for its outstanding tensile strength, which makes it an ideal choice for orthodontic braces and dental implants. It provides the necessary force to gradually align teeth or secure implants, all while maintaining its integrity under stress. The exceptional durability ensures longevity, minimizing the need for replacements or adjustments.Flexible Yet Robust
Unlike other metals, titanium wire combines strength with flexibility. This unique characteristic makes it perfect for orthodontic applications where the wire needs to adapt to the patient's mouth while still delivering precise and controlled tooth movement. In dental implants, titanium wire helps create a strong bond with the bone, ensuring the implant remains securely in place.Biocompatibility
Titanium is highly biocompatible, meaning it integrates well with human tissues without causing irritation or rejection. This makes titanium wire an ideal choice for both orthodontic appliances and dental implants, offering a safe, non-toxic solution for long-term treatment.Corrosion Resistance
Titanium wire excels in environments exposed to moisture and saliva, making it highly resistant to corrosion. This feature ensures the wire remains intact and maintains its strength and function, even over prolonged periods, providing a reliable solution for both braces and implants.
| Mechanical Properties | |||||||
| Grade | Condition | Tensile Strength | Yield Strength | Elongation | Reductionof Area | ||
| Ksi | Mpa | Ksi | Mpa | % | |||
| ≥ | |||||||
GR1 | Annealed | 35 | 240 | 25 | 170 | 24 | 30 |
| GR2 | 50 | 345 | 40 | 275 | 20 | 30 | |
| GR3 | 65 | 450 | 55 | 380 | 18 | 30 | |
| GR4 | 80 | 550 | 70 | 483 | 15 | 25 | |
| GR5 | 130 | 895 | 120 | 828 | 10 | 25 | |
| GR6 | 120 | 828 | 115 | 483 | 15 | 25 | |
| GR7 | 50 | 345 | 40 | 275 | 20 | 30 | |
| GR9 | 90 | 620 | 70 | 483 | 15 | 25 | |
| GR11 | 35 | 240 | 25 | 170 | 24 | 30 | |
| GR12 | 70 | 483 | 50 | 345 | 18 | 25 | |
| GR23(Ti-6AL-4VELI) | 125 | 860 | 115 | 795 | 10 | 25 | |
Titanium Alloy Grade Composition Table
| Grade | C ≤ | O ≤ | N ≤ | H ≤ | Fe ≤ | Al | V | Pd | Ni | Mo | Average of Other Elements | Total of Other Elements |
| Gr1 | 0.08 | 0.18 | 0.03 | 0.015 | 0.2 | - | - | - | - | - | 0.1 | 0.4 |
| Gr2 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | - | - | - | 0.1 | 0.4 |
| Gr4 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | - | - | 0.1 | 0.4 | |
| Gr5 | 0.08 | 0.2 | 0.05 | 0.015 | 0.4 | 5.5~6.75 | 3.5~4.5 | - | - | - | 0.1 | 0.4 |
| Gr7 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | 0.12~0.25 | 0.12~0.25 | - | 0.1 | 0.4 |
| Gr9 | 0.08 | 0.15 | 0.03 | 0.015 | 0.25 | 2.5~3.5 | 2.0~3.0 | - | - | - | 0.1 | 0.4 |
| Gr11 | 0.08 | 0.18 | 0.03 | 0.15 | 0.2 | - | - | 0.12~0.25 | - | - | 0.1 | 0.4 |
| Gr12 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | - | - | - | 0.6~0.9 | 0.2~0.4 | 0.1 | 0.4 |
| Gr16 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | - | - | 0.04~0.08 | - | - | 0.1 | 0.4 |
| Gr23 | 0.08 | 0.13 | 0.03 | 0.15 | 0.25 | 5.5~6.5 | 3.5~4.5 | - | - | - | 0.1 | 0.1 |
Advantages of Using Titanium Alloy Wire for Joint Implants
Long-Term Stability
The strength and flexibility of titanium wire ensure that it remains stable over time, whether used in braces or dental implants. It resists wear and deformation, providing a reliable solution that stands the test of time.Improved Comfort for Patients
Titanium's flexible nature allows for a more comfortable orthodontic treatment experience. It can apply gentle, consistent pressure to teeth, reducing discomfort often associated with traditional wires. For implants, the wire’s flexibility also ensures smoother integration with the bone, reducing discomfort during the healing process.Aesthetic Appeal
Titanium wire has a natural, subtle appearance, which makes it a preferred choice for patients seeking discreet orthodontic treatment. Its silver-gray color blends well with the natural color of teeth, offering a more aesthetically pleasing alternative to other metals commonly used in orthodontics.Customized Solutions for Every Patient
Titanium wire can be tailored to meet the specific needs of each patient, making it highly versatile. Whether it's for creating custom-fit braces or securing dental implants, the wire’s adaptability ensures a perfect fit for every individual treatment plan.
| Grade | TA1 TA2 TA3 TA4 TC4 TA7 GR7 GR9 GR11 |
| Titanium Wire | Diameter: 0.1mm-8.0mm |
| Titanium Tube | Length (4-12m), Width (1-50mm), Diameter (48.3-609.6mm) |
| Titanium Rod | Diameter (5.0-350mm), Length (300-6000mm) |
| Titanium Block | Length (100-1500mm), Width (30-600mm), Height (20-300mm) |
| Titanium Plate | Length (1000-6000mm), Width (1000-2000mm), Height (0.8-60mm) |
| Standard | ASTMB863 ASTMB265 ASTMF67 ASTMF136 ISO5832 GB3632 GJB9581 |
Applications of Titanium Alloy Wire in Joint Implants
Orthodontic Braces
Titanium wire is frequently used in orthodontics to straighten teeth effectively. The wire is threaded through brackets to apply pressure to the teeth, gradually moving them into the desired position. Its strength and flexibility make it an excellent choice for both initial alignments and fine-tuning teeth for a perfect smile.Dental Implants
In dental implant procedures, titanium wire is used to secure the implant post within the jawbone. The high strength of titanium ensures the post stays in place, while the material's biocompatibility allows it to integrate with the bone, creating a strong and stable foundation for artificial teeth.Orthodontic Archwires
Titanium wires are also used as archwires in braces. These wires help guide the movement of teeth throughout the orthodontic treatment process. Due to their flexibility and resistance to bending, titanium archwires are perfect for ensuring precise control over tooth movement.Retainers and Other Appliances
Titanium wire is commonly used in orthodontic retainers and other dental appliances due to its lightweight, durable, and flexible nature. These appliances help maintain the positioning of teeth after braces are removed, ensuring that the results of orthodontic treatment last.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.

Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.

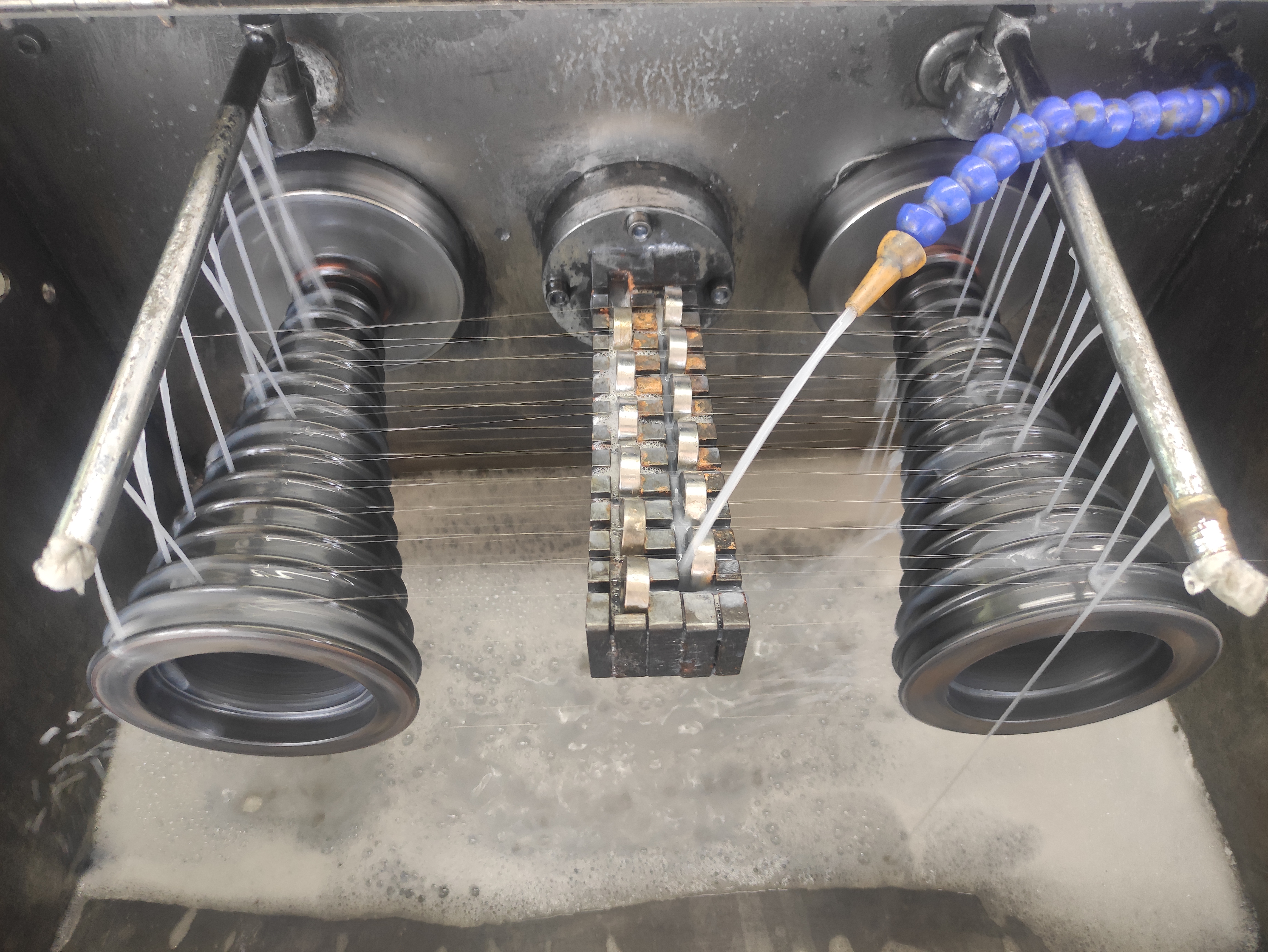

Our Factory

Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.


FAQ
Who is your company?
We are a leading supplier of high-quality Nitinol alloy wire, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.How can I contact your company?
Phone: +86 132 1868 0935
Whatsapp: +86 13218680935
Email: victory@dlx-alloy.com
Why is titanium wire ideal for orthodontic braces?
Titanium wire is the best choice for orthodontic braces because it provides the necessary strength to move teeth while remaining flexible enough to adapt to individual patient needs. It also ensures comfort and durability over the course of treatment.Can titanium wire be customized for different orthodontic treatments?
Yes, titanium wire can be customized for different treatments, including initial alignments, refinement stages, and retainers. Its flexibility makes it adaptable to various orthodontic needs.How does titanium wire help with dental implants?
Titanium wire is used to secure dental implants within the jawbone. The wire provides structural support, allowing the implant to fuse securely with the bone while maintaining stability and strength for long-term use.Is titanium wire resistant to corrosion in the mouth?
Yes, titanium wire is highly resistant to corrosion, making it ideal for use in the moist environment of the mouth. It can withstand exposure to saliva and food acids without deteriorating, ensuring a long-lasting solution for both braces and implants.How can I purchase titanium wire for orthodontic braces and implants?
You can purchase our high-performance titanium wire products directly through our website or by contacting our sales team for more information on specifications, pricing, and customization options.
