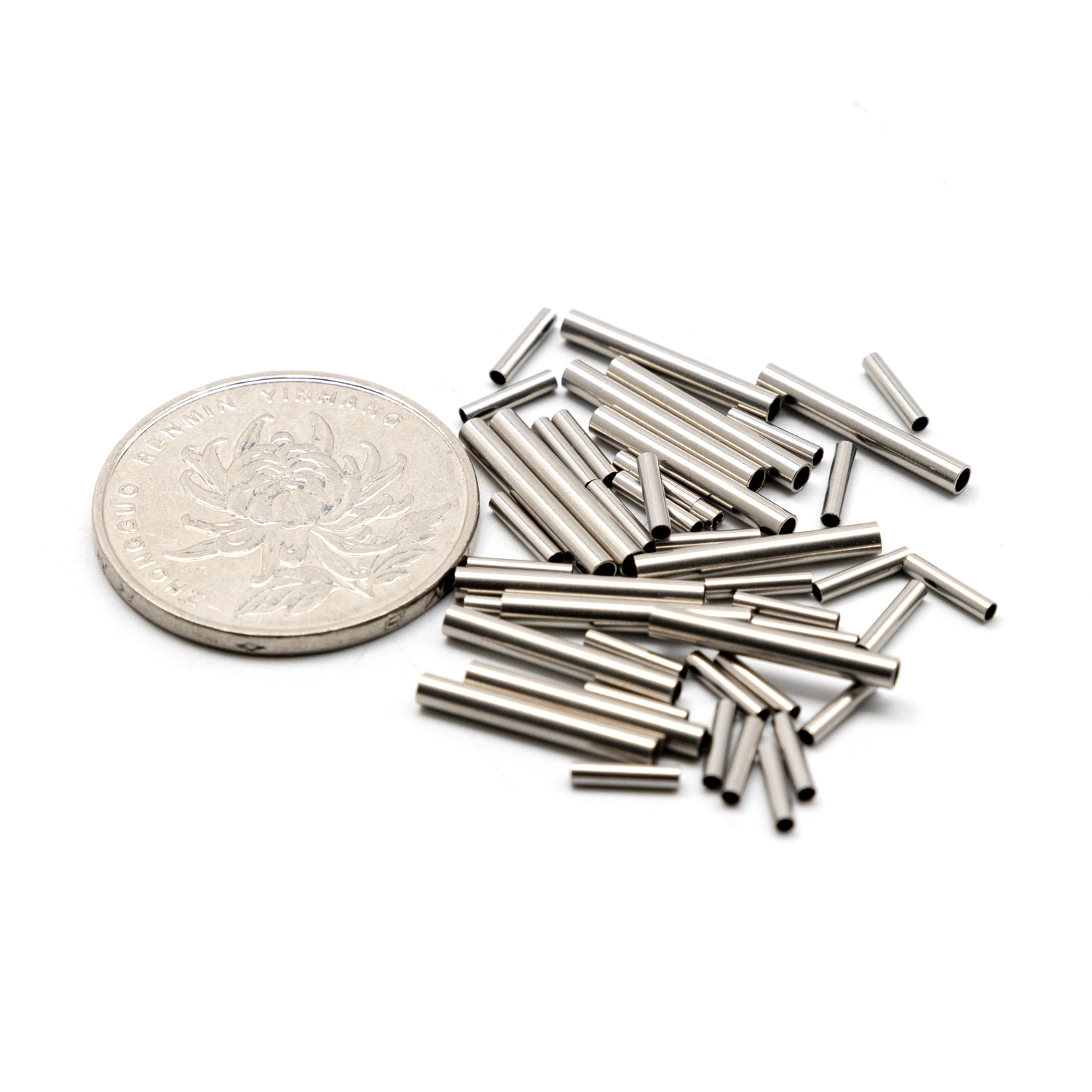

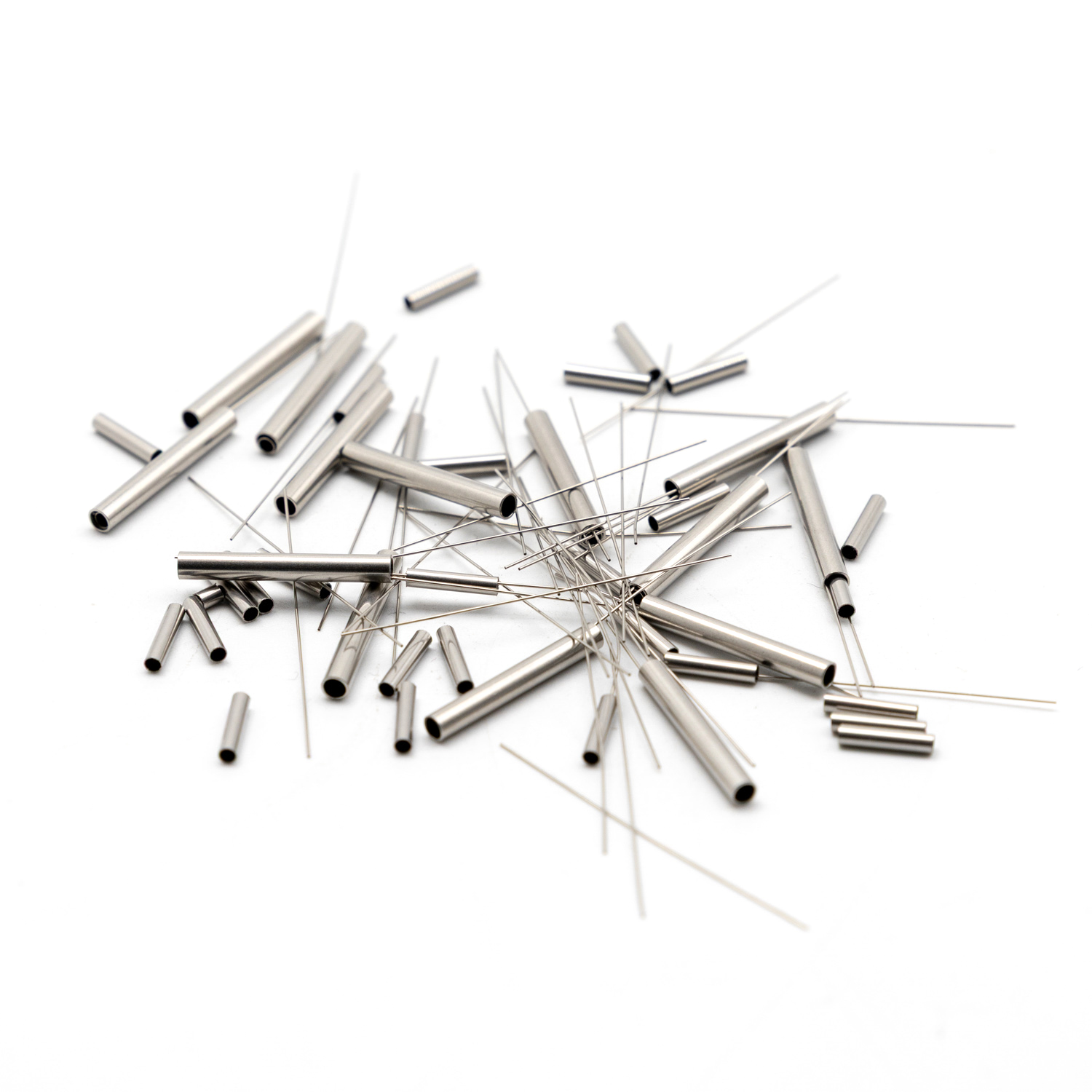

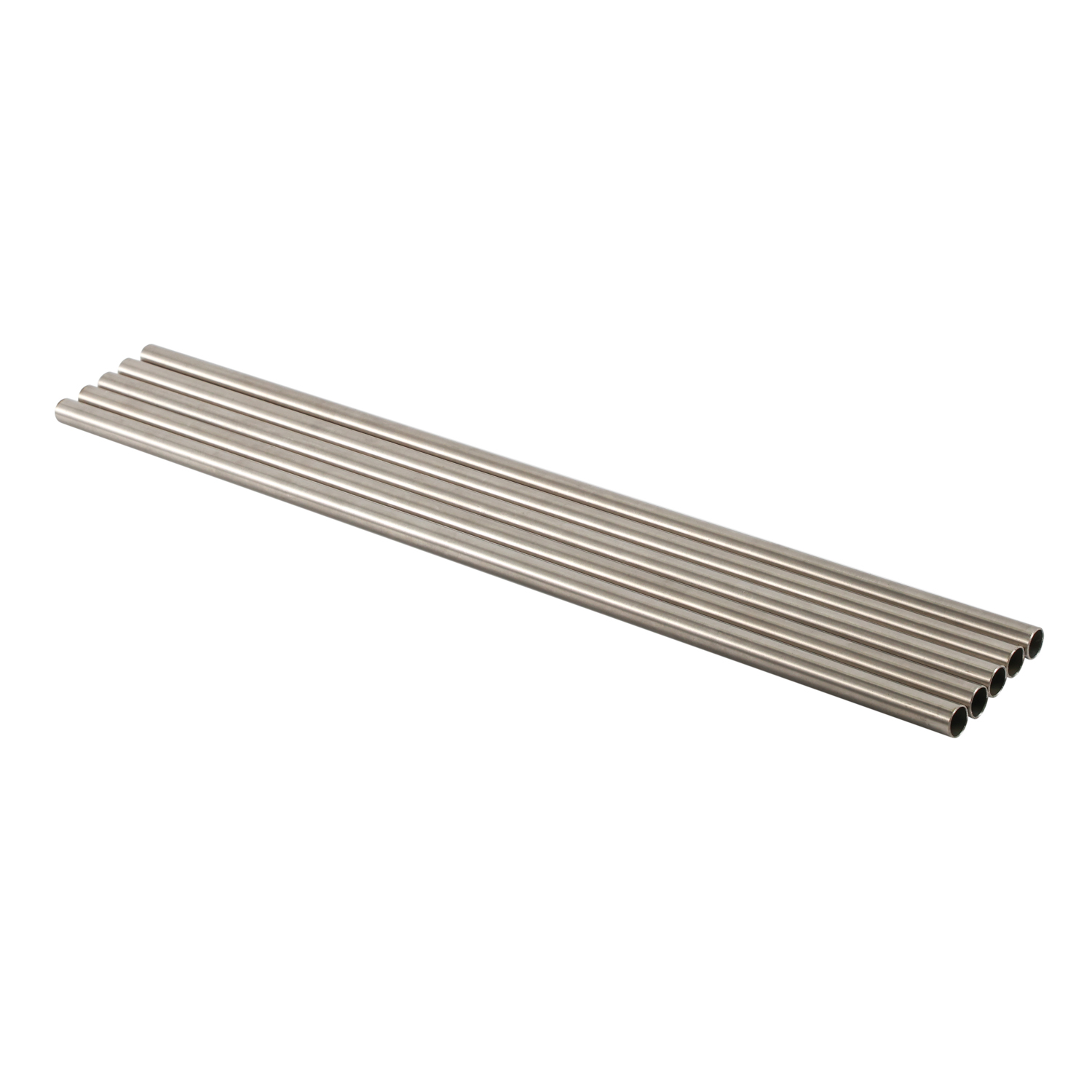

Introduction of Titanium Alloy Tube
High-strength titanium tubes are an essential component for modern dental implants and prosthetics, offering unmatched support, durability, and performance. Titanium's unique combination of strength, lightweight properties, and biocompatibility makes it the material of choice for reinforcing dental implants and prosthetic devices. These tubes ensure that dental implants are securely anchored, providing long-term support while maintaining comfort for patients.
Used in both single-tooth implants and full-mouth restorations, high-strength titanium tubes help maintain the stability and integrity of the entire dental structure. Whether used for temporary or permanent applications, these tubes improve the longevity and effectiveness of dental implants and prosthetic solutions.
| China | Classification | UK | Russia | Japan |
| TA1 | Commercial Pure Titanium | GR1 | BT1-00 | TP270 |
| TA2 | Commercial Pure Titanium | GR2 | BT1-0 | TP340 |
| TA3 | Commercial Pure Titanium | GR3 | TP450 | |
| TA4 | Commercial Pure Titanium | GR4 | TP550 | |
TC4 | Ti-6AI-4V | GR5 | BT6 | TAP6400 |
| TA7 | GR6 | |||
| TA9 | Ti-0.2Pd | GR7 | TP340Pb | |
TA18 | Ti-3Al-2.5V | GR9 | 0T4-1B | TAP3250 |
| TA9-1 | GR11 | |||
| TA10 | Ti-0.3Mo-0.8Ni | GR12 | ||
| TB5 | Ti-15V-3Al-3Gr-3Sn | Ti-15333 | ||
| TC4ELI | Ti-6AI-4VELI | GR23 |
Features of Titanium Alloy Tube
Exceptional Strength and Durability: Titanium tubes are renowned for their high strength, making them ideal for use in dental implants and prosthetics. These tubes provide the robust support required to withstand the stresses of chewing, biting, and other daily activities.
Corrosion Resistance: One of the standout features of titanium tubes is their resistance to corrosion. Titanium naturally forms a protective oxide layer, preventing rust and degradation, even in the acidic and moist environment of the mouth.
Biocompatibility: Titanium is highly biocompatible, meaning it integrates well with the human body without causing allergic reactions or irritation. This makes it an excellent material for dental implants and prosthetics, ensuring a safer and more effective treatment.
Lightweight: Despite their strength, titanium tubes are lightweight, which helps improve patient comfort. The reduced weight ensures that dental implants and prosthetics are not only effective but also comfortable for the patient to wear.
Customization: Titanium alloy tubes can be precisely tailored to meet the specific needs of each dental patient. Whether it's adjusting the length, diameter, or shape of the tube, titanium offers the flexibility needed to create a customized solution for various types of implants and prosthetics.
| Mechanical Properties | |||||||
| Grade | Condition | Tensile Strength | Yield Strength | Elongation | Reductionof Area | ||
| Ksi | Mpa | Ksi | Mpa | % | |||
| ≥ | |||||||
GR1 | Annealed | 35 | 240 | 25 | 170 | 24 | 30 |
| GR2 | 50 | 345 | 40 | 275 | 20 | 30 | |
| GR3 | 65 | 450 | 55 | 380 | 18 | 30 | |
| GR4 | 80 | 550 | 70 | 483 | 15 | 25 | |
| GR5 | 130 | 895 | 120 | 828 | 10 | 25 | |
| GR6 | 120 | 828 | 115 | 483 | 15 | 25 | |
| GR7 | 50 | 345 | 40 | 275 | 20 | 30 | |
| GR9 | 90 | 620 | 70 | 483 | 15 | 25 | |
| GR11 | 35 | 240 | 25 | 170 | 24 | 30 | |
| GR12 | 70 | 483 | 50 | 345 | 18 | 25 | |
| GR23(Ti-6AL-4VELI) | 125 | 860 | 115 | 795 | 10 | 25 | |
Titanium Alloy Grade Composition Table
| Grade | C ≤ | O ≤ | N ≤ | H ≤ | Fe ≤ | Al | V | Pd | Ni | Mo | Average of Other Elements | Total of Other Elements |
| Gr1 | 0.08 | 0.18 | 0.03 | 0.015 | 0.2 | - | - | - | - | - | 0.1 | 0.4 |
| Gr2 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | - | - | - | 0.1 | 0.4 |
| Gr4 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | - | - | 0.1 | 0.4 | |
| Gr5 | 0.08 | 0.2 | 0.05 | 0.015 | 0.4 | 5.5~6.75 | 3.5~4.5 | - | - | - | 0.1 | 0.4 |
| Gr7 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | 0.12~0.25 | 0.12~0.25 | - | 0.1 | 0.4 |
| Gr9 | 0.08 | 0.15 | 0.03 | 0.015 | 0.25 | 2.5~3.5 | 2.0~3.0 | - | - | - | 0.1 | 0.4 |
| Gr11 | 0.08 | 0.18 | 0.03 | 0.15 | 0.2 | - | - | 0.12~0.25 | - | - | 0.1 | 0.4 |
| Gr12 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | - | - | - | 0.6~0.9 | 0.2~0.4 | 0.1 | 0.4 |
| Gr16 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | - | - | 0.04~0.08 | - | - | 0.1 | 0.4 |
| Gr23 | 0.08 | 0.13 | 0.03 | 0.15 | 0.25 | 5.5~6.5 | 3.5~4.5 | - | - | - | 0.1 | 0.1 |
Advantages of Using Titanium Alloy Tube
Superior Implant Support: Titanium tubes provide the necessary structural support for dental implants, ensuring they stay securely in place over the long term. Their high tensile strength prevents shifting or loosening, which can occur with weaker materials.
Enhanced Durability: The corrosion resistance and overall durability of titanium alloy tubes ensure that dental implants supported by these tubes remain intact, even under the daily stresses of biting, chewing, and other oral functions.
Improved Long-Term Performance: Titanium tubes are designed to withstand the test of time. The material’s resilience ensures that dental prosthetics, including crowns, bridges, and full implants, maintain their structural integrity and function for many years.
Increased Comfort: The lightweight nature of titanium alloy tubes ensures that dental implants and prosthetics are comfortable for patients. These tubes reduce the overall weight of the appliance, making them more comfortable to wear and less likely to cause irritation or discomfort.
Custom-Fit Solutions: Titanium tubes can be precisely manufactured to fit each patient’s unique dental needs. This level of customization ensures optimal performance, helping achieve the best possible outcome for both functional and aesthetic purposes.
| Grade | TA1 TA2 TA3 TA4 TC4 TA7 GR7 GR9 GR11 |
| Titanium Wire | Diameter: 0.1mm-8.0mm |
| Titanium Tube | Length (4-12m), Width (1-50mm), Diameter (48.3-609.6mm) |
| Titanium Rod | Diameter (5.0-350mm), Length (300-6000mm) |
| Titanium Block | Length (100-1500mm), Width (30-600mm), Height (20-300mm) |
| Titanium Plate | Length (1000-6000mm), Width (1000-2000mm), Height (0.8-60mm) |
| Standard | ASTMB863 ASTMB265 ASTMF67 ASTMF136 ISO5832 GB3632 GJB9581 |
Applications of Titanium Alloy Tube
High-strength titanium tubes are utilized in a variety of dental implant and prosthetic applications to improve the durability and stability of dental devices:
Dental Implants: Titanium tubes are commonly used in implant posts, providing critical support and ensuring secure integration with the jawbone. These tubes contribute to osseointegration, the process by which the implant fuses with the bone, ensuring a stable and long-lasting foundation for the replacement tooth or crown.
Abutments: In dental implant systems, titanium tubes are often used to form abutments, which connect the implant post to the prosthetic crown. These tubes provide a stable connection, ensuring that the final restoration remains secure and functional.
Dental Bridges: Titanium tubes play an important role in implant-supported bridges, providing the necessary support to hold the bridge securely in place. These bridges can replace multiple missing teeth, offering both function and aesthetics for patients.
Full-Mouth Restorations: In full-mouth implant procedures, titanium tubes help support the multiple implants needed for replacing entire sets of teeth. Their strength and customization options ensure that large restorations remain stable and durable over time.
Temporary Restorations: For patients awaiting permanent implants or prosthetics, high-strength titanium tubes can be used in temporary restorations. These tubes provide a reliable and durable solution while the final restoration is being created.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.

Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.

Our Factory

Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.


FAQ
Who is your company?
We are a leading supplier of high-quality medical alloys, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.How can I contact your company?
Phone: +86 132 1868 0935
Whatsapp: +86 13218680935
Email: victory@dlx-alloy.com
What makes titanium tubes ideal for dental implants and prosthetics?
Titanium tubes offer high strength, corrosion resistance, and biocompatibility, making them ideal for dental implants and prosthetics. These properties ensure long-term stability, performance, and patient safety.Are titanium tubes customizable for different dental procedures?
Yes, titanium tubes can be precisely customized to meet the specific requirements of various dental implant and prosthetic systems. Customization ensures a perfect fit for each patient’s needs, leading to optimal performance.How long do dental implants with titanium tubes last?
Dental implants supported by high-strength titanium tubes can last for many years, with many patients experiencing successful implants for 10+ years, depending on care and the specifics of the procedure.Are titanium tubes safe for all patients?
Titanium is known for its biocompatibility, meaning it is well-tolerated by most patients without causing allergic reactions or complications. This makes it a safe and reliable material for dental implants and prosthetics.
