Strong and Flexible Titanium Wires for Effective Dental Bridges

Strong and Flexible Titanium Wires for Effective Dental Bridges

Detailed images

DETAILED PICTURE

  • Strong and Flexible Titanium Wires for Effective Dental Bridges
  • Strong and Flexible Titanium Wires for Effective Dental Bridges
  • Strong and Flexible Titanium Wires for Effective Dental Bridges
  • Strong and Flexible Titanium Wires for Effective Dental Bridges
  • Strong and Flexible Titanium Wires for Effective Dental Bridges
  • Strong and Flexible Titanium Wires for Effective Dental Bridges

Detailed description

DETAILED DESCRIPTION

Introduction of Titanium Alloy Wire

When it comes to dental bridges, the strength and flexibility of the materials used are critical for both functionality and comfort. Titanium wire, renowned for its durability and adaptability, is increasingly used in dental bridges. At Victory Supplier, we provide high-quality titanium wires that combine strength, flexibility, and biocompatibility to ensure effective and long-lasting dental restorations.

ChinaClassificationUKRussia

Japan

TA1Commercial Pure Titanium

GR1

BT1-00TP270
TA2Commercial Pure TitaniumGR2BT1-0TP340
TA3Commercial Pure TitaniumGR3
TP450
TA4Commercial Pure TitaniumGR4
TP550

TC4

Ti-6AI-4VGR5BT6TAP6400
TA7
GR6

TA9Ti-0.2PdGR7

TP340Pb

TA18

Ti-3Al-2.5VGR90T4-1BTAP3250
TA9-1
GR11

TA10Ti-0.3Mo-0.8NiGR12

TB5Ti-15V-3Al-3Gr-3SnTi-15333

TC4ELI
Ti-6AI-4VELIGR23

Features of Titanium Alloy Wire

  • Exceptional Strength and Durability
    Titanium wire is known for its superior strength and resistance to wear and tear, making it an ideal material for dental bridges. It ensures that the bridge remains securely in place, providing patients with lasting results and reducing the need for frequent adjustments.

  • Superior Flexibility
    Despite its impressive strength, titanium wire retains a remarkable level of flexibility. This allows it to adapt to the contours of the dental arch, ensuring a perfect fit for dental bridges. The wire can bend and adjust without breaking, providing maximum comfort and effectiveness during use.

  • Biocompatibility
    Titanium is widely known for its biocompatibility, meaning it is well-accepted by the body with minimal risk of rejection or irritation. When used in dental bridges, titanium wire integrates seamlessly with the surrounding tissues, ensuring a safe and comfortable solution for dental restoration.

  • Corrosion Resistance
    One of the key advantages of titanium is its resistance to corrosion, particularly in the harsh oral environment. Saliva, food acids, and bacteria can compromise other materials, but titanium remains unaffected. This corrosion resistance helps maintain the strength and appearance of dental bridges over time.


Mechanical Properties
GradeConditionTensile StrengthYield StrengthElongationReductionof Area
KsiMpaKsiMpa%

GR1

Annealed

35

240

25

170

24

30

GR250345402752030
GR365450553801830
GR480550704831525
GR51308951208281025
GR61208281154831525
GR750345402752030
GR990620704831525
GR1135240251702430
GR1270483503451825
GR23(Ti-6AL-4VELI)1258601157951025


Titanium Alloy Grade Composition Table

GradeC ≤O ≤N ≤H ≤Fe ≤AlVPdNiMoAverage of Other ElementsTotal of Other Elements
Gr10.080.180.030.0150.2-----0.10.4
Gr20.080.250.030.0150.3-----0.10.4
Gr40.080.250.030.0150.3----
0.10.4
Gr50.080.20.050.0150.45.5~6.753.5~4.5---0.10.4
Gr70.080.250.030.0150.3--0.12~0.250.12~0.25-0.10.4
Gr90.080.150.030.0150.252.5~3.52.0~3.0---0.10.4
Gr110.080.180.030.150.2--0.12~0.25--0.10.4
Gr120.080.250.030.150.3---0.6~0.90.2~0.40.10.4
Gr160.080.250.030.150.3--0.04~0.08--0.10.4
Gr230.080.130.030.150.255.5~6.53.5~4.5---0.10.1


Advantages of Using Titanium Alloy Wire for Joint Implants

  • Long-Term Stability
    Titanium’s remarkable strength and resistance to stress ensure that dental bridges made with titanium wire remain stable for an extended period. Patients benefit from a durable and secure solution that reduces the need for repairs or replacements over time.

  • Aesthetic Quality
    Titanium wire has a natural silver-gray appearance, which blends well with the color of teeth, making it a discrete option for patients. While not as invisible as other materials, its subtle color ensures that the dental bridge remains aesthetically pleasing and doesn’t stand out.

  • Customized for Optimal Fit
    Titanium wire can be easily customized to fit the specific needs of each patient. Whether for a traditional dental bridge or a more complex restoration, the wire’s flexibility allows for a tailored approach to ensure the most effective and comfortable result.

  • Improved Patient Comfort
    The flexibility of titanium wire helps distribute the forces exerted by the dental bridge more evenly, reducing any discomfort for the patient. Its ability to adapt to the natural contours of the mouth also makes it a more comfortable option for individuals with different oral anatomy.

GradeTA1 TA2 TA3 TA4 TC4 TA7 GR7 GR9 GR11
Titanium WireDiameter: 0.1mm-8.0mm
Titanium TubeLength (4-12m), Width (1-50mm), Diameter (48.3-609.6mm)
Titanium RodDiameter (5.0-350mm), Length (300-6000mm)
Titanium BlockLength (100-1500mm), Width (30-600mm), Height (20-300mm)
Titanium PlateLength (1000-6000mm), Width (1000-2000mm), Height (0.8-60mm)
StandardASTMB863  ASTMB265  ASTMF67  ASTMF136  ISO5832  GB3632  GJB9581

Applications of Titanium Alloy Wire in Joint Implants

  • Fixed Dental Bridges
    Titanium wire plays a crucial role in fixed dental bridges, which are designed to replace missing teeth by connecting artificial teeth to neighboring natural teeth. Titanium wire provides the strength needed to support the artificial teeth, ensuring stability and functionality.

  • Cantilever Bridges
    In cases where the dental bridge is supported by only one side, a cantilever bridge, titanium wire offers the necessary flexibility and strength to maintain the bridge’s position while providing comfort to the patient.

  • Restorative Dentistry
    Titanium wire is used in various other dental restorative treatments, particularly when a patient requires a durable and long-lasting solution. Whether it's for full dental restorations or partial bridges, titanium wire ensures that the treatment remains effective and stable.


ABOUT US

Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.

Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.

Strong and Flexible Titanium Wires for Effective Dental Bridges

Client Visits

We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.

Strong and Flexible Titanium Wires for Effective Dental Bridges

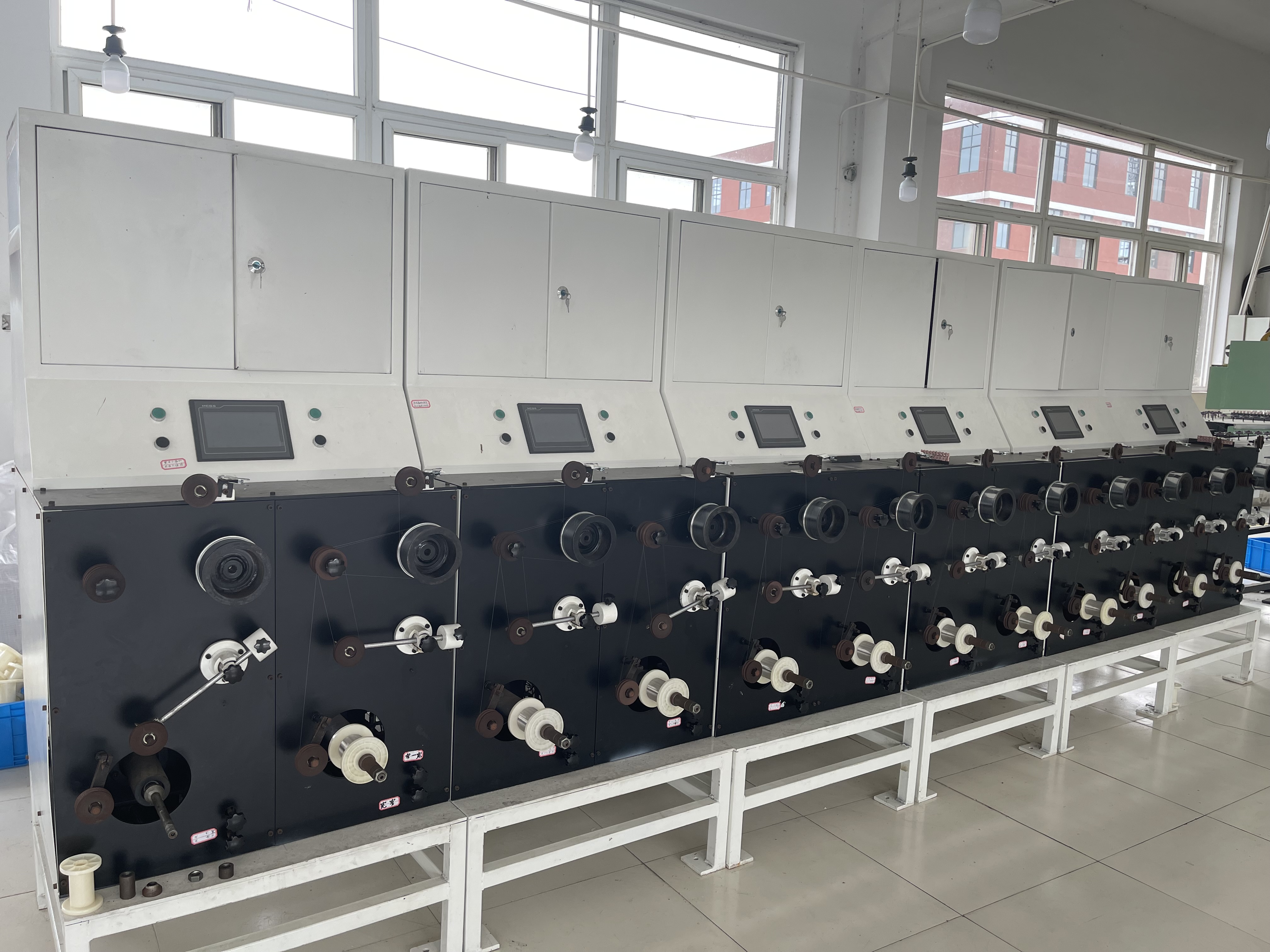

Strong and Flexible Titanium Wires for Effective Dental BridgesOur Factory

Strong and Flexible Titanium Wires for Effective Dental Bridges

Quality Testing of the Product

Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.

Strong and Flexible Titanium Wires for Effective Dental Bridges

Strong and Flexible Titanium Wires for Effective Dental Bridges

FAQ

  1. Who is your company?
    We are a leading supplier of high-quality Nitinol alloy wire, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.

  2. How can I contact your company?

  3. What makes titanium wire ideal for dental bridges?
    Titanium wire is perfect for dental bridges due to its superior strength, flexibility, corrosion resistance, and biocompatibility. These properties ensure that the dental bridge remains stable and functional for an extended period.

  4. Can titanium wire be customized for my dental bridge needs?
    Yes, titanium wire can be customized to fit the specific requirements of your dental bridge treatment, ensuring a precise and comfortable fit.

  5. How does titanium wire improve patient comfort during treatment?
    The flexibility of titanium wire helps distribute pressure evenly, making it more comfortable for patients compared to other, more rigid materials.

  6. How durable are titanium wires in dental bridges?
    Titanium wire is extremely durable and resistant to wear, corrosion, and stress, ensuring that your dental bridge lasts longer and performs reliably over time.

  7. How can I purchase titanium wire for dental bridges?
    You can purchase our premium titanium wire directly through our website or contact our sales team for more information about pricing, customization, and shipping options.
