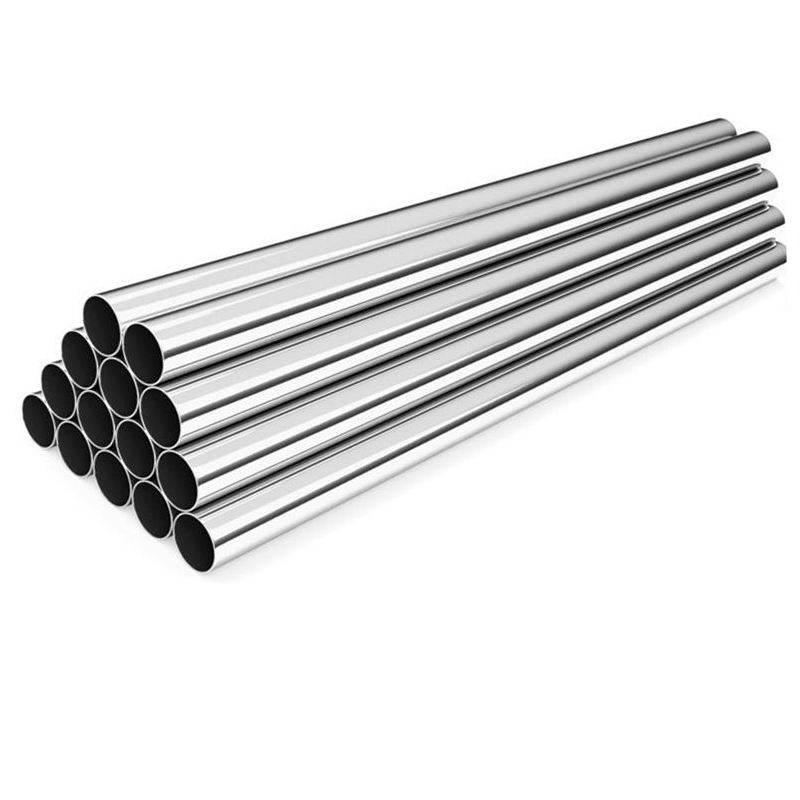

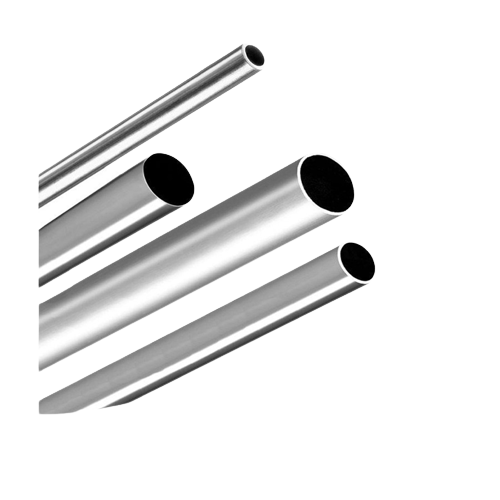

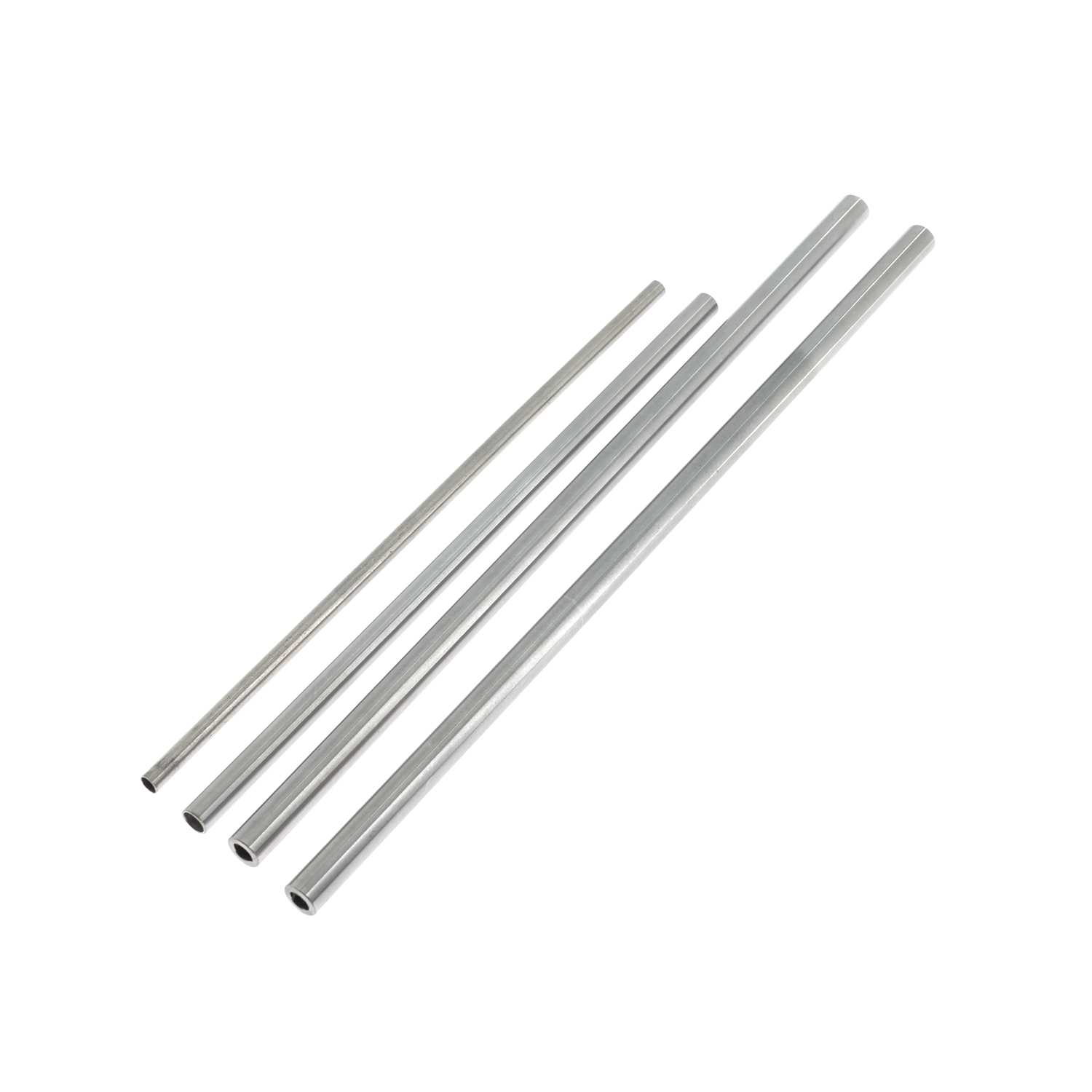

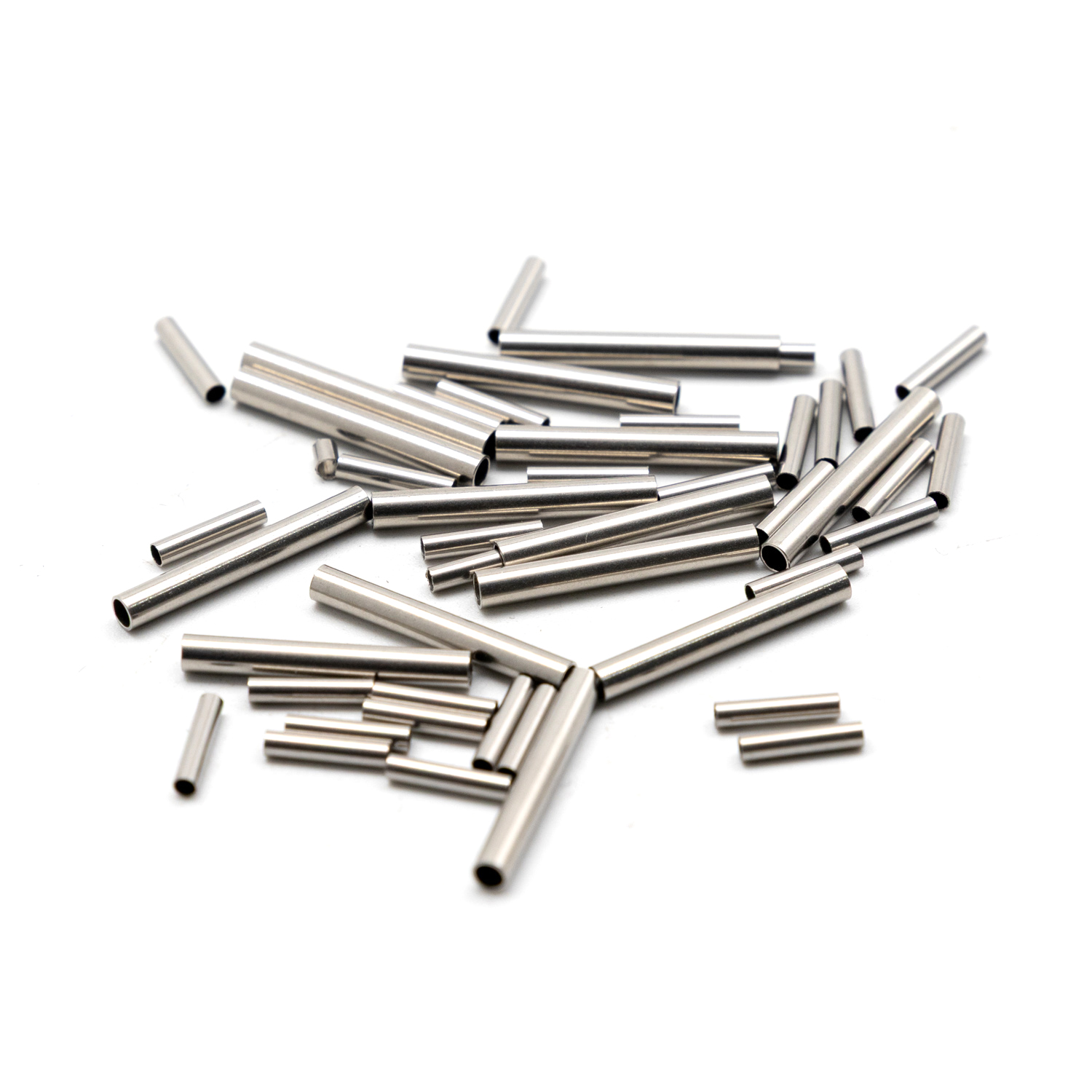

Introduction of Titanium Alloy Tube
Titanium tubes are a cornerstone in the world of dental implants, providing superior support and long-lasting performance. As dental technology continues to evolve, titanium remains the preferred material for implant support due to its exceptional strength, biocompatibility, and resistance to corrosion. These titanium tubes are essential components in implant systems, offering both structural integrity and durability for long-term dental restoration.
When used in dental implants, titanium tubes ensure that the implants stay securely in place, providing patients with a stable, functional, and comfortable solution. The remarkable properties of titanium, including its ability to bond with bone (osseointegration), make it the material of choice for both permanent and temporary implant solutions.
| China | Classification | UK | Russia | Japan |
| TA1 | Commercial Pure Titanium | GR1 | BT1-00 | TP270 |
| TA2 | Commercial Pure Titanium | GR2 | BT1-0 | TP340 |
| TA3 | Commercial Pure Titanium | GR3 | TP450 | |
| TA4 | Commercial Pure Titanium | GR4 | TP550 | |
TC4 | Ti-6AI-4V | GR5 | BT6 | TAP6400 |
| TA7 | GR6 | |||
| TA9 | Ti-0.2Pd | GR7 | TP340Pb | |
TA18 | Ti-3Al-2.5V | GR9 | 0T4-1B | TAP3250 |
| TA9-1 | GR11 | |||
| TA10 | Ti-0.3Mo-0.8Ni | GR12 | ||
| TB5 | Ti-15V-3Al-3Gr-3Sn | Ti-15333 | ||
| TC4ELI | Ti-6AI-4VELI | GR23 |
Features of Titanium Alloy Tube
Biocompatibility: Titanium tubes are highly biocompatible, meaning they are not rejected by the body and integrate seamlessly with human bone and tissue. This reduces the risk of infection or allergic reactions, ensuring safer, more reliable dental implant procedures.
Corrosion Resistance: Titanium is highly resistant to corrosion, making it ideal for the challenging environment inside the mouth. Even with prolonged exposure to moisture, food acids, and other irritants, titanium tubes maintain their strength and integrity.
Long-Term Durability: Titanium tubes are built to last. They provide robust support for dental implants over extended periods, withstanding the daily stress of chewing, speaking, and other normal activities, ensuring a long-lasting solution for implant patients.
Strength and Stability: Titanium tubes offer excellent strength-to-weight ratio, ensuring that dental implants remain stable and secure without adding excessive bulk. This balance of strength and lightness enhances comfort while preserving the effectiveness of the implant.
Customization Options: Titanium tubes can be precisely customized to fit the unique needs of each patient’s implant system. Whether it’s a single implant or a complex restoration, titanium tubes can be tailored to meet specific requirements, ensuring a perfect fit and optimal functionality.
| Mechanical Properties | |||||||
| Grade | Condition | Tensile Strength | Yield Strength | Elongation | Reductionof Area | ||
| Ksi | Mpa | Ksi | Mpa | % | |||
| ≥ | |||||||
GR1 | Annealed | 35 | 240 | 25 | 170 | 24 | 30 |
| GR2 | 50 | 345 | 40 | 275 | 20 | 30 | |
| GR3 | 65 | 450 | 55 | 380 | 18 | 30 | |
| GR4 | 80 | 550 | 70 | 483 | 15 | 25 | |
| GR5 | 130 | 895 | 120 | 828 | 10 | 25 | |
| GR6 | 120 | 828 | 115 | 483 | 15 | 25 | |
| GR7 | 50 | 345 | 40 | 275 | 20 | 30 | |
| GR9 | 90 | 620 | 70 | 483 | 15 | 25 | |
| GR11 | 35 | 240 | 25 | 170 | 24 | 30 | |
| GR12 | 70 | 483 | 50 | 345 | 18 | 25 | |
| GR23(Ti-6AL-4VELI) | 125 | 860 | 115 | 795 | 10 | 25 | |
Titanium Alloy Grade Composition Table
| Grade | C ≤ | O ≤ | N ≤ | H ≤ | Fe ≤ | Al | V | Pd | Ni | Mo | Average of Other Elements | Total of Other Elements |
| Gr1 | 0.08 | 0.18 | 0.03 | 0.015 | 0.2 | - | - | - | - | - | 0.1 | 0.4 |
| Gr2 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | - | - | - | 0.1 | 0.4 |
| Gr4 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | - | - | 0.1 | 0.4 | |
| Gr5 | 0.08 | 0.2 | 0.05 | 0.015 | 0.4 | 5.5~6.75 | 3.5~4.5 | - | - | - | 0.1 | 0.4 |
| Gr7 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | 0.12~0.25 | 0.12~0.25 | - | 0.1 | 0.4 |
| Gr9 | 0.08 | 0.15 | 0.03 | 0.015 | 0.25 | 2.5~3.5 | 2.0~3.0 | - | - | - | 0.1 | 0.4 |
| Gr11 | 0.08 | 0.18 | 0.03 | 0.15 | 0.2 | - | - | 0.12~0.25 | - | - | 0.1 | 0.4 |
| Gr12 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | - | - | - | 0.6~0.9 | 0.2~0.4 | 0.1 | 0.4 |
| Gr16 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | - | - | 0.04~0.08 | - | - | 0.1 | 0.4 |
| Gr23 | 0.08 | 0.13 | 0.03 | 0.15 | 0.25 | 5.5~6.5 | 3.5~4.5 | - | - | - | 0.1 | 0.1 |
Advantages of Using Titanium Alloy Tube
Enhanced Stability for Implants: Titanium alloy tubes provide the critical structural support needed for dental implants. Their superior strength helps keep the implant securely in place, reducing the risk of displacement and ensuring the implant performs effectively throughout the healing process and beyond.
Long-Term Performance: Titanium’s resistance to corrosion and wear ensures that dental implants reinforced with titanium tubes will continue to perform effectively over many years, providing patients with reliable, long-term results. Whether for single-tooth implants or full-arch restorations, titanium tubes ensure longevity.
Improved Patient Comfort: Titanium tubes are lightweight and smooth, enhancing patient comfort. The tubes provide necessary support without adding discomfort or excessive weight, which is especially important for patients with multiple implants or those requiring full-mouth restoration.
Adaptable to Various Implant Systems: Titanium tubes can be engineered to work with a wide range of dental implant systems, making them versatile for different types of procedures. Whether you're dealing with complex or simple implants, these tubes can be customized for any treatment plan.
Resistant to Wear and Tear: Titanium alloy tubes offer superior resistance to the wear and tear associated with daily oral functions such as chewing, biting, and talking. This durability ensures the implant structure remains intact for the duration of its use, reducing the need for adjustments or replacements.
| Grade | TA1 TA2 TA3 TA4 TC4 TA7 GR7 GR9 GR11 |
| Titanium Wire | Diameter: 0.1mm-8.0mm |
| Titanium Tube | Length (4-12m), Width (1-50mm), Diameter (48.3-609.6mm) |
| Titanium Rod | Diameter (5.0-350mm), Length (300-6000mm) |
| Titanium Block | Length (100-1500mm), Width (30-600mm), Height (20-300mm) |
| Titanium Plate | Length (1000-6000mm), Width (1000-2000mm), Height (0.8-60mm) |
| Standard | ASTMB863 ASTMB265 ASTMF67 ASTMF136 ISO5832 GB3632 GJB9581 |
Applications of Titanium Alloy Tube
Titanium alloy tubes are utilized in a variety of dental implant applications, offering essential support for both temporary and permanent solutions:
Dental Implant Posts: Titanium tubes are often used as the foundational structure for implant posts, providing stability and ensuring the post securely integrates with the surrounding bone tissue. This helps to prevent movement and ensures the success of the implant procedure.
Abutment Systems: In abutment systems, titanium tubes provide a stable connection between the implant post and the artificial tooth or crown. This ensures a secure, durable link, helping to improve the overall performance and longevity of dental implants.
Full-Arch and Multiple Implants: Titanium tubes play a crucial role in full-arch dental restorations and multiple implants, providing support for large implant structures and ensuring that multiple teeth or a full set of teeth stay securely in place.
Temporary and Transitional Implants: Titanium tubes are also ideal for temporary implants, such as those used during the healing process or for interim dental restorations. Their ability to withstand normal oral forces while providing a stable platform ensures a smooth transition to permanent solutions.
Sinus Lift and Bone Augmentation: Titanium tubes are used in sinus lift procedures and bone augmentation treatments, providing the necessary support in these more complex dental procedures to ensure that the implants are stable and functional.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.

Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.

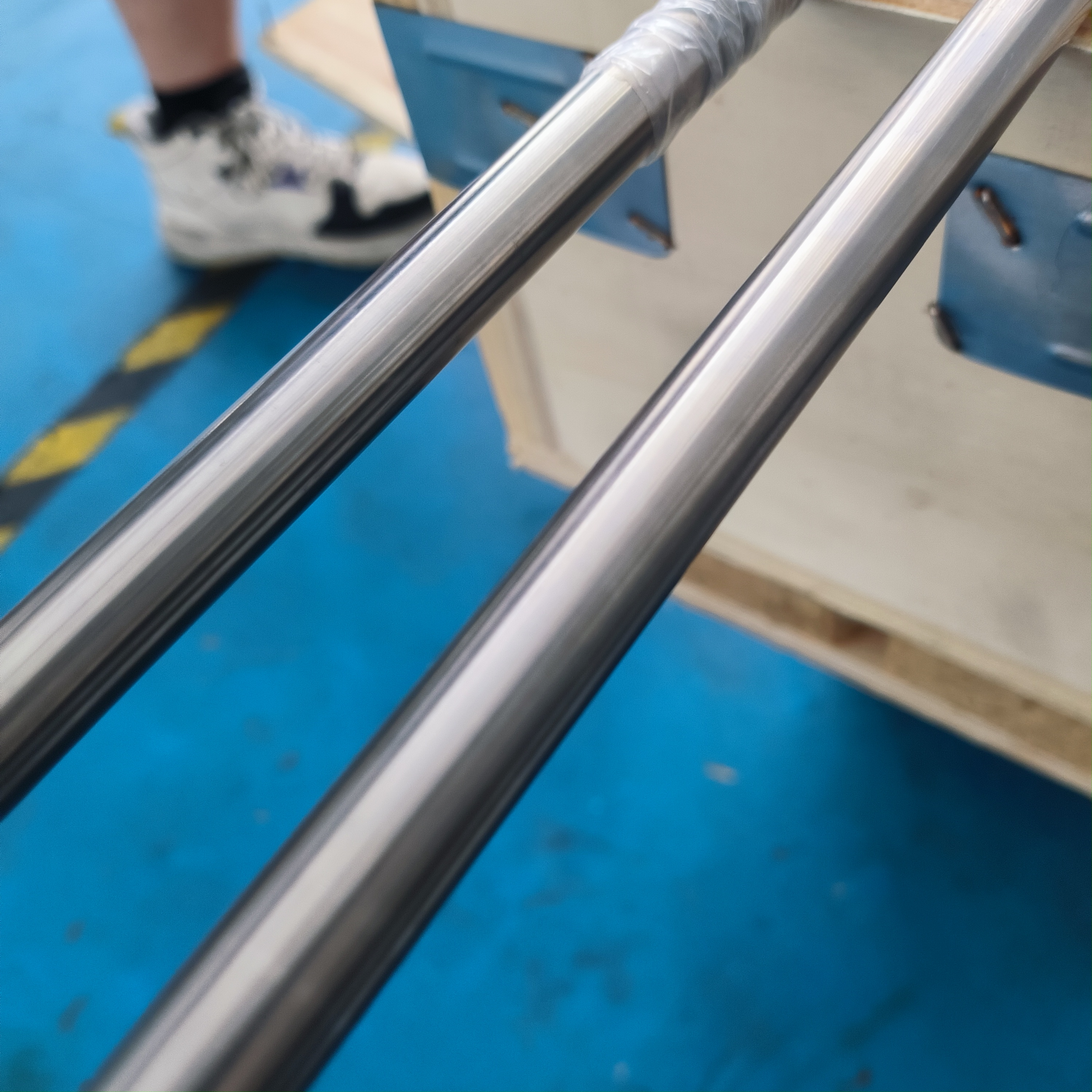

Our Factory

Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.


FAQ
Who is your company?
We are a leading supplier of high-quality medical alloys, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.How can I contact your company?
Phone: +86 132 1868 0935
Whatsapp: +86 13218680935
Email: victory@dlx-alloy.com
How do titanium tubes enhance the performance of dental implants?
Titanium tubes provide structural support for dental implants, ensuring they stay securely in place. Their strength and durability also help maintain the integrity of the implant, even under daily stresses like chewing and biting.Can titanium tubes be customized for different implant designs?
Yes, titanium tubes can be precisely tailored to meet the specific needs of various implant systems, from single-tooth implants to full-arch restorations, ensuring a perfect fit for each patient.How do titanium tubes compare to other materials used for implant supports?
Titanium tubes offer superior strength, durability, and biocompatibility compared to other materials like stainless steel or plastic. Their resistance to corrosion and wear ensures long-term performance, making them ideal for dental implants.How long do dental implants reinforced with titanium tubes last?
Dental implants reinforced with titanium tubes can last for many years, with many patients enjoying a stable, functional implant for 10+ years or longer, depending on care and the nature of the implant procedure.
