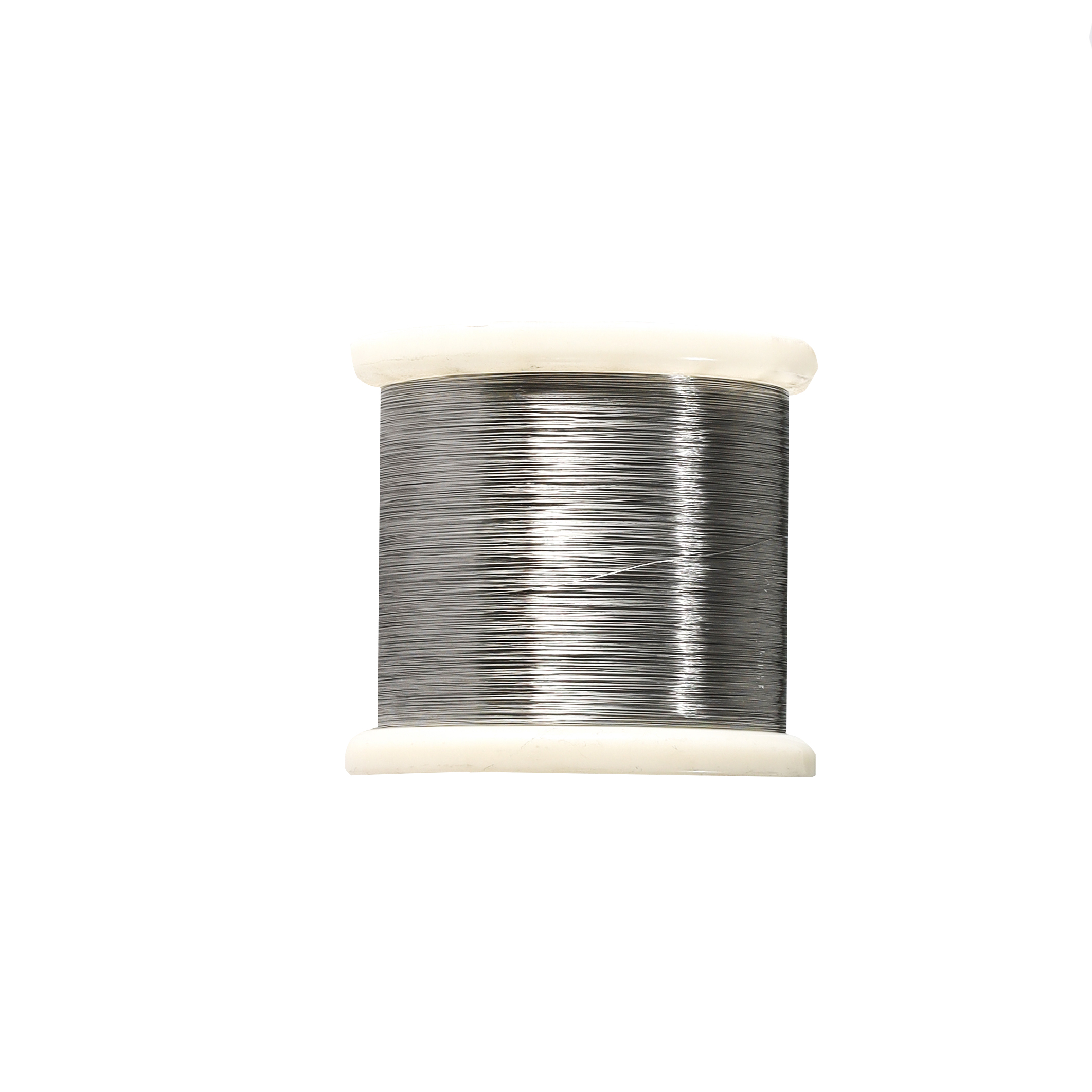

Introduction of Titanium Alloy Wire
Titanium wire has become an essential material in dental and oral treatments due to its superior performance and reliability. Specifically, titanium alloy wire is widely used in dental braces, implants, orthodontics, and other oral applications due to its strength, corrosion resistance, and biocompatibility. As a leading titanium alloy supplier, Victory Supplier is committed to providing high-quality titanium wire products to meet the global demands of the dental industry.
| China | Classification | UK | Russia | Japan |
| TA1 | Commercial Pure Titanium | GR1 | BT1-00 | TP270 |
| TA2 | Commercial Pure Titanium | GR2 | BT1-0 | TP340 |
| TA3 | Commercial Pure Titanium | GR3 | TP450 | |
| TA4 | Commercial Pure Titanium | GR4 | TP550 | |
TC4 | Ti-6AI-4V | GR5 | BT6 | TAP6400 |
| TA7 | GR6 | |||
| TA9 | Ti-0.2Pd | GR7 | TP340Pb | |
TA18 | Ti-3Al-2.5V | GR9 | 0T4-1B | TAP3250 |
| TA9-1 | GR11 | |||
| TA10 | Ti-0.3Mo-0.8Ni | GR12 | ||
| TB5 | Ti-15V-3Al-3Gr-3Sn | Ti-15333 | ||
| TC4ELI | Ti-6AI-4VELI | GR23 |
Features of Titanium Alloy Wire
High Strength and Durability
Titanium alloy wire is known for its high tensile strength and excellent fatigue resistance, ensuring it won’t break or deform over time. Its hardness and flexibility are crucial in dental treatments, allowing it to maintain its stability for long-term use.Superior Corrosion Resistance
Titanium’s natural corrosion resistance makes it an excellent choice for long-term use in the oral environment. It can withstand moisture, acidic conditions, and chemicals found in saliva, maintaining its durability.Biocompatibility
Titanium wire is one of the most common materials used in biomedical applications due to its excellent biocompatibility. It has a high affinity with human tissue, which reduces the risk of allergic reactions or rejection, making it ideal for dental implants and orthodontic devices.Lightweight and Comfortable
Titanium wire is much lighter than other metals, reducing the strain on patients during wear. This is especially important in orthodontics, where patient comfort is key, and titanium’s lightness offers a more comfortable treatment experience.
| Mechanical Properties | |||||||
| Grade | Condition | Tensile Strength | Yield Strength | Elongation | Reductionof Area | ||
| Ksi | Mpa | Ksi | Mpa | % | |||
| ≥ | |||||||
GR1 | Annealed | 35 | 240 | 25 | 170 | 24 | 30 |
| GR2 | 50 | 345 | 40 | 275 | 20 | 30 | |
| GR3 | 65 | 450 | 55 | 380 | 18 | 30 | |
| GR4 | 80 | 550 | 70 | 483 | 15 | 25 | |
| GR5 | 130 | 895 | 120 | 828 | 10 | 25 | |
| GR6 | 120 | 828 | 115 | 483 | 15 | 25 | |
| GR7 | 50 | 345 | 40 | 275 | 20 | 30 | |
| GR9 | 90 | 620 | 70 | 483 | 15 | 25 | |
| GR11 | 35 | 240 | 25 | 170 | 24 | 30 | |
| GR12 | 70 | 483 | 50 | 345 | 18 | 25 | |
| GR23(Ti-6AL-4VELI) | 125 | 860 | 115 | 795 | 10 | 25 | |
Titanium Alloy Grade Composition Table
| Grade | C ≤ | O ≤ | N ≤ | H ≤ | Fe ≤ | Al | V | Pd | Ni | Mo | Average of Other Elements | Total of Other Elements |
| Gr1 | 0.08 | 0.18 | 0.03 | 0.015 | 0.2 | - | - | - | - | - | 0.1 | 0.4 |
| Gr2 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | - | - | - | 0.1 | 0.4 |
| Gr4 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | - | - | 0.1 | 0.4 | |
| Gr5 | 0.08 | 0.2 | 0.05 | 0.015 | 0.4 | 5.5~6.75 | 3.5~4.5 | - | - | - | 0.1 | 0.4 |
| Gr7 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | 0.12~0.25 | 0.12~0.25 | - | 0.1 | 0.4 |
| Gr9 | 0.08 | 0.15 | 0.03 | 0.015 | 0.25 | 2.5~3.5 | 2.0~3.0 | - | - | - | 0.1 | 0.4 |
| Gr11 | 0.08 | 0.18 | 0.03 | 0.15 | 0.2 | - | - | 0.12~0.25 | - | - | 0.1 | 0.4 |
| Gr12 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | - | - | - | 0.6~0.9 | 0.2~0.4 | 0.1 | 0.4 |
| Gr16 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | - | - | 0.04~0.08 | - | - | 0.1 | 0.4 |
| Gr23 | 0.08 | 0.13 | 0.03 | 0.15 | 0.25 | 5.5~6.5 | 3.5~4.5 | - | - | - | 0.1 | 0.1 |
Advantages of Using Titanium Alloy Wire for Joint Implants
Highly Adaptable
Titanium alloy wire can be customized to meet the specific needs of various dental treatments, from braces to implants and restorations. It is precisely adaptable to complex dental cases and treatment plans.Long-Lasting Stability
Titanium wire offers excellent stability, maintaining its shape and performance over time. This reduces the need for frequent adjustments and increases the effectiveness of long-term dental treatments.Antibacterial Properties
Titanium has natural antibacterial properties, which help reduce bacterial growth in the oral cavity, promoting overall oral health. This feature is particularly beneficial for orthodontic appliances and dental implants, which require prolonged use.Aesthetic and Invisible
The silver-gray color of titanium wire blends well with the color of teeth, making it less noticeable. This aesthetic quality is highly valued by adult patients and teenagers, as it helps reduce the self-consciousness often associated with wearing dental devices.
| Grade | TA1 TA2 TA3 TA4 TC4 TA7 GR7 GR9 GR11 |
| Titanium Wire | Diameter: 0.1mm-8.0mm |
| Titanium Tube | Length (4-12m), Width (1-50mm), Diameter (48.3-609.6mm) |
| Titanium Rod | Diameter (5.0-350mm), Length (300-6000mm) |
| Titanium Block | Length (100-1500mm), Width (30-600mm), Height (20-300mm) |
| Titanium Plate | Length (1000-6000mm), Width (1000-2000mm), Height (0.8-60mm) |
| Standard | ASTMB863 ASTMB265 ASTMF67 ASTMF136 ISO5832 GB3632 GJB9581 |
Applications of Titanium Alloy Wire in Joint Implants
Titanium wire is widely used in dental and oral medicine, with several common applications:
Orthodontics
Titanium alloy wire is a core component of dental braces. Its flexibility and strength allow for precise tooth movement over time, making it ideal for orthodontic treatment. Titanium wire can apply the necessary force to realign teeth into their desired positions.Dental Implants
Titanium wire is integral to dental implants due to its biocompatibility and corrosion resistance. Titanium alloy is highly stable and fuses well with bone tissue, making it the preferred material for long-lasting dental implants.Oral Restoration
Titanium wire is also used in other oral restoration surgeries, such as restoring missing teeth or repairing gum damage. Its unique physical properties make it an excellent choice for a wide range of oral repair needs.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.

Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.

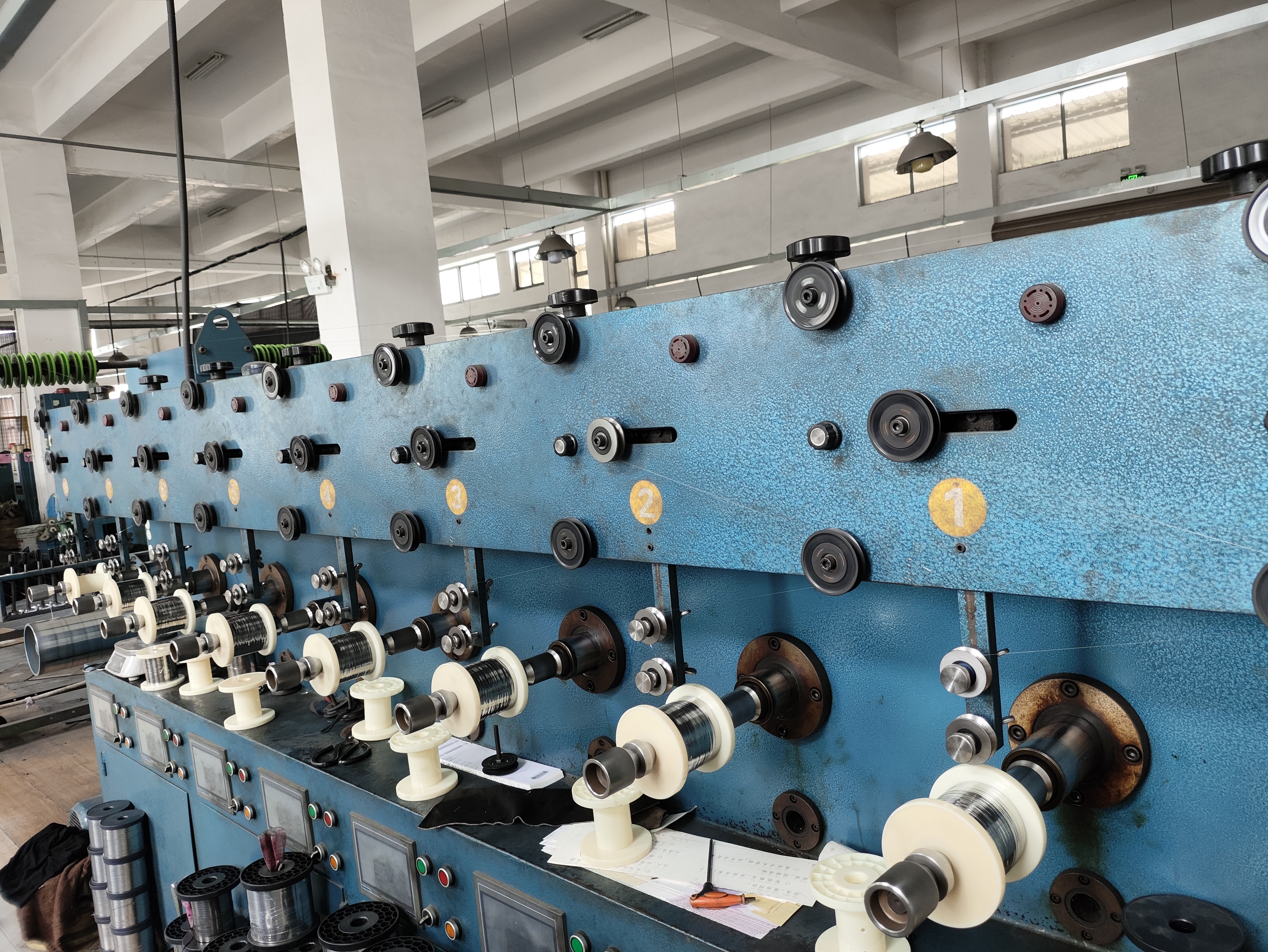

Our Factory

Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.


FAQ
Who is your company?
We are a leading supplier of high-quality Nitinol alloy wire, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.How can I contact your company?
Phone: +86 132 1868 0935
Whatsapp: +86 13218680935
Email: victory@dlx-alloy.com
Does your company offer customized titanium wire products?
Yes, we provide customized titanium wire products based on the specific needs of our clients to meet different treatment requirements.How do I choose the right titanium alloy wire for my needs?
We recommend consulting with our technical support team, who can help you select the most suitable product based on your treatment requirements.How can I purchase your titanium wire products?
You can purchase our products directly from our website or contact our sales team for further purchasing information.Do you offer global shipping?
Yes, we offer worldwide shipping to ensure our products reach you promptly.
