Introduction of Titanium Alloy Wire
Titanium wire is a highly durable and versatile material widely used in the production of surgical instruments, including scissors and needle holders. Known for its lightweight properties, excellent strength, and outstanding resistance to corrosion, titanium wire is an ideal choice for manufacturing tools that require precision and durability in the operating room.
At Victory Supplier, we offer premium titanium wire specially designed for the creation of surgical scissors and needle holders. This material ensures that medical professionals have reliable, long-lasting instruments that perform with accuracy and consistency.
| China | Classification | UK | Russia | Japan |
| TA1 | Commercial Pure Titanium | GR1 | BT1-00 | TP270 |
| TA2 | Commercial Pure Titanium | GR2 | BT1-0 | TP340 |
| TA3 | Commercial Pure Titanium | GR3 | TP450 | |
| TA4 | Commercial Pure Titanium | GR4 | TP550 | |
TC4 | Ti-6AI-4V | GR5 | BT6 | TAP6400 |
| TA7 | GR6 | |||
| TA9 | Ti-0.2Pd | GR7 | TP340Pb | |
TA18 | Ti-3Al-2.5V | GR9 | 0T4-1B | TAP3250 |
| TA9-1 | GR11 | |||
| TA10 | Ti-0.3Mo-0.8Ni | GR12 | ||
| TB5 | Ti-15V-3Al-3Gr-3Sn | Ti-15333 | ||
| TC4ELI | Ti-6AI-4VELI | GR23 |
Features of Titanium Alloy Wire
High Strength-to-Weight Ratio: Titanium wire is incredibly strong while remaining lightweight, which is crucial for surgical tools such as scissors and needle holders that require both durability and ease of use.
Corrosion Resistance: Titanium’s resistance to corrosion makes it ideal for surgical tools, which undergo regular sterilization and exposure to bodily fluids.
Biocompatibility: As a biocompatible material, titanium wire reduces the risk of allergic reactions or complications during surgery, ensuring patient safety.
Enhanced Flexibility: Titanium wire can be easily molded and shaped into intricate designs, allowing for the creation of highly precise and functional surgical instruments.
Long-Lasting Durability: Surgical tools made from titanium wire have an extended lifespan, reducing the need for frequent replacements, which makes it a cost-effective choice for hospitals and medical facilities.
| Mechanical Properties | |||||||
| Grade | Condition | Tensile Strength | Yield Strength | Elongation | Reductionof Area | ||
| Ksi | Mpa | Ksi | Mpa | % | |||
| ≥ | |||||||
GR1 | Annealed | 35 | 240 | 25 | 170 | 24 | 30 |
| GR2 | 50 | 345 | 40 | 275 | 20 | 30 | |
| GR3 | 65 | 450 | 55 | 380 | 18 | 30 | |
| GR4 | 80 | 550 | 70 | 483 | 15 | 25 | |
| GR5 | 130 | 895 | 120 | 828 | 10 | 25 | |
| GR6 | 120 | 828 | 115 | 483 | 15 | 25 | |
| GR7 | 50 | 345 | 40 | 275 | 20 | 30 | |
| GR9 | 90 | 620 | 70 | 483 | 15 | 25 | |
| GR11 | 35 | 240 | 25 | 170 | 24 | 30 | |
| GR12 | 70 | 483 | 50 | 345 | 18 | 25 | |
| GR23(Ti-6AL-4VELI) | 125 | 860 | 115 | 795 | 10 | 25 | |
Titanium Alloy Grade Composition Table
| Grade | C ≤ | O ≤ | N ≤ | H ≤ | Fe ≤ | Al | V | Pd | Ni | Mo | Average of Other Elements | Total of Other Elements |
| Gr1 | 0.08 | 0.18 | 0.03 | 0.015 | 0.2 | - | - | - | - | - | 0.1 | 0.4 |
| Gr2 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | - | - | - | 0.1 | 0.4 |
| Gr4 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | - | - | 0.1 | 0.4 | |
| Gr5 | 0.08 | 0.2 | 0.05 | 0.015 | 0.4 | 5.5~6.75 | 3.5~4.5 | - | - | - | 0.1 | 0.4 |
| Gr7 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | 0.12~0.25 | 0.12~0.25 | - | 0.1 | 0.4 |
| Gr9 | 0.08 | 0.15 | 0.03 | 0.015 | 0.25 | 2.5~3.5 | 2.0~3.0 | - | - | - | 0.1 | 0.4 |
| Gr11 | 0.08 | 0.18 | 0.03 | 0.15 | 0.2 | - | - | 0.12~0.25 | - | - | 0.1 | 0.4 |
| Gr12 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | - | - | - | 0.6~0.9 | 0.2~0.4 | 0.1 | 0.4 |
| Gr16 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | - | - | 0.04~0.08 | - | - | 0.1 | 0.4 |
| Gr23 | 0.08 | 0.13 | 0.03 | 0.15 | 0.25 | 5.5~6.5 | 3.5~4.5 | - | - | - | 0.1 | 0.1 |
Advantages of Using Titanium Alloy Wire for Joint Implants
Titanium wire offers several key advantages that enhance the performance of surgical instruments:
Superior Durability: Surgical scissors and needle holders made from titanium wire are resistant to wear and tear, providing long-term reliability.
Resistance to Fatigue: Titanium wire maintains its shape and performance even after prolonged use, reducing the likelihood of tool failure during critical procedures.
Precision and Control: The lightweight nature of titanium wire, combined with its strength, ensures that surgical scissors and needle holders offer precise control, enabling surgeons to perform delicate tasks with ease.
Sterilization-Friendly: Titanium’s ability to withstand multiple sterilization cycles without degrading ensures that the instruments remain in optimal condition.
Cost Efficiency: Due to its long-lasting durability and resistance to corrosion, titanium wire reduces the cost of frequent tool replacements and maintenance, making it a cost-effective solution in the long run.
| Grade | TA1 TA2 TA3 TA4 TC4 TA7 GR7 GR9 GR11 |
| Titanium Wire | Diameter: 0.1mm-8.0mm |
| Titanium Tube | Length (4-12m), Width (1-50mm), Diameter (48.3-609.6mm) |
| Titanium Rod | Diameter (5.0-350mm), Length (300-6000mm) |
| Titanium Block | Length (100-1500mm), Width (30-600mm), Height (20-300mm) |
| Titanium Plate | Length (1000-6000mm), Width (1000-2000mm), Height (0.8-60mm) |
| Standard | ASTMB863 ASTMB265 ASTMF67 ASTMF136 ISO5832 GB3632 GJB9581 |
Applications of Titanium Alloy Wire in Joint Implants
Titanium wire is used extensively in the production of various surgical instruments, particularly those that require precision, strength, and longevity. Here are some common applications:
Surgical Scissors: Titanium wire is perfect for creating surgical scissors, ensuring that the blades stay sharp and durable while providing a lightweight feel for precision cutting.
Needle Holders: Needle holders made from titanium wire offer excellent strength and corrosion resistance, ensuring that the instruments remain functional even in the most demanding surgical environments.
Surgical Forceps: Similar to scissors and needle holders, titanium wire is also used in the production of surgical forceps, providing the same durability, flexibility, and precision required in delicate surgeries.
Orthopedic Instruments: Titanium wire’s strength and resistance to fatigue make it an excellent choice for orthopedic surgical tools, such as bone cutters and graspers.
Dental Surgical Tools: The versatility of titanium wire makes it suitable for dental surgical tools that require precision and strength, especially during complex dental procedures.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.

Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.

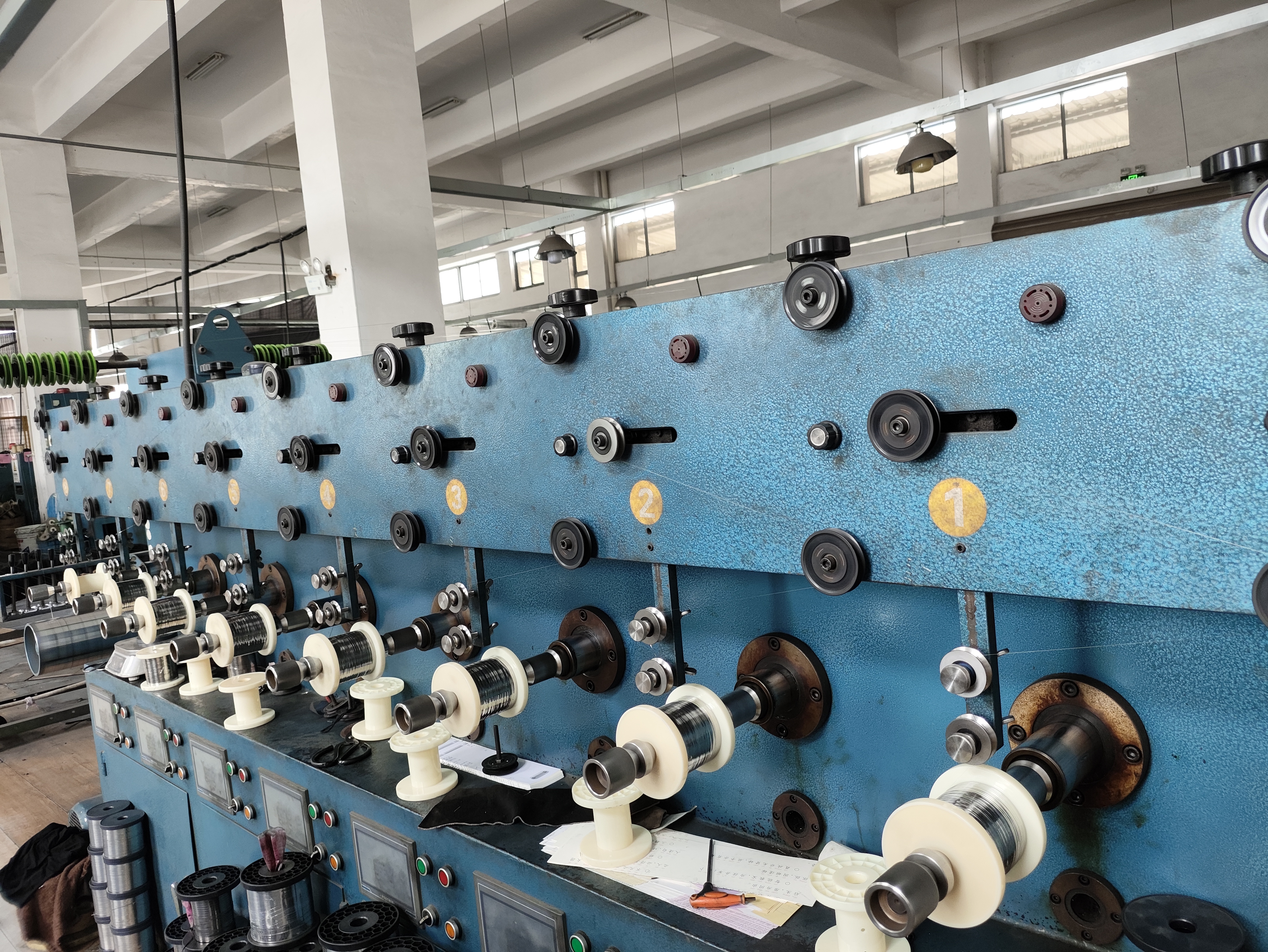

Our Factory

Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.


FAQ
Who is your company?
We are a leading supplier of high-quality Nitinol alloy wire, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.How can I contact your company?
Phone: +86 132 1868 0935
Whatsapp: +86 13218680935
Email: victory@dlx-alloy.com
Why is titanium wire used in surgical scissors and needle holders?
Titanium wire is known for its excellent strength-to-weight ratio, corrosion resistance, and biocompatibility, making it an ideal material for surgical instruments that require precision and durability.How does titanium wire compare to other materials like stainless steel?
While stainless steel is strong, titanium wire offers superior corrosion resistance, a lighter weight, and greater biocompatibility, making it more suitable for medical tools that are exposed to harsh sterilization processes.Can titanium wire be used for all types of surgical instruments?
Yes, titanium wire can be used to manufacture a wide variety of surgical instruments, including scissors, needle holders, forceps, and more, due to its versatility and strength.What makes titanium wire more durable than other materials?
Titanium wire is highly resistant to corrosion, wear, and fatigue, which gives it a longer lifespan compared to other materials like stainless steel. This makes it ideal for surgical tools that undergo frequent sterilization and heavy usage.
