Introduction of Titanium Alloy Wire
Titanium wire is a critical material used in the creation of high-performance orthopedic tools and surgical scalpels. Known for its precision, strength, and biocompatibility, titanium wire is ideal for the demanding requirements of surgical applications. Whether you're working with orthopedic tools or performing delicate surgeries with scalpels, high-quality titanium wire ensures optimal performance, durability, and patient safety.
At Victory Supplier, we offer high-precision titanium wire that meets the rigorous standards of the medical industry. Our titanium wire is designed to improve the functionality and longevity of surgical instruments while providing superior corrosion resistance and minimal tissue reaction.
| China | Classification | UK | Russia | Japan |
| TA1 | Commercial Pure Titanium | GR1 | BT1-00 | TP270 |
| TA2 | Commercial Pure Titanium | GR2 | BT1-0 | TP340 |
| TA3 | Commercial Pure Titanium | GR3 | TP450 | |
| TA4 | Commercial Pure Titanium | GR4 | TP550 | |
TC4 | Ti-6AI-4V | GR5 | BT6 | TAP6400 |
| TA7 | GR6 | |||
| TA9 | Ti-0.2Pd | GR7 | TP340Pb | |
TA18 | Ti-3Al-2.5V | GR9 | 0T4-1B | TAP3250 |
| TA9-1 | GR11 | |||
| TA10 | Ti-0.3Mo-0.8Ni | GR12 | ||
| TB5 | Ti-15V-3Al-3Gr-3Sn | Ti-15333 | ||
| TC4ELI | Ti-6AI-4VELI | GR23 |
Features of Titanium Alloy Wire
Exceptional Strength-to-Weight Ratio: Titanium wire is both lightweight and extremely strong, making it the perfect choice for creating orthopedic tools and surgical scalpels that require both precision and durability.
Corrosion Resistance: Titanium’s ability to resist corrosion ensures that surgical instruments made from this material can withstand repeated sterilization cycles and exposure to bodily fluids, maintaining their integrity over time.
Biocompatibility: Titanium is highly biocompatible, meaning it is safe for use in medical applications, reducing the risk of adverse reactions in patients.
High Precision: Our titanium wire is manufactured to tight tolerances, making it ideal for surgical instruments where precision is critical, such as orthopedic tools and scalpels.
Long Lifespan: Thanks to its resistance to wear and corrosion, titanium wire enhances the durability of surgical instruments, leading to longer lifespans and fewer replacements.
| Mechanical Properties | |||||||
| Grade | Condition | Tensile Strength | Yield Strength | Elongation | Reductionof Area | ||
| Ksi | Mpa | Ksi | Mpa | % | |||
| ≥ | |||||||
GR1 | Annealed | 35 | 240 | 25 | 170 | 24 | 30 |
| GR2 | 50 | 345 | 40 | 275 | 20 | 30 | |
| GR3 | 65 | 450 | 55 | 380 | 18 | 30 | |
| GR4 | 80 | 550 | 70 | 483 | 15 | 25 | |
| GR5 | 130 | 895 | 120 | 828 | 10 | 25 | |
| GR6 | 120 | 828 | 115 | 483 | 15 | 25 | |
| GR7 | 50 | 345 | 40 | 275 | 20 | 30 | |
| GR9 | 90 | 620 | 70 | 483 | 15 | 25 | |
| GR11 | 35 | 240 | 25 | 170 | 24 | 30 | |
| GR12 | 70 | 483 | 50 | 345 | 18 | 25 | |
| GR23(Ti-6AL-4VELI) | 125 | 860 | 115 | 795 | 10 | 25 | |
Titanium Alloy Grade Composition Table
| Grade | C ≤ | O ≤ | N ≤ | H ≤ | Fe ≤ | Al | V | Pd | Ni | Mo | Average of Other Elements | Total of Other Elements |
| Gr1 | 0.08 | 0.18 | 0.03 | 0.015 | 0.2 | - | - | - | - | - | 0.1 | 0.4 |
| Gr2 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | - | - | - | 0.1 | 0.4 |
| Gr4 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | - | - | 0.1 | 0.4 | |
| Gr5 | 0.08 | 0.2 | 0.05 | 0.015 | 0.4 | 5.5~6.75 | 3.5~4.5 | - | - | - | 0.1 | 0.4 |
| Gr7 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | 0.12~0.25 | 0.12~0.25 | - | 0.1 | 0.4 |
| Gr9 | 0.08 | 0.15 | 0.03 | 0.015 | 0.25 | 2.5~3.5 | 2.0~3.0 | - | - | - | 0.1 | 0.4 |
| Gr11 | 0.08 | 0.18 | 0.03 | 0.15 | 0.2 | - | - | 0.12~0.25 | - | - | 0.1 | 0.4 |
| Gr12 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | - | - | - | 0.6~0.9 | 0.2~0.4 | 0.1 | 0.4 |
| Gr16 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | - | - | 0.04~0.08 | - | - | 0.1 | 0.4 |
| Gr23 | 0.08 | 0.13 | 0.03 | 0.15 | 0.25 | 5.5~6.5 | 3.5~4.5 | - | - | - | 0.1 | 0.1 |
Advantages of Using Titanium Alloy Wire for Joint Implants
The use of high-precision titanium wire in orthopedic tools and surgical scalpels provides several key advantages:
Enhanced Surgical Precision: The strength and flexibility of titanium wire allow for the creation of instruments with exceptional precision, which is crucial in complex surgeries, particularly in orthopedics and delicate scalpel-based procedures.
Improved Durability: Titanium’s natural resistance to fatigue and corrosion ensures that surgical instruments remain reliable and functional throughout multiple procedures.
Patient Safety: The biocompatibility of titanium wire minimizes the risk of allergic reactions or rejection, making it the preferred material for tools that come into direct contact with human tissue.
Cost-Effectiveness: Although titanium wire is more expensive than other materials, its long lifespan and resistance to damage make it a cost-effective investment for medical facilities that require durable surgical instruments.
Sterilization Resistance: Titanium wire’s ability to withstand repeated sterilization without degrading ensures that surgical instruments retain their effectiveness and functionality for longer periods.
| Grade | TA1 TA2 TA3 TA4 TC4 TA7 GR7 GR9 GR11 |
| Titanium Wire | Diameter: 0.1mm-8.0mm |
| Titanium Tube | Length (4-12m), Width (1-50mm), Diameter (48.3-609.6mm) |
| Titanium Rod | Diameter (5.0-350mm), Length (300-6000mm) |
| Titanium Block | Length (100-1500mm), Width (30-600mm), Height (20-300mm) |
| Titanium Plate | Length (1000-6000mm), Width (1000-2000mm), Height (0.8-60mm) |
| Standard | ASTMB863 ASTMB265 ASTMF67 ASTMF136 ISO5832 GB3632 GJB9581 |
Applications of Titanium Alloy Wire in Joint Implants
Titanium wire plays a crucial role in the creation of various surgical tools, especially those used in orthopedics and delicate surgeries. Here are some common applications:
Orthopedic Tools: Titanium wire is used in the production of orthopedic instruments like bone cutters, drills, and fixation devices, where strength and resistance to wear are essential.
Surgical Scalpels: Titanium wire is used in scalpels to create blades that are sharp, precise, and lightweight, perfect for fine cuts and minimal tissue damage during surgeries.
Surgical Forceps: For delicate operations, titanium wire is also used in forceps, offering high precision while remaining light and durable.
Needle Holders: The precision of titanium wire ensures that needle holders, which are crucial for suturing, provide excellent control and reliability in surgical settings.
Dental Surgical Instruments: The high precision of titanium wire makes it suitable for dental surgery tools, where accuracy and durability are key to success.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.

Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.

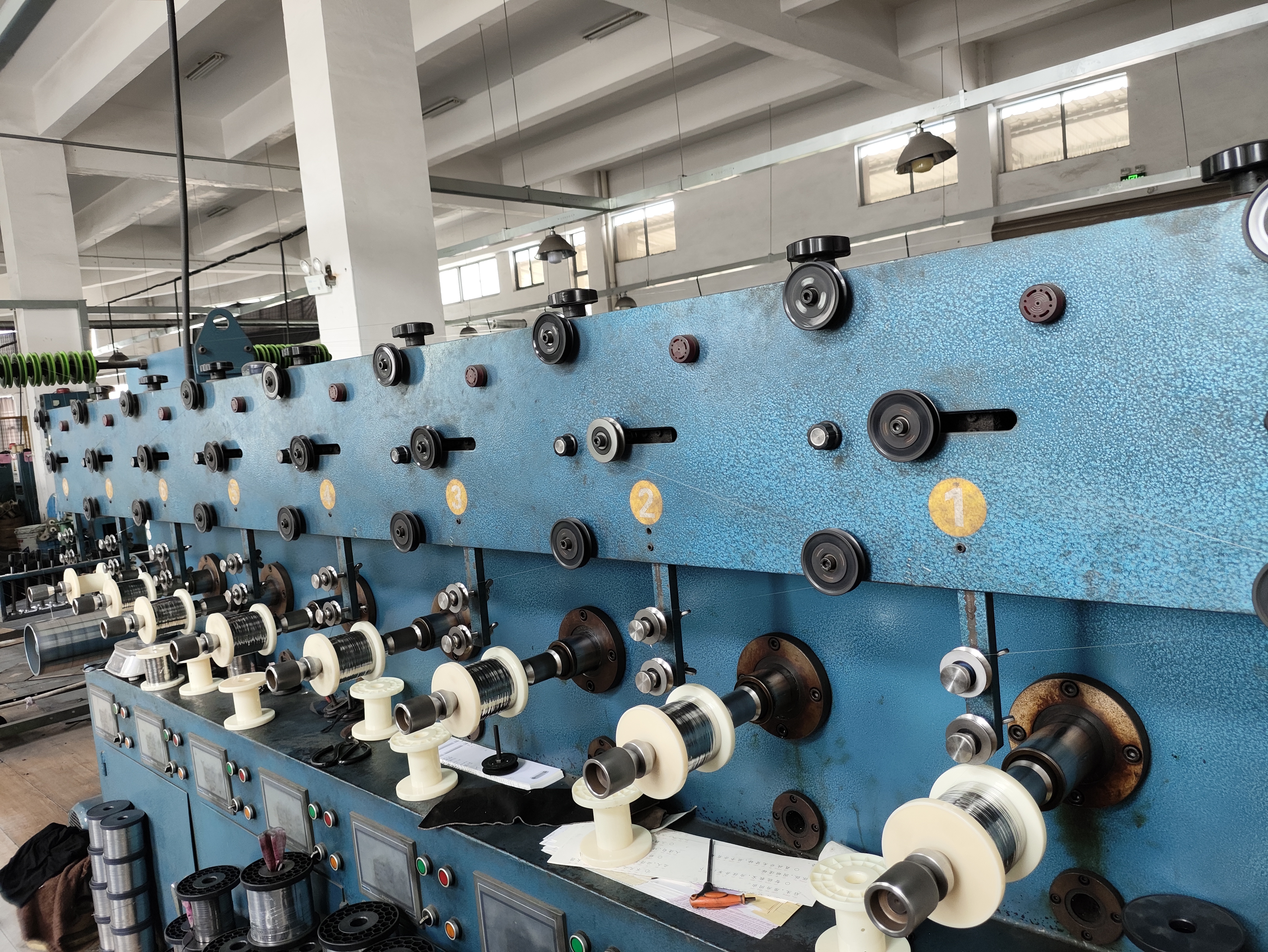

Our Factory

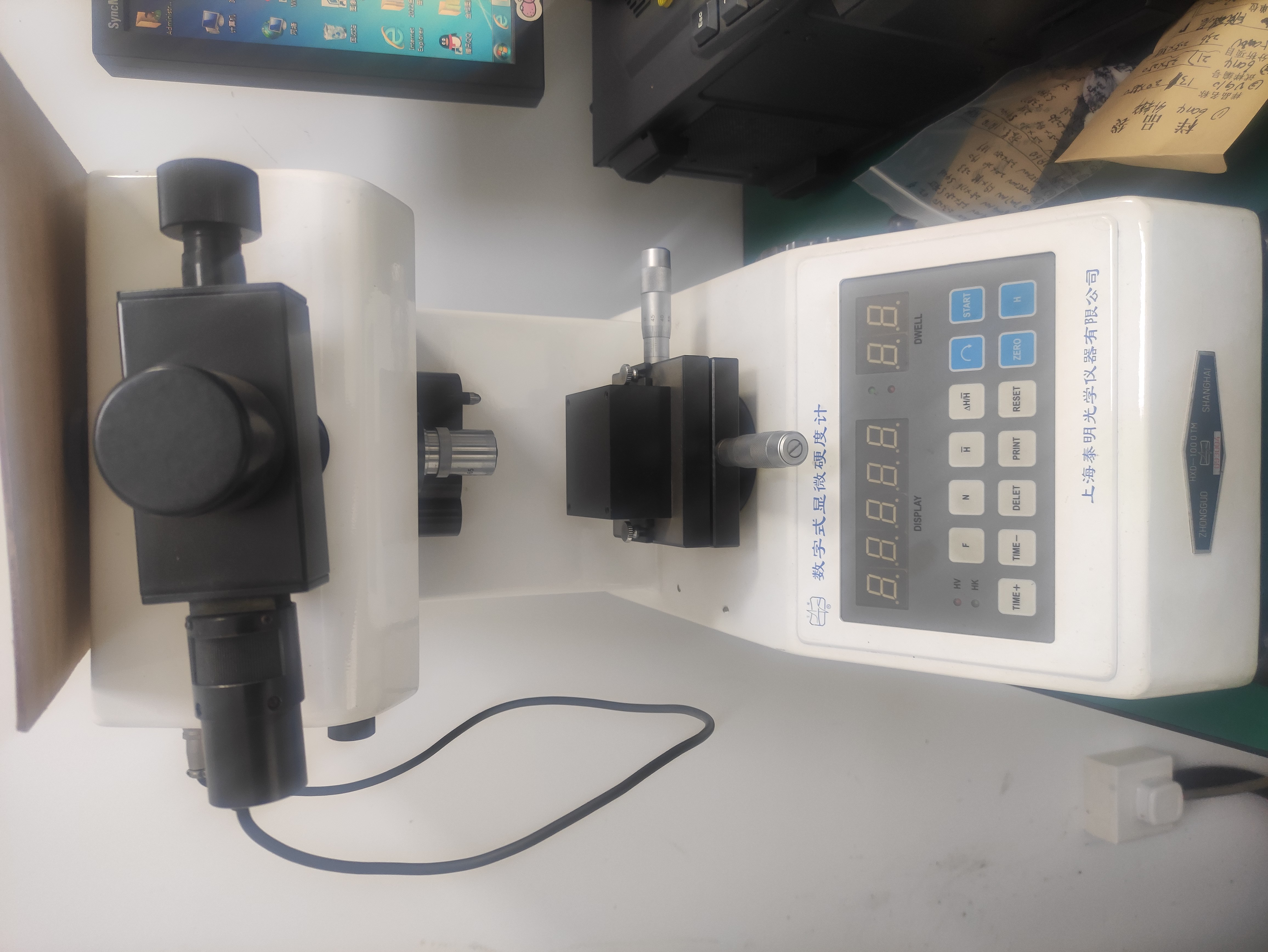

Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.


FAQ
Who is your company?
We are a leading supplier of high-quality Nitinol alloy wire, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.What are the benefits of using titanium wire in orthopedic tools and surgical scalpels?
Titanium wire offers superior strength, precision, and corrosion resistance, which makes it ideal for orthopedic tools and scalpels used in surgeries that require durability and fine control.How does titanium wire compare to stainless steel in surgical instruments?
Titanium wire is lighter, more corrosion-resistant, and offers higher biocompatibility than stainless steel, making it a better choice for surgical instruments that need to withstand repeated sterilization.Can titanium wire be used in both orthopedic and general surgical instruments?
Yes, titanium wire is highly versatile and can be used in both orthopedic tools and general surgical instruments like scalpels, forceps, and needle holders, where precision and strength are critical.Is titanium wire suitable for use in all surgical environments?
Yes, titanium wire is ideal for use in various surgical environments, including orthopedic surgeries, general surgeries, and dental procedures, thanks to its precision, strength, and biocompatibility.
