Introduction of Titanium Alloy Wire
Titanium wire is a high-performance material used in the manufacture of surgical instruments, including scalpels and cutting tools. Known for its strength, lightweight properties, and biocompatibility, titanium wire is ideal for precision medical applications. It is crafted to withstand harsh conditions and provide long-lasting performance in even the most demanding surgeries.
Our titanium wire meets the highest medical standards, offering unmatched durability and reliability for medical professionals who require precision tools in their practice.
| China | Classification | UK | Russia | Japan |
| TA1 | Commercial Pure Titanium | GR1 | BT1-00 | TP270 |
| TA2 | Commercial Pure Titanium | GR2 | BT1-0 | TP340 |
| TA3 | Commercial Pure Titanium | GR3 | TP450 | |
| TA4 | Commercial Pure Titanium | GR4 | TP550 | |
TC4 | Ti-6AI-4V | GR5 | BT6 | TAP6400 |
| TA7 | GR6 | |||
| TA9 | Ti-0.2Pd | GR7 | TP340Pb | |
TA18 | Ti-3Al-2.5V | GR9 | 0T4-1B | TAP3250 |
| TA9-1 | GR11 | |||
| TA10 | Ti-0.3Mo-0.8Ni | GR12 | ||
| TB5 | Ti-15V-3Al-3Gr-3Sn | Ti-15333 | ||
| TC4ELI | Ti-6AI-4VELI | GR23 |
Features of Titanium Alloy Wire
High Strength-to-Weight Ratio: Titanium wire is incredibly strong while remaining lightweight, which is crucial for surgical tools such as scissors and needle holders that require both durability and ease of use.
Corrosion Resistance: Titanium’s resistance to corrosion makes it ideal for surgical tools, which undergo regular sterilization and exposure to bodily fluids.
Biocompatibility: As a biocompatible material, titanium wire reduces the risk of allergic reactions or complications during surgery, ensuring patient safety.
Enhanced Flexibility: Titanium wire can be easily molded and shaped into intricate designs, allowing for the creation of highly precise and functional surgical instruments.
Long-Lasting Durability: Surgical tools made from titanium wire have an extended lifespan, reducing the need for frequent replacements, which makes it a cost-effective choice for hospitals and medical facilities.
| Mechanical Properties | |||||||
| Grade | Condition | Tensile Strength | Yield Strength | Elongation | Reductionof Area | ||
| Ksi | Mpa | Ksi | Mpa | % | |||
| ≥ | |||||||
GR1 | Annealed | 35 | 240 | 25 | 170 | 24 | 30 |
| GR2 | 50 | 345 | 40 | 275 | 20 | 30 | |
| GR3 | 65 | 450 | 55 | 380 | 18 | 30 | |
| GR4 | 80 | 550 | 70 | 483 | 15 | 25 | |
| GR5 | 130 | 895 | 120 | 828 | 10 | 25 | |
| GR6 | 120 | 828 | 115 | 483 | 15 | 25 | |
| GR7 | 50 | 345 | 40 | 275 | 20 | 30 | |
| GR9 | 90 | 620 | 70 | 483 | 15 | 25 | |
| GR11 | 35 | 240 | 25 | 170 | 24 | 30 | |
| GR12 | 70 | 483 | 50 | 345 | 18 | 25 | |
| GR23(Ti-6AL-4VELI) | 125 | 860 | 115 | 795 | 10 | 25 | |
Titanium Alloy Grade Composition Table
| Grade | C ≤ | O ≤ | N ≤ | H ≤ | Fe ≤ | Al | V | Pd | Ni | Mo | Average of Other Elements | Total of Other Elements |
| Gr1 | 0.08 | 0.18 | 0.03 | 0.015 | 0.2 | - | - | - | - | - | 0.1 | 0.4 |
| Gr2 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | - | - | - | 0.1 | 0.4 |
| Gr4 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | - | - | 0.1 | 0.4 | |
| Gr5 | 0.08 | 0.2 | 0.05 | 0.015 | 0.4 | 5.5~6.75 | 3.5~4.5 | - | - | - | 0.1 | 0.4 |
| Gr7 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | 0.12~0.25 | 0.12~0.25 | - | 0.1 | 0.4 |
| Gr9 | 0.08 | 0.15 | 0.03 | 0.015 | 0.25 | 2.5~3.5 | 2.0~3.0 | - | - | - | 0.1 | 0.4 |
| Gr11 | 0.08 | 0.18 | 0.03 | 0.15 | 0.2 | - | - | 0.12~0.25 | - | - | 0.1 | 0.4 |
| Gr12 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | - | - | - | 0.6~0.9 | 0.2~0.4 | 0.1 | 0.4 |
| Gr16 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | - | - | 0.04~0.08 | - | - | 0.1 | 0.4 |
| Gr23 | 0.08 | 0.13 | 0.03 | 0.15 | 0.25 | 5.5~6.5 | 3.5~4.5 | - | - | - | 0.1 | 0.1 |
Advantages of Using Titanium Alloy Wire for Joint Implants
The use of premium titanium wire offers several key advantages for medical instruments:
Enhanced Performance: The lightweight yet durable nature of titanium wire ensures superior performance in surgical applications, allowing surgeons to execute procedures with precision and ease.
Sterilization Resistance: Titanium’s resistance to corrosion and wear allows surgical instruments to withstand the high-heat sterilization process without deteriorating.
Long-Lasting: Surgical tools made from titanium wire are more resistant to fatigue, reducing the frequency of replacements and maintenance.
Customizable for Specific Tools: Whether for scalpels, cutting instruments, or other surgical tools, titanium wire can be tailored to meet the specific requirements of different applications.
Reduced Risk of Infection: Due to its high biocompatibility, titanium wire minimizes the risk of infection or adverse reactions, making it an ideal material for use in surgical instruments.
| Grade | TA1 TA2 TA3 TA4 TC4 TA7 GR7 GR9 GR11 |
| Titanium Wire | Diameter: 0.1mm-8.0mm |
| Titanium Tube | Length (4-12m), Width (1-50mm), Diameter (48.3-609.6mm) |
| Titanium Rod | Diameter (5.0-350mm), Length (300-6000mm) |
| Titanium Block | Length (100-1500mm), Width (30-600mm), Height (20-300mm) |
| Titanium Plate | Length (1000-6000mm), Width (1000-2000mm), Height (0.8-60mm) |
| Standard | ASTMB863 ASTMB265 ASTMF67 ASTMF136 ISO5832 GB3632 GJB9581 |
Applications of Titanium Alloy Wire in Joint Implants
Titanium wire plays a critical role in a variety of medical applications, particularly in the manufacture of surgical tools:
Surgical Scalpels: Titanium wire provides the precision and sharpness needed for scalpel blades used in surgeries that require meticulous cutting and minimal tissue damage.
Cutting Instruments: The wire’s strength and flexibility make it ideal for cutting tools used in various surgical specialties, from general surgery to orthopedics.
Dental Instruments: In dental surgeries, titanium wire ensures that cutting tools maintain their strength and performance, even when exposed to high temperatures and sterilization.
Orthopedic Tools: Titanium wire is widely used in orthopedic surgical instruments, where strength and resistance to fatigue are essential.
Microsurgical Instruments: For surgeries that require extreme precision, such as neurosurgery, titanium wire offers the fine control necessary for delicate operations.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.

Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.

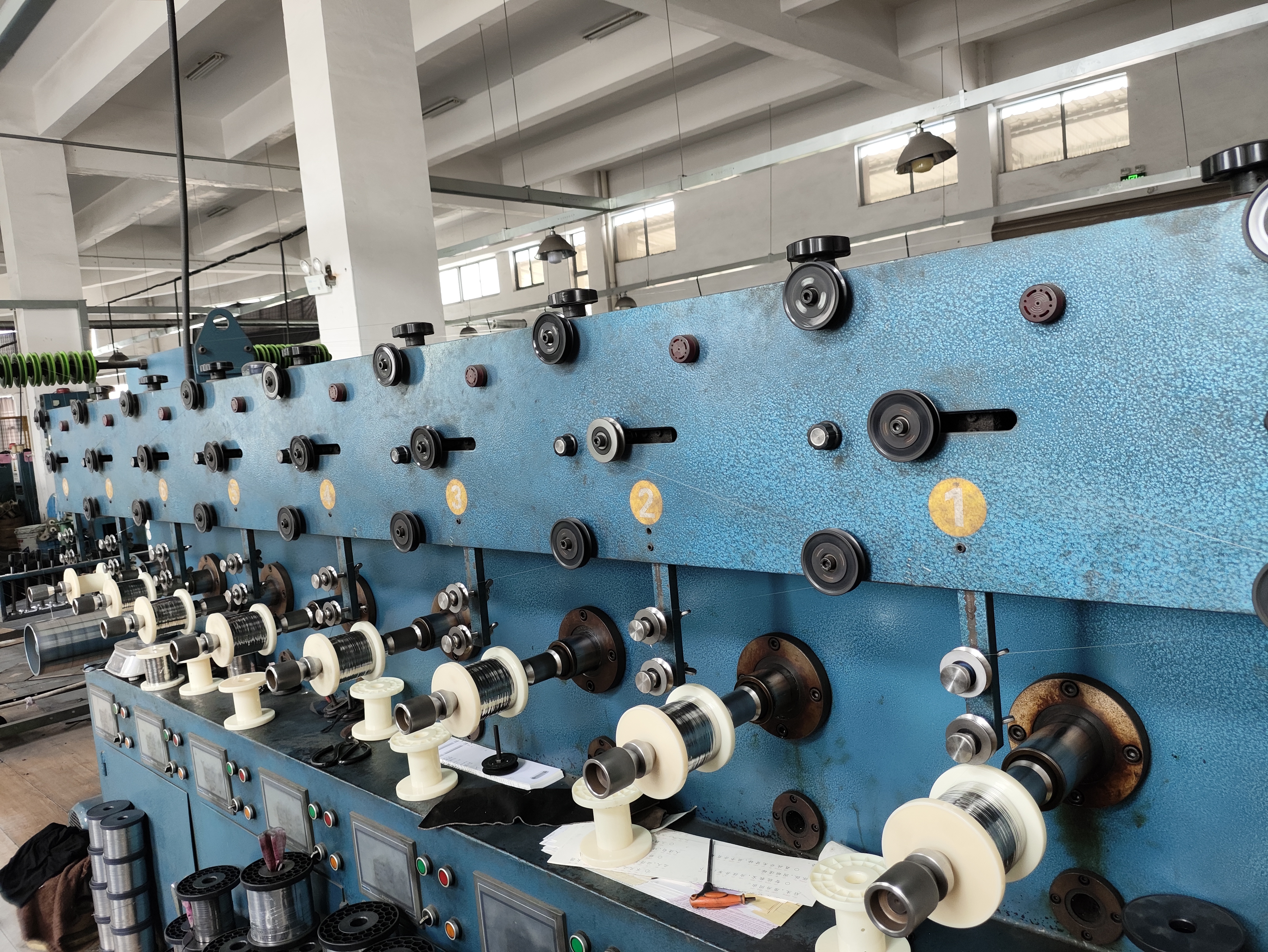

Our Factory

Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.


FAQ
Who is your company?
We are a leading supplier of high-quality Nitinol alloy wire, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.How can I contact your company?
Phone: +86 132 1868 0935
Whatsapp: +86 13218680935
Email: victory@dlx-alloy.com
What is the advantage of using titanium wire for surgical instruments?
Titanium wire offers excellent strength-to-weight ratio, corrosion resistance, and biocompatibility, making it ideal for precision surgical tools that need to perform under extreme conditions.Can titanium wire be used in all types of surgical tools?
Yes, titanium wire is highly versatile and can be used in a wide range of surgical tools, including scalpels, cutting instruments, and dental tools.How does titanium wire compare to other materials like stainless steel?
Unlike stainless steel, titanium wire is lighter, more resistant to corrosion, and offers superior strength, making it ideal for medical applications that require durability and precision.Do you offer custom sizes for titanium wire?
Yes, we offer custom sizes and specifications for titanium wire, ensuring it meets the specific requirements of your surgical instruments.
