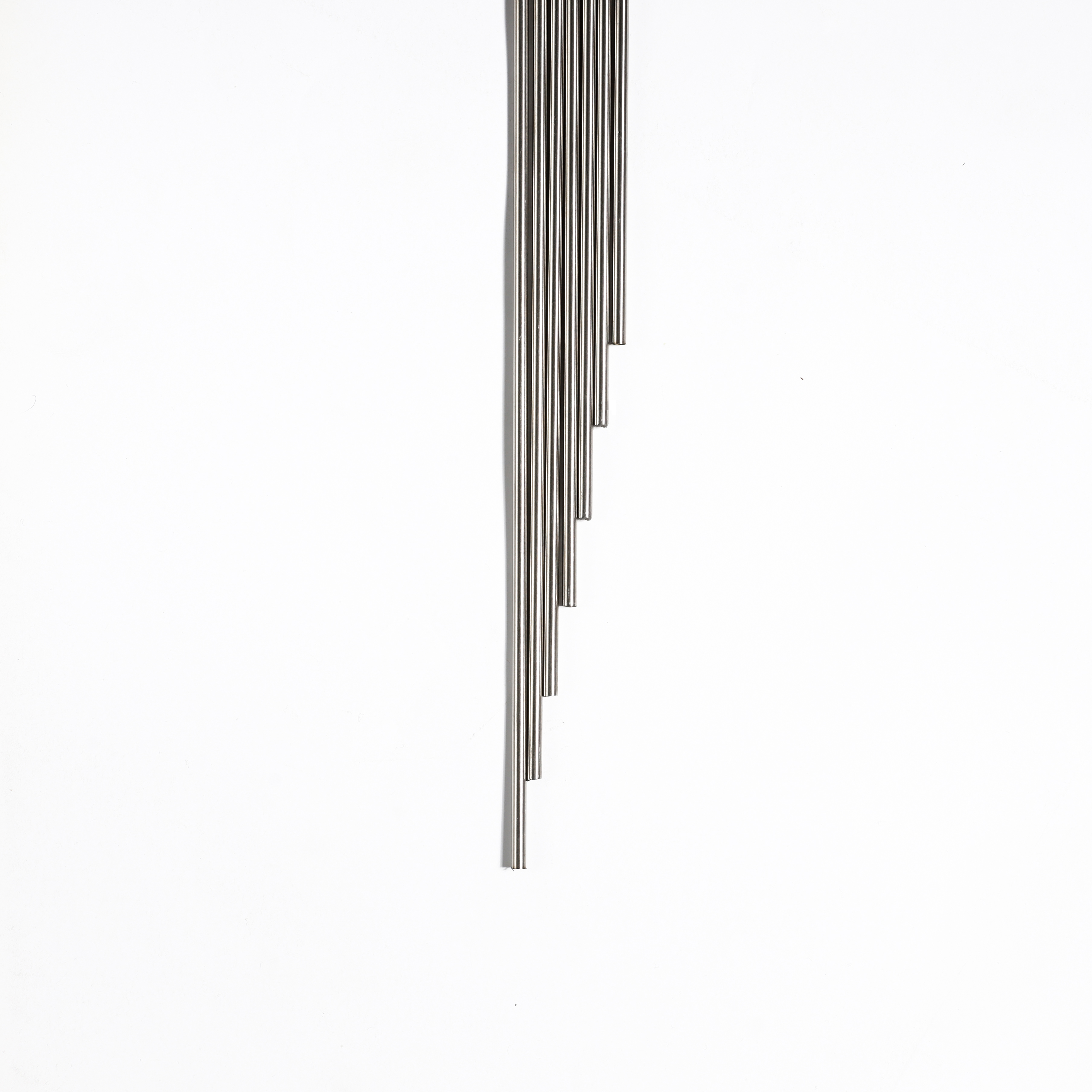

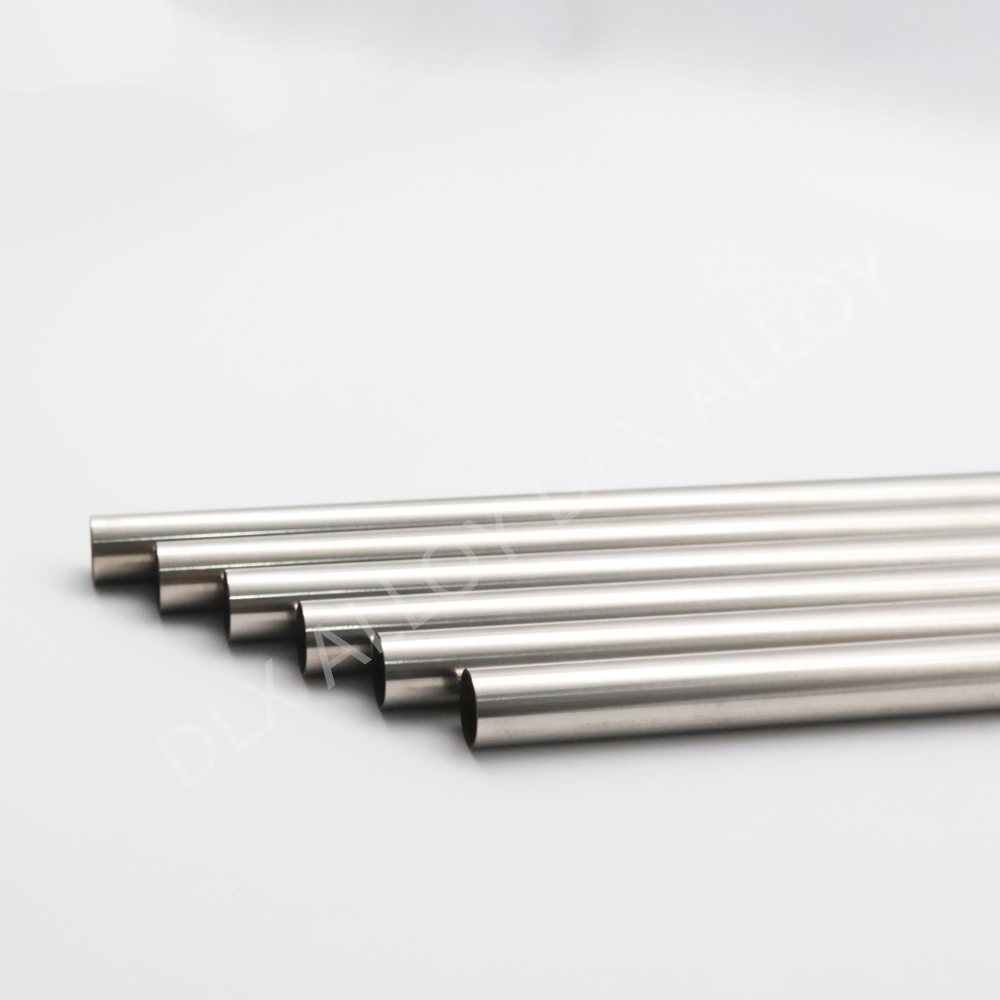

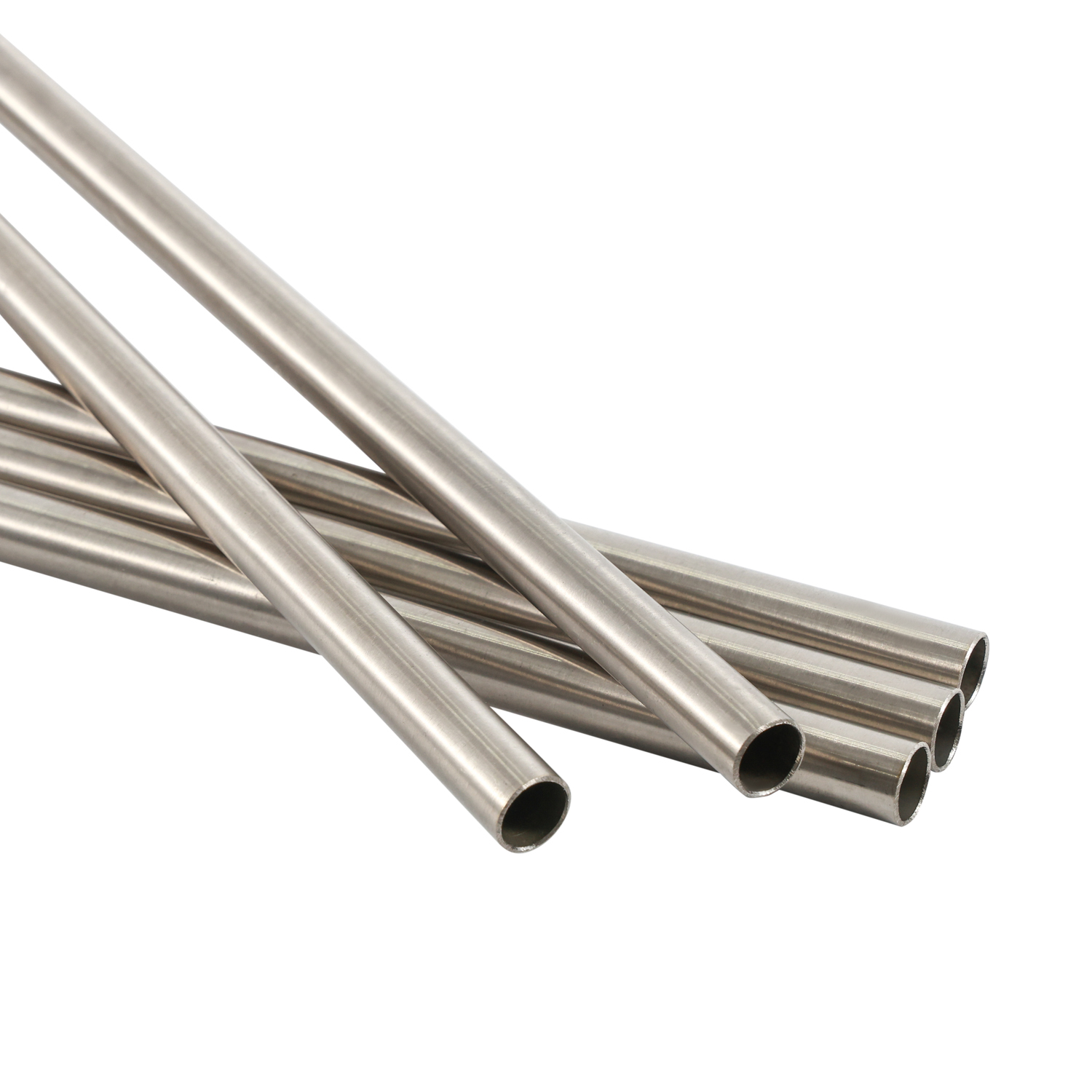

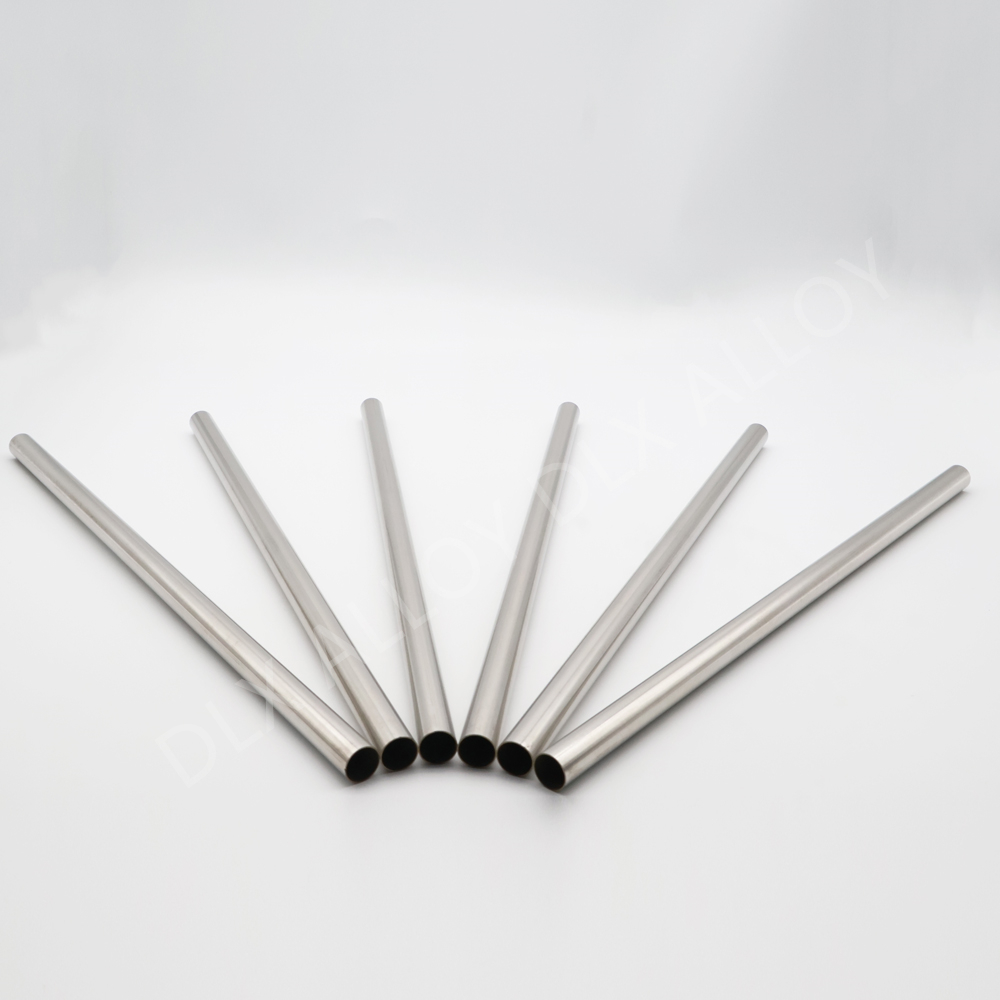

Introduction of Titanium Alloy Tube
Titanium alloy tubes are becoming increasingly popular in the medical field, especially for artificial joints and orthopedic implants. With their outstanding physical properties, titanium alloys offer strength, corrosion resistance, and biocompatibility, making them the ideal material for use in orthopedic applications. Victory Supplier provides top-grade titanium alloy tubes, engineered to meet the high standards required by the medical industry.
Our titanium alloy tubes are manufactured from premium-quality titanium, processed to high precision. Titanium alloys consist of titanium combined with elements such as aluminum and vanadium, offering a combination of low density, excellent strength-to-weight ratio, and superb corrosion resistance. These properties make titanium an ideal material for a variety of orthopedic implants. We offer a range of customization options, allowing our titanium tubes to be tailored to the specific requirements of different implants and medical devices.
| China | Classification | UK | Russia | Japan |
| TA1 | Commercial Pure Titanium | GR1 | BT1-00 | TP270 |
| TA2 | Commercial Pure Titanium | GR2 | BT1-0 | TP340 |
| TA3 | Commercial Pure Titanium | GR3 | TP450 | |
| TA4 | Commercial Pure Titanium | GR4 | TP550 | |
TC4 | Ti-6AI-4V | GR5 | BT6 | TAP6400 |
| TA7 | GR6 | |||
| TA9 | Ti-0.2Pd | GR7 | TP340Pb | |
TA18 | Ti-3Al-2.5V | GR9 | 0T4-1B | TAP3250 |
| TA9-1 | GR11 | |||
| TA10 | Ti-0.3Mo-0.8Ni | GR12 | ||
| TB5 | Ti-15V-3Al-3Gr-3Sn | Ti-15333 | ||
| TC4ELI | Ti-6AI-4VELI | GR23 |
Features of Titanium Alloy Tube
High Strength and Lightweight: Titanium alloy tubes offer a high strength-to-weight ratio, providing the necessary durability without adding excess weight, which is crucial for orthopedic implants that must withstand long-term stress.
Excellent Biocompatibility: Titanium is known for its exceptional biocompatibility, meaning it is highly compatible with human tissue and unlikely to cause any adverse reactions, making it ideal for medical implants.
Superior Corrosion Resistance: Titanium alloys are highly resistant to corrosion, even in harsh body environments, ensuring long-term performance without degradation.
Precision Manufacturing: Our titanium alloy tubes are available in various sizes and configurations, with precise dimensions to meet the specific needs of each implant application.
Fatigue Resistance: Titanium alloys are renowned for their ability to resist fatigue, an essential property for orthopedic implants subjected to repeated stresses over time.
| Mechanical Properties | |||||||
| Grade | Condition | Tensile Strength | Yield Strength | Elongation | Reductionof Area | ||
| Ksi | Mpa | Ksi | Mpa | % | |||
| ≥ | |||||||
GR1 | Annealed | 35 | 240 | 25 | 170 | 24 | 30 |
| GR2 | 50 | 345 | 40 | 275 | 20 | 30 | |
| GR3 | 65 | 450 | 55 | 380 | 18 | 30 | |
| GR4 | 80 | 550 | 70 | 483 | 15 | 25 | |
| GR5 | 130 | 895 | 120 | 828 | 10 | 25 | |
| GR6 | 120 | 828 | 115 | 483 | 15 | 25 | |
| GR7 | 50 | 345 | 40 | 275 | 20 | 30 | |
| GR9 | 90 | 620 | 70 | 483 | 15 | 25 | |
| GR11 | 35 | 240 | 25 | 170 | 24 | 30 | |
| GR12 | 70 | 483 | 50 | 345 | 18 | 25 | |
| GR23(Ti-6AL-4VELI) | 125 | 860 | 115 | 795 | 10 | 25 | |
Titanium Alloy Grade Composition Table
| Grade | C ≤ | O ≤ | N ≤ | H ≤ | Fe ≤ | Al | V | Pd | Ni | Mo | Average of Other Elements | Total of Other Elements |
| Gr1 | 0.08 | 0.18 | 0.03 | 0.015 | 0.2 | - | - | - | - | - | 0.1 | 0.4 |
| Gr2 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | - | - | - | 0.1 | 0.4 |
| Gr4 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | - | - | 0.1 | 0.4 | |
| Gr5 | 0.08 | 0.2 | 0.05 | 0.015 | 0.4 | 5.5~6.75 | 3.5~4.5 | - | - | - | 0.1 | 0.4 |
| Gr7 | 0.08 | 0.25 | 0.03 | 0.015 | 0.3 | - | - | 0.12~0.25 | 0.12~0.25 | - | 0.1 | 0.4 |
| Gr9 | 0.08 | 0.15 | 0.03 | 0.015 | 0.25 | 2.5~3.5 | 2.0~3.0 | - | - | - | 0.1 | 0.4 |
| Gr11 | 0.08 | 0.18 | 0.03 | 0.15 | 0.2 | - | - | 0.12~0.25 | - | - | 0.1 | 0.4 |
| Gr12 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | - | - | - | 0.6~0.9 | 0.2~0.4 | 0.1 | 0.4 |
| Gr16 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | - | - | 0.04~0.08 | - | - | 0.1 | 0.4 |
| Gr23 | 0.08 | 0.13 | 0.03 | 0.15 | 0.25 | 5.5~6.5 | 3.5~4.5 | - | - | - | 0.1 | 0.1 |
Advantages of Using Titanium Alloy Tube
Reliable Performance: All our titanium alloy tubes undergo rigorous quality control and testing, ensuring each batch meets the high standards required for use in medical applications.
Non-toxic and Safe: Titanium is a non-toxic material that does not leach harmful substances into the body, making it safe for long-term implantation.
Long-Term Durability: With excellent resistance to wear, corrosion, and fatigue, our titanium tubes offer unparalleled longevity in the human body.
Custom Solutions: We offer custom titanium alloy tubes in various diameters, lengths, and wall thicknesses, ensuring you get the right fit for your specific implant design.
Environmental Friendliness: Titanium is a recyclable material, contributing to environmentally sustainable practices in medical device manufacturing.
| Grade | TA1 TA2 TA3 TA4 TC4 TA7 GR7 GR9 GR11 |
| Titanium Wire | Diameter: 0.1mm-8.0mm |
| Titanium Tube | Length (4-12m), Width (1-50mm), Diameter (48.3-609.6mm) |
| Titanium Rod | Diameter (5.0-350mm), Length (300-6000mm) |
| Titanium Block | Length (100-1500mm), Width (30-600mm), Height (20-300mm) |
| Titanium Plate | Length (1000-6000mm), Width (1000-2000mm), Height (0.8-60mm) |
| Standard | ASTMB863 ASTMB265 ASTMF67 ASTMF136 ISO5832 GB3632 GJB9581 |
Applications of Titanium Alloy Tube
Titanium alloy tubes are widely used in a variety of orthopedic applications:
Artificial Joints: Titanium alloy tubes are used in the construction of artificial joints, including hip and knee replacements, offering both strength and flexibility.
Spinal Implants: These tubes are also utilized in spinal surgeries, providing the structural integrity necessary for supporting the spine.
Bone Fixation Devices: Titanium alloy tubes are commonly used in bone fixation devices, such as rods and screws, to stabilize fractures and support healing.
Dental Implants: Titanium’s exceptional compatibility with bone makes it an ideal material for dental implants, offering strength and support for tooth replacements.
Orthopedic Surgical Instruments: Titanium alloy tubes are also used in the manufacturing of surgical instruments that require strength, precision, and durability.
ABOUT US
Victory Alloy Co., Ltd. is a professional manufacturer specializing in medical alloy materials, with a dedicated focus on the research, development and production of high-performance biomedical alloys.
Our primary product range includes medical-grade titanium alloys, Nitinol (nickel-titanium alloy), cobalt-chromium (CoCr) alloys, platinum-iridium (Pt-Ir) alloys, and medical stainless steel. These high-quality alloys are widely applied in a broad spectrum of medical fields, such as cardiovascular stents, orthopedic implants, interventional guidewires, dental implants, surgical instruments, and disposable medical auxiliary devices. Boasting outstanding biocompatibility, strong corrosion resistance and excellent mechanical properties, our products have won consistent praise from customers across the board.
Client Visits
We welcome client visits to showcase our manufacturing and testing processes. Clients can explore our facility, discuss specific needs, and learn about our quality control methods. Our team ensures a personalized experience to meet your exact requirements for medical applications.

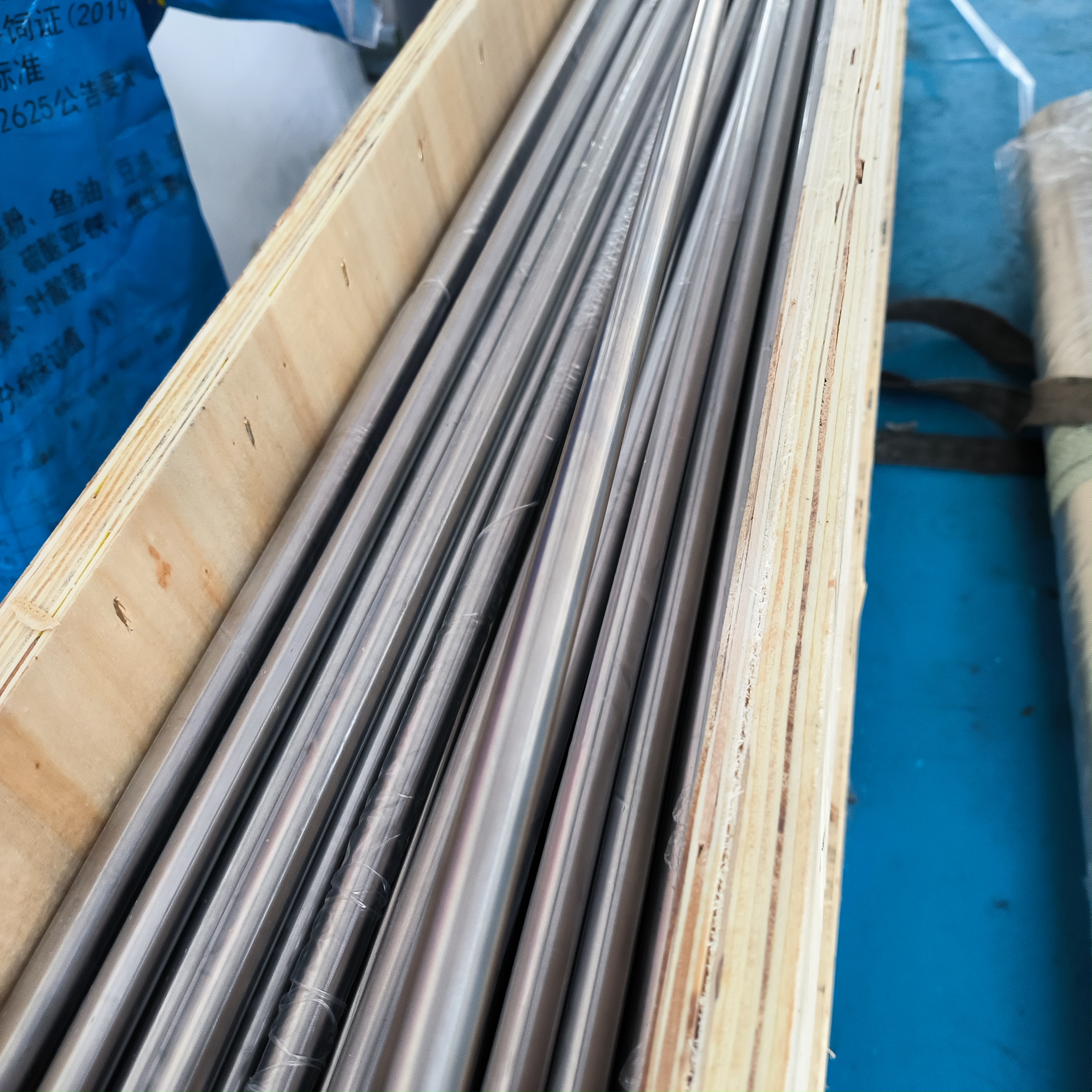

Our Factory

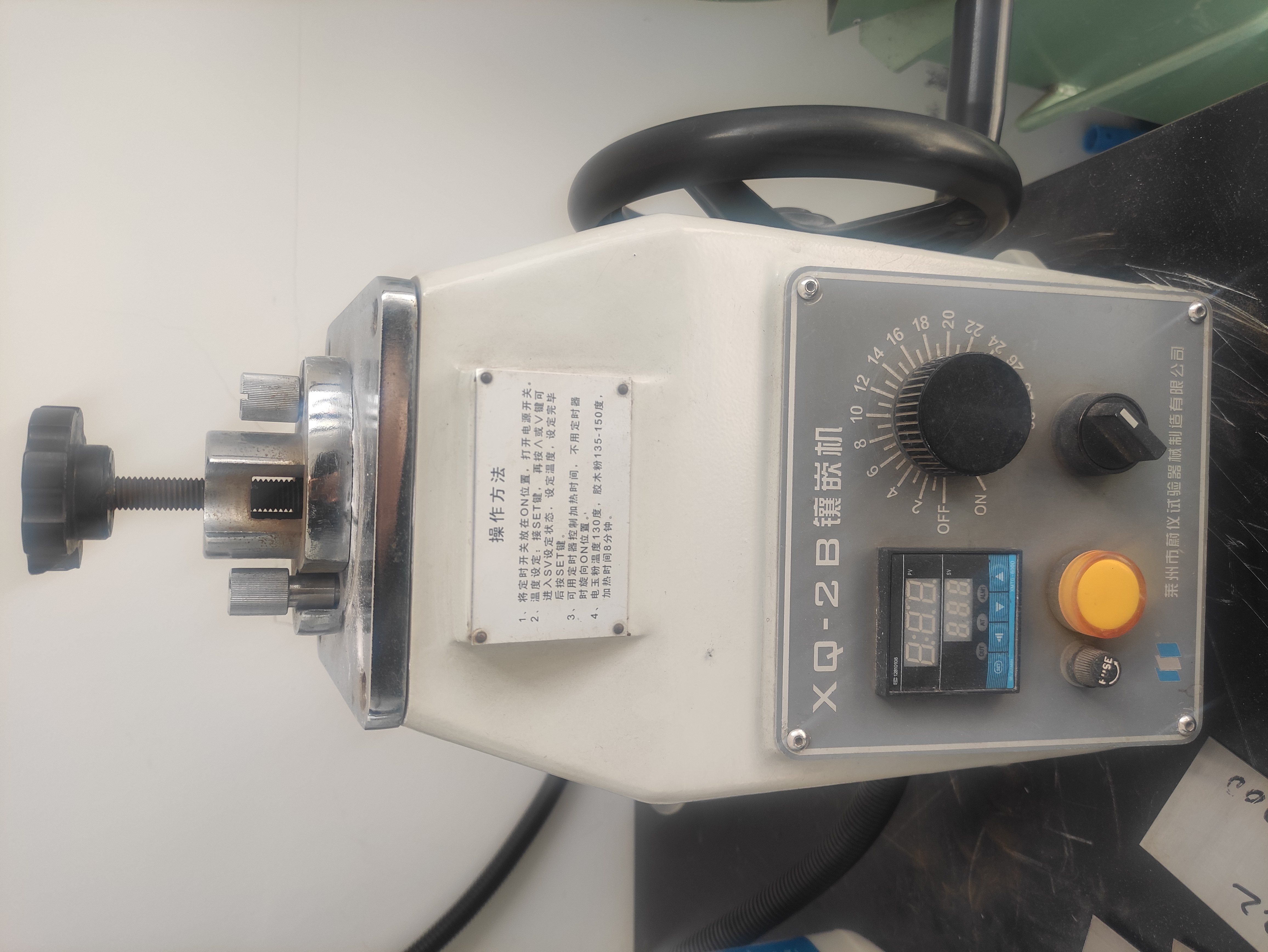

Quality Testing of the Product
Our product undergoes strict testing for tensile strength, corrosion resistance, and biocompatibility to ensure reliable performance in joint implants. We use advanced methods to verify its safety and durability, and all products meet international medical standards for consistent, long-term use in the body.
FAQ
Who is your company?
We are a leading supplier of high-quality medical alloys, specializing in providing durable, biocompatible materials for orthopedic joint replacements and other medical applications.How can I contact your company?
Phone: +86 132 1868 0935
Whatsapp: +86 13218680935
Email: victory@dlx-alloy.com
How do you ensure the quality of your titanium alloy tubes?
Our titanium alloy tubes undergo rigorous testing for quality control, including checks for dimensional accuracy, strength, corrosion resistance, and surface finish to ensure they meet medical-grade standards.Can your titanium alloy tubes be customized?
Yes, we offer custom sizing, wall thickness, and lengths for titanium alloy tubes to suit specific implant designs and requirements.What makes titanium alloy suitable for orthopedic implants?
Titanium alloys are strong, lightweight, and highly resistant to corrosion, making them ideal for use in the body. Additionally, titanium is biocompatible, meaning it integrates well with human tissue without causing adverse reactions.How do I place an order for titanium alloy tubes?
You can place an order by visiting our website and contacting our sales team directly. We offer easy online ordering and consultation for custom requirements.
