Product Details
Place of Origin: China
Brand Name: Victory
Certification: CE
Model Number: Cr20Ni80
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 5
Packaging Details: Spool package with Carton box, Coil package with polybag for Resistance wire
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Material: |
Nickel, Chromium |
Nickel(Min): |
77% |
Resistivity: |
1.09+/-0.05 |
Tensile Strength: |
637MPA |
Elongtation: |
≥20% |
Application: |
Heating, Resistivity |
Condition: |
Hard / Soft |
Sureface: |
Bright, Oxided, Acide |
Delivery Time: |
7-20 Days |
Name: |
Resistance Wire |
Material: |
Nickel, Chromium |
Nickel(Min): |
77% |
Resistivity: |
1.09+/-0.05 |
Tensile Strength: |
637MPA |
Elongtation: |
≥20% |
Application: |
Heating, Resistivity |
Condition: |
Hard / Soft |
Sureface: |
Bright, Oxided, Acide |
Delivery Time: |
7-20 Days |
Name: |
Resistance Wire |

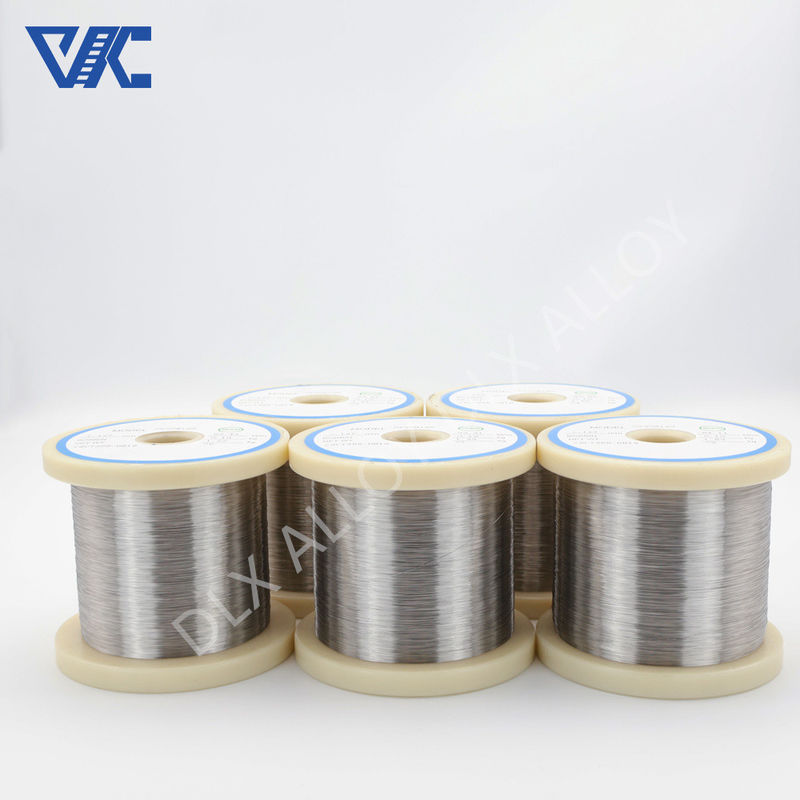

Nickel Chrome Resistance Alloy Wire Cr20Ni80,NiCr 8020 Nichrome Wire
NiCr Series
Nichrome wire, specifically the Cr20Ni80 alloy, is highly valued for its unique properties. When heated, it exhibits a minimum electrical resistance, making it ideal for use in electrothermal equipment. Additionally, it possesses elevated temperature strength and high ductility, allowing for various forms of machining such as chiseling, welding, stamping, and drawing. The alloy also holds its shape well, adding to its durability and reliability.
Despite its high price, the performance of Nichrome wire justifies the cost. The Cr20Ni80 and Cr15Ni60 alloys are the most popular brands due to their exceptional properties. H20N80 comprises 20% chromium and 80% nickel, resulting in a resistivity of 650 Ohms/cmf and a melting temperature of 1200°C.
Overall, Nichrome wire is a versatile and reliable material that is widely used in the electrical industry. Its unique properties make it an excellent choice for heating applications and other forms of electrothermal equipment. Despite its cost, the durability and reliability of this alloy make it a worthwhile investment.
Size dimension range:
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
NiCr series: Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30
| Performance material | Cr10Ni90 | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Composición | Ni | 90 | Rest | Rest | 55.0～61.0 | 34.0～37.0 | 30.0～34.0 |
| Cr | 10 | 20.0～23.0 | 28.0～31.0 | 15.0～18.0 | 18.0～21.0 | 18.0～21.0 | |
| Fe | － | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Temperatura máxima℃ | 1300 | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Punto de fusion ℃ | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Densidad g/cm3 | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Resistividad μΩ·m,20℃ | 0.76±0.05 | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 | |
| Alargamiento a la ruptura | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
| Calor especifico J/g.℃ | － | 0.44 | 0.461 | 0.494 | 0.5 | 0.5 | |
| Conductividad térmica KJ/m.h℃ | － | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coeficiente de expansión de líneas a×10-6/(20～1000℃) | － | 18 | 17 | 17 | 19 | 19 | |
| Estructura micrográfica | － | Austenite | Austenite | Austenite | Austenite | Austenite | |
| Propiedades magnéticas | － | Nonmagnetic | Nonmagnetic | Nonmagnetic | Weak magnetic | Weak magnetic | |
| Form | Specification | |
| Wire | Diameter=0.025mm~8mm | |
| Flat wire | Width=0.40~6.0mm | Thick=0.03~0.50mm |
| Strip | width=8~250mm | Thick=0.05~3.0mm |
| Bar | Diameter=8~100mm | Long=50~1000 |
|
|
|
|
