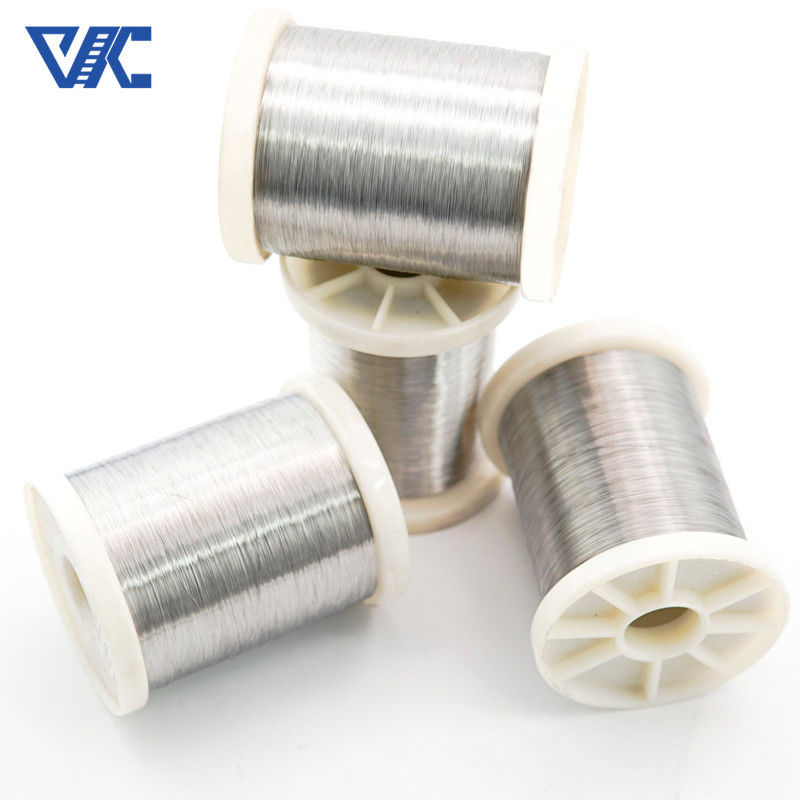

Professional Factory Sale N4/N6/Ni200/Ni201 Pure Nickel Wire In Stock

Product Details

Place of Origin: China

Brand Name: Victory

Certification: ISO9001,ROHS

Model Number: N4,N6,Ni200,Ni201

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1KG

Price: $20-$300/kg

Packaging Details: Spool package with Carton box, Coil package with polybag,

Delivery Time: 7-25 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Product Details
Highlight:

Platinum Coated Nickel Wire

,

Ni201 Nickel Wire

,

200 nickel alloy wire

Product Name:
Pure Nickel Wire
Grade:
N4,N6,Ni200,Ni201
Material:
Ni
Elongation (≥ %):
35%
Ni(min):
99%
Shape:
Wire
Size:
0.025-10mm
Ultimate Strength (≥ MPa):
462
Resistance (μΩ.m):
15
Melting Point:
1435-1446°C
Tensile Strength Ksi (min):
462
Hardness:
S,1/4H,1/2H,3/4H,H
Application:
Industry,Electronic
M.O.Q:
1KG
Delivery:
7-25 Days
Product Name:
Pure Nickel Wire
Grade:
N4,N6,Ni200,Ni201
Material:
Ni
Elongation (≥ %):
35%
Ni(min):
99%
Shape:
Wire
Size:
0.025-10mm
Ultimate Strength (≥ MPa):
462
Resistance (μΩ.m):
15
Melting Point:
1435-1446°C
Tensile Strength Ksi (min):
462
Hardness:
S,1/4H,1/2H,3/4H,H
Application:
Industry,Electronic
M.O.Q:
1KG
Delivery:
7-25 Days
Product Description

Professional Factory Sale N4/N6/Ni200/Ni201 Pure Nickel Wire In Stock 0

Dimension:
Size dimension range:
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar:10-50mm
Nickel 200 nickel wire 0.025 mm dia
It has good mechanical strength,corrosion-resistant and heat-resistance strength.
It is widely used in electric apparatus,chemical machinery,ood processing equipment,rechargeable batteriesomputers, cellular
Phone, power tools, camcorders and so on.

Features:
1. Low resistance, make the battery pack more powerful, save energy.
2. Pure Nickel to make it easy welding, stable connection
3. Dood tensile and easy operate assembly.
4. shaped design, save too much work for customer to assembly battery pack.
5. High Electrical Conductivity
6. Anti-corrosive and low resistance

Physical properties:
1.Spot welding is good
2.The resistance is lower
3. Battery discharge time longer
4. The battery spot welding is stronger.

Functions/Applications:
1. manufacturing nickel-cadmium battery
2. nickel-hydrogen battery
3. lithium cell
4. assembled battery
5. industries of electric tool and special lights
6. Superconductor Applications





Specification

Grade Ni+Co Cu Si Mn C Mg S P Fe
N4 99.8 0.015 0.03 0.002 0.01 0.01 0.001 0.001 0.04
N6 99.6 0.10 0.10 0.05 0.10 0.10 0.005 0.002 0.10
Ni201 ≥99.0 ≤0.25 ≤0.35 ≤0.35 ≤0.02 / ≤0.01 / ≤0.40
Ni200 ≥99.2 ≤0.25 ≤0.35 ≤0.35 ≤0.15 / ≤0.01 / ≤0.40



Physical Data
Density 8.89g/cm3
Specific Heat 0.109(456 J/kg.ºC)
Electrical Resistivity 0.096×10-6ohm.m
Melting Point 1435-1446ºC
Thermal Conductivity 70.2 W/m-K
Mean Coeff Thermal Expansion 13.3×10-6m/m.ºC

Typical Mechanical Properties
Mechanical Properties Nickel 200
Tensile Strength 462 Mpa
Yield Strength 148 Mpa
Elongation 47%



Our Production Standard
  Bar Forging Pipe Sheet/Strip Wire
ASTM ASTM B160 ASTM B564 ASTM B161/B163/B725/B751 AMS B162 ASTM B166

Professional Factory Sale N4/N6/Ni200/Ni201 Pure Nickel Wire In Stock 1





Professional Factory Sale N4/N6/Ni200/Ni201 Pure Nickel Wire In Stock 2

Professional Factory Sale N4/N6/Ni200/Ni201 Pure Nickel Wire In Stock 3

Pure nickel wire finds widespread applications in various fields. Here are some common areas of application:
1. Resistance heaters: Pure nickel wire possesses excellent resistance properties and is extensively used in the manufacturing of resistance heaters and heating elements, such as air furnaces, heating coils, and heaters.
2. Electronic components: Pure nickel wire is widely used in the field of electronic components, including resistors, inductors, and electronic circuitry interconnects.
3. Chemical industry: Due to its corrosion resistance and high-temperature performance, pure nickel wire is applied in the chemical industry for corrosion-resistant equipment, reactors, pipelines, and other components.
4. Petroleum and petrochemical industry: Pure nickel wire is utilized in the manufacturing of corrosion-resistant equipment and pipelines for the petroleum and petrochemical industry, including petrochemical plants, pipeline connections, and storage tanks.
5. Aerospace industry: Pure nickel wire finds extensive use in the aerospace field for manufacturing high-temperature and high-strength components such as engine parts, combustion chambers, nozzles, and turbine blades.
6. Other industries: Pure nickel wire also finds applications in the power industry, electronics and electrical engineering, and nuclear energy industry, used for manufacturing cables, electromagnetic coils, and electric heating devices.



Professional Factory Sale N4/N6/Ni200/Ni201 Pure Nickel Wire In Stock 4Professional Factory Sale N4/N6/Ni200/Ni201 Pure Nickel Wire In Stock 5Professional Factory Sale N4/N6/Ni200/Ni201 Pure Nickel Wire In Stock 6

OEM Services

We offer personalized customization services for both products and labels to meet the specific needs of our customers. We can provide products with different thicknesses and widths according to the customer's requirements. Whatever kind of customization service our customers need, we will do our best to meet their demands and ensure customer satisfaction.Professional Factory Sale N4/N6/Ni200/Ni201 Pure Nickel Wire In Stock 7
