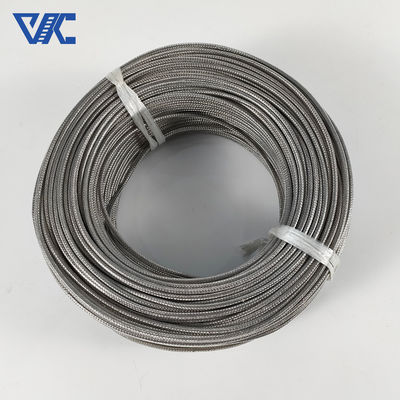

Type K J N E T S B R High Temperature Sensor Thermocouple Extension Wire/Compensation Cable
  • name
  • name
  • name
  • name

Type K J N E T S B R High Temperature Sensor Thermocouple Extension Wire/Compensation Cable

MOQ: 1
Standard Packaging: Spool package with Carton box, Coil package with polybag
Delivery Period: 5-21 days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 300 tons per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Victory
Certification
CE,ROHS,ISO 9001
Model Number
K,N,E,J,T,B,R,S Types
Document
Product Brochure PDF
Product Name:
Thermocouple Extension Wire
Color:
Bright
Certificate:
ISO9001
Temperature Range:
32 To 392F (0 To 200C)
EMF Tolerance:
+/- 1.5C Or +/- .25%
Grade:
IEC854-1/3
Positive:
Platinum Rhodium
Negative:
Platinum
Special Limits Of Error:
+/- 0.6C Or 0.1%
Type:
SNX, SPX
Highlight:

Type S Thermocouple Extension Wire

,

Thermocouple Extension Wire Platinum Rhodium

,

IEC854-1/3 extension grade thermocouple wire

Product Description

Thermocouple Extension Wire is a cable used to extend thermocouple signals and is suitable for various thermocouple types such as K type, N type, E type, J type, T type, B type, R type and S type. It provides reliable signal transmission and temperature measurement solutions and is commonly used in applications such as industry, laboratories and control systems to ensure accurate temperature monitoring and control. Whether in high, low or extreme temperature environments, Thermocouple Extension Wire can provide stable signal transmission to help ensure the accuracy and reliability of temperature monitoring systems.



Thermocouple Wire

Code Wires component of the thermocouple
  +Positive leg -Negative leg
N Ni-cr-si (NP) Ni-si-magnesium (NN)
K Ni-Cr (KP) Ni-Al(Si) (KN)
E Ni-Cr (EP) Cu-Ni<constantan> (EN)
J Iron (JP) Cu-Ni<constantan> (JN)
T Copper (TP) Cu-Ni<constantan> (TN)
B Platinum  Rhodium-30% Platinum Rhodium-6%
R Platinum Rhodium-13% Platinum
S Platinum Rhodium-10% Platinum



Outer Sheath(mm)
core wire Dia.( mm)
Outer Sheath(mm)o core wire Dia.( mm)
Length(m)
Out Dia
Wall Thickness
K,N,E,J,T Types
S,R,B Types
K,N Types
E,J,T Types
S,R Types
B Types

0.5
0.05-0.10
0.08-0.12
...
SS304,
SS321,
SS316,
SS310,
INCL600
SS304,
SS321,
SS316
INCL600,
INCL800
INCL600,
INCL800
500
1.0
0.10-0.20
0.15-0.20
...
300
1.5
0.15-0.25
0.23-0.30
...
200
1.6
0.16-0.26
0.26-0.36
...
200
2.0
0.25-0.35
0.40-0.50
0.25-.030
180
3.0
0.38-0.48
0.50-0.60
0.30-0.40
80
3.2
0.48-0.58
0.58-0.68
0.30-0.40
75
4.0
0.52-0.62
0.60-0.70
0.35-0.40
70
4.8
0.73-0.83
0.75-0.85
0.40-0.45
40
5.0
0.78-0.88
0.80-0.90
0.40-0.45
40
6.0
0.98-1.08
0.90-1.10
0.45-0.50
30
6.4
1..05-1.15
1.02-1.12
0.45-0.50
30
8.0
1.30-1.44
1.30-1.40
0.45-0.50
20
12.7
1.75-1.90
1.95-2.05
...
10




Type K J N E T S B R High Temperature Sensor Thermocouple Extension Wire/Compensation Cable 0 Type K J N E T S B R High Temperature Sensor Thermocouple Extension Wire/Compensation Cable 1



Tags:

JKT Type Thermocouple Compensating Wire,

Measuring Temperature Thermocouple Compensating Wire,

platinum Rhodium thermocouple extension and compensating cable
