Product Details
Place of Origin: China
Brand Name: Victory
Certification: CE,ROHS,ISO 9001
Model Number: K,N,E,J,T,B,R,S Types
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |
Thermocouple Extension Wire |
Color: |
Bright |
Certificate: |
ISO9001 |
Temperature Range: |
-58 To 2700F (-50 To 1480C) |
EMF Tolerance: |
+/- 1.5C Or +/- .25% |
Grade: |
IEC854-1/3 |
Positive: |
Platinum Rhodium |
Negative: |
Platinum |
Special Limits Of Error: |
+/- 0.6C Or 0.1% |
Type: |
RNX, RPX |
Product Name: |
Thermocouple Extension Wire |
Color: |
Bright |
Certificate: |
ISO9001 |
Temperature Range: |
-58 To 2700F (-50 To 1480C) |
EMF Tolerance: |
+/- 1.5C Or +/- .25% |
Grade: |
IEC854-1/3 |
Positive: |
Platinum Rhodium |
Negative: |
Platinum |
Special Limits Of Error: |
+/- 0.6C Or 0.1% |
Type: |
RNX, RPX |

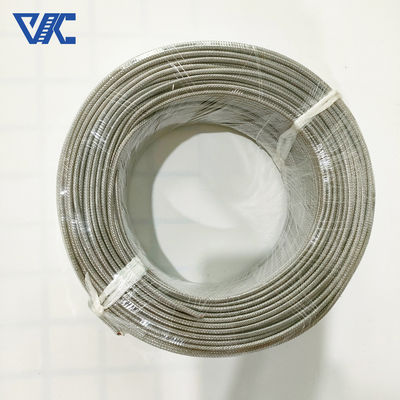

Type R Thermocouple extension wire (Platinum Rhodium -13% / Platinum):
The Type R thermocouple extension wire is used in very high temperature applications. It has a higher percentage of Rhodium than the Type S, which makes it more expensive. The Type R is very similar to the Type S in terms of performance. It is sometimes used in lower temperature applications because of its high accuracy and stability. Type R has a slightly higher output and improved stability over the type S. Type R, S, and B thermocouples are "Noble Metal" thermocouples, which are used in high temperature applications.
Type S thermocouples are characterized by a high degree of chemical inertness and stability at high temperatures. Often used as a standard for calibration of base metal thermocouples.
Platinum rhodium thermocouple(S/B/R TYPE)
Platinum Rhodium Assembling Type Thermocouple is widely used in production places with high temperature. It is mainly used to measure temperature in glass and ceramic industry and industrial salting. Insulation material: PVC, PTFE, FB or as per the customer's requirement.
Type R Temperature Range:
Accuracy (whichever is greater):
Thermocouple Wire
| Code | Wires component of the thermocouple | |
| +Positive leg | -Negative leg | |
| N | Ni-cr-si (NP) | Ni-si-magnesium (NN) |
| K | Ni-Cr (KP) | Ni-Al(Si) (KN) |
| E | Ni-Cr (EP) | Cu-Ni<constantan> (EN) |
| J | Iron (JP) | Cu-Ni<constantan> (JN) |
| T | Copper (TP) | Cu-Ni<constantan> (TN) |
| B | Platinum Rhodium-30% | Platinum Rhodium-6% |
| R | Platinum Rhodium-13% | Platinum |
| S | Platinum Rhodium-10% | Platinum |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
