Kovar Strip Nilo K 29HK Nico2918 Kovar Alloy 4j29 Strip

MOQ:	5 Kg
Price:	3 - 499 kilograms $45.20
Standard Packaging:	Plastic film or waterproof woven bag inside, wire packed in spool put into carton,coil wire or strip wire put into wooden case
Delivery Period:	7-21 days
Payment Method:	L/C, T/T, Western Union, MoneyGram
Supply Capacity:	300 tons per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Victory

Certification

CE,ROHS,ISO 9001

Model Number

Kovar 4J29

Document

Product Name:

Kovar Strip

Material:

Nickel Base Alloy

Ni (Min):

Resistance (μΩ.m):

Stable

Powder Or Not:

Not Powder

Ultimate Strength (≥ MPa):

Elongation (≥ %):

Application:

Aerospace Industry,Chemical Industry,Marine Industry

Chemical Composition:

Fe ,Ni ,Co ,Al, Si ,Mn Etc.

Size:

Customized Size

Highlight:

4J29 Kovar Alloy

Precision Kovar Alloy

K94610 Nickel Cobalt Iron Alloy

Product Description

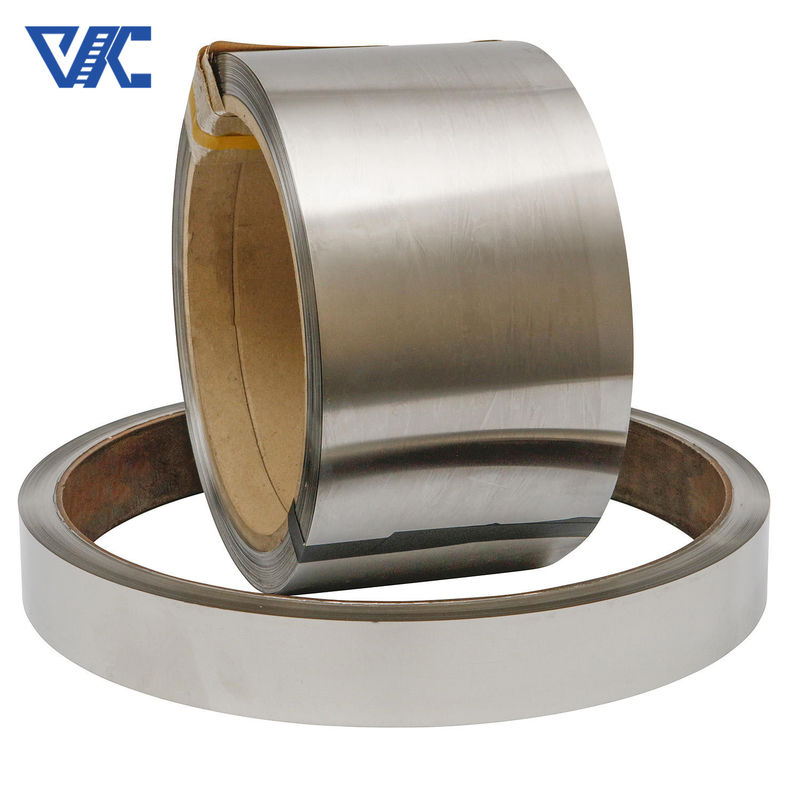

Kovar Strip Nilo K 29HK Nico2918 Kovar Alloy 4j29 Strip 0

Glass sealed and controlled expansion Kovar alloys

* kovar alloy, ASTM F15, Nilo-K, UNS K94610 (FeNi29Co17), Chinese 4J29
*Specifications:ASTM F15; DIN 17745; S.E.W. 385; Werkstoff Nr. 1.3981; AFNOR NF A54-301

Kovar Alloy, also know as ASTM F-15, NILO K, Pernifer 2918, Rodar, and Dilvar P1 is Nickel-Iron-Cobalt, controlled expansion alloy containing 29% Nickel.
It’s coefficient of expansion (which decreases with rising temperature to the inflection point), matches the expansion rate of borosilicate glasses and aluminia ceramics.
Applications include glass to metal seals in applications requiring high reliability or resistance to thermal shock, ie.high~power transmitting valves, transistor leads and heaters and photography flash bulbs.

Alloy Type	Trade Name	UNS No.	Specifications	Forms Of Supply
Alloy Type	Trade Name	UNS No.	Specifications	Rod	Strip	Wire	Sheet
Ni29Co17	Kovar	K94610	ASTM F15	√	√	√	√
FeNi36	Invar 36	K93603	ASTM 1684	√	√		√
FeNi32Co5	Super Invar 32-5	KI93500	ASTMF1684	√	√		√
FeNi27Co25	Ceramvar	F1466	ASTMF1466	√	√	√	√
FeNi42	Alloy 42	K94100	ASTM F30	√	√		√
FeNi46	Alloy 46	K94600	ASTM F30	√	√		√
FeNi48	Alloy 48	K94800	ASTMF30	√	√		√
FeNi50	Alloy 52	K95050	ASTM F30	√	√	√	√

Item	1J33	3J01	3J9	4J29	4J32	4J33	4J45	FeNi50	Invar36
C	≤0.05	≤0.05	0.22-0.26	≤0.03	≤0.05	≤0.03	≤0.05	≤0.05	≤0.1
Mn	≤0.05	≤1.00	1.80-2.20	≤0.5	0.2-0.6	≤0.5	≤0.8	≤0.8	≤0.5
Fe	Rest
P	≤0.020	≤0.020	≤0.03	≤0.02	≤0.02	≤0.02	≤0.02	≤0.02	≤0.006
S	≤0.020	≤0.020	≤0.020	≤0.02	≤0.02	≤0.02	≤0.02	≤0.02	≤0.04
Si	0.30-0.6	≤0.80	1.30-1.70	≤0.3	≤0.2	≤0.3	≤0.3	≤0.3	≤0.35
Ni	32.8-33.8	34.5-36.5	9.0-10.5	28.5-29.5	31.5-33	28.5-29.5	44.5-45.5	49.5-50.5	35-38
Al	1.0-2.0	1.00-1.80	--	--	--	--	≤0.1	≤0.1	--
Co	--	--	--	16.8-17.8	3.2-4.2	16.8-17.8	-	-	-
Ti	-	2.70-3.20	-	-	-	-	-	-	-
Cu	-	--	--	--	≤0.2	0.4-0.8	≤0.2	--	--
Cr	--	11.5-13.0	19.0-20.5	≤0.2	--	≤0.2	--	--	--
Mo	--	--	1.60-1.85	≤0.2	--	≤0.2	--	--	--

Kovar Strip Nilo K 29HK Nico2918 Kovar Alloy 4j29 Strip 1

Kovar Strip Nilo K 29HK Nico2918 Kovar Alloy 4j29 Strip 2

Kovar strip is a type of nickel-iron-cobalt alloy with a coefficient of thermal expansion similar to that of hard borosilicate glass. It has excellent thermal and mechanical properties, making it widely used in various fields, including:

1. Electronics industry: Kovar strips are commonly used in the electronics industry for the manufacture of vacuum tubes, cathode ray tubes (CRTs), microwave tubes, and other electronic components. The low coefficient of thermal expansion of Kovar ensures that the electronic components maintain their shape and size under varying thermal conditions.

2. Aerospace industry: Kovar strips are used in the aerospace industry for the manufacture of aircraft and spacecraft components, especially those that require high thermal stability and dimensional stability. The low coefficient of thermal expansion of Kovar makes it an ideal material for use in critical aerospace applications.

3. Optical industry: Kovar strips are used in the optical industry for the manufacture of optical filters, mirrors, and lenses as they have excellent thermal stability and low thermal expansion.

4. Automotive industry: Kovar strips are used in the automotive industry for the manufacture of sensors, switches, and other electronic components that require high dimensional stability and thermal stability.

In summary, Kovar strip is a versatile material with a wide range of applications in various industries that require high thermal stability, low thermal expansion, and good mechanical properties.

Kovar Strip Nilo K 29HK Nico2918 Kovar Alloy 4j29 Strip 5
