Product Details
Place of Origin: China
Brand Name: Victory
Model Number: Copper foam
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 500
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |
Foam Alloy |
Density: |
0.2~0.4g/cm3 |
Melting Temperature: |
560-700°C |
Feature: |
High Impact Absorption Ability |
Purity: |
98% |
Size: |
Customers' Requirements |
Thickness: |
5-120mm |
Shape: |
Square And Round |
Chemical Composition: |
Cu |
Product Name: |
Foam Alloy |
Density: |
0.2~0.4g/cm3 |
Melting Temperature: |
560-700°C |
Feature: |
High Impact Absorption Ability |
Purity: |
98% |
Size: |
Customers' Requirements |
Thickness: |
5-120mm |
Shape: |
Square And Round |
Chemical Composition: |
Cu |
Introduction:

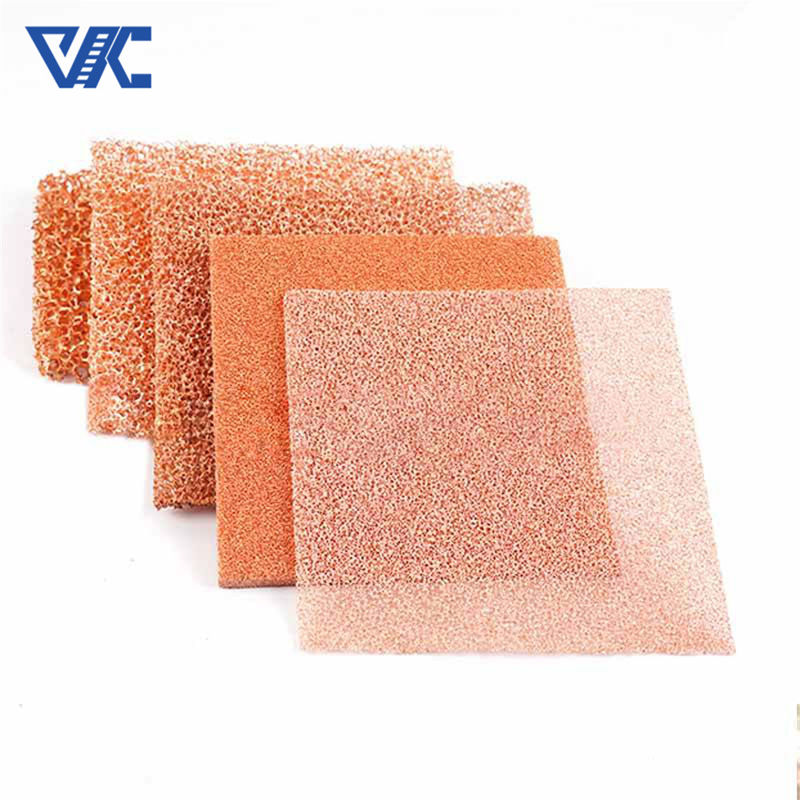

Copper foam is a porous metal material with many unique properties and applications. It is made by adding bubble foaming agent to copper alloy, and then sintering and cooling at high temperature.
Characteristic:
1. Porous structure: Copper foam has a continuous pore structure, and the pores are connected to each other to form an open pore network.
2. Low density: The density of copper foam is relatively low, usually between 0.2-1.0 g/cm³, and has a lighter weight.
3. High specific surface area: Due to its porous structure, copper foam has a large specific surface area, which is conducive to reactions such as adsorption, catalysis, and mass transfer.
4. Excellent thermal conductivity: Copper foam has good thermal conductivity, and the thermal conductivity is usually between 100-400 W/(m·K).
5. Good mechanical properties: Although copper foam has a porous structure, it still has high strength and rigidity.
6. Electromagnetic shielding performance: Copper foam has good electromagnetic shielding performance and can be used in electronic devices and communication equipment.
Parameter:
1. Porosity: The porosity of copper foam refers to the proportion of pore volume in its total volume, usually between 70-95%.
2. Pore size: The pore size of copper foam can be adjusted according to specific application requirements, usually between 0.1-5.0 mm.
3. Pore distribution: The pore distribution of copper foam can be uniform or non-uniform, and can be designed according to application requirements.
4. Density: The density of copper foam depends on the porosity and material composition, usually between 0.2-1.0 g/cm³.
5. Thermal conductivity: The thermal conductivity of copper foam is usually between 100-400 W/(m·K). The specific value is related to the material preparation method and composition.
| Aperture | 0.1mm-10mm(can customized) |
| Porosity | 60%-98% |
| Through porosity | ≥98% |
| Bulk density | 0.1-0.8g/cm3 |
| PPI | 5-130 |
| size | Customized |
| Tensile Strength | 5-18KPa |
| compressive strength | ≥250KPa |
| mechanical strength | ≥2-5KPa |
| High temperature resistance | ≥900ºC |
| Heat transfer coefficient | >6W/(m2k) |
| 3mm*300mm*200mm | 2mm*500mm*500mm | 2mm*100mm*100mm |
| 1.6mm*200mm*300mm | 1.6mm*100mm*100mm | 1.5mm*200mm*300mm |
| 1.0mm*300mm*200mm | 1mm*500mm*500mm | 0.5mm*100mm*100mm |
| 0.3mm*100mm*100mm | 0.2mm*100mm*100mm | 0.1mm* 100mm*100mm |
| 80um*100mm*100mm | 30um*100mm*100mm | The size can be customized |
contact us
email:victory@dlx-alloy.com
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Related Foam
 |
 |
 |
 |
 |
| Nickel Foam | Carbon Foam | Aluminium Foam | Stainles Steel Foam | Ag Foam |
|
|
Video
