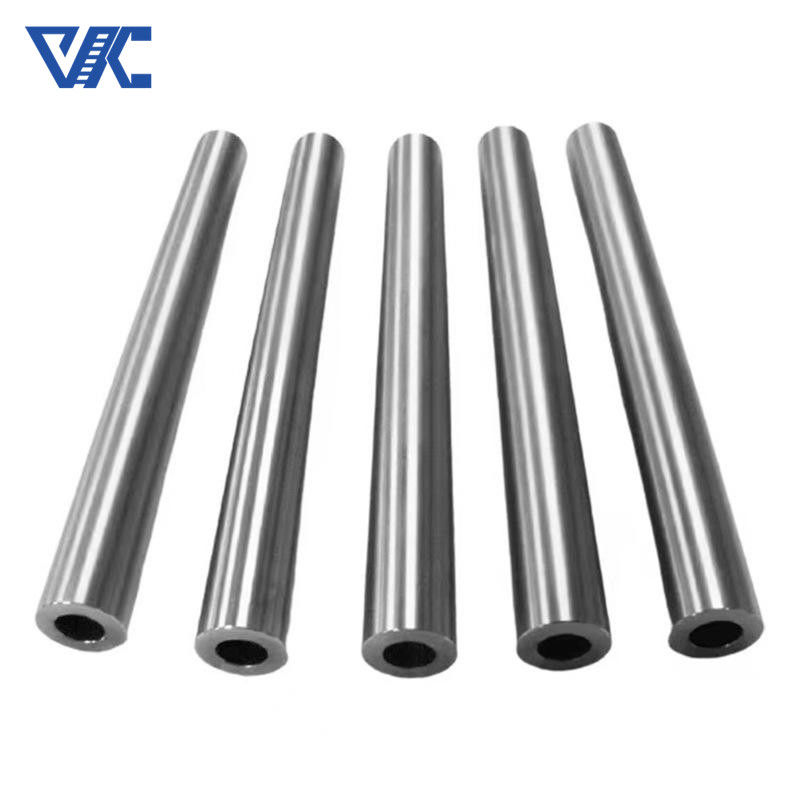

10mm 20mm 30mm Diameter Monel 400/K500 Nickel Alloy Pipe For Sale

MOQ:	5 Kg
Price:	50 - 499 kilograms $47.00
Standard Packaging:	Spool package with Carton box, Coil package with polybag
Delivery Period:	5-21 days
Payment Method:	L/C, T/T, Western Union, MoneyGram
Supply Capacity:	300 tons per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Victory

Certification

CE,ROHS,ISO 9001

Model Number

Monel 400/K500

Document

Product Name:

Monel Tube

Material:

Nickel Base Alloy

Ni (Min):

Resistance (μΩ.m):

Powder Or Not:

Not Powder

Ultimate Strength (≥ MPa):

Elongation (≥ %):

Sureface:

Bright,Oxided

Melting:

1300-1390°C

Density:

8.83 G/m3

HB(≥ ):

Size:

Customized Size

Service:

OEM\ODM

Highlight:

Monel K500 Nickel Alloy Pipe

Monel 400 Nickel Alloy Pipe

30mm Diameter Monel Alloy Pipe

Product Description

10mm 20mm 30mm Diameter Monel 400/K500 Nickel Alloy Pipe For Sale 0

Monel 400 is copper nickel alloy,has good corrosion resistance. In salty water or seawater has excellent resistance to pitting corrosion, stress corrosion ability. Especially hydrofluoric acid resistance and resistance to the hydrochloric acid. Widely used in the chemical, oil, Marine industry.
It is widely used on many aspects,like valve and pump parts, electronic components, chemical processing equipment, gasoline and freshwater tanks, petroleum processing equipment, propeller shafts, marine fixtures and fasteners,boiler feedwater heaters and other heat exchangers.

Item	Ni	Cu	Fe	Mn	C	Si	S
Monel 400	≥63	28-34	≤2.5	≤2	≤0.3	≤0.5	≤0.025

Item	Density	Melting point	Tensile Strength	Yield Strength	Elongation	HB
Monel 400	8.83 g/cm3	1300-1390℃	480	170	35%	≥331

Monel 400	Bar/Rod	Forging	Pipe	Sheet/Strip	Welding Wire
Standard	ASTM B164	ASTM B564	ASTM B165	ASTM B127	ErNiCu-7

Item	Ni	Cu	Al	Ti	Fe	Mn	C	Si	S
Monel K500	≥63	27-33	2.3-3.15	0.35-0.85	≤2	≤1.5	≤0.25	≤0.5	≤0.01

Item	Density	Melting point	Tensile Strength	Yield Strength	Elongation	HB
Monel K500	8.05 g/cm3	1288-1343℃	1100	790	20%	≥331

Monel k500	Bar/Rod	Forging	Pipe	Sheet/Strip	Welding Wire
Standard	ASTM B865	AMS4676	ASTM B865	ASTM B564	ErNiCu-7

10mm 20mm 30mm Diameter Monel 400/K500 Nickel Alloy Pipe For Sale 1

10mm 20mm 30mm Diameter Monel 400/K500 Nickel Alloy Pipe For Sale 2

Monel tubes are widely used in various fields due to their excellent corrosion resistance and high temperature strength. The application areas of Monel tubes include but are not limited to the following:

1. Chemical industry: Monel tubes can be used for the production and transportation of strong acid and alkali media such as chlorides, nitric acid, sulfuric acid, as well as seawater treatment, petrochemicals, and other fields.

2. Aerospace industry: Due to the excellent high temperature performance and corrosion resistance of Monel alloy, it is widely used in the manufacture of high temperature components such as engines and turbines.

3. Marine engineering: Monel tubes have excellent corrosion resistance to seawater, so they are widely used in seawater desalination, offshore oil exploitation, and shipbuilding.

4. Food processing industry: Monel tubes have good corrosion resistance and non-toxicity, so they are widely used in production equipment and conveying pipelines in the food processing industry.

In summary, Monel tubes have wide applications in many fields due to their excellent corrosion resistance, high temperature strength, and non-toxicity.

10mm 20mm 30mm Diameter Monel 400/K500 Nickel Alloy Pipe For Sale 4
