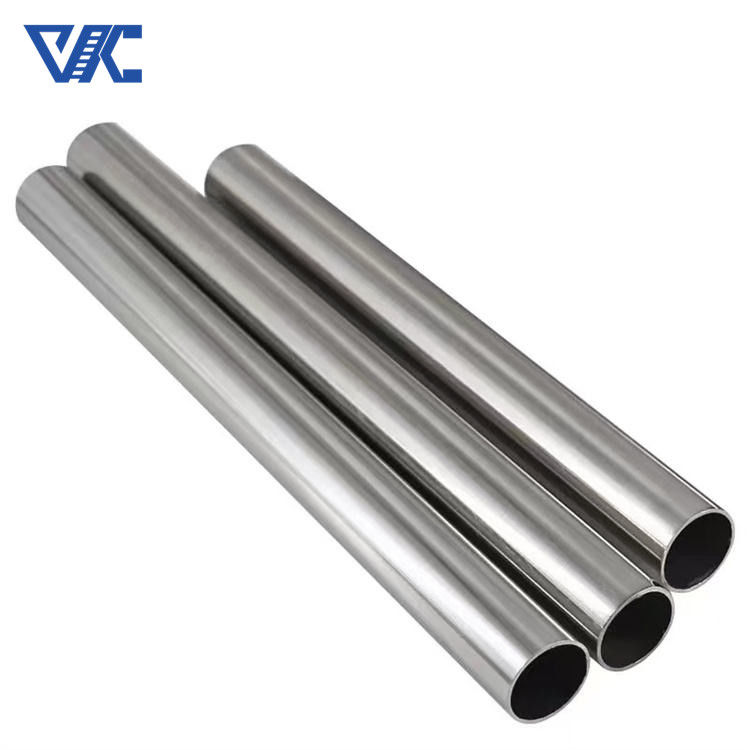

6mm Monel 400/K500 Nickel Base Alloy Pipe Customized Size
  • name
  • name
  • name
  • name
  • name

6mm Monel 400/K500 Nickel Base Alloy Pipe Customized Size

MOQ: 5 Kg
Price: 50 - 499 kilograms $47.00
Standard Packaging: Spool package with Carton box, Coil package with polybag
Delivery Period: 5-21 days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 300 tons per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Victory
Certification
CE,ROHS,ISO 9001
Model Number
Monel 400/K500
Document
Product Brochure PDF
Product Name:
Monel Tube
Material:
Nickel Base Alloy
Ni (Min):
63%
Resistance (μΩ.m):
1.5
Powder Or Not:
Not Powder
Ultimate Strength (≥ MPa):
480
Elongation (≥ %):
35
Sureface:
Bright,Oxided
Melting:
1300-1390°C
Density:
8.83 G/m3
HB(≥ ):
≥331
Size:
Customized Size
Service:
OEM\ODM
Highlight:

6mm Monel 400 Pipe

,

Monel K500 Nickel Alloy Pipe

Product Description

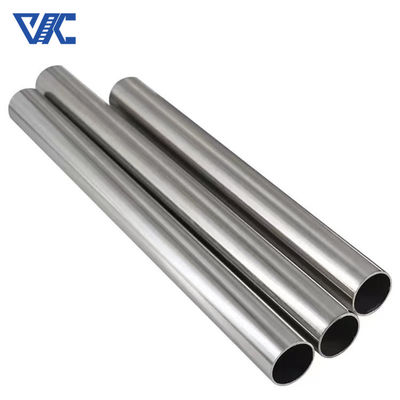

6mm Monel 400/K500 Nickel Base Alloy Pipe Customized Size 0


Monel 400 is copper nickel alloy,has good corrosion resistance. In salty water or seawater has excellent resistance to pitting corrosion, stress corrosion ability. Especially hydrofluoric acid resistance and resistance to the hydrochloric acid. Widely used in the chemical, oil, Marine industry.
It is widely used on many aspects,like valve and pump parts, electronic components, chemical processing equipment, gasoline and freshwater tanks, petroleum processing equipment, propeller shafts, marine fixtures and fasteners,boiler feedwater heaters and other heat exchangers.


Item
Ni
Cu
Fe
Mn
C
Si
S
Monel 400
≥63
28-34
≤2.5
≤2
≤0.3
≤0.5
≤0.025
Item
Density
Melting point
Tensile Strength
Yield Strength
Elongation
HB
Monel 400
8.83 g/cm3
1300-1390℃
480
170
35%
≥331
Monel 400
Bar/Rod
Forging
Pipe
Sheet/Strip
Welding Wire
Standard
ASTM B164
ASTM B564
ASTM B165
ASTM B127
ErNiCu-7
Item
Ni
Cu
Al
Ti
Fe
Mn
C
Si
S
Monel K500
≥63
27-33
2.3-3.15
0.35-0.85
≤2
≤1.5
≤0.25
≤0.5
≤0.01
Item
Density
Melting point
Tensile Strength
Yield Strength
Elongation
HB
Monel K500
8.05 g/cm3
1288-1343℃
1100
790
20%
≥331
Monel k500
Bar/Rod
Forging
Pipe
Sheet/Strip
Welding Wire
Standard
ASTM B865
AMS4676
ASTM B865
ASTM B564
ErNiCu-7

6mm Monel 400/K500 Nickel Base Alloy Pipe Customized Size 1

6mm Monel 400/K500 Nickel Base Alloy Pipe Customized Size 26mm Monel 400/K500 Nickel Base Alloy Pipe Customized Size 3

Monel tubes are widely used in various fields due to their excellent corrosion resistance and high temperature strength. The application areas of Monel tubes include but are not limited to the following:
1. Chemical industry: Monel tubes can be used for the production and transportation of strong acid and alkali media such as chlorides, nitric acid, sulfuric acid, as well as seawater treatment, petrochemicals, and other fields.
2. Aerospace industry: Due to the excellent high temperature performance and corrosion resistance of Monel alloy, it is widely used in the manufacture of high temperature components such as engines and turbines.
3. Marine engineering: Monel tubes have excellent corrosion resistance to seawater, so they are widely used in seawater desalination, offshore oil exploitation, and shipbuilding.
4. Food processing industry: Monel tubes have good corrosion resistance and non-toxicity, so they are widely used in production equipment and conveying pipelines in the food processing industry.
In summary, Monel tubes have wide applications in many fields due to their excellent corrosion resistance, high temperature strength, and non-toxicity.

6mm Monel 400/K500 Nickel Base Alloy Pipe Customized Size 46mm Monel 400/K500 Nickel Base Alloy Pipe Customized Size 56mm Monel 400/K500 Nickel Base Alloy Pipe Customized Size 66mm Monel 400/K500 Nickel Base Alloy Pipe Customized Size 76mm Monel 400/K500 Nickel Base Alloy Pipe Customized Size 86mm Monel 400/K500 Nickel Base Alloy Pipe Customized Size 96mm Monel 400/K500 Nickel Base Alloy Pipe Customized Size 106mm Monel 400/K500 Nickel Base Alloy Pipe Customized Size 11
