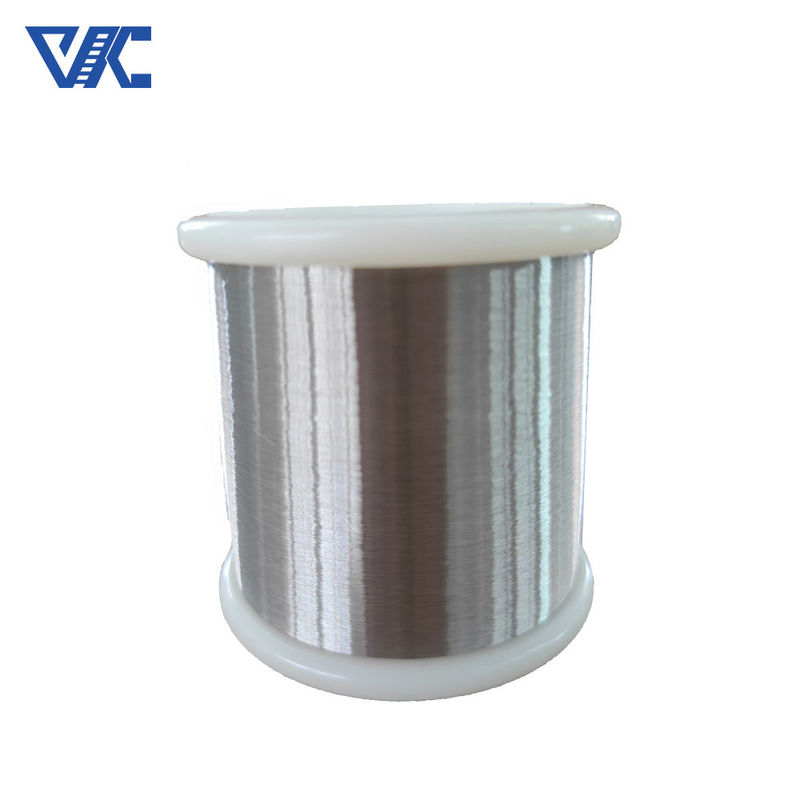

Np2 Np1 Fil De Pure Nickel Wire 0.025mm In Electric Apparatus
  • name
  • name
  • name
  • name
  • name

Np2 Np1 Fil De Pure Nickel Wire 0.025mm In Electric Apparatus

MOQ: 1KG
Price: 5 - 99 kilograms US$45.00
Standard Packaging: Spool package with Carton box, Coil package with polybag,
Delivery Period: 7-25 days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 300 tons per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Victory
Certification
ISO9001,ROHS
Model Number
N4,N6,Ni200,Ni201
Document
Product Brochure PDF
Product Name:
Pure Nickel Wire
Grade:
N4,N6,Ni200,Ni201
Material:
Ni
Elongation (≥ %):
35%
Ni(min):
99%
Shape:
Wire
Size:
0.025-10mm
Ultimate Strength (≥ MPa):
462
Resistance (μΩ.m):
15
Melting Point:
1435-1446°C
Tensile Strength Ksi (min):
462
Hardness:
S,1/4H,1/2H,3/4H,H
Application:
Industry,Electronic
M.O.Q:
1KG
Delivery:
7-25 Days
Highlight:

Pure Nickel Wire 0.025mm

,

Np1 Pure Nickel Wire

Product Description

Pure nickel wire is a wire-shaped product made of high-purity nickel material with excellent performance characteristics. It not only has excellent corrosion resistance and high temperature stability, but also has good electrical conductivity and mechanical strength. Therefore, pure nickel wire is widely used in many fields such as electronics, electrical, heating, automobile, chemical and medical. Manufacturers can customize the specifications and characteristics of pure nickel wire according to customer requirements to meet the needs of various applications.

The corrosion resistance of pure nickel wire makes it perform well in corrosive media, such as acidic and alkaline solutions, salt water and chemical gases. It can be used for a long time in these harsh environments without damage.

The high temperature stability of pure nickel wire allows it to operate in high temperature environments such as furnace heating elements, high temperature sensors and gas turbine applications. It can withstand deformation and creep at high temperatures, maintaining its performance and shape stability.

Pure nickel wire has excellent electrical conductivity and can effectively conduct current, playing a key role in electronic components and circuits.

In addition, pure nickel wire also has good mechanical strength and can withstand certain stretching and deformation, making it suitable for various mechanical applications.



Functions/Applications:
1. manufacturing nickel-cadmium battery
2. nickel-hydrogen battery
3. lithium cell
4. assembled battery
5. industries of electric tool and special lights
6. Superconductor Applications





Specification

Grade Ni+Co Cu Si Mn C Mg S P Fe
N4 99.8 0.015 0.03 0.002 0.01 0.01 0.001 0.001 0.04
N6 99.6 0.10 0.10 0.05 0.10 0.10 0.005 0.002 0.10
Ni201 ≥99.0 ≤0.25 ≤0.35 ≤0.35 ≤0.02 / ≤0.01 / ≤0.40
Ni200 ≥99.2 ≤0.25 ≤0.35 ≤0.35 ≤0.15 / ≤0.01 / ≤0.40



Physical Data
Density 8.89g/cm3
Specific Heat 0.109(456 J/kg.ºC)
Electrical Resistivity 0.096×10-6ohm.m
Melting Point 1435-1446ºC
Thermal Conductivity 70.2 W/m-K
Mean Coeff Thermal Expansion 13.3×10-6m/m.ºC

Typical Mechanical Properties
Mechanical Properties Nickel 200
Tensile Strength 462 Mpa
Yield Strength 148 Mpa
Elongation 47%



Our Production Standard
  Bar Forging Pipe Sheet/Strip Wire
ASTM ASTM B160 ASTM B564 ASTM B161/B163/B725/B751 AMS B162 ASTM B166
