Home > products > Pure Nickel Alloy > Original Factory 99.99% Pure Nickel Wire 0.025-10mm With Price Per Meter

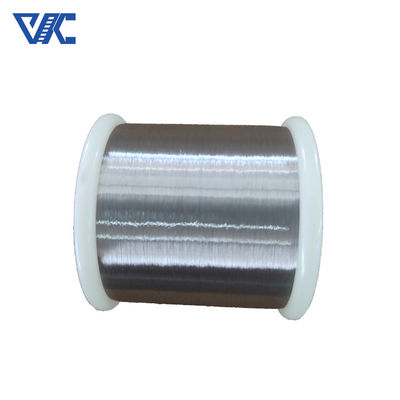

Original Factory 99.99% Pure Nickel Wire 0.025-10mm With Price Per Meter

Product Details

Place of Origin: China

Brand Name: Victory

Certification: ISO9001,ROHS

Model Number: N4,N6,Ni200,Ni201

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1KG

Price: $20-$300/kg

Packaging Details: Spool package with Carton box, Coil package with polybag,

Delivery Time: 7-25 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Product Details
Highlight:

99.99% Pure Nickel Wire

,

Pure Nickel Wire 0.025mm

Product Name:
Pure Nickel Wire
Grade:
N4,N6,Ni200,Ni201
Material:
Ni
Elongation (≥ %):
35%
Ni(min):
99%
Shape:
Wire
Size:
0.025-10mm
Ultimate Strength (≥ MPa):
462
Resistance (μΩ.m):
15
Melting Point:
1435-1446°C
Tensile Strength Ksi (min):
462
Hardness:
S,1/4H,1/2H,3/4H,H
Application:
Industry,Electronic
M.O.Q:
1KG
Delivery:
7-25 Days
Product Name:
Pure Nickel Wire
Grade:
N4,N6,Ni200,Ni201
Material:
Ni
Elongation (≥ %):
35%
Ni(min):
99%
Shape:
Wire
Size:
0.025-10mm
Ultimate Strength (≥ MPa):
462
Resistance (μΩ.m):
15
Melting Point:
1435-1446°C
Tensile Strength Ksi (min):
462
Hardness:
S,1/4H,1/2H,3/4H,H
Application:
Industry,Electronic
M.O.Q:
1KG
Delivery:
7-25 Days
Product Description

Product Description:
Pure nickel wire is a high-purity metal wire material composed of nickel element with a purity of more than 99.9%. It has excellent chemical stability, corrosion resistance and high temperature oxidation resistance, and is widely used in many fields.



Main feature:

High purity: Pure nickel wire is made of high-quality nickel material with a purity of over 99.9%, ensuring the stability and reliability of the product.
Corrosion resistance: Pure nickel wire has excellent corrosion resistance and shows excellent stability in corrosive media such as acids, alkalis, and salts.
High-temperature anti-oxidation performance: Pure nickel wire exhibits excellent anti-oxidation performance in high-temperature environments and can operate stably in high-temperature environments for a long time.
Excellent electrical conductivity: Pure nickel wire has good electrical conductivity and can be widely used in electronic, electrical and electromagnetic fields.
Easy processability: Pure nickel wire has good plasticity and processability, and can be cut, welded, formed and other processing operations according to actual needs.
Main application areas:

Electronic industry: Pure nickel wire can be used to manufacture resistors, capacitors, electron tubes, electric heating devices and other electronic components, and is widely used in communication equipment, electronic instruments, household appliances and other fields.
Chemical industry: Pure nickel wire is used in the chemical industry as an anti-corrosion material for corrosive media such as catalysts, storage tanks, pipes and valves.
High-temperature field: Pure nickel wire has important applications in the high-temperature field and can be used to manufacture high-temperature stoves, high-temperature heating elements, and high-temperature sensors.
Medical devices: Pure nickel wire is used in the field of medical devices to make artificial joints, dental equipment, and medical guide wires. It is favored because of its good biocompatibility.





Specification

Grade Ni+Co Cu Si Mn C Mg S P Fe
N4 99.8 0.015 0.03 0.002 0.01 0.01 0.001 0.001 0.04
N6 99.6 0.10 0.10 0.05 0.10 0.10 0.005 0.002 0.10
Ni201 ≥99.0 ≤0.25 ≤0.35 ≤0.35 ≤0.02 / ≤0.01 / ≤0.40
Ni200 ≥99.2 ≤0.25 ≤0.35 ≤0.35 ≤0.15 / ≤0.01 / ≤0.40



Physical Data
Density 8.89g/cm3
Specific Heat 0.109(456 J/kg.ºC)
Electrical Resistivity 0.096×10-6ohm.m
Melting Point 1435-1446ºC
Thermal Conductivity 70.2 W/m-K
Mean Coeff Thermal Expansion 13.3×10-6m/m.ºC

Typical Mechanical Properties
Mechanical Properties Nickel 200
Tensile Strength 462 Mpa
Yield Strength 148 Mpa
Elongation 47%



Our Production Standard
  Bar Forging Pipe Sheet/Strip Wire
ASTM ASTM B160 ASTM B564 ASTM B161/B163/B725/B751 AMS B162 ASTM B166
