Product Details
Place of Origin: China
Brand Name: Victory
Certification: CE,ROHS,ISO 9001
Model Number: Monel 400
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 5 Kg
Price: Negotiable
Packaging Details: Special packaging requirements can also be accommodated. OEM is also acceptable.
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month

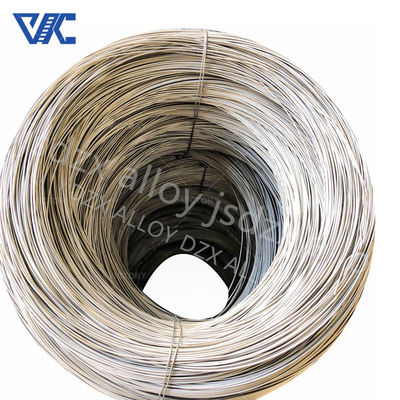

Product Name: |
Monel 400 Wire |
Material: |
Nickel Base Alloy |
Nickel(Min): |
63% |
Melting Point: |
1288-1343 ℃ |
Density: |
8.05 G/cm3 |
Application: |
Oil And Gas Industry |
Thermal Conductivity: |
17.2 Watts/meter-Kelvin |
Linear Expansion Coefficient: |
13.9 X 10^-6 Degrees |
Yield Strength: |
790 MPa |
Tensile Strength: |
1100 MPa |
Elongation (≥ %): |
20% |
Sureface: |
Bright,Oxided |
Product Name: |
Monel 400 Wire |
Material: |
Nickel Base Alloy |
Nickel(Min): |
63% |
Melting Point: |
1288-1343 ℃ |
Density: |
8.05 G/cm3 |
Application: |
Oil And Gas Industry |
Thermal Conductivity: |
17.2 Watts/meter-Kelvin |
Linear Expansion Coefficient: |
13.9 X 10^-6 Degrees |
Yield Strength: |
790 MPa |
Tensile Strength: |
1100 MPa |
Elongation (≥ %): |
20% |
Sureface: |
Bright,Oxided |
Introduction:
Monel K500 wire is an alloy material widely used in the chemical industry. It is a nickel-copper alloy that has excellent corrosion resistance and high temperature resistance, so it is widely used in various applications in the chemical industry.
First, Monel K500 wire has excellent corrosion resistance. In the chemical industry, various corrosive media and chemicals are often used. Monel K500 wire can resist corrosion from chemicals such as acids, alkalis, salt water, and organic solvents, maintaining its stable performance and extending its service life. For some highly corrosive media, Monel K500 wire exhibits high corrosion resistance, making it an ideal choice in the chemical industry.
Secondly, Monel K500 wire has good high temperature resistance. High temperature conditions are common in some processes in the chemical industry. Monel K500 wire can maintain its stable performance in high temperature environments and is not easily deformed or failed, ensuring the reliability and safety of the equipment. It can withstand chemical reactions and thermal cycles at high temperatures and is suitable for critical equipment such as high-temperature reactors, steam generators and heat exchangers.
In addition, Monel K500 wire also has excellent mechanical properties. It has high strength and good plasticity and can withstand the stress and pressure in the chemical industry. This makes it an ideal material for manufacturing chemical equipment and pipes, such as storage tanks, pump bodies, valves and pipe connections.
Finally, Monel K500 wire also has low magnetic properties and good electrical conductivity. In some special chemical industry applications, such as electronic chemical processes and magnetic resonance imaging equipment, the requirements for the magnetic properties and conductivity of materials are relatively high. Monel K500 wire can meet these requirements and maintain its stable magnetic and conductive properties.
Parameter:
Chemical composition:
Nickel (Ni): about 63%
Copper (Cu): about 29.5%
Aluminum (Al): about 2.7%
Titanium (Ti): about 0.6%
Iron (Fe): about 2%
Manganese (Mn): about 1.5%
Silicon (Si): about 0.5%
Carbon (C): up to 0.25%
Physical properties:
Density: about 8.05g/cubic centimeter
Melting point: about 1288-1343 degrees Celsius
Thermal Conductivity: Approximately 17.2 Watts/meter-Kelvin
Linear expansion coefficient: approximately 13.9 x 10^-6 degrees Celsius^-1 (room temperature to 100 degrees Celsius)
Mechanical behavior:
Yield Strength (Tensile Strength): Minimum approximately 790 MPa (80,000 psi)
Tensile Strength: Minimum approximately 1100 MPa (110,000 psi)
Elongation: minimum value is about 20%
|
Item |
Ni
|
Cu
|
Fe
|
Mn
|
C
|
Si
|
S
|
|
Monel 400
|
≥63
|
28-34
|
≤2.5
|
≤2
|
≤0.3
|
≤0.5
|
≤0.025
|
|
Item
|
Density
|
Melting point
|
Tensile Strength
|
Yield Strength
|
Elongation
|
HB
|
|
Monel 400
|
8.83 g/cm3
|
1300-1390℃
|
480
|
170
|
35%
|
≥331
|
|
Monel 400
|
Bar/Rod
|
Forging
|
Pipe
|
Sheet/Strip
|
Welding Wire
|
|
Standard
|
ASTM B164
|
ASTM B564
|
ASTM B165
|
ASTM B127
|
ErNiCu-7
|
|
|
Advantage:
Application:
In the oil and gas industry, specific applications of Monel K500 alloy wire include but are not limited to the following:
contact us
email:victory@dlx-alloy.com
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
|
|
Q&A:
Q: Can Monel 400 wire be customized?
A: Yes, we can customize Monel 400 wire according to customer requirements.
Q: What customization options are available for Monel 400 wire?
A: We offer customization in terms of wire diameter, length, and surface finish to meet specific project needs.
