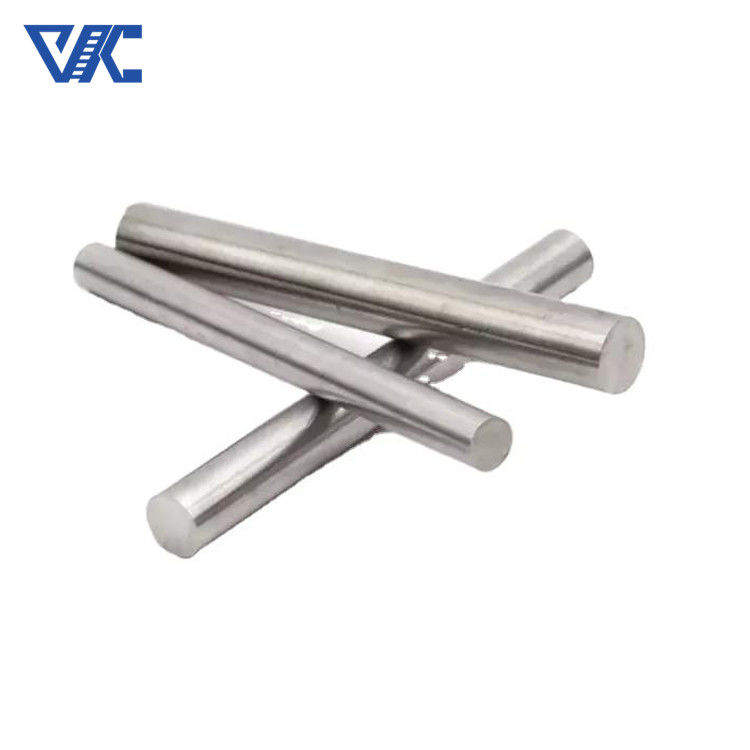

Invar36 Kovar 4j29 1j22 Iron Nickel Cobalt Alloy Round Bar

MOQ:	5 Kg
Price:	10 - 499 kilograms $30.00
Standard Packaging:	Plastic film or waterproof woven bag inside, wire packed in spool put into carton,coil wire or strip wire put into wooden case
Delivery Period:	5-21 days
Payment Method:	L/C, T/T, Western Union, MoneyGram
Supply Capacity:	300 tons per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Victory

Certification

CE,ROHS,ISO 9001Product Name

Model Number

Kovar 4J29

Document

Product Name:

Kovar Bar

Material:

Nickel Base Alloy

Ni (Min):

Resistance (μΩ.m):

Stable

Powder Or Not:

Not Powder

Ultimate Strength (≥ MPa):

Elongation (≥ %):

Application:

Aerospace Industry,Chemical Industry,Marine Industry

Chemical Composition:

Fe ,Ni ,Co ,Al, Si ,Mn Etc.

Size:

Customized Size

Highlight:

Kovar Alloy Steel Rods

Kovar Alloy Round Bar

Product Description

Kovar Bar is a special alloy bar using the grade Kovar. It is composed of elements such as nickel, cobalt and iron and is a low thermal expansion alloy. Kovar Bar is widely used in industrial fields due to its excellent thermal expansion properties and dimensional stability.

One of the distinguishing features of Kovar Bar is its matched coefficient of thermal expansion to the glass material. This makes it an ideal packaging material and is widely used in the electronic packaging industry. Since the thermal expansion performance of Kovar Bar is very close to that of glass, the stress and mismatch problems between it and the glass are greatly reduced when the temperature changes, ensuring the stability and reliability of the package.

Alloy Type	Trade Name	UNS No.	Specifications	Forms Of Supply
Alloy Type	Trade Name	UNS No.	Specifications	Rod	Strip	Wire	Sheet
Ni29Co17	Kovar	K94610	ASTM F15	√	√	√	√
FeNi36	Invar 36	K93603	ASTM 1684	√	√		√
FeNi32Co5	Super Invar 32-5	KI93500	ASTMF1684	√	√		√
FeNi27Co25	Ceramvar	F1466	ASTMF1466	√	√	√	√
FeNi42	Alloy 42	K94100	ASTM F30	√	√		√
FeNi46	Alloy 46	K94600	ASTM F30	√	√		√
FeNi48	Alloy 48	K94800	ASTMF30	√	√		√
FeNi50	Alloy 52	K95050	ASTM F30	√	√	√	√

Item	1J33	3J01	3J9	4J29	4J32	4J33	4J45	FeNi50	Invar36
C	≤0.05	≤0.05	0.22-0.26	≤0.03	≤0.05	≤0.03	≤0.05	≤0.05	≤0.1
Mn	≤0.05	≤1.00	1.80-2.20	≤0.5	0.2-0.6	≤0.5	≤0.8	≤0.8	≤0.5
Fe	Rest
P	≤0.020	≤0.020	≤0.03	≤0.02	≤0.02	≤0.02	≤0.02	≤0.02	≤0.006
S	≤0.020	≤0.020	≤0.020	≤0.02	≤0.02	≤0.02	≤0.02	≤0.02	≤0.04
Si	0.30-0.6	≤0.80	1.30-1.70	≤0.3	≤0.2	≤0.3	≤0.3	≤0.3	≤0.35
Ni	32.8-33.8	34.5-36.5	9.0-10.5	28.5-29.5	31.5-33	28.5-29.5	44.5-45.5	49.5-50.5	35-38
Al	1.0-2.0	1.00-1.80	--	--	--	--	≤0.1	≤0.1	--
Co	--	--	--	16.8-17.8	3.2-4.2	16.8-17.8	-	-	-
Ti	-	2.70-3.20	-	-	-	-	-	-	-
Cu	-	--	--	--	≤0.2	0.4-0.8	≤0.2	--	--
Cr	--	11.5-13.0	19.0-20.5	≤0.2	--	≤0.2	--	--	--
Mo	--	--	1.60-1.85	≤0.2	--	≤0.2	--	--	--

Shape	Size(mm)
Wire	0.5-7.5
Rod/Bar	8.0-200
Strip	(0.5-2.5)*(5-180)
Tube	custom made
Plate	custom made
