Changzhou Victory Technology Co., Ltd victory@dlx-alloy.com 86-199-06119641
Product Details
Place of Origin: China
Brand Name: Victory
Certification: ISO9001,ROHS
Model Number: N4,N6,Ni200,Ni201
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1KG
Price: 5 - 99 kilograms US$45.00
Packaging Details: Spool package with Carton box, Coil package with polybag,
Delivery Time: 7-25 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |

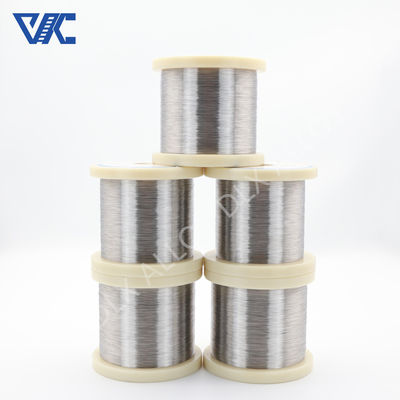

Pure Nickel Wire |
Grade: |
N4,N6,Ni200,Ni201 |
Material: |
Ni |
Elongation (≥ %): |
35% |
Ni(min): |
99% |
Shape: |
Wire |
Size: |
0.025-10mm |
Ultimate Strength (≥ MPa): |
462 |
Resistance (μΩ.m): |
15 |
Melting Point: |
1435-1446°C |
Tensile Strength Ksi (min): |
462 |
Hardness: |
S,1/4H,1/2H,3/4H,H |
Application: |
Industry,Electronic |
M.O.Q: |
1KG |
Delivery: |
7-25 Days |
Product Name: |
Pure Nickel Wire |
Grade: |
N4,N6,Ni200,Ni201 |
Material: |
Ni |
Elongation (≥ %): |
35% |
Ni(min): |
99% |
Shape: |
Wire |
Size: |
0.025-10mm |
Ultimate Strength (≥ MPa): |
462 |
Resistance (μΩ.m): |
15 |
Melting Point: |
1435-1446°C |
Tensile Strength Ksi (min): |
462 |
Hardness: |
S,1/4H,1/2H,3/4H,H |
Application: |
Industry,Electronic |
M.O.Q: |
1KG |
Delivery: |
7-25 Days |
Pure nickel wire with good mechanical properties over a wide range of temperature and excellent resistance to many corrosives, in particular hydroxides.
Good resistance to corrosion in acids and alkalis and is most useful under reducing conditions. Outstanding resistance to caustic alkalis up to and including the molten state. In acid, alkaline and neutral salt solutions the material shows good resistance, but in oxidizing salt solutions severe attack will occur. Resistant to all dry gases at room temperature and in dry chlorine and hydrogen chloride may be used in temperatures up to 550℃. Resistance to mineral acids varies according to temperature and concentration and whether the solution is aerated or not. Corrosion resistance is better in de-aerated acid.
Features:
1. Nickel has good mechanical strength and ductility.
2. Excellent performance on corrosion-resistance.
3. High melting point.
4. With good weldability.
5. Low electrical resisitivity.
6. Electrical conductivity.
Specification
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
| N4 | 99.9 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.001 | ≤0.001 | ≤0.04 |
| N6 | 99.5 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 | 0.10 |
| Ni201 | ≥99.9 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
| Ni200 | ≥99.6 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.15 | / | ≤0.01 | / | ≤0.40 |
| Physical Data | |
| Density | 8.89g/cm3 |
| Specific Heat | 0.109(456 J/kg.ºC) |
| Electrical Resistivity | 0.096×10-6ohm.m |
| Melting Point | 1435-1446ºC |
| Thermal Conductivity | 70.2 W/m-K |
| Mean Coeff Thermal Expansion | 13.3×10-6m/m.ºC |
| Typical Mechanical Properties | |
| Mechanical Properties | Nickel 200 |
| Tensile Strength | 462 Mpa |
| Yield Strength | 148 Mpa |
| Elongation | 47% |
|
|
|
|
