Product Details
Place of Origin: China
Brand Name: Victory
Certification: ISO9001,ROHS
Model Number: N4,N6,Ni200,Ni201
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1KG
Price: 5 - 99 kilograms US$45.00
Packaging Details: Spool package with Carton box, Coil package with polybag,
Delivery Time: 7-25 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |
Pure Nickel Wire |
Grade: |
N4,N6,Ni200,Ni201 |
Material: |
Ni |
Elongation (≥ %): |
35% |
Ni(min): |
99% |
Shape: |
Wire |
Size: |
0.025-10mm |
Ultimate Strength (≥ MPa): |
462 |
Resistance (μΩ.m): |
15 |
Melting Point: |
1435-1446°C |
Tensile Strength Ksi (min): |
462 |
Hardness: |
S,1/4H,1/2H,3/4H,H |
Application: |
Industry,Electronic |
M.O.Q: |
1KG |
Delivery: |
7-25 Days |
Product Name: |
Pure Nickel Wire |
Grade: |
N4,N6,Ni200,Ni201 |
Material: |
Ni |
Elongation (≥ %): |
35% |
Ni(min): |
99% |
Shape: |
Wire |
Size: |
0.025-10mm |
Ultimate Strength (≥ MPa): |
462 |
Resistance (μΩ.m): |
15 |
Melting Point: |
1435-1446°C |
Tensile Strength Ksi (min): |
462 |
Hardness: |
S,1/4H,1/2H,3/4H,H |
Application: |
Industry,Electronic |
M.O.Q: |
1KG |
Delivery: |
7-25 Days |

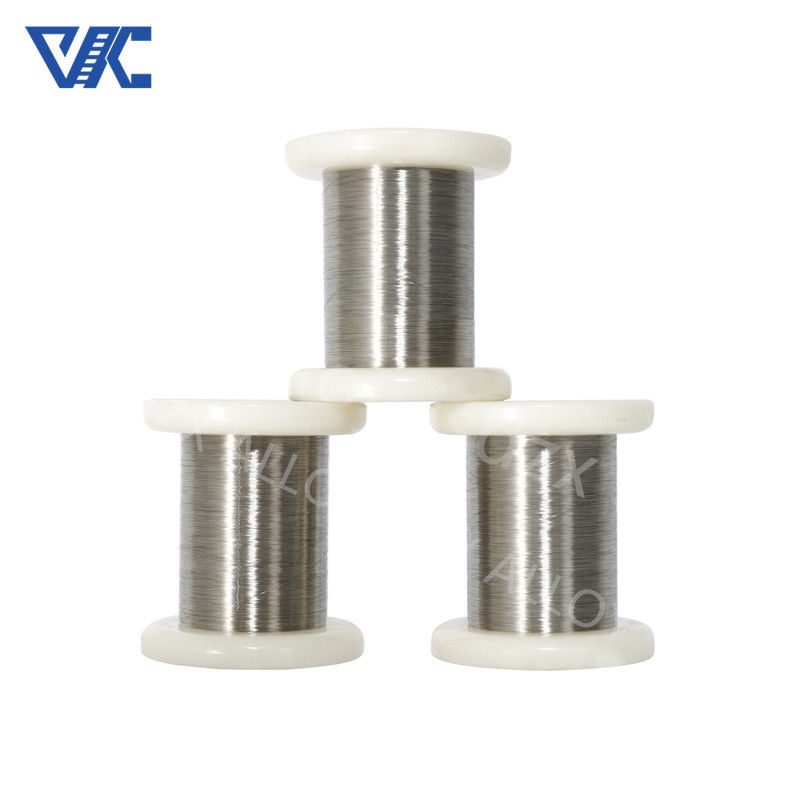

Pure Nickel Wire is a type of wire made of high-purity nickel, which has excellent performance and a wide range of applications.
The grade of Pure Nickel Wire is usually N4 or N6, and its purity can reach over 99.5%. This high-purity nickel material endows Pure Nickel Wire with excellent chemical stability and corrosion resistance, enabling it to maintain good performance in harsh environments. In addition, Pure Nickel Wire also has good conductivity and thermal conductivity, making it an ideal choice for many applications.
Specification
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
| N4 | 99.9 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.001 | ≤0.001 | ≤0.04 |
| N6 | 99.5 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 | 0.10 |
| Ni201 | ≥99.9 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
| Ni200 | ≥99.6 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.15 | / | ≤0.01 | / | ≤0.40 |
| Physical Data | |
| Density | 8.89g/cm3 |
| Specific Heat | 0.109(456 J/kg.ºC) |
| Electrical Resistivity | 0.096×10-6ohm.m |
| Melting Point | 1435-1446ºC |
| Thermal Conductivity | 70.2 W/m-K |
| Mean Coeff Thermal Expansion | 13.3×10-6m/m.ºC |
| Typical Mechanical Properties | |
| Mechanical Properties | Nickel 200 |
| Tensile Strength | 462 Mpa |
| Yield Strength | 148 Mpa |
| Elongation | 47% |
|
|
|
|
