From Factory High Quality With Price Fast Delivery Nickel 200 Pure Nickel Alloy Wire 0.025 Mm

MOQ:	1KG
Price:	5 - 99 kilograms US$45.00
Standard Packaging:	Spool package with Carton box, Coil package with polybag,
Delivery Period:	7-25 days
Payment Method:	L/C, T/T, Western Union, MoneyGram
Supply Capacity:	300 tons per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Victory

Certification

ISO9001,ROHS

Model Number

N4,N6,Ni200,Ni201

Document

Product Name:

Pure Nickel Wire

Grade:

N4,N6,Ni200,Ni201

Material:

Elongation (≥ %):

Ni(min):

Shape:

Size:

0.025-10mm

Ultimate Strength (≥ MPa):

Resistance (μΩ.m):

Melting Point:

1435-1446°C

Tensile Strength Ksi (min):

Hardness:

S,1/4H,1/2H,3/4H,H

Application:

Industry,Electronic

M.O.Q:

Delivery:

7-25 Days

Highlight:

99.98% Pure Nickel Wire

Ni200 Pure Nickel Wire

Ni201 Pure Nickel Wire

Product Description

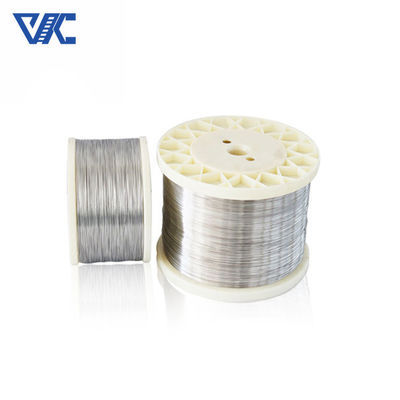

Pure Nickel Wire is a high-quality metal wire made of highly pure nickel material. The material grade is usually Ni200 or Ni201, with a purity of over 99.5%, ensuring the excellent performance of the material.

Pure Nickel Wire has excellent corrosion resistance and can maintain stability for long periods of time in harsh environments. It exhibits excellent corrosion resistance to many chemicals, acids, alkalis, and corrosive gases, making it an ideal choice for corrosion resistant equipment and chemical treatment systems.

Specification

Grade	Ni+Co	Cu	Si	Mn	C	Mg	S	P	Fe
N4	99.9	≤0.015	≤0.03	≤0.002	≤0.01	≤0.01	≤0.001	≤0.001	≤0.04
N6	99.5	0.10	0.10	0.05	0.10	0.10	0.005	0.002	0.10
Ni201	≥99.9	≤0.25	≤0.35	≤0.35	≤0.02	/	≤0.01	/	≤0.40
Ni200	≥99.6	≤0.25	≤0.35	≤0.35	≤0.15	/	≤0.01	/	≤0.40

Physical Data
Density	8.89g/cm3
Specific Heat	0.109(456 J/kg.ºC)
Electrical Resistivity	0.096×10-6ohm.m
Melting Point	1435-1446ºC
Thermal Conductivity	70.2 W/m-K
Mean Coeff Thermal Expansion	13.3×10-6m/m.ºC

Typical Mechanical Properties
Mechanical Properties	Nickel 200
Tensile Strength	462 Mpa
Yield Strength	148 Mpa
Elongation	47%

Shape	Size(mm)
Wire	0.025-10
Ribbon	(0.05-0.2)*(0.5-6)
Strip	(0.05-0.5)*(5-200)
