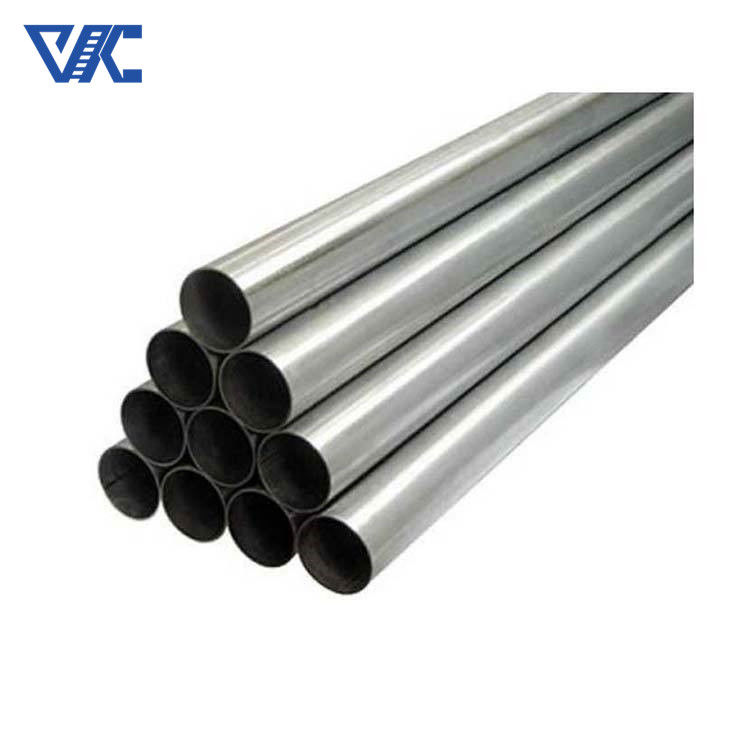

N4 N6 Ni200 Ni201 Pure Nickel Alloy Pipe / Tube For Electronic Instrument

Product Details

Place of Origin: China

Brand Name: Victory

Certification: CE,ROHS,ISO 9001

Model Number: Ni200 Ni201

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Kg

Price: 10 - 499 kilograms $45.00

Packaging Details: Spool package with Carton box, Coil package with polybag for Resistance wire

Delivery Time: 7 to 20 Days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Product Details
Highlight:

Ni201 Pure Nickel Alloy Pipe

,

Ni200 Pure Nickel Alloy Tube

Product Name:
Nickel Pipe
Grade:
Ni200 Ni201
Material:
Nickel
Ni (Min):
99.9%
Melting Point:
1370-1425 ℃
Ultimate Strength ( MPa):
≥790
Resistance (μΩ.m):
1.15
Ultimate Strength (≥ MPa):
790
Elongation (≥ %):
30
Surface:
Bright
Application:
Extreme Environment,Industry
MOQ:
1 Kg
Size:
Customized Size
Product Name:
Nickel Pipe
Grade:
Ni200 Ni201
Material:
Nickel
Ni (Min):
99.9%
Melting Point:
1370-1425 ℃
Ultimate Strength ( MPa):
≥790
Resistance (μΩ.m):
1.15
Ultimate Strength (≥ MPa):
790
Elongation (≥ %):
30
Surface:
Bright
Application:
Extreme Environment,Industry
MOQ:
1 Kg
Size:
Customized Size
Product Description

Pure Nickel Tube is a high-quality metal tube made of extremely pure nickel material. Its unique properties make it widely used in many industrial fields.

Pure Nickel Tube has excellent corrosion resistance and can resist the erosion of chemicals, acids, alkalis and corrosive gases, ensuring the long-term stability of the pipe. This makes it the material of choice in areas such as chemical, petrochemical and marine engineering.

In addition, Pure Nickel Tube has excellent thermal conductivity properties and can conduct heat quickly and effectively. Therefore, it is widely used in thermal energy equipment such as heat exchangers, condensers and heaters to ensure efficient energy transfer and conduction.

Pure Nickel Tube also has good plasticity and workability, and can be easily bent, cut and processed to meet the needs of various shapes and sizes.



Grade
Ni+Co
Cu
Si
Mn
C
Mg
S
P
Fe
N4
99.8
0.015
0.03
0.002
0.01
0.01
0.001
0.001
0.04
N6
99.6
0.10
0.10
0.05
0.10
0.10
0.005
0.002
0.10
Ni201
≥99.0
≤0.25
≤0.35
≤0.35
≤0.02
/
≤0.01
/
≤0.40
Ni200
≥99.2
≤0.25
≤0.35
≤0.35
≤0.15
/
≤0.01
/
≤0.40





Product Name
pure nickel price per kg nickel 200 tubes
Type
Cold drawn, Hot rolled, Forged,
Shape
Round
Standard
GB,AISI,ASTM,DIN,EN,JIS
Grade
Stainless steel 304 / 304L / 310S / 316L / 316Ti / 316LN / 317L / 904L / 2205 / 2507 / 32760 / XM-19 / S31803 / S32750 / S32205 / F50 / F60 / F55 / F60 / F61 / F65 etc
Monel 400 / Monel K-500
Inconel 600 / Inconel 601 / Inconel 625 / Inconel 617 / Inconel 690 / Inconel 718 / Inconel X-750
Incoloy A-286 / Incoloy 800 / Incoloy 800H / Incoloy 800HT
Incoloy 825 / Incoloy 901 / Incoloy 925 / Incoloy 926
Nimonic 75 / Nimonic 80A / Nimonic 90 / Nimonic 105 / Nimonic C263 / L-605
Hastelloy B / Hastelloy B-2 / Hastelloy B-3 / Hastelloy C / Hastelloy C-276 / Hastelloy C-22
Hastelloy C-4 / Hastelloy C-2000 / Hastelloy G-35 / Hastelloy X / Hastelloy N
PH stainless steel 15-5PH / 17-4PH / 17-7PH
Diameter
6mm - 600mm
Finish
Bright, Pickling, Black, Polished
Packing
Wooden box, Waterproof polybag
Inspection
TUV,BV,ABS,LR and so on
Application
Construction, shipbuilding, Chemical, Pharmaceutical & Bio-Medical, Petrochemical & Refinery, Environmental, Food Processing, Aviation, Chemical Fertilizer, Sewage Disposal, Desalination, Waste Incineration etc.
Processing Service
Machining : Turning / Milling / Planing / Drilling / Boring / Grinding / Gear Cutting / CNC Machining
Deformation processing : Bending / Cutting / Rolling / Stamping
Forged



N4 N6 Ni200 Ni201 Pure Nickel Alloy Pipe / Tube For Electronic Instrument 0
Shape
Size(mm)
Wire
0.025-10
Ribbon
(0.05-0.2)*(0.5-6)
Strip
(0.05-0.5)*(5-200)
