PromotionNew Product K Type Thermocouple 1200 Degree 0.2mm 8mm Diameter Thermocouple Bare Wire J Types
  • name
  • name
  • name
  • name

PromotionNew Product K Type Thermocouple 1200 Degree 0.2mm 8mm Diameter Thermocouple Bare Wire J Types

MOQ: 5 Kg
Price: 5 - 499 kilograms $35.00

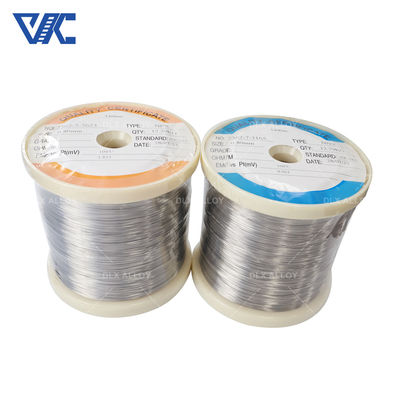

Standard Packaging: Thermocouple wire are rolled on ABS white spool and packed with plastic film,in cartoon boxes.
Special packaging requirements can also be accommodated.
OEM is also acceptable
Delivery Period: 5-21 days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 300 tons per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Victory
Certification
CE,ROHS,ISO 9001
Model Number
K,N,E,J,T,B,R,S Types
Document
Product Brochure PDF
Product Name:
Thermocouple Bare Wire
Temperature Range:
-58 To 2700F (-50 To 1480C)
EMF Tolerance:
+/- 1.5C Or +/- .25%
Diameter:
0.12-8mm
Temperature:
Max 1300℃
Density:
7.4g/cm3
Resistivity:
1.35±0.06
Tensile Strength:
600-700 Mpa
Conductor Type:
Solid
Condition:
Soft Annealed
Size:
Customized Size
Application:
Cable & Wire
Highlight:

1200 Degree Thermocouple Bare Wire

,

J Types Thermocouple Bare Wire

,

8mm Diameter Thermocouple Bare Wire

Product Description

The Thermocouple bare wire product line includes a variety of models (such as K-type, J-type, T-type and E-type, etc.) suitable for a wide range of temperature measurement and control applications. These bare wires feature high precision, fast response, and flexible installation, and are suitable for industrial furnaces, heating equipment, heat treatment processes, and laboratory instruments. They accommodate a wide temperature range, provide accurate temperature readings, and are flexible and customizable to meet a variety of needs.





Code
Wire Component of the thermocouple
+Positive leg
- Negative Leg
N
Ni-Cr-Si(NP)
Ni-Si-magnesium (NN)
K
Ni-Cr(KP)
Ni-Al(Si) (KN)
E
Ni-Cr(EP)
Cu-Ni (EN)
J
Iron (JP)
Cu-Ni (JN)
T
Copper (TP)
Cu-Ni (TN)
B
Platinum Rhodium-30%
Platinum Rhodium -6%
R
Platinum Rhodium-13%
Platinum
S
Platinum Rhodium -10%
Platinum
ASTM
(American Society for Testing and Materials) E 230
ANSI
(American National Standard Institute) MC 96.1
IEC
(European Standard by the International Electrotechnical Commission 584)-1/2/3
DIN
(Deutsche Industrie Normen) EN 60584-1/2
BS
(British Standards) 4937.1041, EN 60584-1/2
NF
(Norme Francaise) EN 60584-1/2-NFC 42323-NFC 42324
JIS
(Japanese Industrial Standards) C 1602-C 1610
GOST
(Unification of the Russian Specifications) 3044



Using Occastion of Different Thermocouple
Thermocouple Type
Working Atmosphere
Working Temperature
Type K
KP
Oxidizing
-200 to +1200℃
KN
Inert
Type K
NP
Oxidizing
-200 to +1200℃
NN
Oxidizing
Type K
EP
Oxidizing
-200 to +900℃
EN
Oxidizing
Type K
JP
Oxidizing(use in high temp)
-40 to +750℃
JN
Reducing, Inert, Vacuum
Type K
TP
Oxidizing,Vacuum
-200 to +350℃
TN
Reducing, Vacuum





PromotionNew Product K Type Thermocouple 1200 Degree 0.2mm 8mm Diameter Thermocouple Bare Wire J Types 0 PromotionNew Product K Type Thermocouple 1200 Degree 0.2mm 8mm Diameter Thermocouple Bare Wire J Types 1
