Product Details
Place of Origin: China
Brand Name: Victory
Certification: CE,ROHS,ISO 9001
Model Number: K,N,E,J,T,B,R,S Types
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 5
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |
Thermocouple Extension Wire |
Color: |
Bright |
Certificate: |
ISO9001 |
Temperature Range: |
32 To 392F (0 To 200C) |
EMF Tolerance: |
+/- 2.2C Or +/- .75% |
Grade: |
Extension Grade NPX/NNX |
Positive: |
Ni-cr-si |
Negative: |
Ni-si-magnesium |
Other Name: |
Nicrosil |
Special Limits Of Error: |
+/- 1.1C Or 0.4% |
Product Name: |
Thermocouple Extension Wire |
Color: |
Bright |
Certificate: |
ISO9001 |
Temperature Range: |
32 To 392F (0 To 200C) |
EMF Tolerance: |
+/- 2.2C Or +/- .75% |
Grade: |
Extension Grade NPX/NNX |
Positive: |
Ni-cr-si |
Negative: |
Ni-si-magnesium |
Other Name: |
Nicrosil |
Special Limits Of Error: |
+/- 1.1C Or 0.4% |

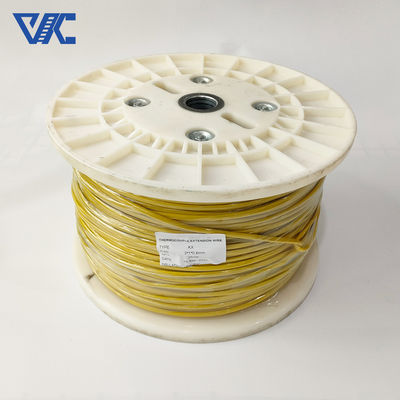

Thermocouple Extension Wire is a cable designed to extend thermocouple signals and can be used with a variety of thermocouple types, including Type K, Type N, Type E, Type J, Type T, Type B, Type R, and Type S . It provides reliable signal transmission and temperature measurement solutions and is commonly used in industrial control systems, laboratory testing and temperature monitoring applications. Thermocouple Extension Wire has good linear characteristics and anti-interference ability, can accurately transmit the weak voltage signal generated by the thermocouple, and maintain the stability and accuracy of the signal. Whether performing high-temperature furnace control, chemical process monitoring, or laboratory temperature measurement, Thermocouple Extension Wire provides reliable signal transmission to ensure the accuracy and reliability of temperature monitoring systems.
Thermocouple Wire
| Code | Wires component of the thermocouple | |
| +Positive leg | -Negative leg | |
| N | Ni-cr-si (NP) | Ni-si-magnesium (NN) |
| K | Ni-Cr (KP) | Ni-Al(Si) (KN) |
| E | Ni-Cr (EP) | Cu-Ni<constantan> (EN) |
| J | Iron (JP) | Cu-Ni<constantan> (JN) |
| T | Copper (TP) | Cu-Ni<constantan> (TN) |
Standards
| ASTM | ANSI | IEC | DIN | BS | NF | JIS | GOST |
| (American Society for Testing and Materials) E 230 | (American National Standard Institute) MC 96.1 | (European Standard by the International Electrotechnical Commission 584)-1/2/3 | (Deutsche Industrie Normen) EN 60584 -1/2 | (British Standards) 4937.1041, EN 60584 - 1/2 | (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 | (Japanese Industrial Standards) C 1602 - C 1610 | (Unification of the Russian Specifications) 3044 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
