Product Details
Place of Origin: China
Brand Name: Victory
Certification: CE,ROHS,ISO 9001
Model Number: K,N,E,J,T,B,R,S Types
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 5

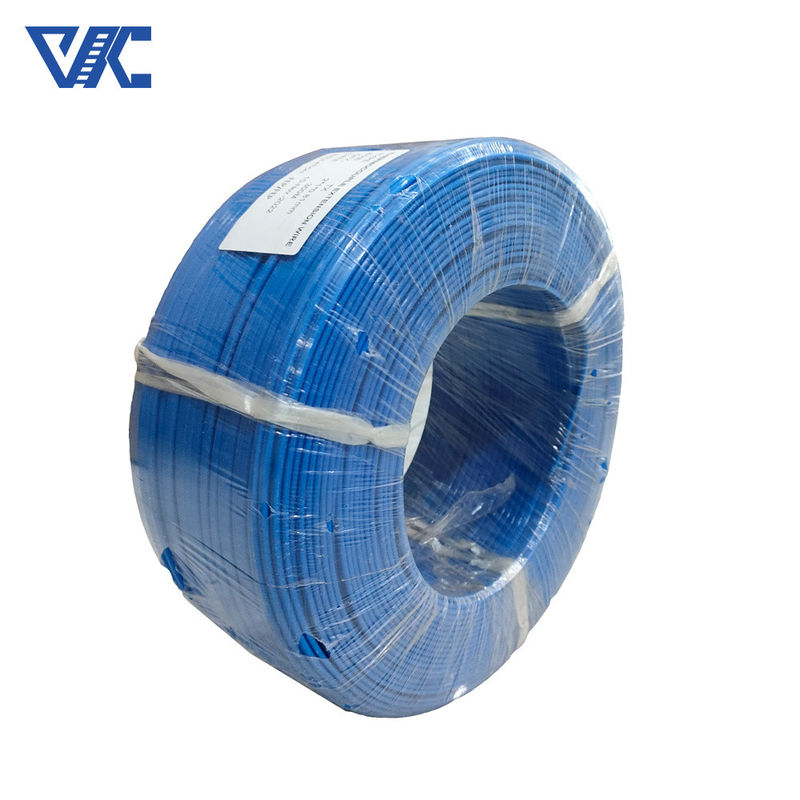

Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |
Thermocouple Extension Wire |
Color: |
Bright |
Certificate: |
ISO9001 |
Temperature Range: |
32 To 392F (0 To 200C) |
EMF Tolerance: |
+/- 2.2C Or +/- .75% |
Grade: |
Extension Grade NPX/NNX |
Positive: |
Ni-cr-si |
Negative: |
Ni-si-magnesium |
Other Name: |
Nicrosil |
Special Limits Of Error: |
+/- 1.1C Or 0.4% |
Product Name: |
Thermocouple Extension Wire |
Color: |
Bright |
Certificate: |
ISO9001 |
Temperature Range: |
32 To 392F (0 To 200C) |
EMF Tolerance: |
+/- 2.2C Or +/- .75% |
Grade: |
Extension Grade NPX/NNX |
Positive: |
Ni-cr-si |
Negative: |
Ni-si-magnesium |
Other Name: |
Nicrosil |
Special Limits Of Error: |
+/- 1.1C Or 0.4% |
Thermocouple Extension Wire is a cable designed to extend thermocouple signals and can be used in a variety of thermocouple types including Type K, Type N, Type E, Type J, Type T, Type B, Type R, and Type S. It plays a key role in temperature measurement and control applications.
Thermocouple Extension Wire is designed to transmit thermocouple signals from the measurement point to an instrumentation or control system for accurate temperature measurement and monitoring. This cable uses thermocouple wires made of two different metals to form a thermocouple loop, and the temperature value is determined by measuring the temperature difference between the two contacts. Its special structure and material selection ensure good linear characteristics and stability to accurately capture and transmit weak thermocouple voltage signals.
Thermocouple Extension Wire has excellent anti-interference ability and can effectively resist the effects of electromagnetic interference, noise and temperature changes on signals. This enables it to stably transmit reliable temperature data in industrial environments and ensure the accuracy of temperature measurement.
Thermocouple Wire
| Code | Wires component of the thermocouple | |
| +Positive leg | -Negative leg | |
| N | Ni-cr-si (NP) | Ni-si-magnesium (NN) |
| K | Ni-Cr (KP) | Ni-Al(Si) (KN) |
| E | Ni-Cr (EP) | Cu-Ni<constantan> (EN) |
| J | Iron (JP) | Cu-Ni<constantan> (JN) |
| T | Copper (TP) | Cu-Ni<constantan> (TN) |
Standards
| ASTM | ANSI | IEC | DIN | BS | NF | JIS | GOST |
| (American Society for Testing and Materials) E 230 | (American National Standard Institute) MC 96.1 | (European Standard by the International Electrotechnical Commission 584)-1/2/3 | (Deutsche Industrie Normen) EN 60584 -1/2 | (British Standards) 4937.1041, EN 60584 - 1/2 | (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 | (Japanese Industrial Standards) C 1602 - C 1610 | (Unification of the Russian Specifications) 3044 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Type N Accuracy (whichever is greater):
Maximum continuous operating temperature: up to 2,300F (1,260C)
Short term use: 2,336F (1,280C)
Thermocouple grade wire, -454 to 2300F (-270 to 1,260C)
Extension wire, 32 to 392F (0 to 200C)
|
|
