Product Details
Place of Origin: China
Brand Name: Victory
Certification: ISO9001,ROHS
Model Number: N4,N6,Ni200,Ni201
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1KG
Price: 5 - 99 kilograms US$45.00
Packaging Details: Spool package with Carton box, Coil package with polybag,
Delivery Time: 7-25 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |

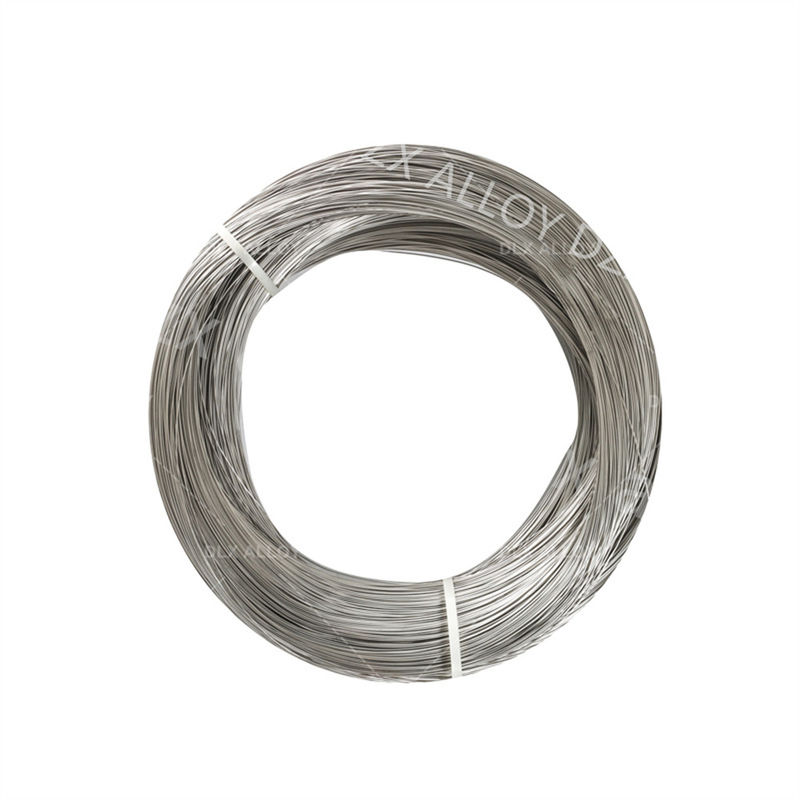

Pure Nickel Wire |
Grade: |
N4,N6,Ni200,Ni201 |
Material: |
Ni |
Elongation (≥ %): |
35% |
Ni(min): |
99% |
Shape: |
Wire |
Size: |
0.025-10mm |
Ultimate Strength (≥ MPa): |
462 |
Resistance (μΩ.m): |
15 |
Melting Point: |
1435-1446°C |
Tensile Strength Ksi (min): |
462 |
Hardness: |
S,1/4H,1/2H,3/4H,H |
Application: |
Industry,Electronic |
M.O.Q: |
1KG |
Delivery: |
7-25 Days |
Product Name: |
Pure Nickel Wire |
Grade: |
N4,N6,Ni200,Ni201 |
Material: |
Ni |
Elongation (≥ %): |
35% |
Ni(min): |
99% |
Shape: |
Wire |
Size: |
0.025-10mm |
Ultimate Strength (≥ MPa): |
462 |
Resistance (μΩ.m): |
15 |
Melting Point: |
1435-1446°C |
Tensile Strength Ksi (min): |
462 |
Hardness: |
S,1/4H,1/2H,3/4H,H |
Application: |
Industry,Electronic |
M.O.Q: |
1KG |
Delivery: |
7-25 Days |
Introduction:
1. Pure nickel wire is a type of wire made from highly pure nickel metal. It is known for its exceptional corrosion resistance and high temperature stability. This makes it an ideal choice for applications in industries such as aerospace, power generation, and petrochemicals.
2. Additionally, pure nickel wire exhibits good electrical conductivity and high thermal conductivity, making it suitable for use in various electronic and heating applications.
3. Its versatility and reliability make it a valuable material in numerous technological and industrial settings.
Parameter:
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
| N4 | 99.9 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.001 | ≤0.001 | ≤0.04 |
| N6 | 99.5 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 | 0.10 |
| Ni201 | ≥99.9 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
| Ni200 | ≥99.6 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.15 | / | ≤0.01 | / | ≤0.40 |
| Physical Data | |
| Density | 8.89g/cm3 |
| Specific Heat | 0.109(456 J/kg.ºC) |
| Electrical Resistivity | 0.096×10-6ohm.m |
| Melting Point | 1435-1446ºC |
| Thermal Conductivity | 70.2 W/m-K |
| Mean Coeff Thermal Expansion | 13.3×10-6m/m.ºC |
| Typical Mechanical Properties | |
| Mechanical Properties | Nickel 200 |
| Tensile Strength | 462 Mpa |
| Yield Strength | 148 Mpa |
| Elongation | 47% |
Features of pure nickel wire:
1. Corrosion resistance: Pure nickel wire exhibits excellent resistance to corrosion, making it highly durable in corrosive environments.
2. High temperature stability: Pure nickel wire maintains its physical and chemical properties even at high temperatures, making it suitable for use in extreme heat conditions.
3. Electrical and thermal conductivity: Pure nickel wire has good electrical conductivity and high thermal conductivity, making it ideal for applications that require efficient transmission of electricity or heat.
|
|
| |
|
