Product Details
Place of Origin: China
Brand Name: Victory
Certification: ISO9001,ROHS
Model Number: N4,N6,Ni200,Ni201
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1KG
Price: 5 - 99 kilograms US$45.00
Packaging Details: Spool package with Carton box, Coil package with polybag,
Delivery Time: 7-25 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |
Pure Nickel Wire |
Grade: |
N4,N6,Ni200,Ni201 |
Material: |
Ni |
Elongation (≥ %): |
35% |
Ni(min): |
99% |
Shape: |
Wire |
Size: |
0.025-10mm |
Ultimate Strength (≥ MPa): |
462 |
Resistance (μΩ.m): |
15 |
Melting Point: |
1435-1446°C |
Tensile Strength Ksi (min): |
462 |
Hardness: |
S,1/4H,1/2H,3/4H,H |
Application: |
Industry,Electronic |
M.O.Q: |
1KG |
Delivery: |
7-25 Days |
Product Name: |
Pure Nickel Wire |
Grade: |
N4,N6,Ni200,Ni201 |
Material: |
Ni |
Elongation (≥ %): |
35% |
Ni(min): |
99% |
Shape: |
Wire |
Size: |
0.025-10mm |
Ultimate Strength (≥ MPa): |
462 |
Resistance (μΩ.m): |
15 |
Melting Point: |
1435-1446°C |
Tensile Strength Ksi (min): |
462 |
Hardness: |
S,1/4H,1/2H,3/4H,H |
Application: |
Industry,Electronic |
M.O.Q: |
1KG |
Delivery: |
7-25 Days |
Introduction:

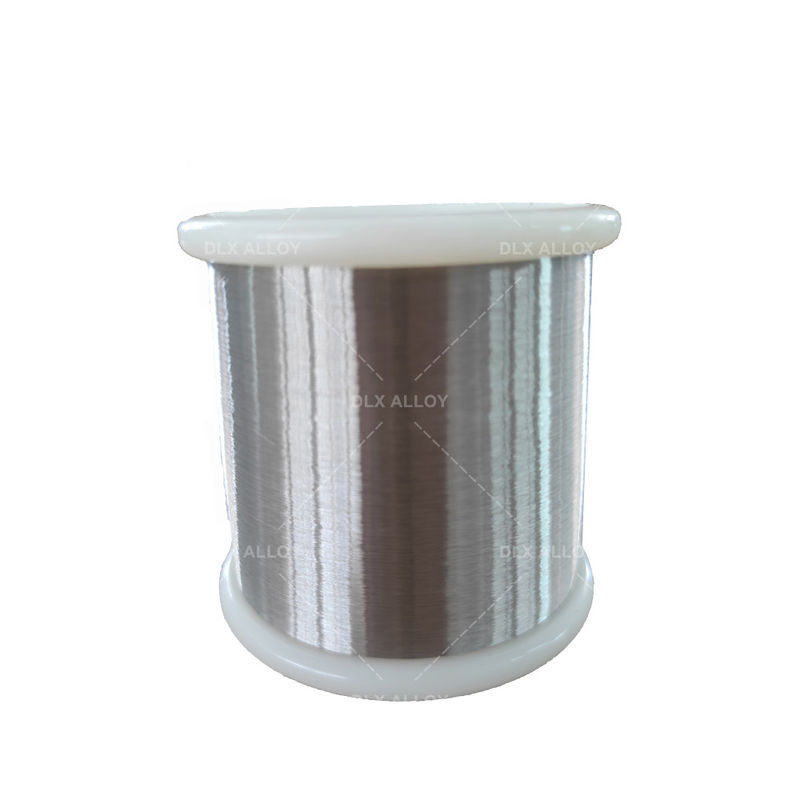

1. Pure nickel wire with a diameter of 0.025mm is a fine wire made from highly pure nickel metal. It offers the same exceptional properties as other pure nickel wire but in a more delicate form.
2. With its high corrosion resistance, this ultra-fine pure nickel wire is ideal for applications that require precise and intricate components. It can be used in industries such as electronics, medical devices, and precision instrumentation.
3. The thin diameter of 0.025mm allows for greater flexibility and versatility in design and manufacturing processes. It can be easily formed, shaped, and woven into intricate patterns or used as a heating element in miniature devices.
Specification:
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
| N4 | 99.9 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.001 | ≤0.001 | ≤0.04 |
| N6 | 99.5 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 | 0.10 |
| Ni201 | ≥99.9 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
| Ni200 | ≥99.6 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.15 | / | ≤0.01 | / | ≤0.40 |
| Physical Data | |
| Density | 8.89g/cm3 |
| Specific Heat | 0.109(456 J/kg.ºC) |
| Electrical Resistivity | 0.096×10-6ohm.m |
| Melting Point | 1435-1446ºC |
| Thermal Conductivity | 70.2 W/m-K |
| Mean Coeff Thermal Expansion | 13.3×10-6m/m.ºC |
| Typical Mechanical Properties | |
| Mechanical Properties | Nickel 200 |
| Tensile Strength | 462 Mpa |
| Yield Strength | 148 Mpa |
| Elongation | 47% |
Application:
1. Electronics: The ultra-fine pure nickel wire is used in electronics for applications such as microelectronics, circuitry, and miniature sensors. It is often used as a conductor for electrical connections in compact electronic devices.
2. Medical Devices: The thin pure nickel wire is utilized in medical devices, including catheters, pacemakers, and neurostimulation devices. It can be used as a component in medical leads and electrodes due to its biocompatibility and electrical conductivity.
3. Precision Instrumentation: Pure nickel wire of this size is employed in precision instrumentation, including analytical instruments, scientific equipment, and testing devices. It can be used for delicate wire-wound resistors or as a heating element in small, precise sensors.
|
|
|
|
