Product Details
Place of Origin: China
Brand Name: Victory
Certification: ISO9001,ROHS
Model Number: N4,N6,Ni200,Ni201
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1KG
Price: 5 - 99 kilograms US$45.00
Packaging Details: Spool package with Carton box, Coil package with polybag,
Delivery Time: 7-25 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |

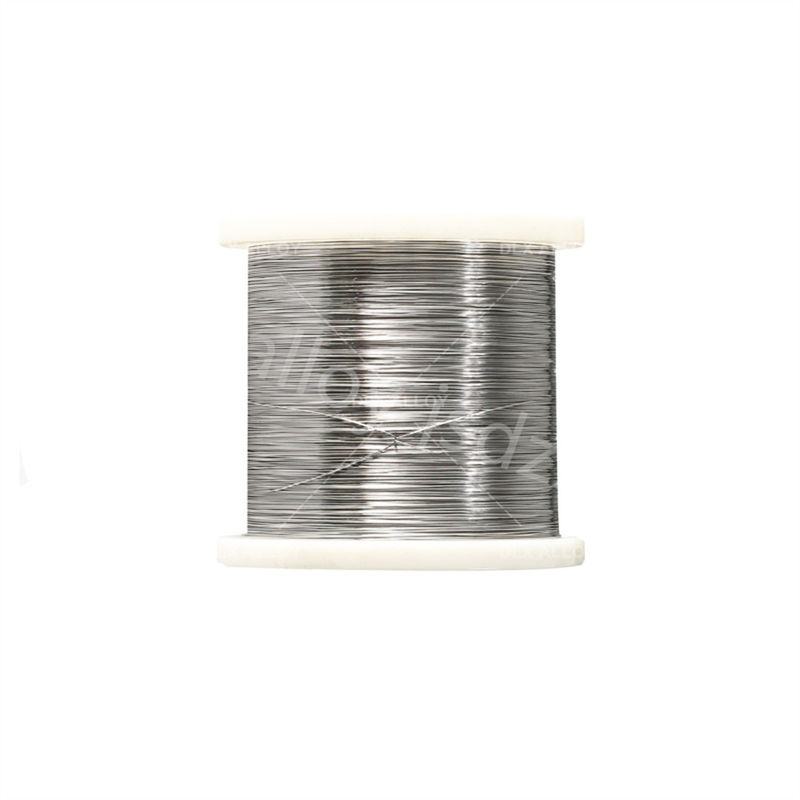

Pure Nickel Wire |
Grade: |
N4,N6,Ni200,Ni201 |
Material: |
Ni |
Elongation (≥ %): |
35% |
Ni(min): |
99% |
Shape: |
Wire |
Size: |
0.025-10mm |
Ultimate Strength (≥ MPa): |
462 |
Resistance (μΩ.m): |
15 |
Melting Point: |
1435-1446°C |
Tensile Strength Ksi (min): |
462 |
Hardness: |
S,1/4H,1/2H,3/4H,H |
Application: |
Industry,Electronic |
M.O.Q: |
1KG |
Delivery: |
7-25 Days |
Product Name: |
Pure Nickel Wire |
Grade: |
N4,N6,Ni200,Ni201 |
Material: |
Ni |
Elongation (≥ %): |
35% |
Ni(min): |
99% |
Shape: |
Wire |
Size: |
0.025-10mm |
Ultimate Strength (≥ MPa): |
462 |
Resistance (μΩ.m): |
15 |
Melting Point: |
1435-1446°C |
Tensile Strength Ksi (min): |
462 |
Hardness: |
S,1/4H,1/2H,3/4H,H |
Application: |
Industry,Electronic |
M.O.Q: |
1KG |
Delivery: |
7-25 Days |
Introduction:
1. Pure nickel wire exhibits excellent ductility and malleability, allowing it to be easily shaped and formed into intricate designs.
2. Its versatility enables applications in jewelry making, crafting, and precision instrumentation, where fine wirework or precise temperature sensing is required.
3. Pure nickel wire stands as a trusted material in various industries, offering corrosion resistance, electrical conductivity, and versatility.
4. Its exceptional properties make it an indispensable component in numerous applications, from electronics to artistic creations.
Specification:
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
| N4 | 99.9 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.001 | ≤0.001 | ≤0.04 |
| N6 | 99.5 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 | 0.10 |
| Ni201 | ≥99.9 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
| Ni200 | ≥99.6 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.15 | / | ≤0.01 | / | ≤0.40 |
| Physical Data | |
| Density | 8.89g/cm3 |
| Specific Heat | 0.109(456 J/kg.ºC) |
| Electrical Resistivity | 0.096×10-6ohm.m |
| Melting Point | 1435-1446ºC |
| Thermal Conductivity | 70.2 W/m-K |
| Mean Coeff Thermal Expansion | 13.3×10-6m/m.ºC |
| Typical Mechanical Properties | |
| Mechanical Properties | Nickel 200 |
| Tensile Strength | 462 Mpa |
| Yield Strength | 148 Mpa |
| Elongation | 47% |
Applications:
1. Electronics: Pure nickel wire is used in electronics for applications such as electrical connections, circuitry, and soldering. Its high electrical conductivity and corrosion resistance make it suitable for use in components like resistors, connectors, and printed circuit boards.
2. Heating Elements: Pure nickel wire is often utilized as a heating element in applications such as electric furnaces, heating coils, and industrial heaters. Its high temperature stability and electrical resistance properties make it an ideal choice for generating controlled and efficient heat.
3. Aerospace and Aviation: Pure nickel wire finds applications in the aerospace and aviation industries due to its high temperature stability, corrosion resistance, and reliability. It is used in components like temperature sensors, strain gauges, and control systems for aircraft and spacecraft.
4. Chemical Processing: The corrosion resistance of pure nickel wire makes it suitable for use in chemical processing equipment and environments. It is used in applications such as chemical reactors, electroplating, and catalysts where resistance to corrosive substances is crucial.
|
|
| |
|
