Product Details
Place of Origin: China
Brand Name: Victory
Certification: ISO,TUV, RoHS
Model Number: N4,N6,Ni200,Ni201
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2kg
Price: 1 - 49 kilograms US$35.00
Packaging Details: Spool package with Carton box, Coil package with polybag,
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |
Pure Nickel Strip |
Grade: |
N4,N6,Ni200,Ni201 |
Metal: |
Nickel |
Ni(min): |
99.5% |
Resistance (μΩ.m): |
1.5 |
Ultimate Strength (≥ MPa): |
462 |
Elongation (≥ %): |
45 |
Surface: |
Bright |
Density (g/cm3): |
8.9 G/cm3 |
Resistivity: |
1.35±0.07 |
Melting Point(℃): |
1435-1446 ℃ |
Application: |
Chemical Industry，Battery Assembly |
M.O.Q: |
2KG |
Product Name: |
Pure Nickel Strip |
Grade: |
N4,N6,Ni200,Ni201 |
Metal: |
Nickel |
Ni(min): |
99.5% |
Resistance (μΩ.m): |
1.5 |
Ultimate Strength (≥ MPa): |
462 |
Elongation (≥ %): |
45 |
Surface: |
Bright |
Density (g/cm3): |
8.9 G/cm3 |
Resistivity: |
1.35±0.07 |
Melting Point(℃): |
1435-1446 ℃ |
Application: |
Chemical Industry，Battery Assembly |
M.O.Q: |
2KG |
Introduction:
1. Introducing our pure nickel strip – a versatile and high-performance solution designed to meet the demanding needs of various industries.
2. This strip embodies a unique combination of exceptional properties that make it an ideal choice for a wide range of applications.
3. Our pure nickel strip excels in spot welding, ensuring reliable and secure connections during assembly processes. Its superior welding capabilities provide peace of mind, knowing that your components will be securely joined.
4. With its low electrical resistance, our pure nickel strip minimizes power loss and maximizes energy transfer efficiency.
5. This property is crucial in applications where every bit of energy counts, enabling optimal performance and cost savings.
Applications:
1. Excellent corrosion resistance: The pure nickel strip exhibits exceptional resistance to corrosion in different environments, ensuring long-term durability and reliability.
2. High thermal conductivity: With its excellent heat transfer properties, our pure nickel strip facilitates efficient thermal management, making it an excellent choice for applications that require effective heat dissipation.
3. Superior electrical conductivity: The pure nickel strip boasts high electrical conductivity, enabling efficient energy transfer and minimizing power loss in electrical systems.
4. Magnetic properties: Our pure nickel strip possesses magnetic characteristics, making it suitable for applications where magnetic properties are required, such as in electromagnetic devices.
|
Grade
|
Ni+Co
|
Cu
|
Si
|
Mn
|
C
|
Mg
|
S
|
P
|
Fe
|
|
N4
|
99.8
|
0.015
|
0.03
|
0.002
|
0.01
|
0.01
|
0.001
|
0.001
|
0.04
|
|
N6
|
99.6
|
0.10
|
0.10
|
0.05
|
0.10
|
0.10
|
0.005
|
0.002
|
0.10
|
|
Ni201
|
≥99.0
|
≤0.25
|
≤0.35
|
≤0.35
|
≤0.02
|
/
|
≤0.01
|
/
|
≤0.40
|
|
Ni200
|
≥99.2
|
≤0.25
|
≤0.35
|
≤0.35
|
≤0.15
|
/
|
≤0.01
|
/
|
≤0.40
|
|

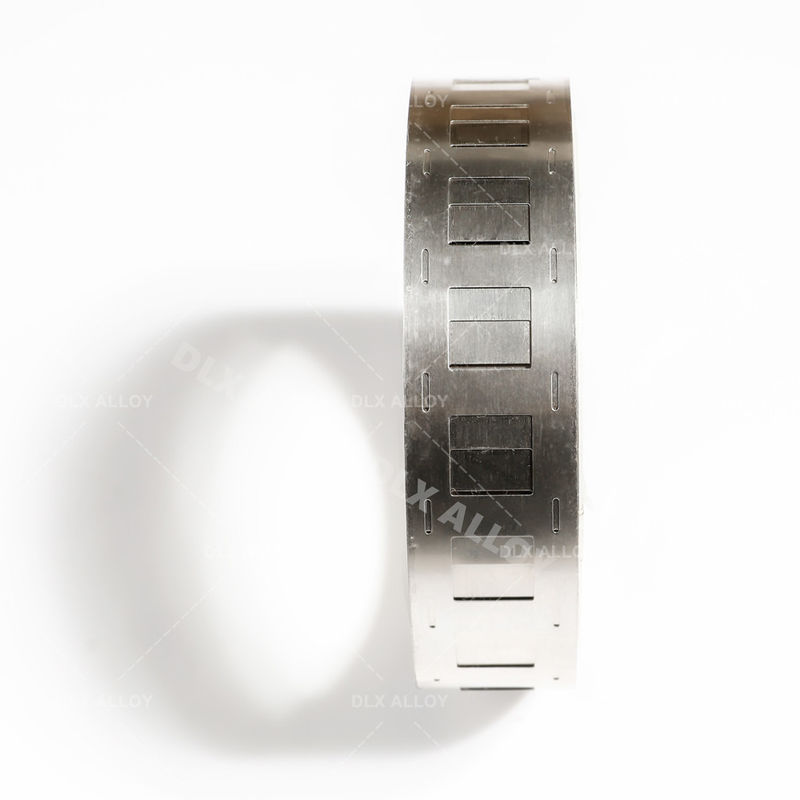

Material
|
18650/21700/26650/32650 nickel strip
|
|
Dimension
|
1P to 9P
|
|
Available Space
|
18.5mm,19mm, 19.5mm, 20.2mm
|
|
Usage
|
Use for 18650 battery pack
|
|
Package
|
Nickel strip in roll pack into carton
|
|
Physical properties
|
High temperature resistant, corrosion resistance,
|
|
Technical support
|
With imported stamping machine, Japanese Sodick, complete mold (more than 2000 sets of battery industry hardware mold), and can open mold independently.
|
|
Functions
|
Products are widely used in energy storage battery, new energy vehicles, electric bicycles, solar street lights, power tools and other energy products
|
|
Advantage
|
All materials are degreased and adopt the dry -punching technology to ensure that the product is clean.
|
| |
|
