Product Details
Place of Origin: China
Brand Name: Victory
Certification: ISO,TUV, RoHS
Model Number: N4,N6,Ni200,Ni201
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2kg
Price: 1 - 49 kilograms US$35.00
Packaging Details: Spool package with Carton box, Coil package with polybag,
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |
Pure Nickel Strip |
Grade: |
N4,N6,Ni200,Ni201 |
Metal: |
Nickel |
Ni(min): |
99.5% |
Resistance (μΩ.m): |
1.5 |
Ultimate Strength (≥ MPa): |
462 |
Elongation (≥ %): |
45 |
Surface: |
Bright |
Density (g/cm3): |
8.9 G/cm3 |
Resistivity: |
1.35±0.07 |
Melting Point(℃): |
1435-1446 ℃ |
Application: |
Chemical Industry，Battery Assembly |
M.O.Q: |
2KG |
Product Name: |
Pure Nickel Strip |
Grade: |
N4,N6,Ni200,Ni201 |
Metal: |
Nickel |
Ni(min): |
99.5% |
Resistance (μΩ.m): |
1.5 |
Ultimate Strength (≥ MPa): |
462 |
Elongation (≥ %): |
45 |
Surface: |
Bright |
Density (g/cm3): |
8.9 G/cm3 |
Resistivity: |
1.35±0.07 |
Melting Point(℃): |
1435-1446 ℃ |
Application: |
Chemical Industry，Battery Assembly |
M.O.Q: |
2KG |
Introduction:
1. Pure nickel strip, also known as nickel ribbon or nickel tape, is a versatile metal strip made from high-purity nickel.
2. It is widely used in various industries due to its excellent electrical conductivity, corrosion resistance, and heat resistance properties.
3. The strip is typically manufactured through a process of rolling and annealing, resulting in a uniform thickness and smooth surface.
4. Pure nickel strip is commonly available in different widths and thicknesses to suit specific application requirements.
Features:
Pure nickel strip is characterized by the following key features:
1. Excellent Electrical Conductivity: Pure nickel strip exhibits high electrical conductivity, making it an ideal choice for applications that require efficient current flow and low resistance.
2. Corrosion Resistance: Pure nickel strip possesses exceptional resistance to corrosion and oxidation, even in harsh environments.
3. Heat Resistance: Nickel has excellent heat resistance properties, and pure nickel strip can withstand high temperatures without significant deformation or loss of performance.
|
Grade
|
Ni+Co
|
Cu
|
Si
|
Mn
|
C
|
Mg
|
S
|
P
|
Fe
|
|
N4
|
99.8
|
0.015
|
0.03
|
0.002
|
0.01
|
0.01
|
0.001
|
0.001
|
0.04
|
|
N6
|
99.6
|
0.10
|
0.10
|
0.05
|
0.10
|
0.10
|
0.005
|
0.002
|
0.10
|
|
Ni201
|
≥99.0
|
≤0.25
|
≤0.35
|
≤0.35
|
≤0.02
|
/
|
≤0.01
|
/
|
≤0.40
|
|
Ni200
|
≥99.2
|
≤0.25
|
≤0.35
|
≤0.35
|
≤0.15
|
/
|
≤0.01
|
/
|
≤0.40
|
|
Material
|

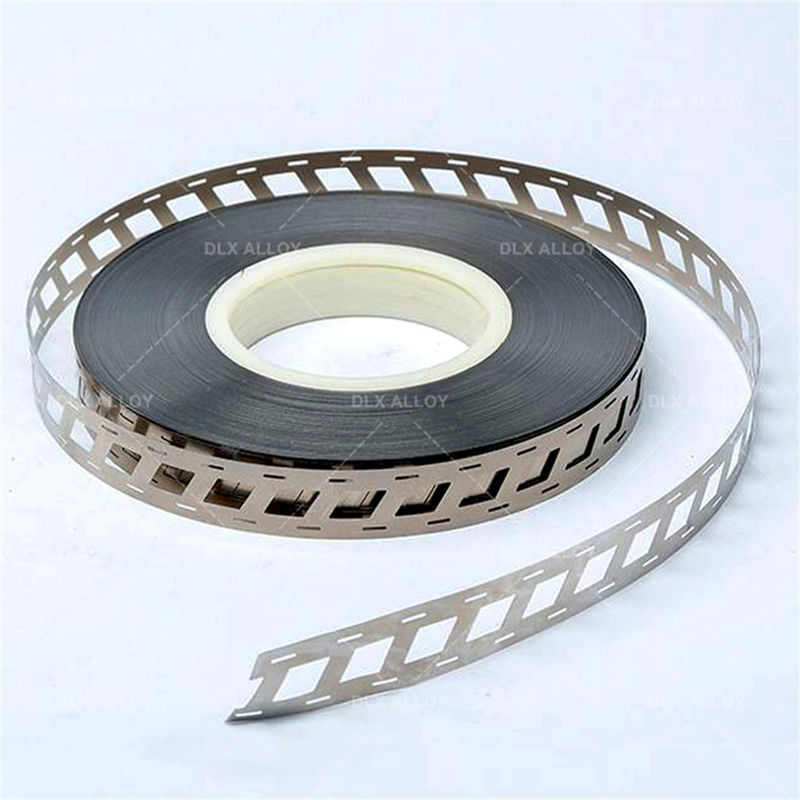

18650/21700/26650/32650 nickel strip
|
|
Dimension
|
1P to 9P
|
|
Available Space
|
18.5mm,19mm, 19.5mm, 20.2mm
|
|
Usage
|
Use for 18650 battery pack
|
|
Package
|
Nickel strip in roll pack into carton
|
|
Physical properties
|
High temperature resistant, corrosion resistance,
|
|
Technical support
|
With imported stamping machine, Japanese Sodick, complete mold (more than 2000 sets of battery industry hardware mold), and can open mold independently.
|
|
Functions
|
Products are widely used in energy storage battery, new energy vehicles, electric bicycles, solar street lights, power tools and other energy products
|
|
Advantage
|
All materials are degreased and adopt the dry -punching technology to ensure that the product is clean.
|
| |
|
