Changzhou Victory Technology Co., Ltd victory@dlx-alloy.com 86-199-06119641
Product Details
Place of Origin: China
Brand Name: Victory
Certification: ISO,TUV, RoHS
Model Number: N4,N6,Ni200,Ni201
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2kg
Price: $28-$32/kg
Packaging Details: Spool package with Carton box, Coil package with polybag,
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month

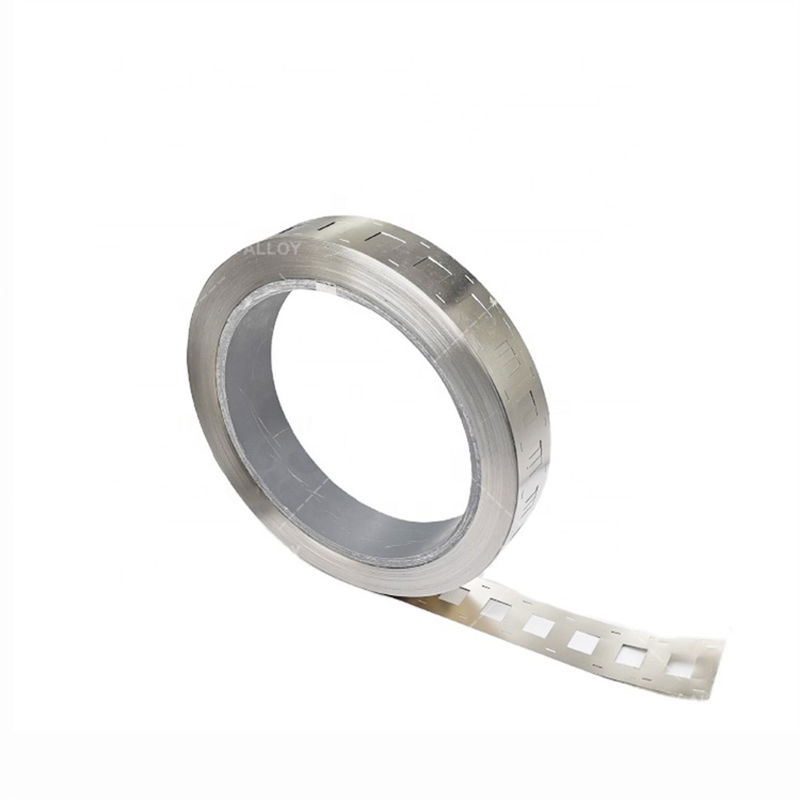

Product Name: |
Pure Nickel Strip |
Grade: |
N4,N6,Ni200,Ni201 |
Metal: |
Nickel |
Ni(min): |
99.5% |
Resistance (μΩ.m): |
1.5 |
Ultimate Strength (≥ MPa): |
462 |
Elongation (≥ %): |
45 |
Surface: |
Bright |
Density (g/cm3): |
8.9 G/cm3 |
Resistivity: |
1.35±0.07 |
Melting Point(℃): |
1435-1446 ℃ |
Application: |
Chemical Industry，Battery Assembly |
M.O.Q: |
2KG |
Product Name: |
Pure Nickel Strip |
Grade: |
N4,N6,Ni200,Ni201 |
Metal: |
Nickel |
Ni(min): |
99.5% |
Resistance (μΩ.m): |
1.5 |
Ultimate Strength (≥ MPa): |
462 |
Elongation (≥ %): |
45 |
Surface: |
Bright |
Density (g/cm3): |
8.9 G/cm3 |
Resistivity: |
1.35±0.07 |
Melting Point(℃): |
1435-1446 ℃ |
Application: |
Chemical Industry，Battery Assembly |
M.O.Q: |
2KG |
Introduction:
Our pure nickel strip stands out with its exceptional properties and performance. Here are some key highlights:
1. Superior corrosion resistance: The pure nickel strip exhibits outstanding resistance to corrosion, ensuring longevity and reliability, even in harsh and corrosive environments.
2. Excellent thermal conductivity: With its high thermal conductivity, our pure nickel strip facilitates efficient heat dissipation and thermal management, making it an ideal choice for applications that require effective temperature control.
3. High electrical conductivity: The pure nickel strip boasts excellent electrical conductivity, allowing for efficient energy transfer and reducing power losses in electrical systems.
Our pure nickel strip – a versatile and high-quality solution designed for a wide range of applications.
Features:
Pure nickel strip is characterized by the following key features:
1. Excellent corrosion resistance: Pure nickel strip exhibits exceptional resistance to corrosion, ensuring its durability and reliability in corrosive environments.
2. High electrical conductivity: The strip possesses excellent electrical conductivity, allowing for efficient flow of electrical current and minimizing power losses in electrical systems.
3. Good thermal conductivity: Pure nickel strip demonstrates good thermal conductivity, facilitating efficient heat dissipation and thermal management in various applications.
4. Ductility and malleability: The strip is highly ductile and malleable, enabling easy shaping and forming to meet specific design requirements.
5. Weldability: Pure nickel strip exhibits excellent weldability, enabling secure and reliable spot welding connections in various assembly processes.
6. Customizable dimensions: The strip is available in a range of customizable dimensions, including width and thickness, to suit specific application needs.
|
Grade
|
Ni+Co
|
Cu
|
Si
|
Mn
|
C
|
Mg
|
S
|
P
|
Fe
|
|
N4
|
99.8
|
0.015
|
0.03
|
0.002
|
0.01
|
0.01
|
0.001
|
0.001
|
0.04
|
|
N6
|
99.6
|
0.10
|
0.10
|
0.05
|
0.10
|
0.10
|
0.005
|
0.002
|
0.10
|
|
Ni201
|
≥99.0
|
≤0.25
|
≤0.35
|
≤0.35
|
≤0.02
|
/
|
≤0.01
|
/
|
≤0.40
|
|
Ni200
|
≥99.2
|
≤0.25
|
≤0.35
|
≤0.35
|
≤0.15
|
/
|
≤0.01
|
/
|
≤0.40
|
|
Material
|
18650/21700/26650/32650 nickel strip
|
|
Dimension
|
1P to 9P
|
|
Available Space
|
18.5mm,19mm, 19.5mm, 20.2mm
|
|
Usage
|
Use for 18650 battery pack
|
|
Package
|
Nickel strip in roll pack into carton
|
|
Physical properties
|
High temperature resistant, corrosion resistance,
|
|
Technical support
|
With imported stamping machine, Japanese Sodick, complete mold (more than 2000 sets of battery industry hardware mold), and can open mold independently.
|
|
Functions
|
Products are widely used in energy storage battery, new energy vehicles, electric bicycles, solar street lights, power tools and other energy products
|
|
Advantage
|
All materials are degreased and adopt the dry -punching technology to ensure that the product is clean.
|
| |
|
