Product Details
Place of Origin: China
Brand Name: Victory
Certification: CE,ROHS,ISO 9001
Model Number: Monel 400
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 5 Kg
Price: 1 - 99 kilograms $36.00
Packaging Details: monel 400 strip packed into wooden box, OEM ODM is acceptable
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |
Monel 400 Strip |
Material: |
Nickle Alloy Material |
Nickel(Min): |
63% |
Resistance (μΩ.m): |
Stable |
Powder Or Not: |
Not Powder |
Ultimate Strength (≥ MPa): |
690 |
Elongation (≥ %): |
40% |
Size: |
Customized Size |
Application: |
Industry, Construction,Boiler Pipe |
Surface: |
Acid White/Bright |
Condition: |
Annealed;Heat Treatment; |
Technique: |
Cold Drawn,Hot Rolled Forged |
Product Name: |
Monel 400 Strip |
Material: |
Nickle Alloy Material |
Nickel(Min): |
63% |
Resistance (μΩ.m): |
Stable |
Powder Or Not: |
Not Powder |
Ultimate Strength (≥ MPa): |
690 |
Elongation (≥ %): |
40% |
Size: |
Customized Size |
Application: |
Industry, Construction,Boiler Pipe |
Surface: |
Acid White/Bright |
Condition: |
Annealed;Heat Treatment; |
Technique: |
Cold Drawn,Hot Rolled Forged |
Introduction:

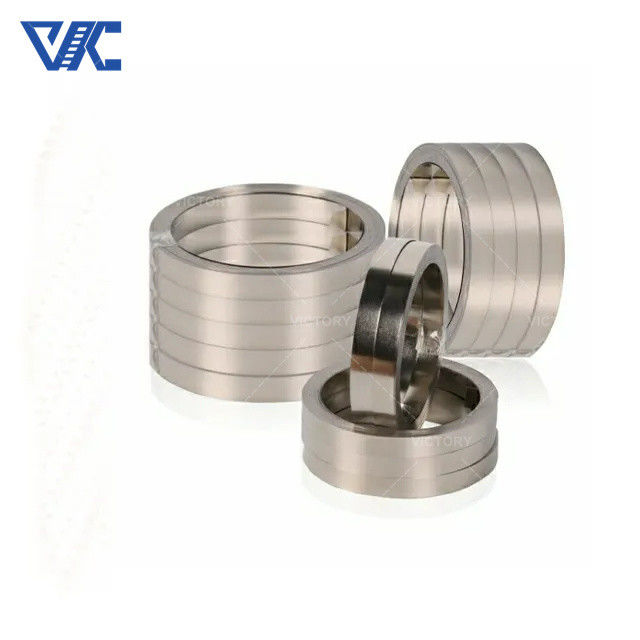

1. Monel 400 strip is a thin, flat metal sheet made from the Monel 400 alloy.
2. It is available in various thicknesses and widths to suit specific requirements.
3. The strip's composition typically consists of approximately 67% nickel and 30% copper, with small amounts of iron, manganese, and other elements.
4. This composition provides the strip with its characteristic properties.
Feature:
1. Corrosion resistance: Monel 400 strip offers exceptional resistance to a wide range of corrosive media.
2. High-strength: The strip exhibits high mechanical strength and retains its strength even at elevated temperatures.
3. Low magnetic permeability: Monel 400 strip has a low magnetic permeability.
4. Good mechanical properties: Monel 400 strip has excellent ductility.
Parameter:
|
Item
|
Ni
|
Cu
|
Fe
|
Mn
|
C
|
Si
|
S
|
|
Monel 400
|
≥63
|
28-34
|
≤2.5
|
≤2
|
≤0.3
|
≤0.5
|
≤0.025
|
|
Item
|
Density
|
Melting point
|
Tensile Strength
|
Yield Strength
|
Elongation
|
HB
|
|
Monel 400
|
8.83 g/cm3
|
1300-1390℃
|
480
|
170
|
35%
|
≥331
|
|
Monel 400
|
Bar/Rod
|
Forging
|
Pipe
|
Sheet/Strip
|
Welding Wire
|
|
Standard
|
ASTM B164
|
ASTM B564
|
ASTM B165
|
ASTM B127
|
ErNiCu-7 |
|
|
Q&A:
Q1: What are the key properties of Monel 400 strip?
A1: The key properties of Monel 400 strip include excellent corrosion resistance, high strength, good mechanical properties, and low magnetic permeability.
Q2: In which industries is Monel 400 strip commonly used?
A2: Monel 400 strip is commonly used in industries such as marine, chemical processing, oil and gas, aerospace, and electronics.
