Product Details
Place of Origin: China
Brand Name: Victory
Certification: CE,ROHS,ISO 9001
Model Number: Monel K500
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 5 Kg
Price: 1 - 99 kilograms $36.00
Packaging Details: monel 400 strip packed into wooden box, OEM ODM is acceptable
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Product Name: |
Monel K500 Strip |
Material: |
Nickle Alloy Material |
Nickel(Min): |
65% |
Resistance (μΩ.m): |
Stable |
Powder Or Not: |
Not Powder |
Ultimate Strength (≥ MPa): |
690 |
Elongation (≥ %): |
40% |
Size: |
Customized Size |
Application: |
Industry, Construction,Boiler Pipe |
Surface: |
Acid White/Bright |
Condition: |
Annealed;Heat Treatment; |
Technique: |
Cold Drawn,Hot Rolled Forged |
Product Name: |
Monel K500 Strip |
Material: |
Nickle Alloy Material |
Nickel(Min): |
65% |
Resistance (μΩ.m): |
Stable |
Powder Or Not: |
Not Powder |
Ultimate Strength (≥ MPa): |
690 |
Elongation (≥ %): |
40% |
Size: |
Customized Size |
Application: |
Industry, Construction,Boiler Pipe |
Surface: |
Acid White/Bright |
Condition: |
Annealed;Heat Treatment; |
Technique: |
Cold Drawn,Hot Rolled Forged |
Introduction:
1. Monel K500 Strip composition typically consists of approximately 65% nickel, 30% copper, 2.7% aluminum, and 2.3% titanium, along with small amounts of other elements.
2. It is a nickel-copper alloy with the addition of aluminum and titanium, which enhances its mechanical properties and provides increased strength compared to Monel 400.

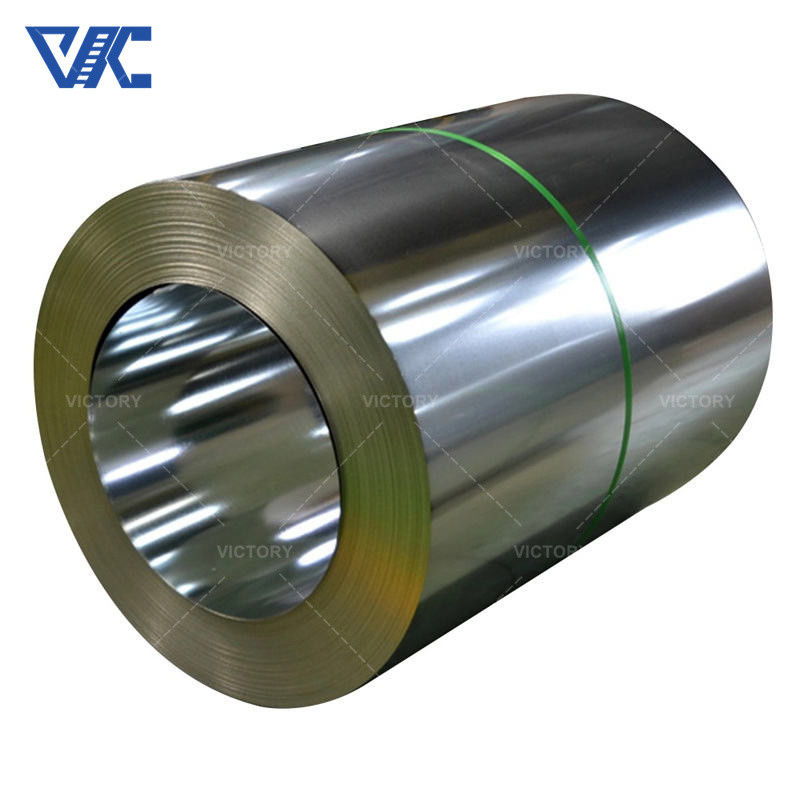

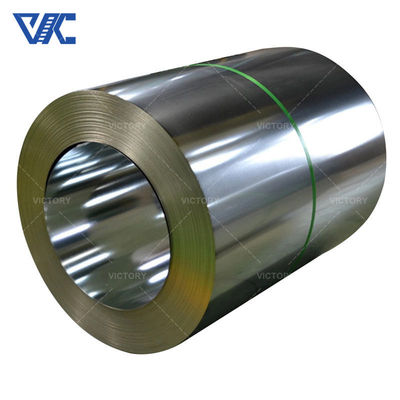

3. Monel K500 strip is a thin, flat metal sheet made from the Monel K500 alloy.
4. Monel K500 strip finds applications in industries where superior strength, corrosion resistance, and reliability are required.
Features:
1. Excellent fatigue resistance: Monel K500 strip has exceptional fatigue strength, making it suitable for applications subjected to cyclic loading and high-stress conditions.
2. Non-magnetic: The strip has low magnetic permeability, which makes it suitable for applications that require non-magnetic properties.
3. Good machinability: Monel K500 strip can be readily machined using conventional techniques.
Parameter:
|
Item
|
Ni
|
Cu
|
Al
|
Ti
|
Fe
|
Mn
|
S
|
C
|
Si
|
|
Monel K500
|
≥63
|
27-33
|
2.3-3.15
|
0.35-0.85
|
≤2
|
≤1.5
|
≤0.01
|
≤0.25
|
≤0.5
|
|
Item
|
Density
|
Melting point
|
Tensile Strength
|
Yield Strength
|
Elongation
|
|
Monel K500
|
8.05 g/cm3
|
1288-1343℃
|
1100
|
790
|
20%
|
|
Monel K500
|
Bar/Rod
|
Forging
|
Pipe
|
Sheet/Strip
|
Welding Wire
|
|
Standard
|
ASTM B864
|
AMS4676
|
ASTM B865
|
ASTM B564
|
ErNiCu-7
|
|
|
Q&A:
Q1: Can Monel K500 strip be customized to specific dimensions?
A1: Yes, Monel K500 strip can be customized to specific dimensions according to the customer's requirements.
Q2: Is it possible to request a specific surface finish for Monel K500 strip?
A2: Yes, customized surface finishes can be requested for Monel K500 strip based on the desired specifications or application needs.
