Product Details
Place of Origin: China
Brand Name: Victory
Certification: CE
Model Number: Cr20Ni80
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 5
Packaging Details: Spool package with Carton box, Coil package with polybag for Resistance wire
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Applications: |
Heating Elements, Furnaces, Electrical Components |
Nickel(Min): |
77% |
Elongation: |
≥20% |
Melting Point: |
1400-1450°C |
Electrical Resistivity: |
1.1-1.2 μΩm |
Resistivity: |
1.09+/-0.05 |
Tensile Strength: |
637MPA |
Hardness: |
HV400-500 |
Thermal Conductivity: |
15-20 W/mK |
Name: |
NiCr Alloy |
Applications: |
Heating Elements, Furnaces, Electrical Components |
Nickel(Min): |
77% |
Elongation: |
≥20% |
Melting Point: |
1400-1450°C |
Electrical Resistivity: |
1.1-1.2 μΩm |
Resistivity: |
1.09+/-0.05 |
Tensile Strength: |
637MPA |
Hardness: |
HV400-500 |
Thermal Conductivity: |
15-20 W/mK |
Name: |
NiCr Alloy |

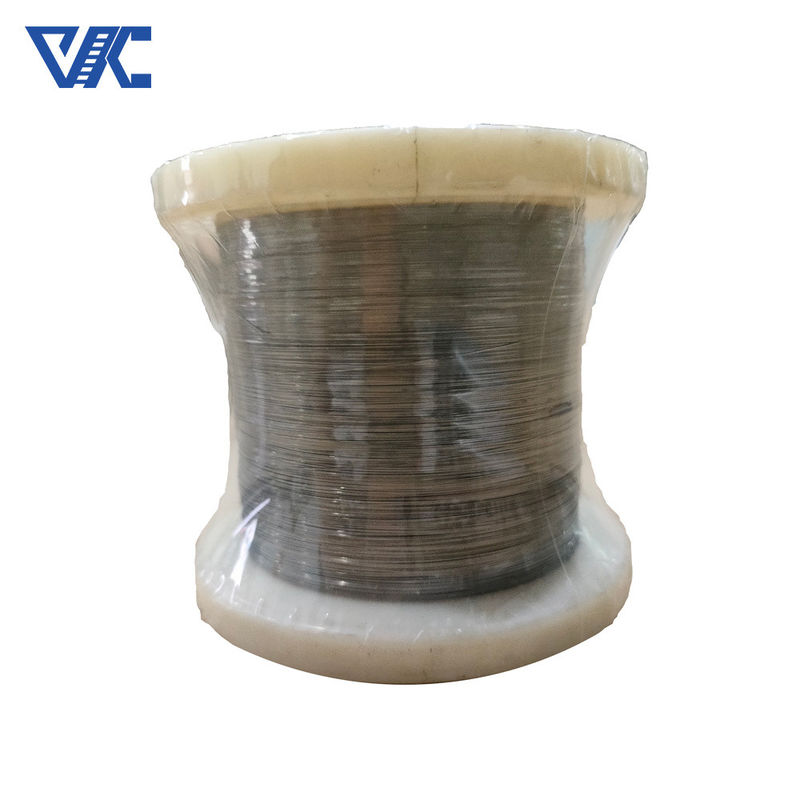

Cr20Ni80 Alloy Wire With High Nickel Content For Excellent High Temperature Resistance
Introduction:
Cr20Ni80 alloy wire is a high-temperature alloy wire, mainly composed of 20% chromium and 80% nickel. It has good high temperature resistance and can provide stable resistance characteristics in high temperature environments. This alloy wire is widely used in electric furnace heating elements, resistance welding, heaters, hot mist generators and other fields.
Mechanical behavior:
| Performance material | Cr10Ni90 | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Composición | Ni | 90 | Rest | Rest | 55.0～61.0 | 34.0～37.0 | 30.0～34.0 |
| Cr | 10 | 20.0～23.0 | 28.0～31.0 | 15.0～18.0 | 18.0～21.0 | 18.0～21.0 | |
| Fe | － | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Temperatura máxima℃ | 1300 | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Punto de fusion ℃ | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Densidad g/cm3 | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Resistividad μΩ·m,20℃ | 0.76±0.05 | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 | |
| Alargamiento a la ruptura | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
| Calor especifico J/g.℃ | － | 0.44 | 0.461 | 0.494 | 0.5 | 0.5 | |
| Conductividad térmica KJ/m.h℃ | － | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coeficiente de expansión de líneas a×10-6/(20～1000℃) | － | 18 | 17 | 17 | 19 | 19 | |
| Estructura micrográfica | － | Austenite | Austenite | Austenite | Austenite | Austenite | |
| Propiedades magnéticas | － | Nonmagnetic | Nonmagnetic | Nonmagnetic | Weak magnetic | Weak magnetic | |
| Form | Specification | |
| Wire | Diameter=0.025mm~8mm | |
| Flat wire | Width=0.40~6.0mm | Thick=0.03~0.50mm |
| Strip | width=8~250mm | Thick=0.05~3.0mm |
| Bar | Diameter=8~100mm | Long=50~1000 |
Parameters:
Chemical composition (mass fraction):
Chromium (Cr): about 20%
Nickel (Ni): about 80%
Density: approximately 8.4 g/cm3.
Melting point: approximately 1400 degrees Celsius.
Resistivity: approximately 1.09-1.13×10^-6 Ω·m (at room temperature).
Temperature coefficient: approximately 0.0004-0.0005 1/degrees Celsius (within room temperature range).
Maximum operating temperature: Typically up to 1000 degrees Celsius, depending on specific application and environmental conditions.
Packaging:
Sturdy cardboard boxes are used for packaging NiCr Alloy.
Each box has dimensions of approximately 26 cm (length) x 26 cm (width) x 30 cm (height).
The boxes are designed to provide protection to the contents during transportation.
A plastic wrap is used to seal the boxes, ensuring that the contents are shielded from dust and moisture.
The boxes are labeled with important information, including the product name, quantity, and destination.
|
|
contact us
email:victory@dlx-alloy.com
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Size dimension range:
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
NiCr series: Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30
FAQ:
What is the resistivity of Cr20Ni80 alloy wire?
The resistivity of Cr20Ni80 alloy wire is about 1.09-1.13×10^-6 Ω·m (at room temperature).
What is the melting point of Cr20Ni80 alloy wire?
The melting point of Cr20Ni80 alloy wire is about 1400 degrees Celsius.
What is the tensile strength of Cr20Ni80 alloy wire?
The tensile strength of Cr20Ni80 alloy wire is usually between 400-600 MPa.
