Product Details
Place of Origin: China
Brand Name: Victory
Model Number: Ni200 Ni201
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2 Kg
Price: 1 - 49 kilograms US$35.00
Packaging Details: Plastic film or waterproof woven bag inside, wire packed in spool put into carton,coil wire or strip wire put into wooden case
Delivery Time: 7 to 20 Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Type: |
Pure Nickel Strip |
Density (g/cm3): |
8.9 G/cm3 |
Melting Point(℃): |
1435-1446 ℃ |
Condition: |
Bright,soft |
Surface: |
Bright |
Material: |
Nickel |
Material Purity: |
>99.9% |
Conductor: |
Pure Nickel Connector |
Metal: |
Nickel |
Ni(min): |
99.5% |
Application: |
Chemical Industry，Battery Assembly |
Type: |
Pure Nickel Strip |
Density (g/cm3): |
8.9 G/cm3 |
Melting Point(℃): |
1435-1446 ℃ |
Condition: |
Bright,soft |
Surface: |
Bright |
Material: |
Nickel |
Material Purity: |
>99.9% |
Conductor: |
Pure Nickel Connector |
Metal: |
Nickel |
Ni(min): |
99.5% |
Application: |
Chemical Industry，Battery Assembly |

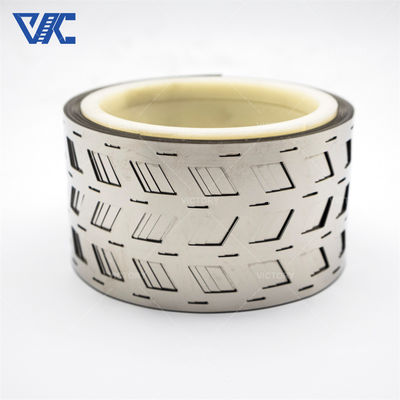

Pure nickel strip is a metal strip with high purity and no impurities, which is made of pure nickel metal. It has uniform thickness and width, can be customized according to customer needs, and is suitable for various application fields.
Pure nickel belt has excellent corrosion resistance and can maintain good stability in corrosive media. It can resist the erosion of various chemical substances such as acids, alkalis, and salt solutions, so it is widely used in chemical industry, petrochemical industry, marine engineering and other fields.
Pure nickel tape also has excellent electrical and thermal conductivity and is suitable for use in electronic components, heat exchangers, batteries and other fields. Nickel is a good conductive metal that can effectively conduct electric current and can also quickly transfer heat to meet the requirements of different applications for electrical and thermal conductivity.
Compared with other materials, the application of pure nickel strips in battery connectors has the following advantages:
1. Low resistance: Compared to other materials, pure nickel tape has a lower resistance, providing lower resistive losses and higher current transfer efficiency.
2. Corrosion resistance: Pure nickel strips have high corrosion resistance and can work stably in corrosive media for a long time, reducing corrosion losses of battery connectors.
3. High-temperature stability: Pure nickel tape has good high-temperature stability and can maintain stable electrical properties and mechanical strength in high-temperature environments, making it suitable for high-temperature battery applications.
1. Excellent electrical conductivity: Pure nickel tape has good electrical conductivity and can provide a low-resistance current conduction path to ensure high-efficiency transmission of electrical energy between battery connectors.
2. Good welding performance: Pure nickel strips are easy to weld and can make reliable welding connections with other battery components. This welded connection provides stable battery performance and good mechanical strength.
3. High temperature tolerance: Pure nickel tape has good high temperature stability and can maintain stable electrical properties and mechanical strength in high temperature environments, making it suitable for high temperature battery applications.
4. Anti-corrosion performance: Pure nickel strips have high corrosion resistance and can work stably for a long time in corrosive media, extending the service life of the battery connector.
5. Mechanical strength and flexibility: Pure nickel tape has moderate mechanical strength and flexibility, which can adapt to the deformation and vibration of battery components and maintain the stability of the connection.
| Attribute | Value |
|---|---|
| Application | Chemical Industry, Battery Assembly |
| Conductor | Pure Nickel Connector |
| Melting Point(℃) | 1435-1446 ℃ |
| Ultimate Strength (≥ MPa) | 462 |
| Power Or Not | Not |
| Type | Pure Nickel Strip |
| Material Purity | >99.9% |
| Purity | 99.5%Min/ 99.9%Min(customized) |
| Elongation (≥ %) | 45 |
| Resistance (μΩ.m) | 1.5 |
|
Grade
|
Ni+Co
|
Cu
|
Si
|
Mn
|
C
|
Mg
|
S
|
P
|
Fe
|
|
N4
|
99.8
|
0.015
|
0.03
|
0.002
|
0.01
|
0.01
|
0.001
|
0.001
|
0.04
|
|
N6
|
99.6
|
0.10
|
0.10
|
0.05
|
0.10
|
0.10
|
0.005
|
0.002
|
0.10
|
|
Ni201
|
≥99.0
|
≤0.25
|
≤0.35
|
≤0.35
|
≤0.02
|
/
|
≤0.01
|
/
|
≤0.40
|
|
Ni200
|
≥99.2
|
≤0.25
|
≤0.35
|
≤0.35
|
≤0.15
|
/
|
≤0.01
|
/
|
≤0.40
|
|
Material
|
18650/21700/26650/32650 nickel strip
|
|
Dimension
|
1P to 9P
|
|
Available Space
|
18.5mm,19mm, 19.5mm, 20.2mm
|
|
Usage
|
Use for 18650 battery pack
|
|
Package
|
Nickel strip in roll pack into carton
|
|
Physical properties
|
High temperature resistant, corrosion resistance,
|
|
Technical support
|
With imported stamping machine, Japanese Sodick, complete mold (more than 2000 sets of battery industry hardware mold), and can open mold independently.
|
|
Functions
|
Products are widely used in energy storage battery, new energy vehicles, electric bicycles, solar street lights, power tools and other energy products
|
|
Advantage
|
All materials are degreased and adopt the dry -punching technology to ensure that the product is clean.
|
contact us
email:victory@dlx-alloy.com
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
|
|
What are the applications of pure nickel strips in the energy field?
Pure nickel ribbons are often used in the manufacturing of new energy equipment such as fuel cells and solar cells in the energy field.
Does Pure Nickel Strip provide technical support and consulting services?
Yes, pure nickel strip suppliers usually provide technical support and consulting services to help customers solve technical problems and provide relevant suggestions.
In what form is pure nickel strip usually supplied?
Pure nickel strip is usually supplied in rolls and can be cut and processed as required.
